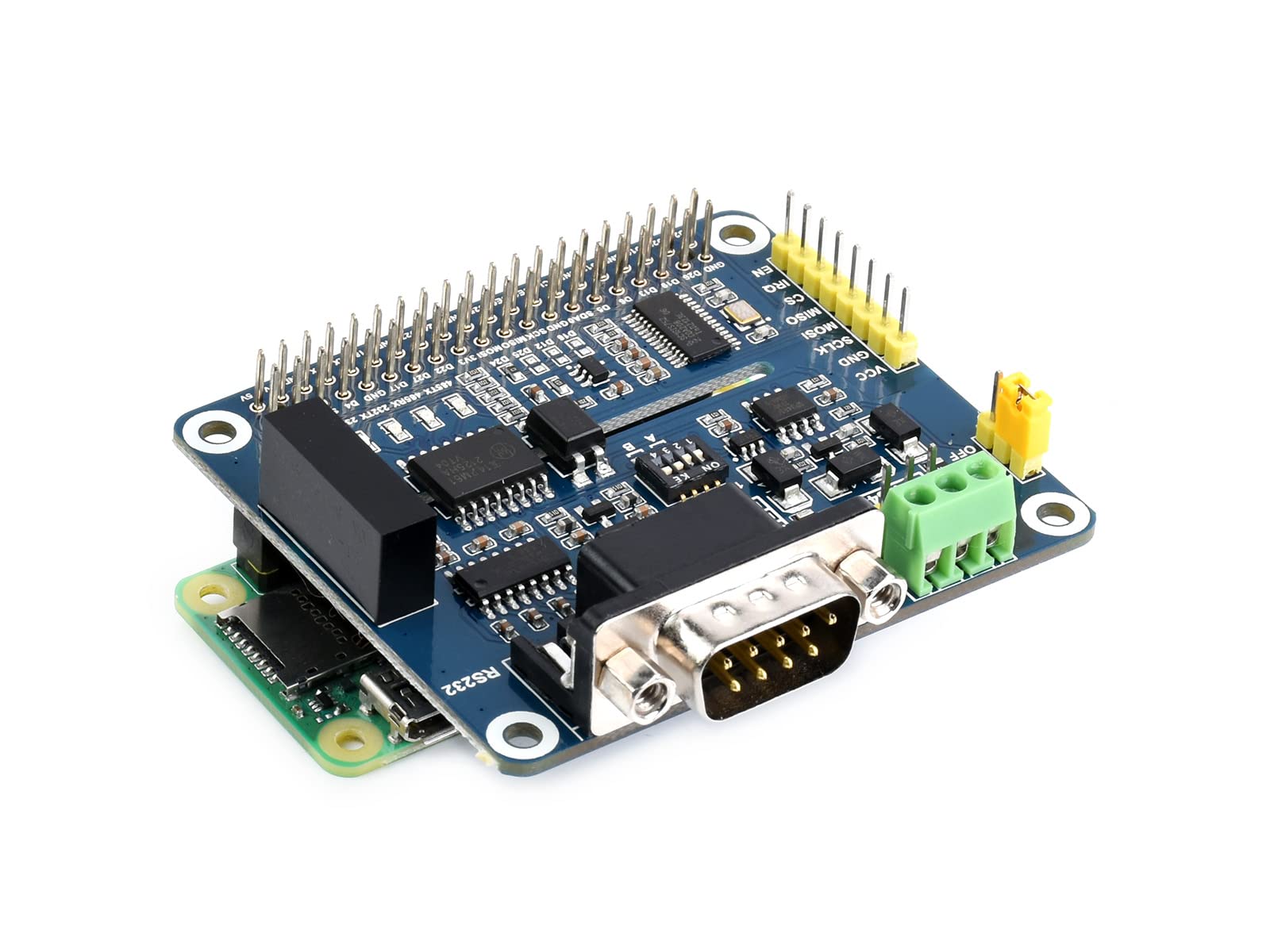

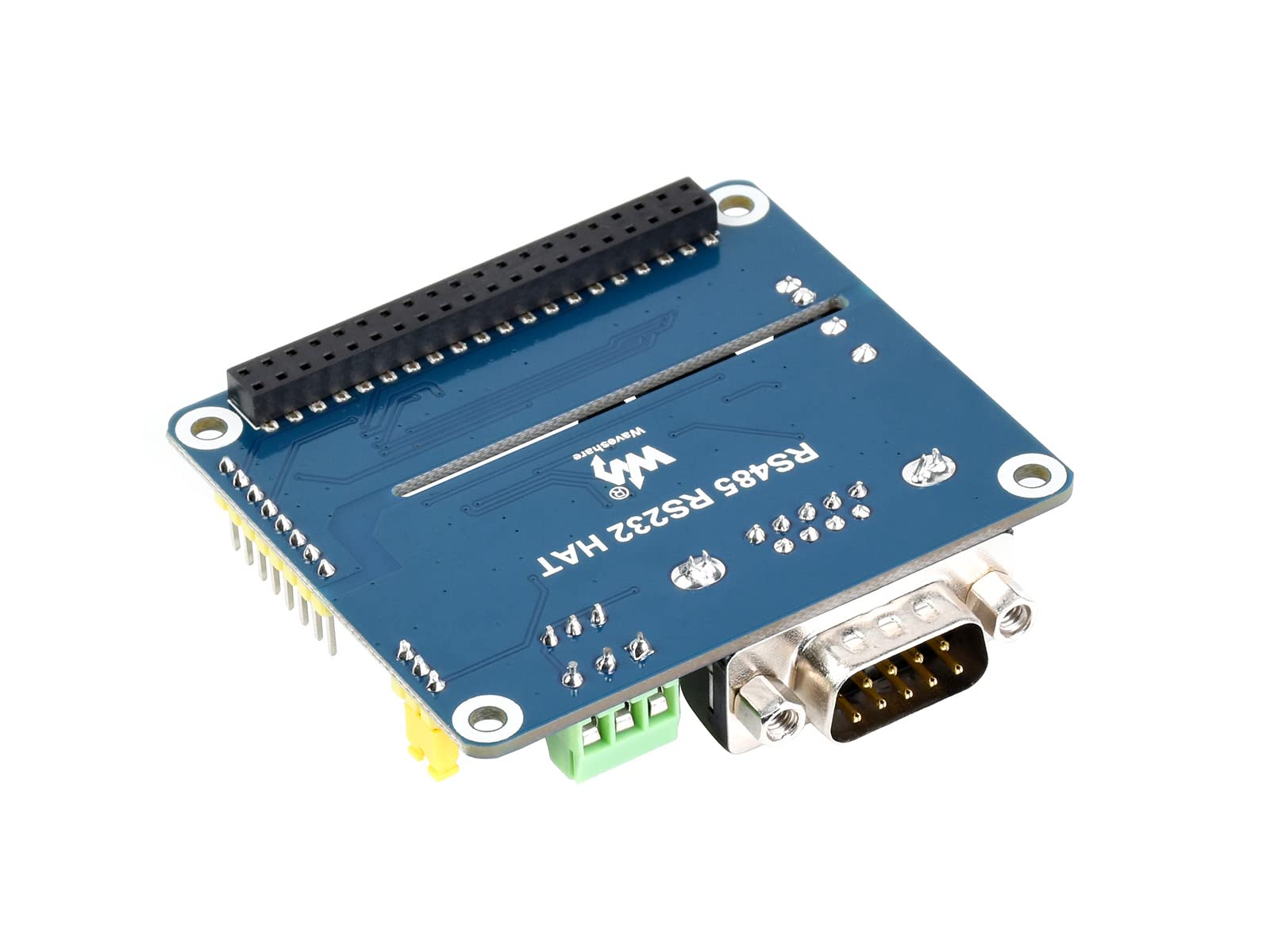

RS485 RS232 HAT for Raspberry Pi Isolated RS485 RS232 Expansion Board Adopt SC16IS752, SP3485, SP3232 Scheme, Converts SPI to RS485, RS232, Date Rate up to 921600bps, Multi Protection Circuits

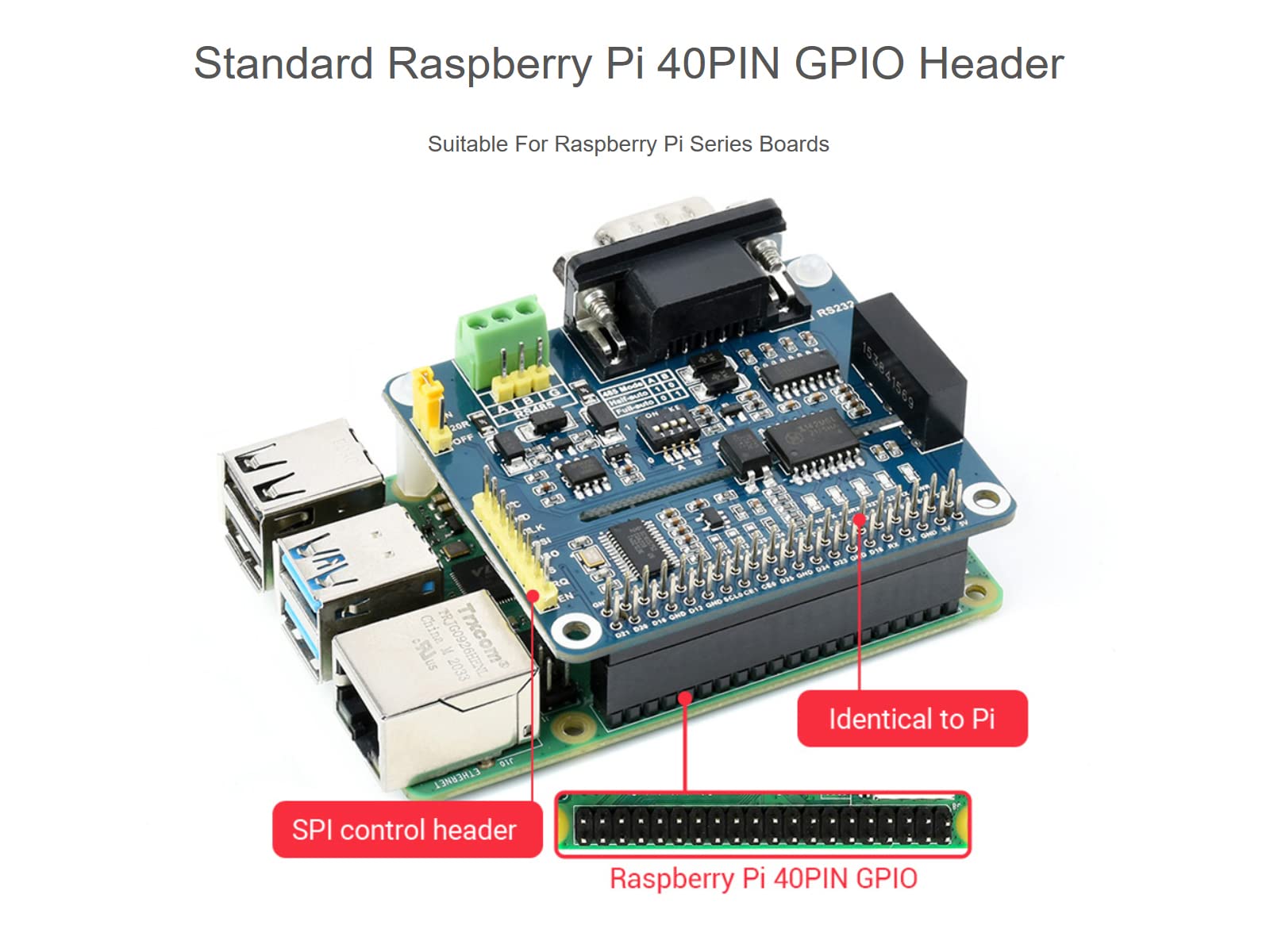

• RS485 RS232 HAT for Raspberry Pi 4B/3B+/3B/2B/Zero/Zero 2 W, with standard Raspberry Pi 40PIN GPIO extension header, suitable for Raspberry Pi series boards

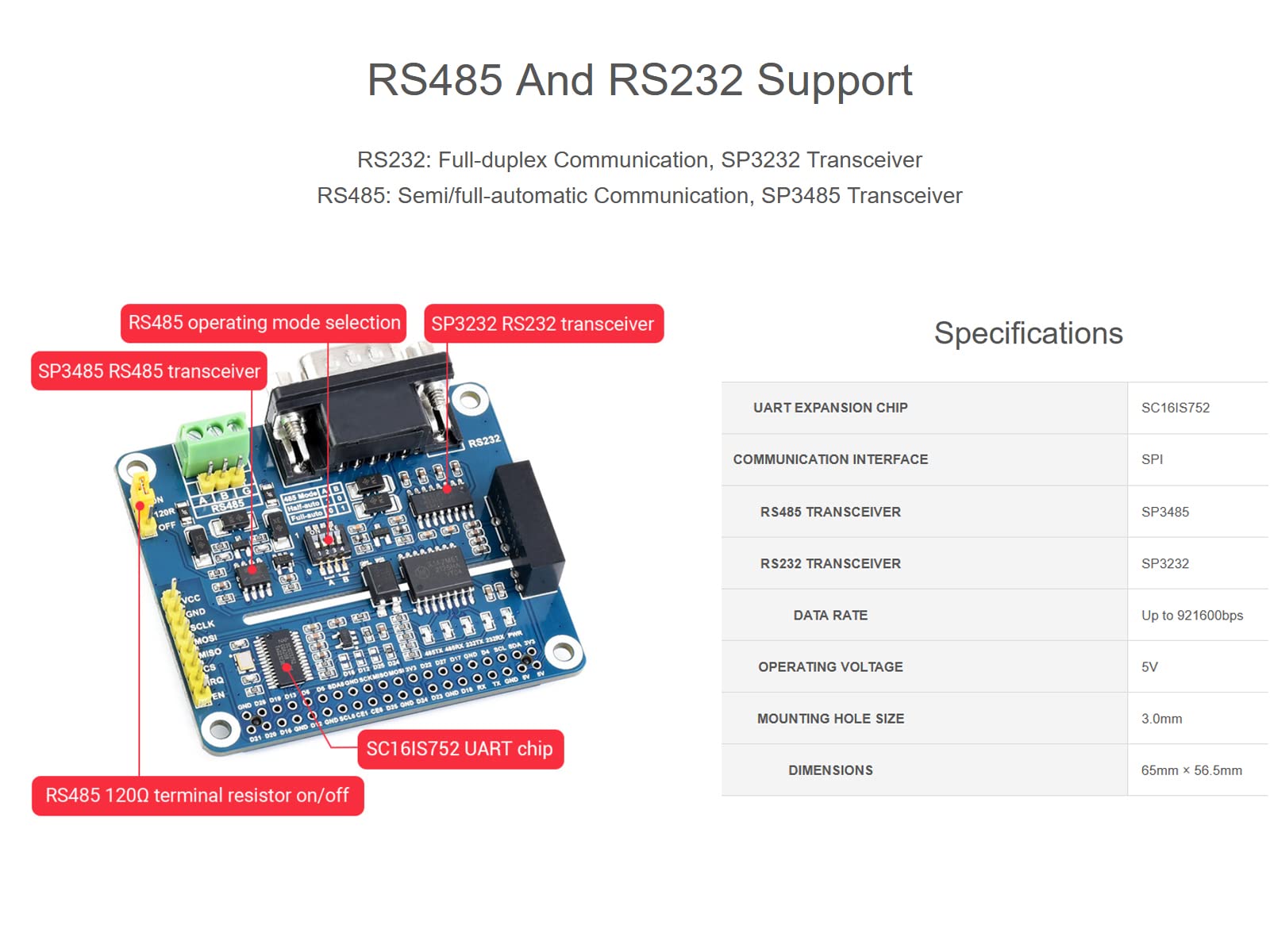

• RS485 RS232 expansion HAT board adopt the combination scheme of SC16IS752 uart expansion chip, SP3485 RS485 transceiver and SP3232 RS232 transceiver, converts SPI to one RS485 and one RS232

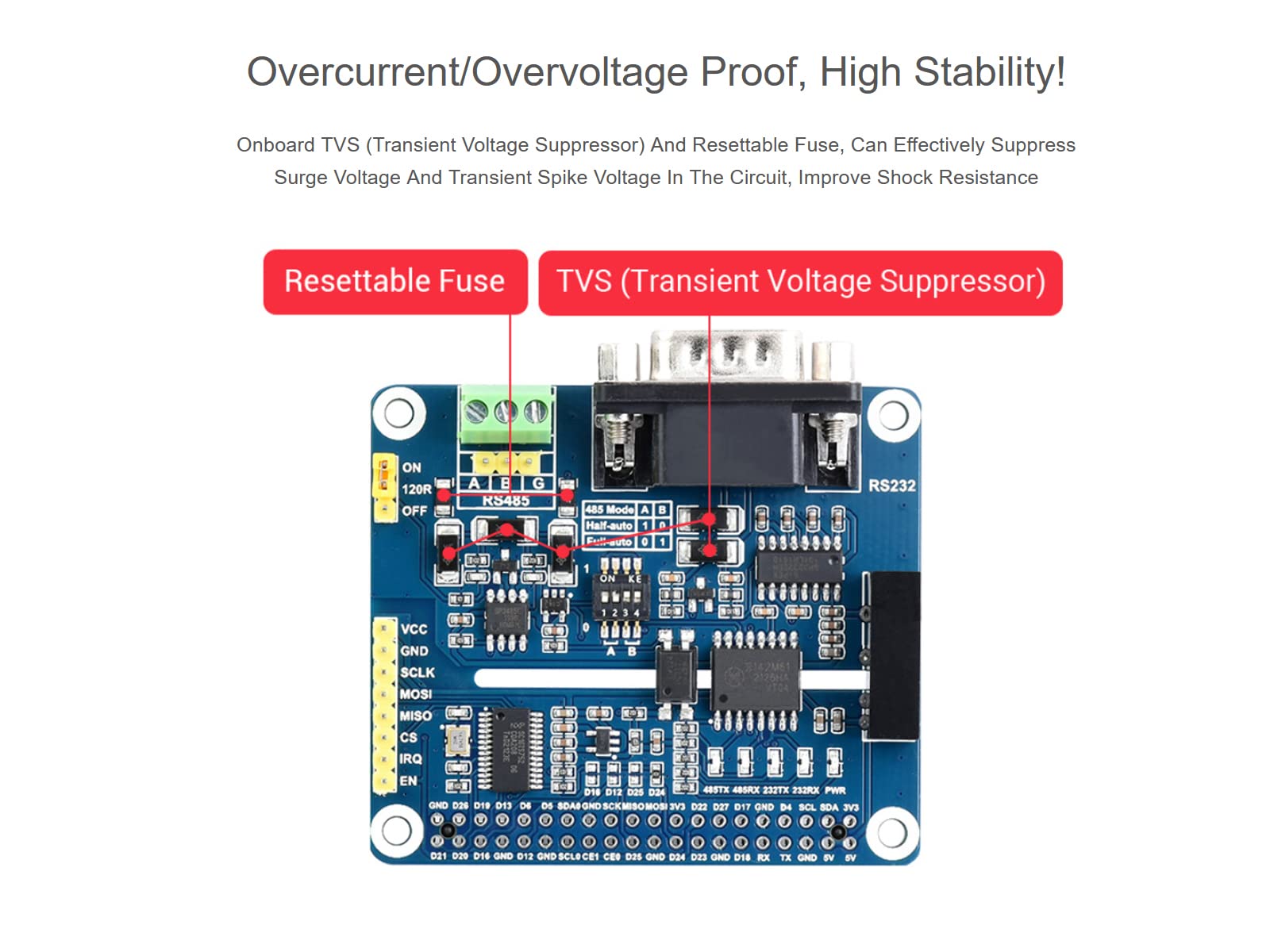

• Built-in power isolation, ADI magnetic coupling isolation and TVS, resettable fuse and other protection circuits, can effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic

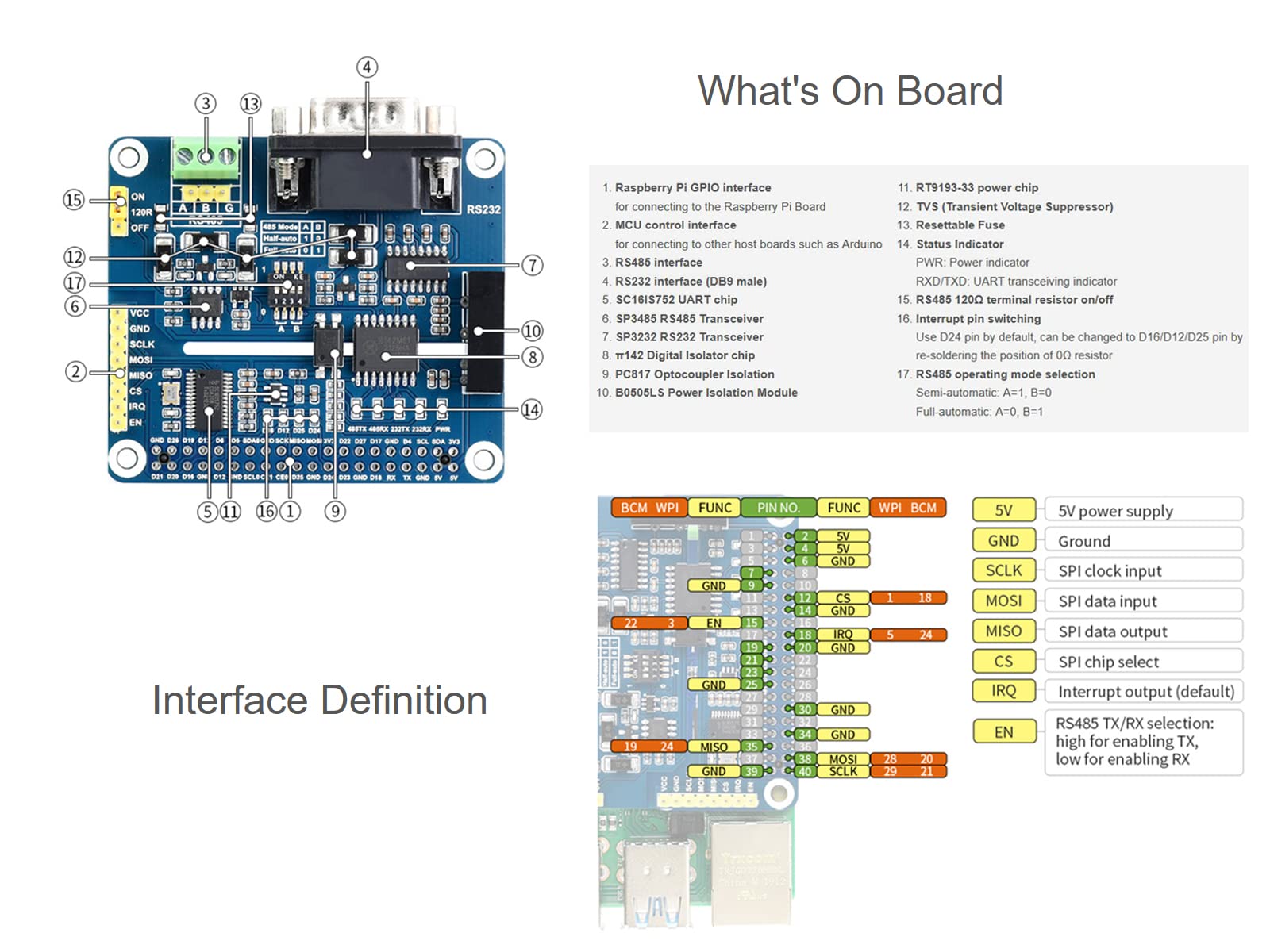

• Breakout SPI control pins, for connecting with Arduino and other host control boards
• Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!

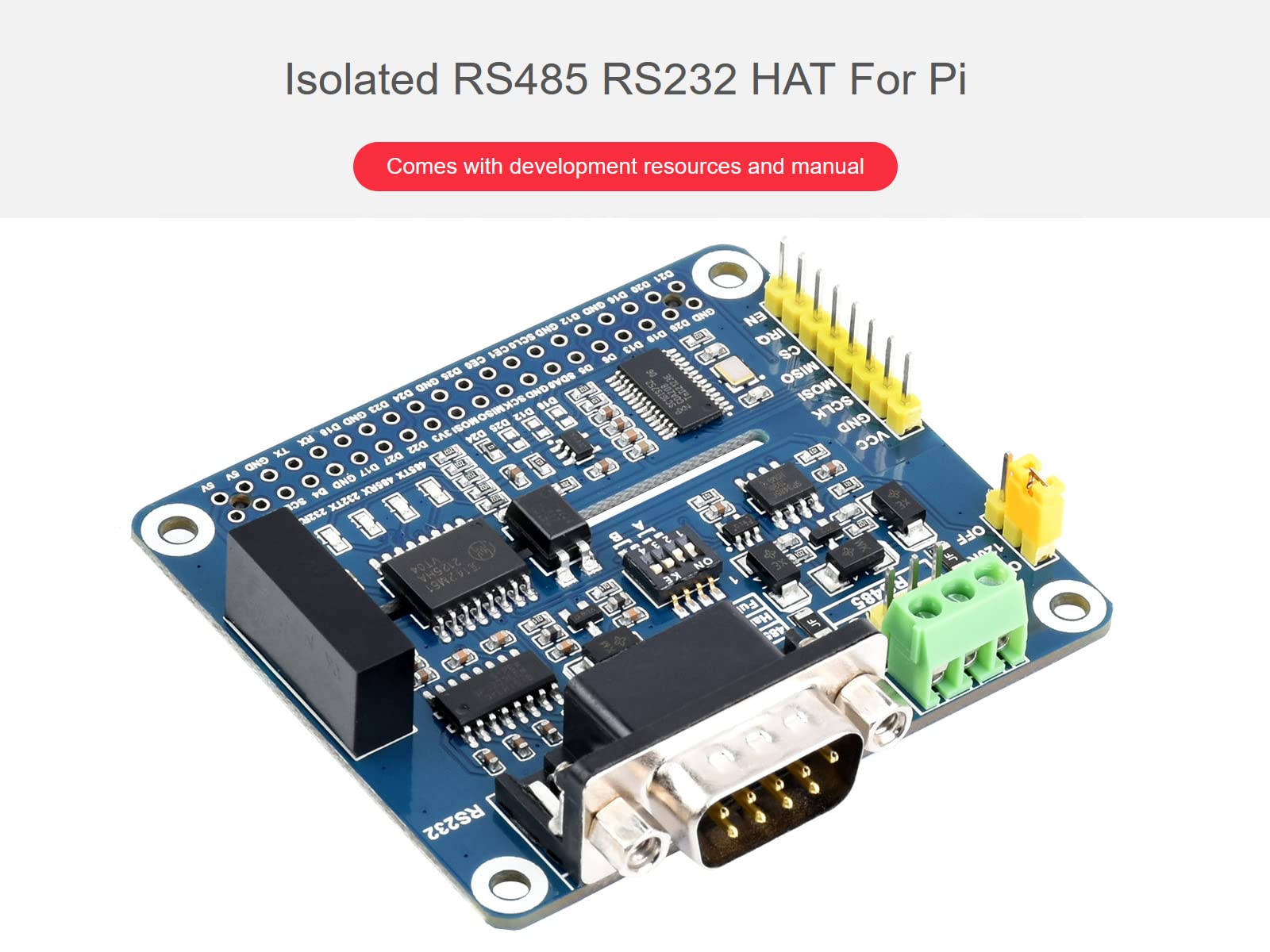

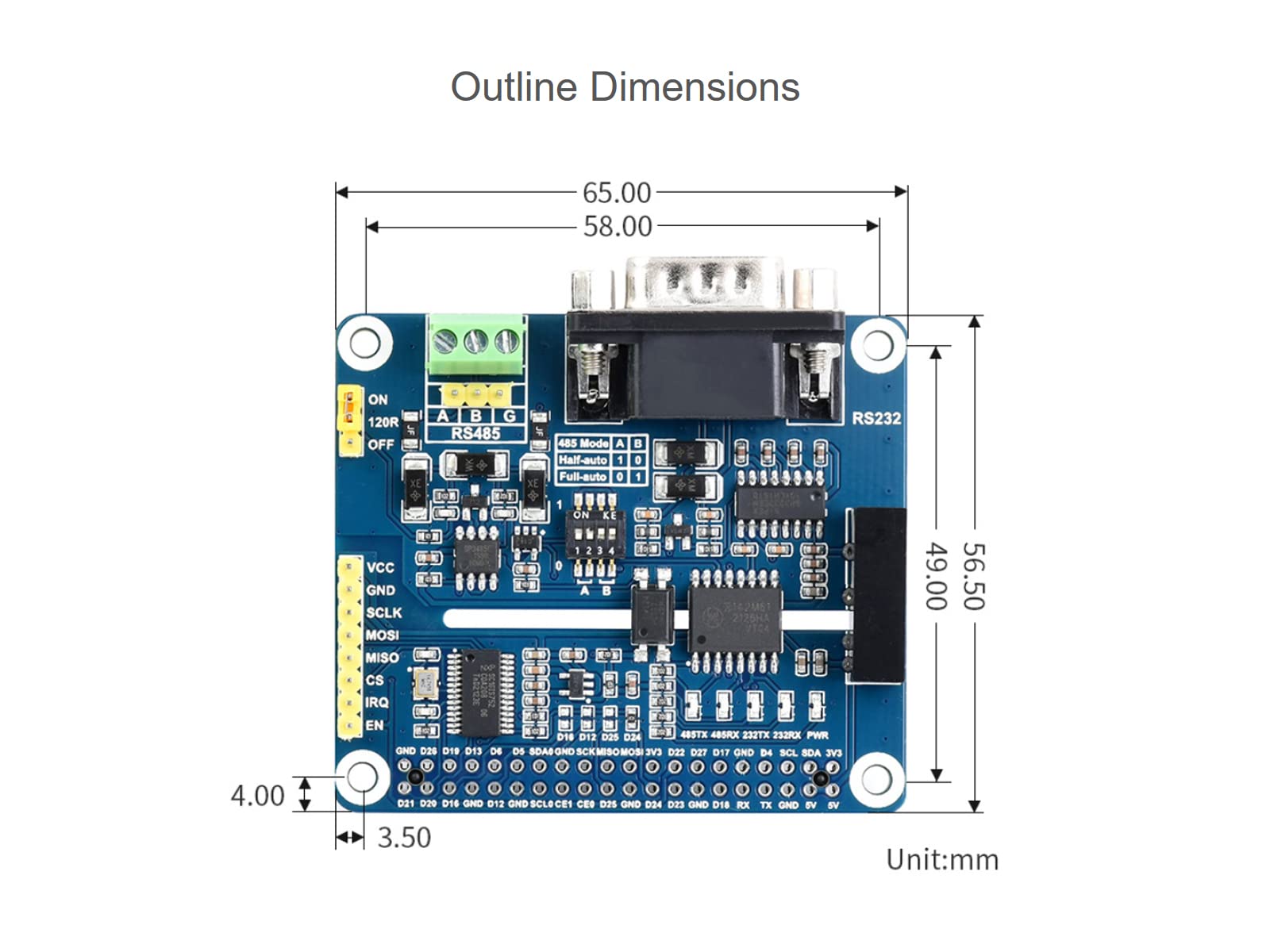

Instruction Isolated RS485 RS232 HAT is an isolated RS485 and RS232 expansion board specially designed by Waveshare for Raspberry Pi. It adopts SC16IS752+SP3485, SP3232 scheme, built-in power isolation, ADI magnetic coupling isolation and TVS and other protection circuits. Feature 1. Standard Raspberry Pi 40PIN GPIO header, suitable for Raspberry Pi series motherboards 2. Using SC16IS752 and SP3485, SP3232 multi-chip combination scheme, can realize SPI to RS485, RS232, the communication rate is up to 921600bps 3. RS485 supports manual or automatic sending and receiving of data, which can be set by DIP switch 4. RS485 onboard resettable fuse and protection diode can ensure stable output of current and voltage, prevent overcurrent and overvoltage, and improve shock resistance 5. Onboard TVS (transient voltage suppression tube), which can effectively suppress the surge voltage and transient peak voltage in the circuit, and protect against lightning and static electricity 6. Onboard power supply and serial port transceiver indicators, easy to check the module power supply and communication status 7. Lead out the SPI control interface for easy access to main control boards such as Arduino Product Parameters UART expansion chip: SC16IS752 RS485 transceiver： SP3485 RS232 transceiver： SP3232 Communication Interface： SPI Communication rate： 300~921600 bps Operating Voltage： 5V Dimension： 65mm×56.5mm Mounting hole size： 3.0mm Package Content 1. RS485 RS232 HAT x1 2. 2X20PIN header x1 3. Standoffs pack (2pcs) x1 NOTE: Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
