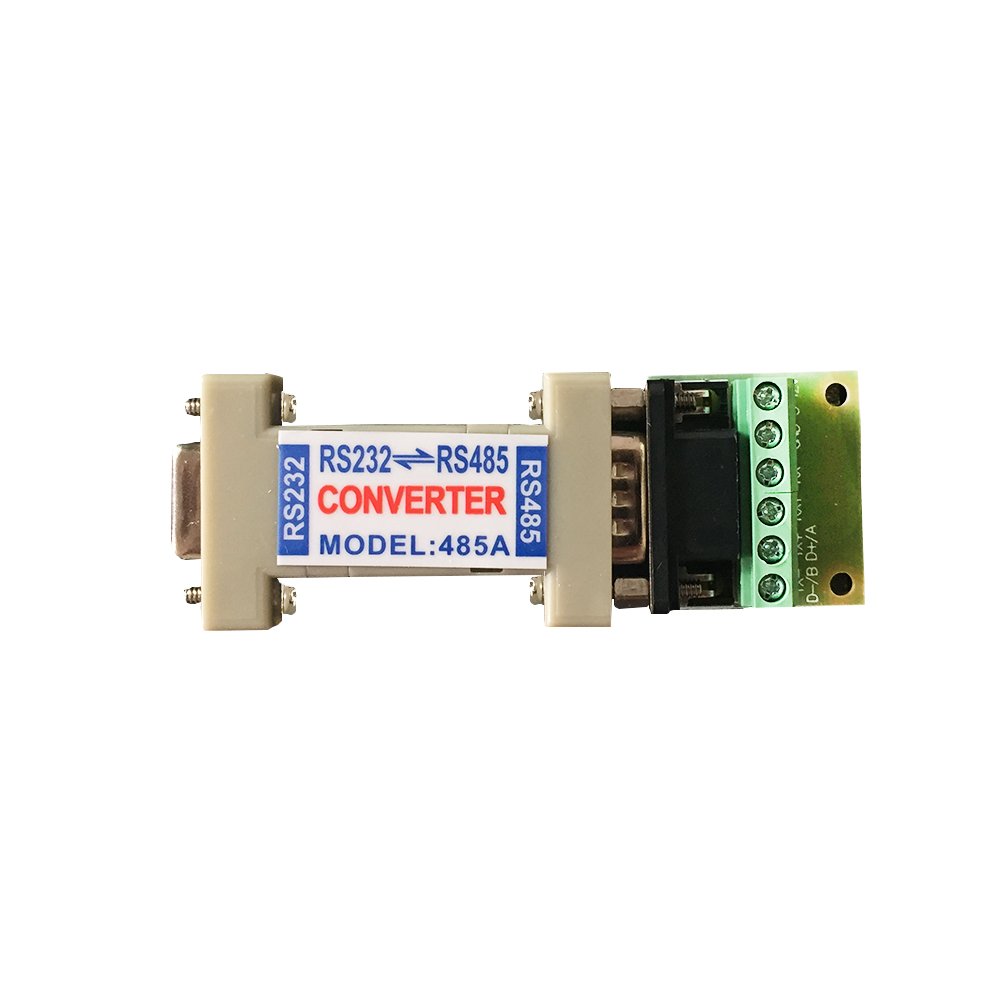

LFHUKEJI RS-232 To RS-485,RS-232 Female To RS-485/RS-422 485/422 Female Adapter Converter(Passive)

• Package:1pack,Lightning and surge protection, industrial converter, built-in TVS protection
• Working Mode : Asynchronous, Half-duplex, Differential Transmission,Transmission.
• Media : Twisted Pair or Shielded Twisted Pair.Communication distance: 1200meters(RS-485 terminal), 5meters(RS-232 terminal)
• Compatibility: EIA/TIA RS232C standard and RS485/RS422 standard

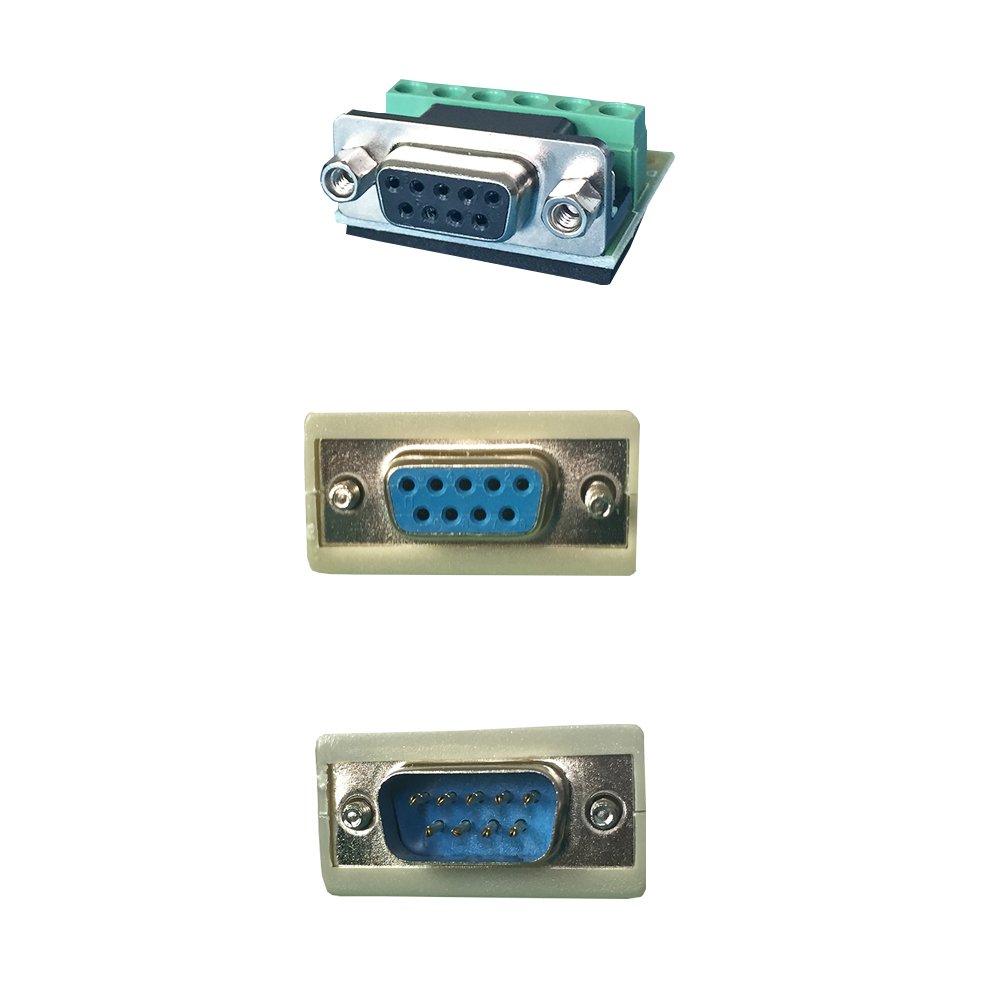

• Interface RS232 side: DB9 female connector;Interface RS485/RS422 side: DB9 male connector with optional (included) terminal board.Supports 36 decoders.

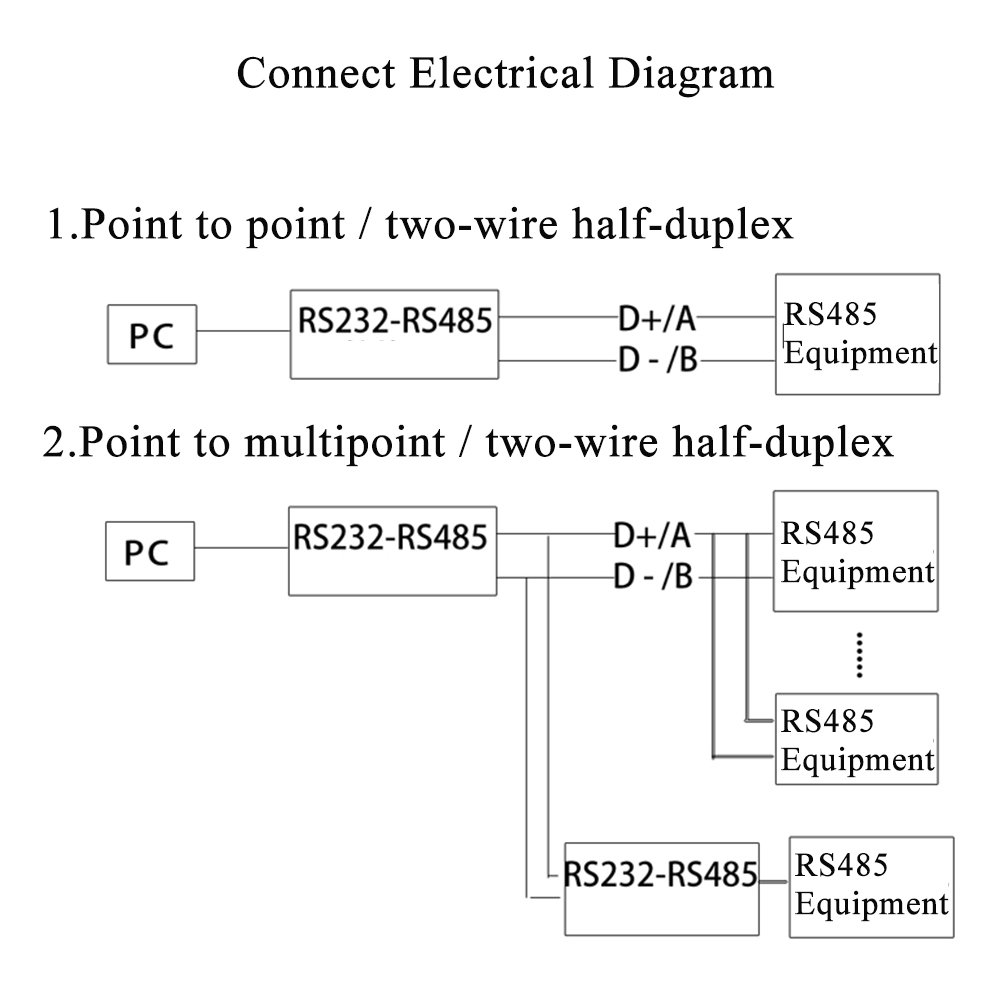

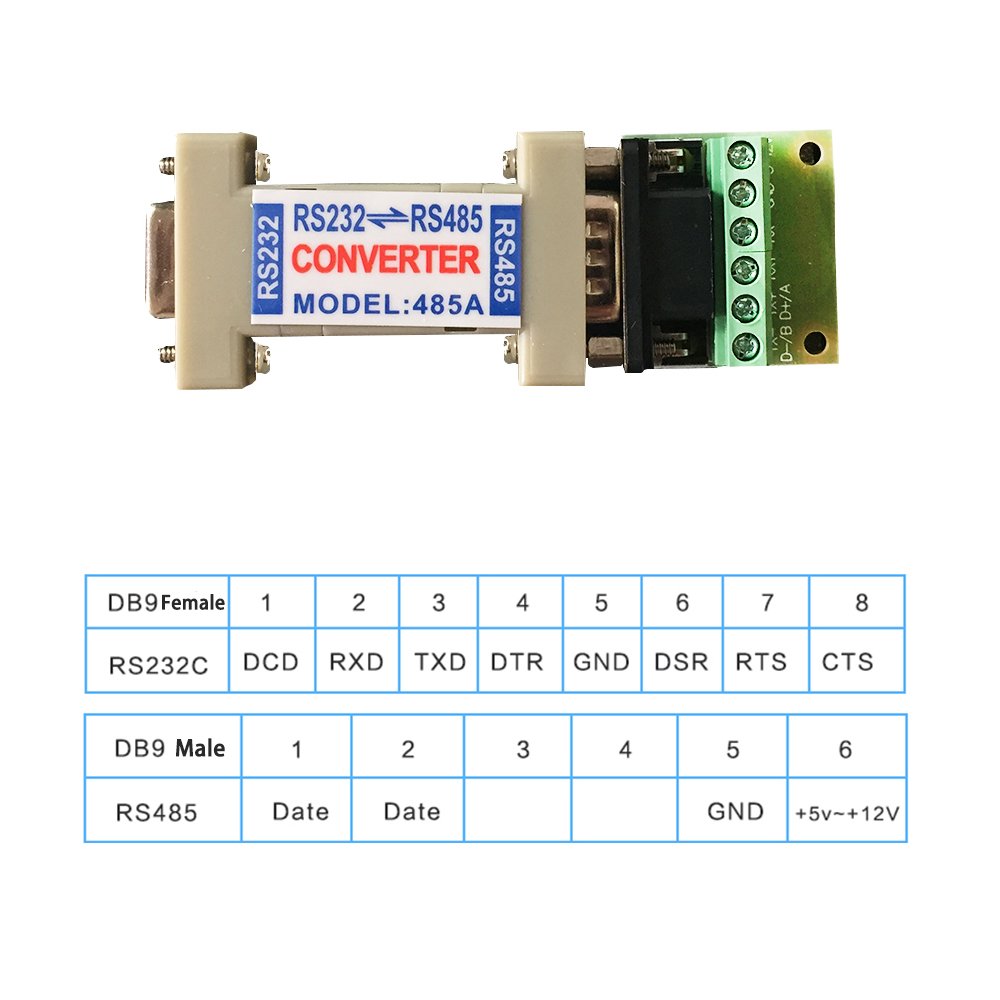

Features: 1. Interface: Compatible with EIA / TIA RS-232C standard and RS-485 standard 2. Electrical Interface: RS-232 terminal is a DB9 female (hole shape), RS-485 terminal is a DB9 male (needle-type) connector and a small wiring board. 3. Working mode: asynchronous, half-duplex, differential transmission. 4. Transmission media: twisted pair or shielded twisted pair. 5. Communication rate: 300-115200bps. 6. Size: 95 * 33 * 17mm 7. Working environment: 0-70 degrees Celsius, relative humidity of 5% -95%. 8. Communication distance: 1200meters(RS-485 terminal), 5meters(RS-232 terminal). Communication Protocol: Transparent Signal: RS-232: TXD, RXD, RTS, CTS, DTR, DSR, DCD, GND RS-485: Date +, Date-, GND, 5-12V The interface converter supports the following four communication modes: 1.Point to point/four full duplex; 2.Point to multipoint/four full duplex; 3.Point-to-point/two-wire half-duplex; 4.Point to multipoint/two-wire half-duplex. Package: Converter x1 manual x1
