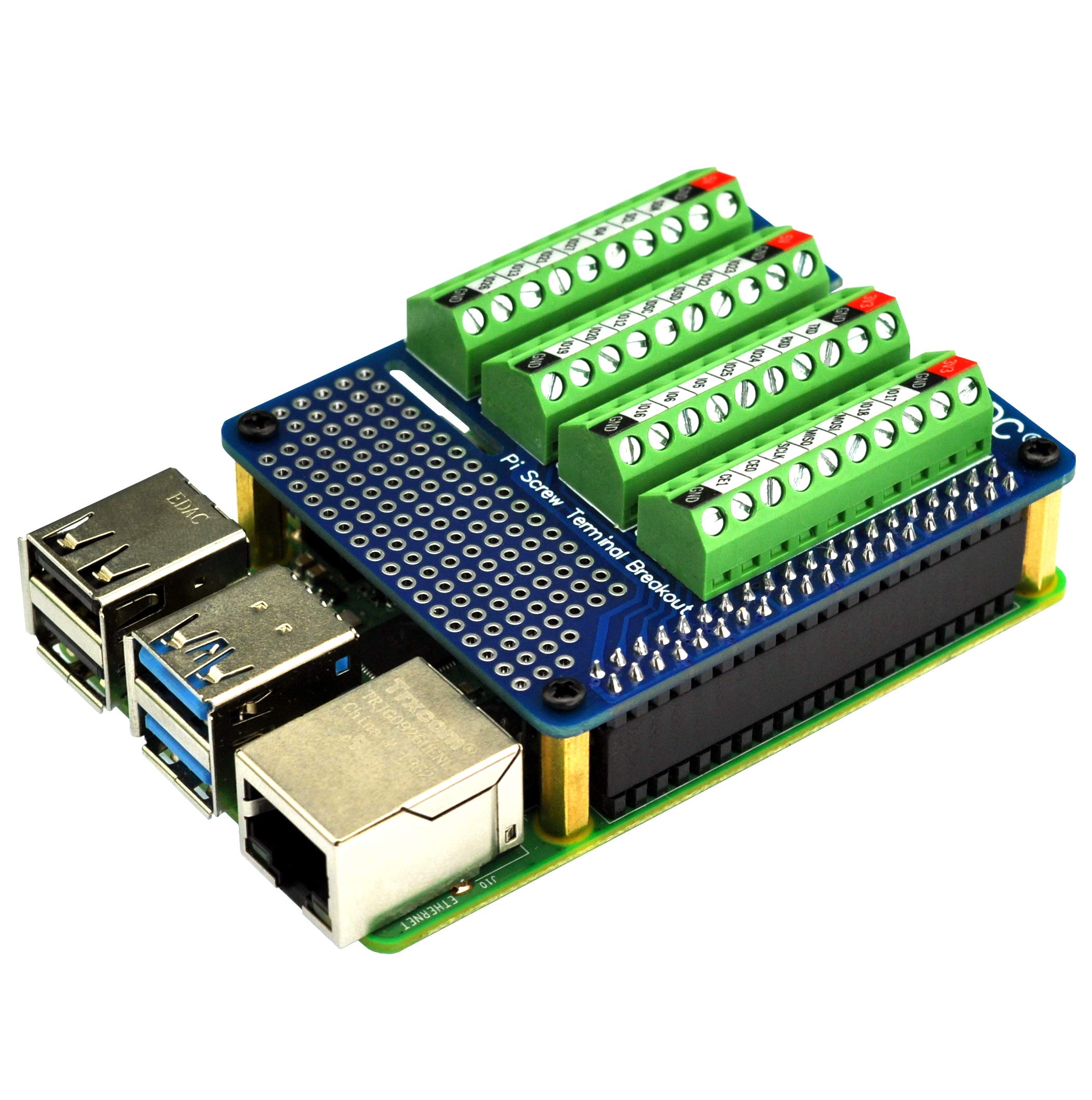

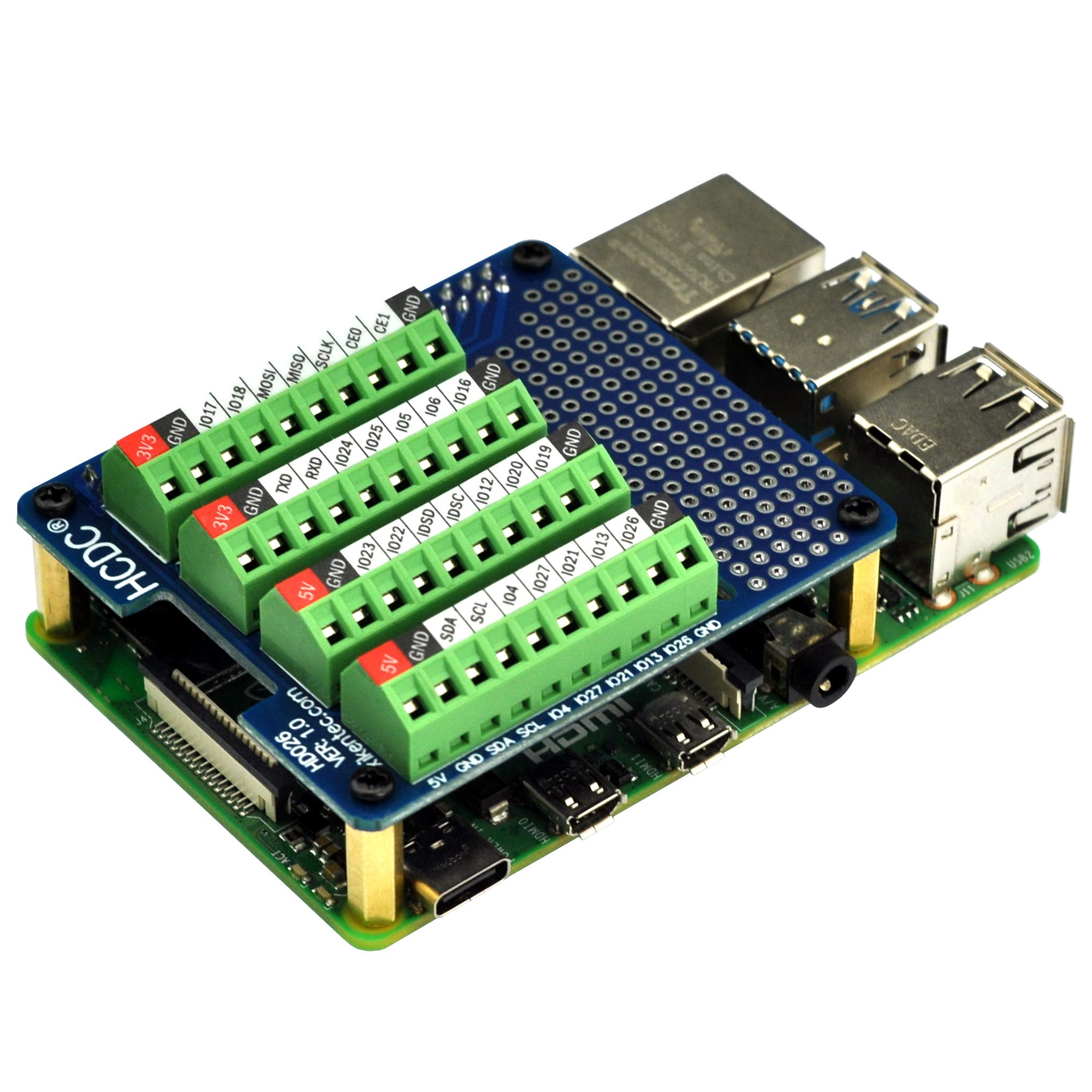

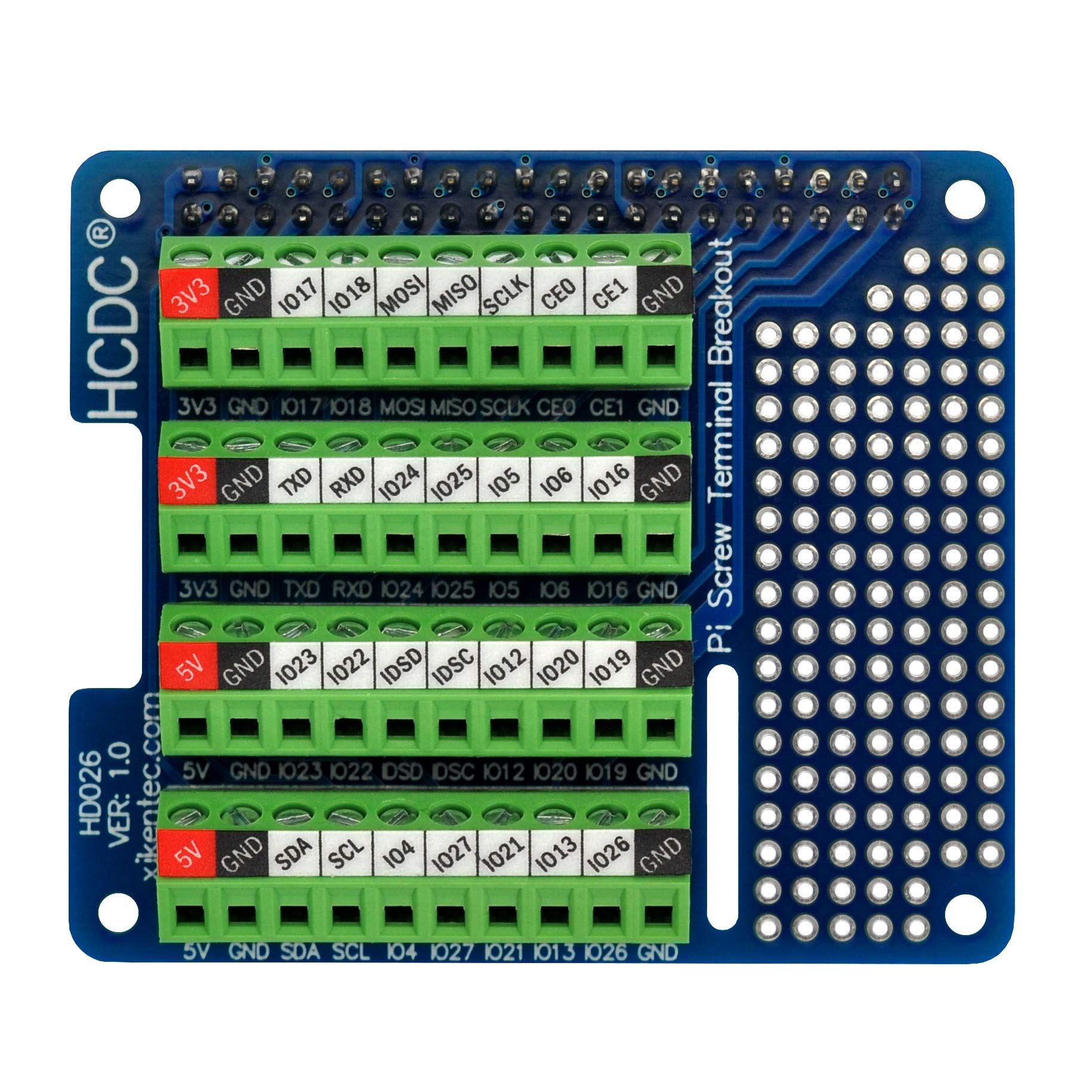

RPi Screw Terminal Block Breakout HAT Module for Raspberry Pi A+ 3A+ B+ 2B 3B 3B+
About this item
- RPi Screw Terminal Block Breakout HAT Module for Raspberry Pi A+ 3A+ B+ 2B 3B 3B+

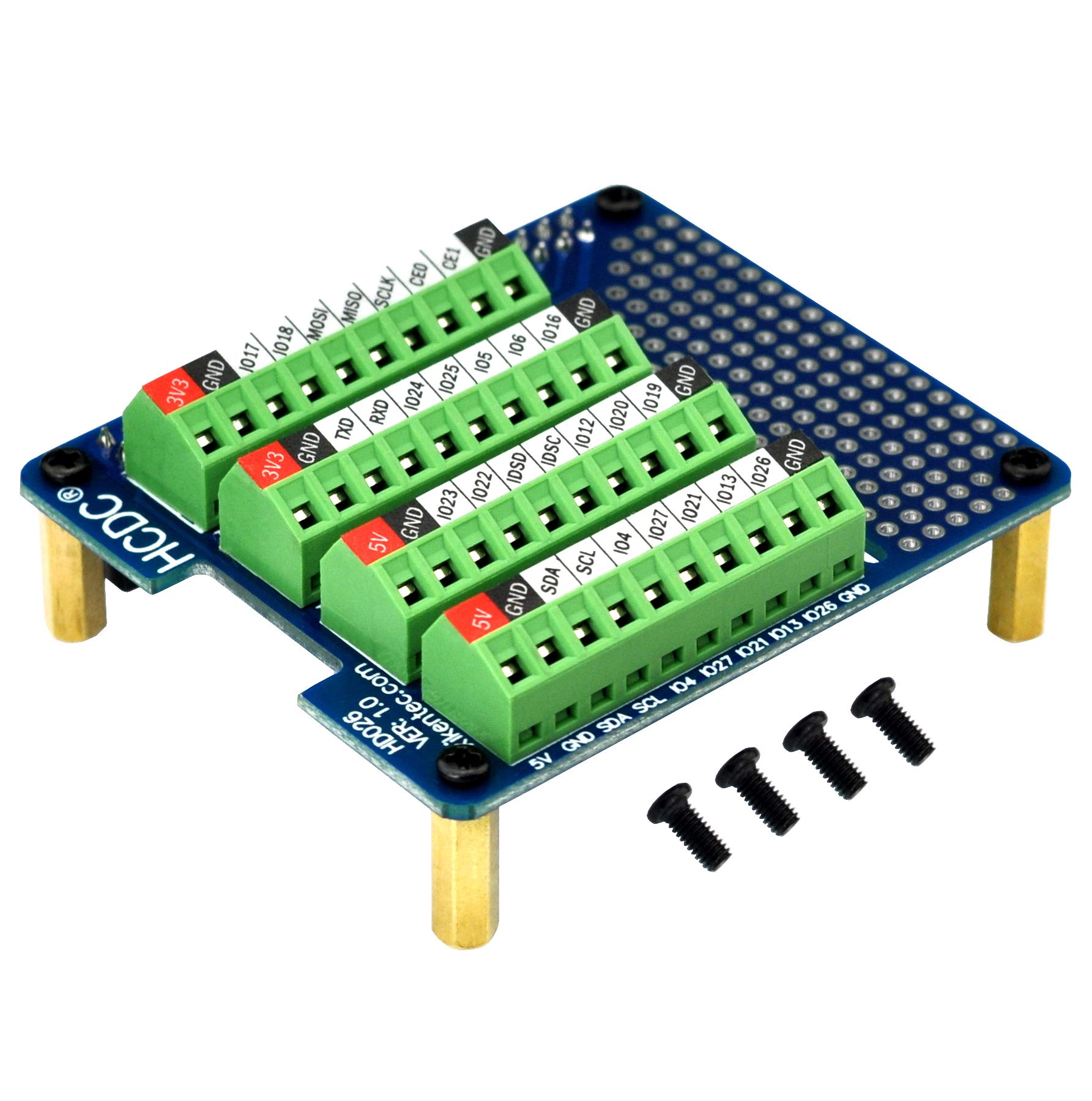

- The item has been soldered and assembled, with mounting screws, standoffs and labels.
- Terminal block pitch 3.5mm/0.138", wire size range 26AWG to 16AWG, strip length 5mm, screw M2 steel, pin header and cage copper.
- FR-4 fiber glass PCB, dual copper layers, pads grid pitch 2.54mm/0.1", hole diameter 0.8mm.

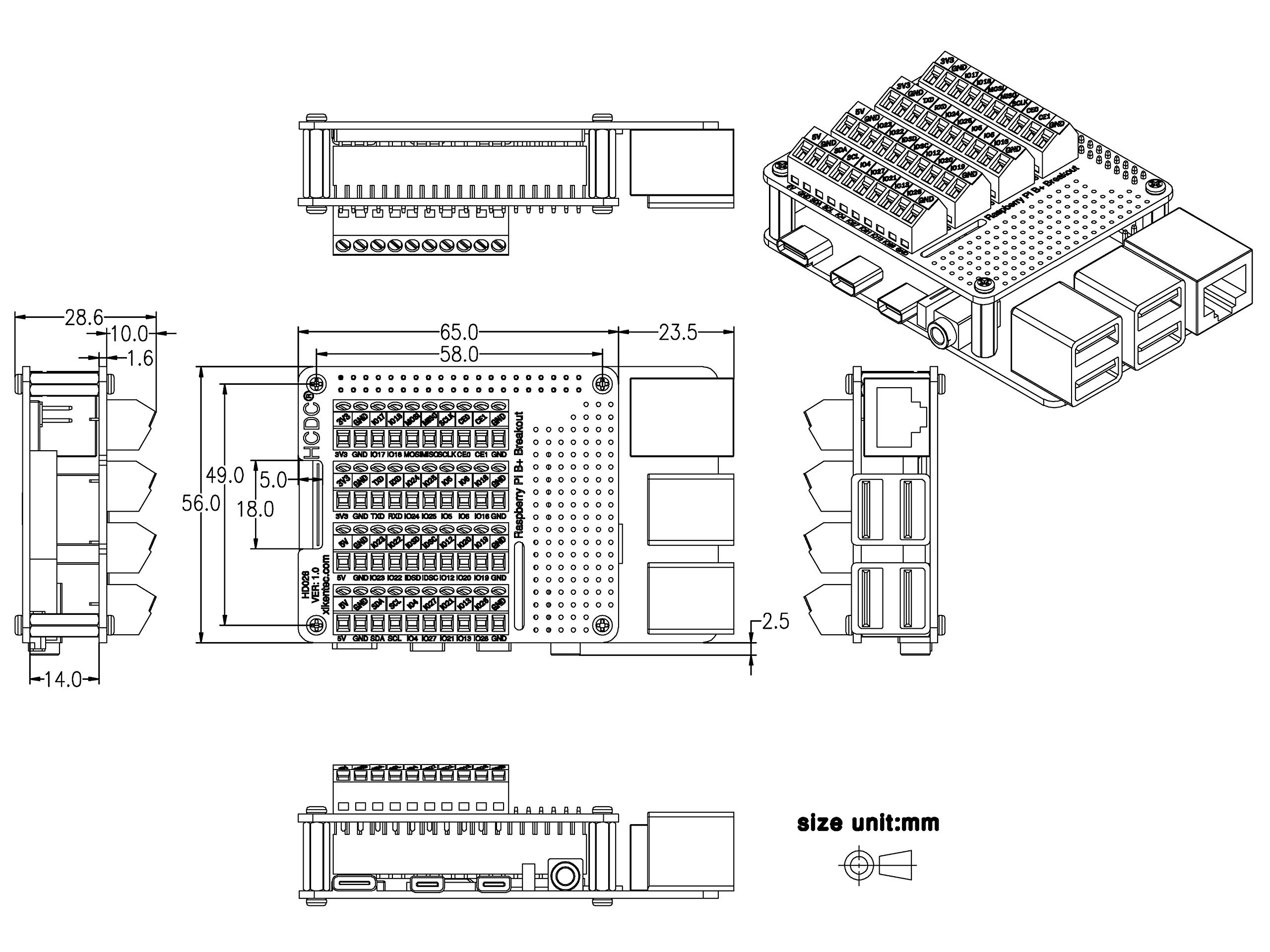

- NOTE: the item not include Raspberry Pi. CAD 3D (pdf): https://m.media-amazon.com/images/I/B1LJ3Li3wjS.pdf
Product description
RPi Screw Terminal Block Breakout HAT Module for Raspberry Pi A+ 3A+ B+ 2B 3B 3B+. Of course it can also support Pi 4B, but pay attention to the height of your Pi 4B CPU heatsink. The item has been soldered and assembled, with mounting screws, standoffs and labels. Terminal block pitch 3.5mm/0.138", wire size range 26AWG to 16AWG, strip length 5mm, screw M2 steel, pin header and cage copper. FR-4 fiber glass PCB, dual copper layers, pads grid pitch 2.54mm/0.1", hole diameter 0.8mm. NOTE: the item not include Raspberry Pi. CAD 3D (pdf): https://m.media-amazon.com/images/I/B1LJ3Li3wjS.pdf
