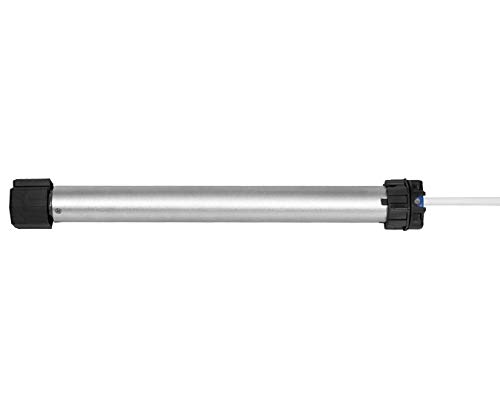

Rademacher RTBM 10/16Z Tubular Motor

• Mechanically adjustable stop position
• 2.5 m rubber cable for outdoor area
• Mechanical end limits
• 2.5 metre rubber cable for outdoor use

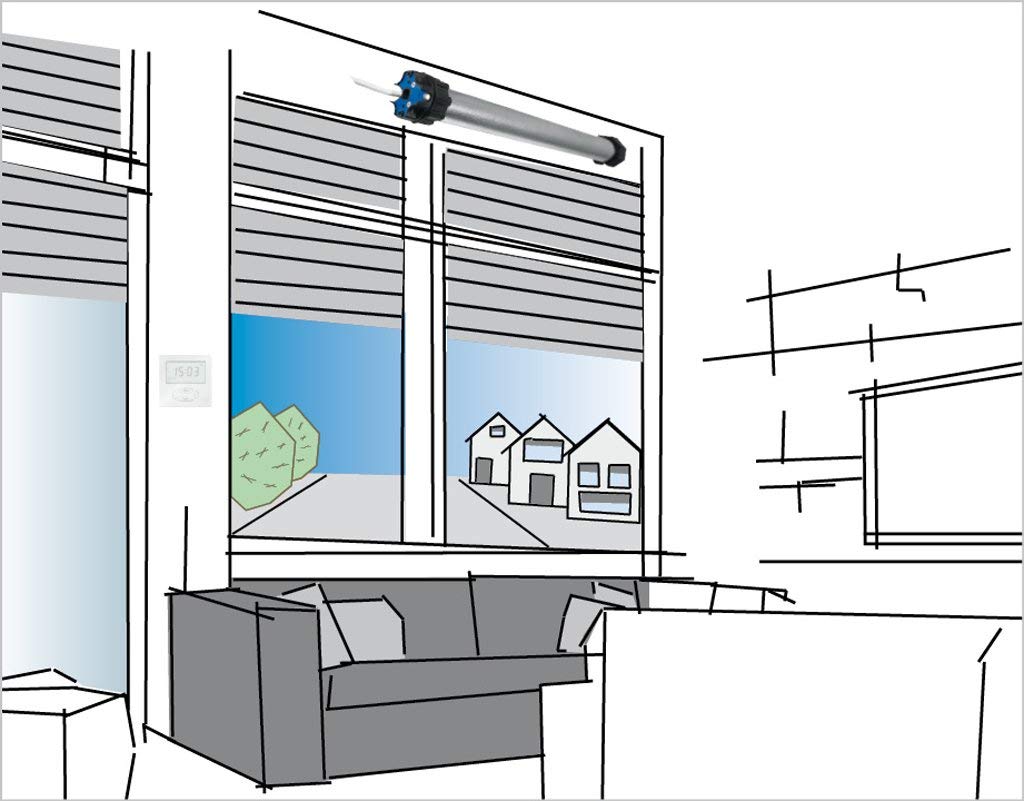

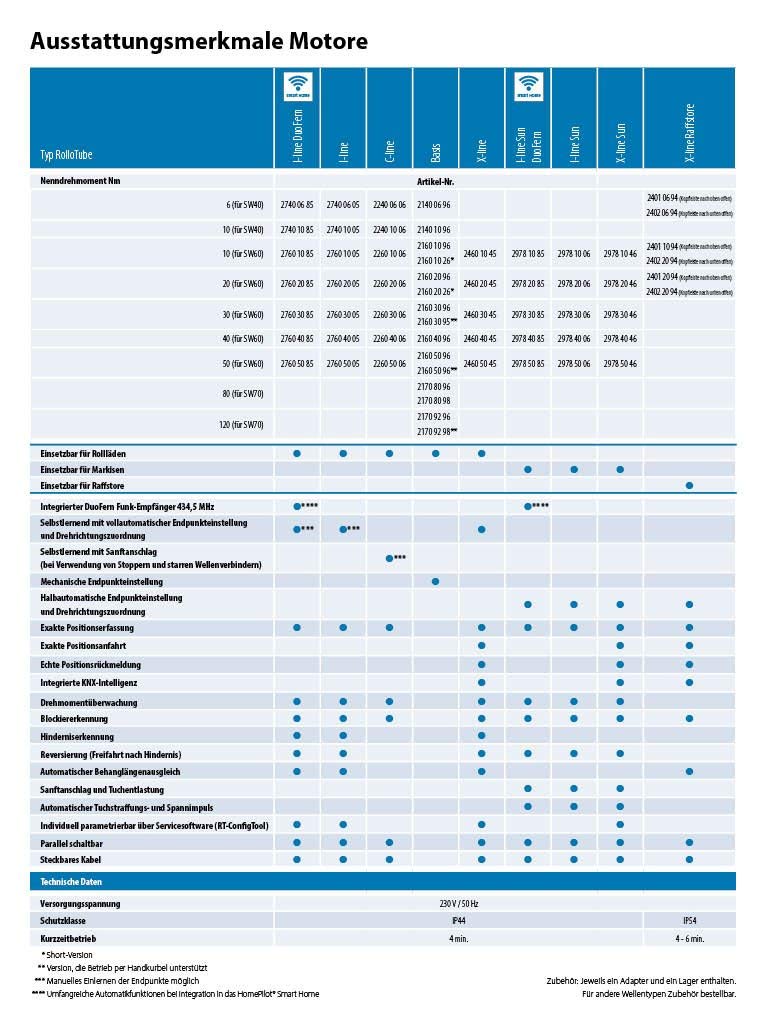

RADEMACHER The world of innovative products RolloTube base RTBM 10/16Z Tube motor Intelligent roller shutter automation The tubular motor model in the home automation. The cost-effective solution for roller shutter automation with tubular motors is the RolloTube base. Endpoint adjustments are done mechanically with this tube motor. It can be used not only for shutters, but for a wide range of applications, such as rolling grilles. It is available in three different sizes including models that can be operated by hand crank, if the power goes off operations. The RolloTube base is suitable for the RADEMACHER click-bearing, so that the person assembling can easily and conveniently attach it. Simple mechanical end position adjustment Fast installation and commissioning Corrosion-free zinc-plated precision tube 2.5 metre rubber cable for safe connection outdoors Hand crank in case of power failure (Only RTBM and RTBL.) Versatile: RolloTube Comfort Medium, tubular motor with electronic limit, stall detection, accessory Set Technical specifications: Torque (Nm) 10 Speed (RPM) 16 Shaft Type SW60 Voltage (V)/Frequency (Hz) 230/50 Power (W) 112 Current consumption (A) 0, 49 IP rating: 44 Power-on duration (min.) 4 Cable length (m) 2.5 Total length (mm) 474 Accessories include: Adapter, mounted Adapter/driver, mounted. AMC45M-SW60 Stock 4015K-04 Set of hanging clamps
