ROLINE LC / LC LWL Network cable | Fiber optic cables OM4 Duplex Patch Cable Low Loss | Violet 5 m

• OM4 fiber ✓ Multimode fibers of the type 50/125 μm enable an extended bandwidth of 4700M Hz-km and support Ethernet cabling, Fiber Channel and OIF applications.
• LAN network ✓ The fiber optic cable with LC and SC connectors is suitable for data transmission in local network connections, as well as for campus or building backbones.
• High-Performance ✓ Fiber optic cable has many advantages over copper. For ranges of> 550 m at 10 Gbits, or 300 m at 40 Gbits.
• PVC sheath ✓ The fiber optic cable in violet is coated with hard-wearing PVC. The robust outer material ensures that the cable is hardly inflammable.
• Compact Condenser ✓ The Compact Condenser in the fiber optic cable, in contrast to a high-speed condenser, provides for better stripping and minimized microbending.

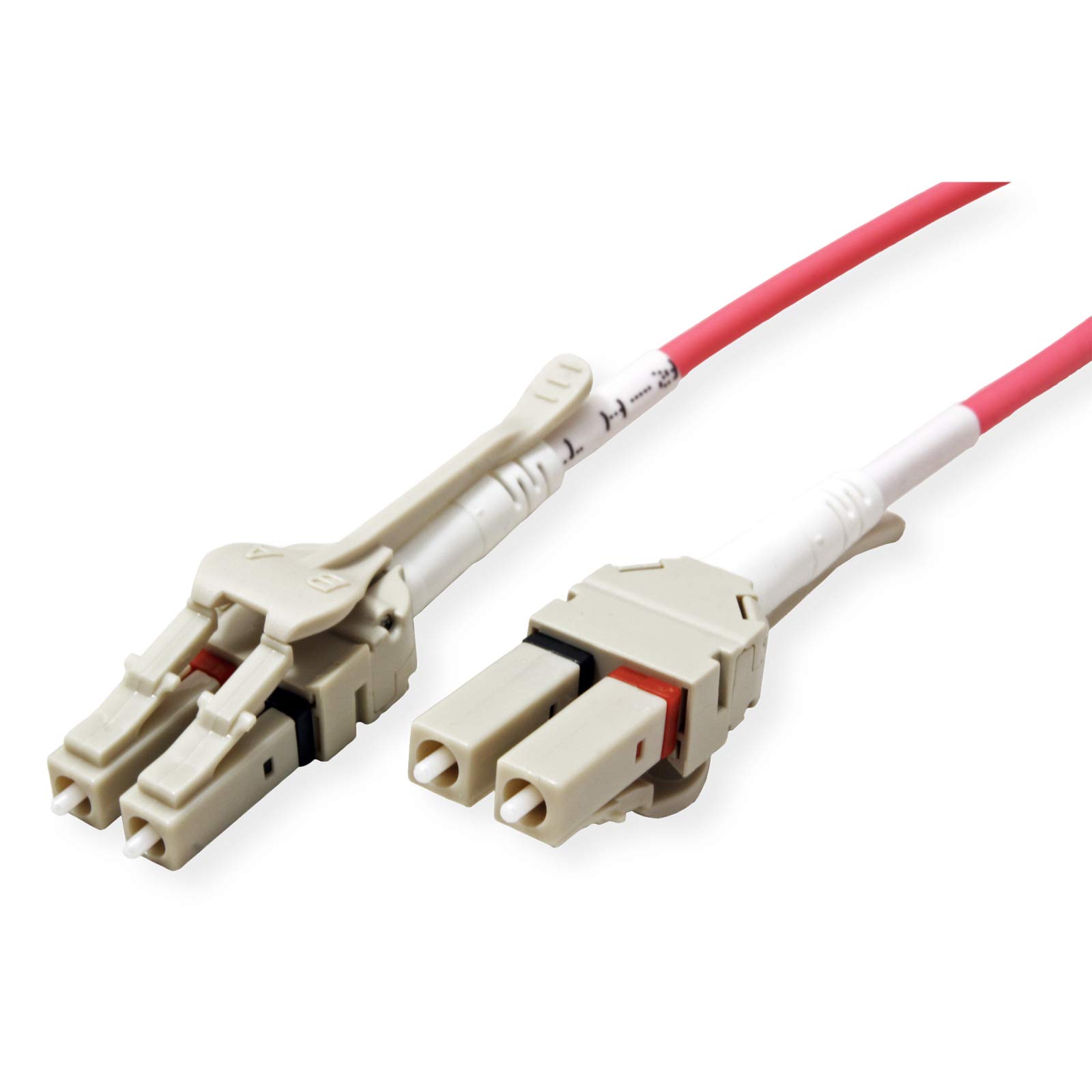

ROLINE OM4 Multimode Low Loss LWL patch cable 5 m - For high-performance fiber optic cabling in superior ROLINE quality The LWL patch cable has two Multimode OM4 50/125 μm fibers, which have an expanded bandwidth, in contrast to OM3 fibers. Therefore, it is suitable for ranges up to 550 m at 10 Gbits or 300 m at 40 Gbits. The cable is suitable for LAN network connections, as well as building or campus backbones. The fiber optic cable is pre-assembled on both ends with high-quality LC / LC low loss connectors. These guarantee a high transfer quality with their very low ejection attenuation. The compact cables in the cable ensure a better stripping capability and a greater protection of the fiber. In addition, this is enclosed by a resistant, synthetic plastic fiber, which provides strain relief in the cable. On the outside, the cable is encased in robust and also fire-resistant PVC. In the case of cabling with glass fibers, in contrast to the copper technology, numerous advantages also result: ✓ Significantly higher transmission rates ✓ No influence by electromagnetic interference fields ✓ No scattering on adjacent fibers ✓ No grounding required ✓ Increased monitoring security Technical specifications: • Type: FO cable patch cable OM4, duplex (2 fibers) • Fiber cross section: 50/125 μm • Cable sheath: Ø 2,8 x 6 mm, PVC • Connector 1: LC low loss • Connector 2: LC low loss • Length: 5 m Further information: • Color: violet • Scope of delivery: 1 x fiber optic patch cable, multi-mode OM4 low loss, LC / LC, 5 m ROLINE ─ Quality makes the difference "
