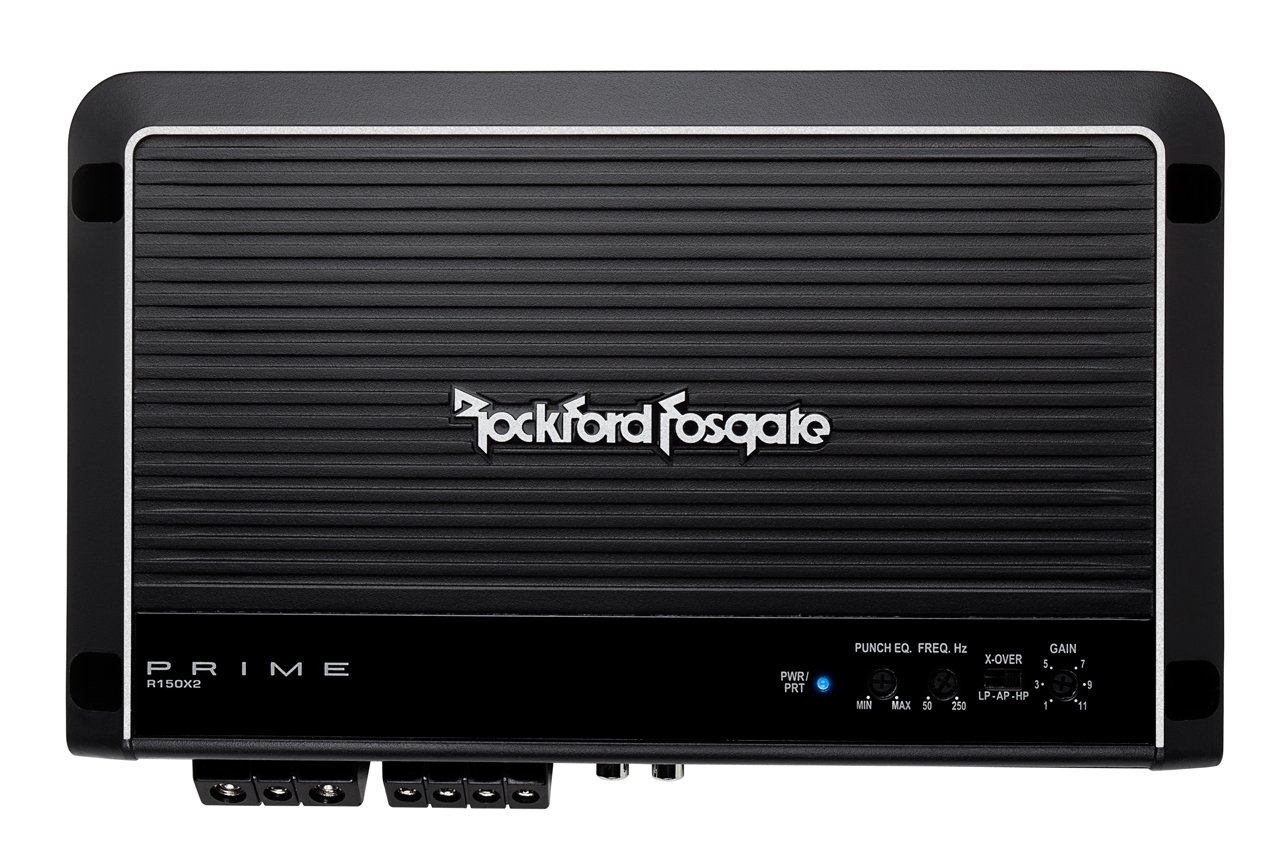

Rockford Fosgate R150X2 Prime 150 Watt 2-Channel Amplifier

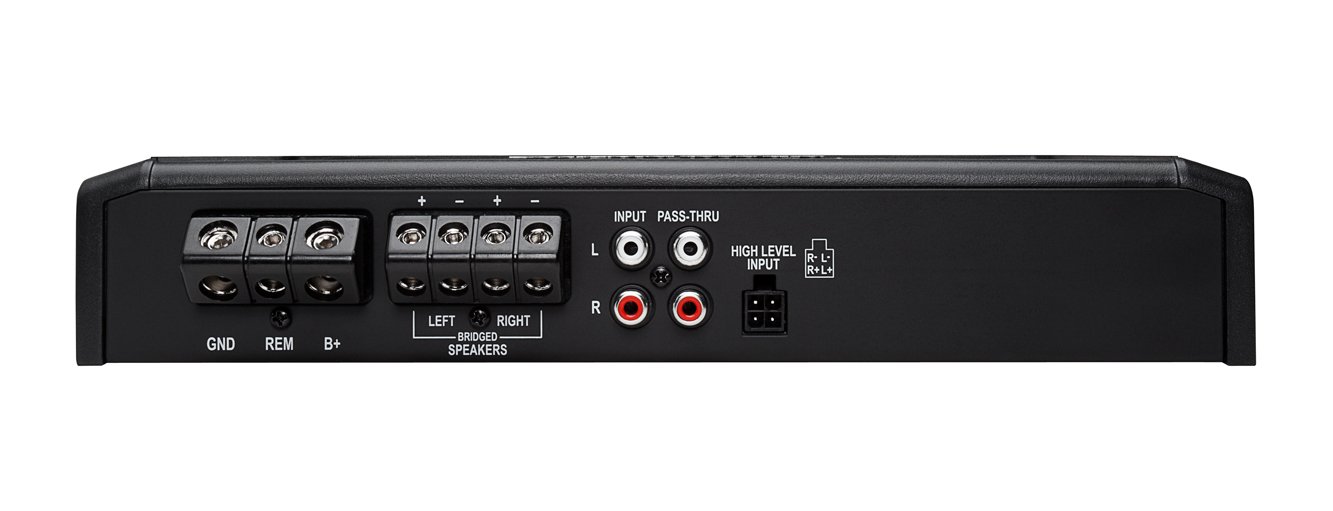

• Features 12dB/octave Butterworth crossover On-board Punch EQ with +18dB boost @ 45Hz RCA pass-thru outputs High Level Input (4-pin) Real time output and power supply thermal sensing Cast aluminum heatsink 4 Gauge power/ground connectors MOSFET power supply Over current protection Short circuit protection Muted turn on 1 Year assured
• Physical Specifications Number of Channels 2 Total Power 150 Watts RMS RMS 50 Watts x 2 @ 4-Ohm RMS 75 Watts x 2 @ 2-Ohm RMS 150 Watts x 1 @ 4-Ohm Bridged Bridgeable Frequency Response 20Hz to 20kHz +/-1dB Input Sensitivity 150 mV to 4 V Circuit Topology Class Class A/B Signal Input High Level: 4-pin molex Punch Bass: 0dB to +12dB @ 45Hz Crossover Controls High-Pass/Low-Pass (HP/LP): 50-250Hz @ 12dB/octave Butterworth Remote Controls
• Visual Indicators Power/Protect LED Power Wire Gauge 4 AWG Power Input Connector Screw terminal Speaker Wire Gauge 8 AWG Speaker Output Connector Screw terminal Cooling Convection Heatsink Dimensions (H x W x D) 1.98 x 6.77 x 11.22 (in) 5 x 17.2 x 28.5 (cm) Shipping Weight 6.6 Lbs. (2.99 Kg.)
• Country of Origin: China

Rockford Fosgate amplification at an unbelievable value. The R150X2 2-channel amplifier pumps out more than enough to power a set full-range or component speakers, or you can bridge it into a 4-ohm load to produce 150 watts for a single R1S410 10" or R1S412 12" woofer. 2-channel Amplifier Combine impressive power with big sound for a loud, clear and distortion-free music experience Variable HPF and LPF Variable HPF adjust your high-pass filter frequency for good audio system flexibility and for extra flexibility, a variable LPF makes audio frequency more adjustable according to subwoofer characteristics and personal listening preferences. The LPF is adjustable from 30 Hz to 250 Hz. CEA-2006 Compliant Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings. Class A/B An amplifier topology with the best of both worlds; a Class A preamp and Class B output stage.
