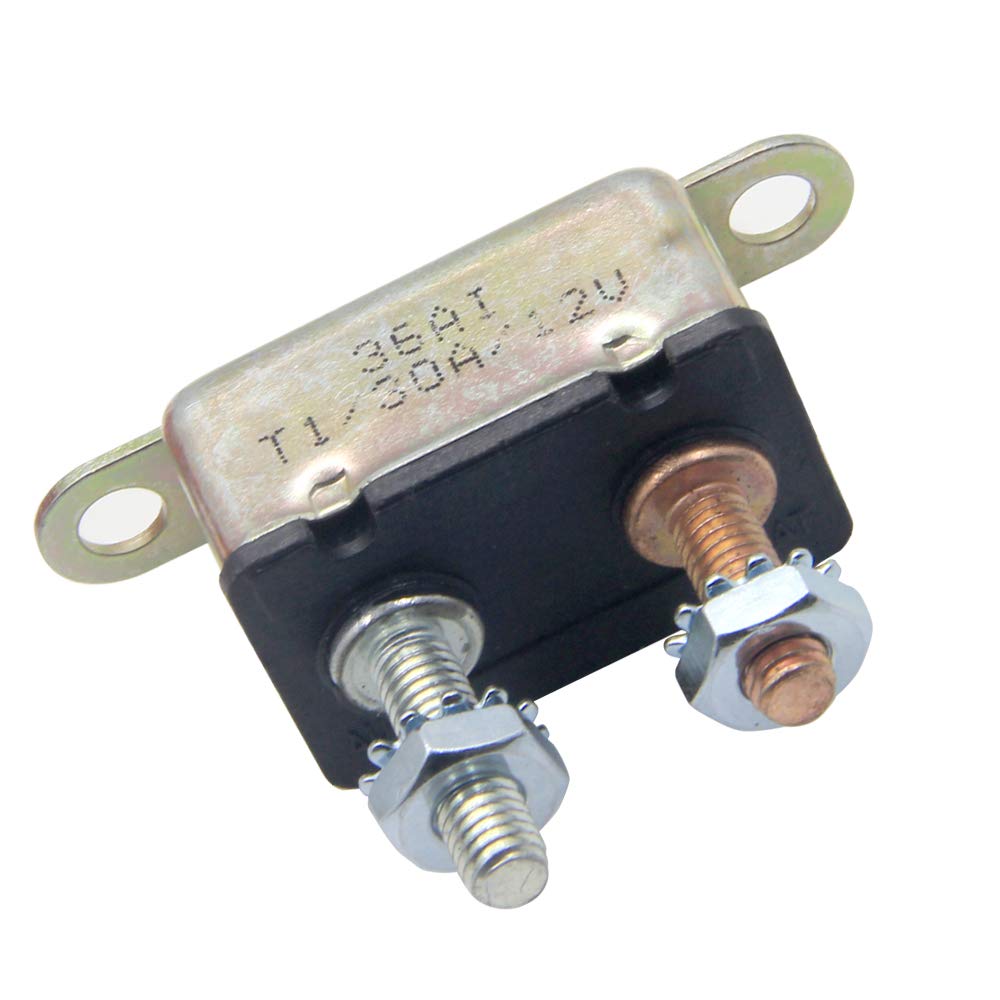

RKURCK 6-28V 30 Amps Circuit Breaker Automatic Reset for Automotive RV Marine Boat with Protective Red Boot Cover 30A

• Type I Heavy Duty Circuit Breakers 30 Amp, Apply to 6-28V DC application
• Automatic Reset - resets automatically but will continue to trip (cycle on and off) until fault is corrected
• 10-32 stud bolt terminals, plastic base, metal housing, and lengthwise metal mounting bracket

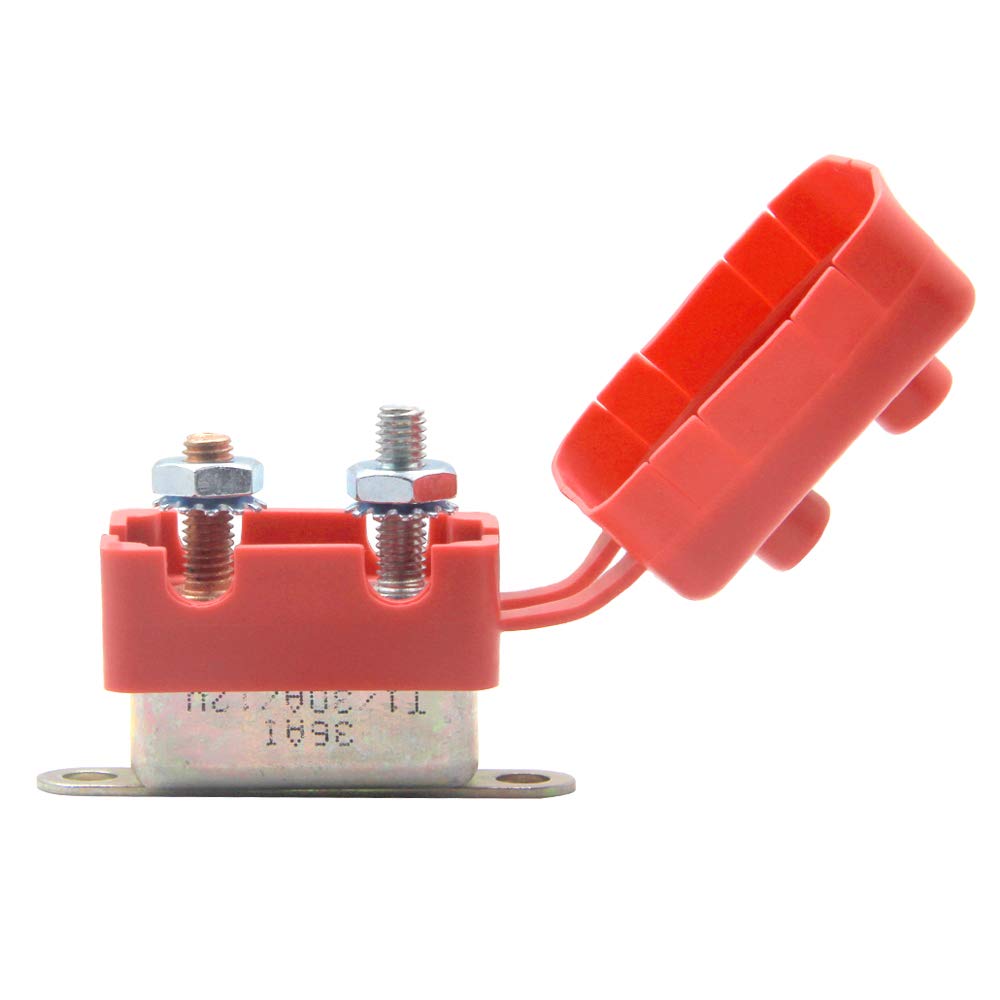

• Red circuit breaker boot insulates your circuit from shorting out by protecting it from the elements in power leads and automotive applications
• Widely used in heavy-duty and truck applications, off-road vehicles winch, yachts, ATV, RV, special vehicles and ships electrical control

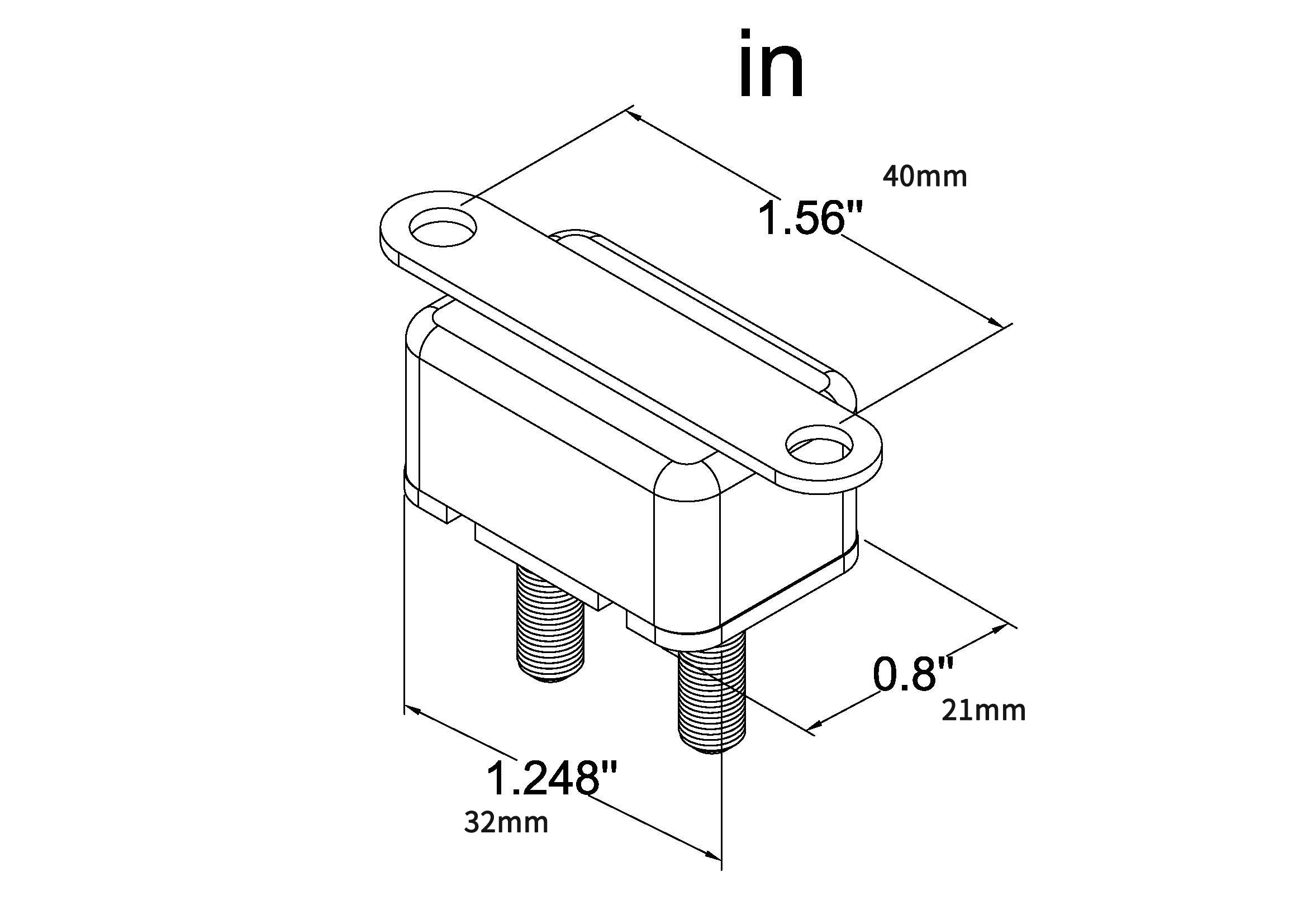

Description: √ Stud Type I Resettable Circuit Breaker 30 Amp √ Mounting Style: In-Line Bracket Heavy-duty housing cover √ Push-to-reset operation only disconnects when tripped √ IP64 water resistant boot protects against dust and splashing water √ For use in electric brake set ups, auto, caravans and more √ One copper post and one plated terminal √ Battery side connects to the copper side and the plated side connects to your accessories generally take the place of a fuse but with the advantage of resetting itself,Ideal in applications where what is being connected could have a short circuit or a momentary short. √ The red circuit breaker boot insulates your circuit from shorting out by protecting it from the elements in power leads and automotive applications. Specifications: - Meterial: metal and plastic - Reset Method: Type I - Automatic - Voltage 6-28V DC - Reset Type T1, Auto Reset - Interrupt Capacity 2.5kA @ 12V DC - Dimension 1.248 x 0.693 x 0.8 inch - Termination #10-32 thread - Body Metal Cabinet - Mounting Parallel (Lengthwise) Mounting Bracket - Operating Temperature -40oC (-40oF) to 85oC (185oF) - Storage Temperature -40oC (-40oF) to 125oC (260oF) - Battery chargers, trucks, buses, RVs, trolling motors, etc - Regulatory Sepcification SAE J553; SAE J1171; UL1500 Package included: 2 x Screw Nuts 1 x Red boot Cover 1 x Automatic Reset Circuit Breaker
