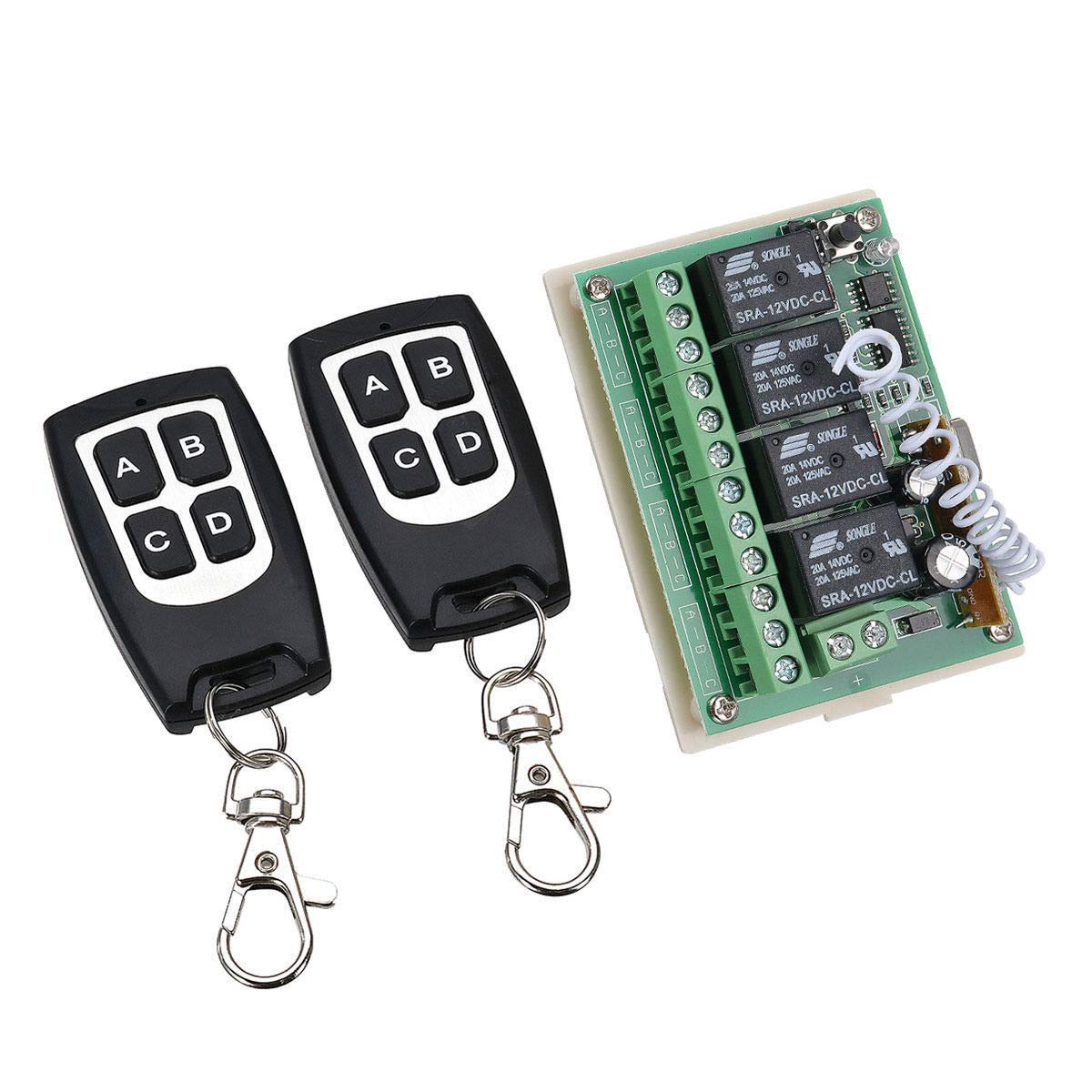

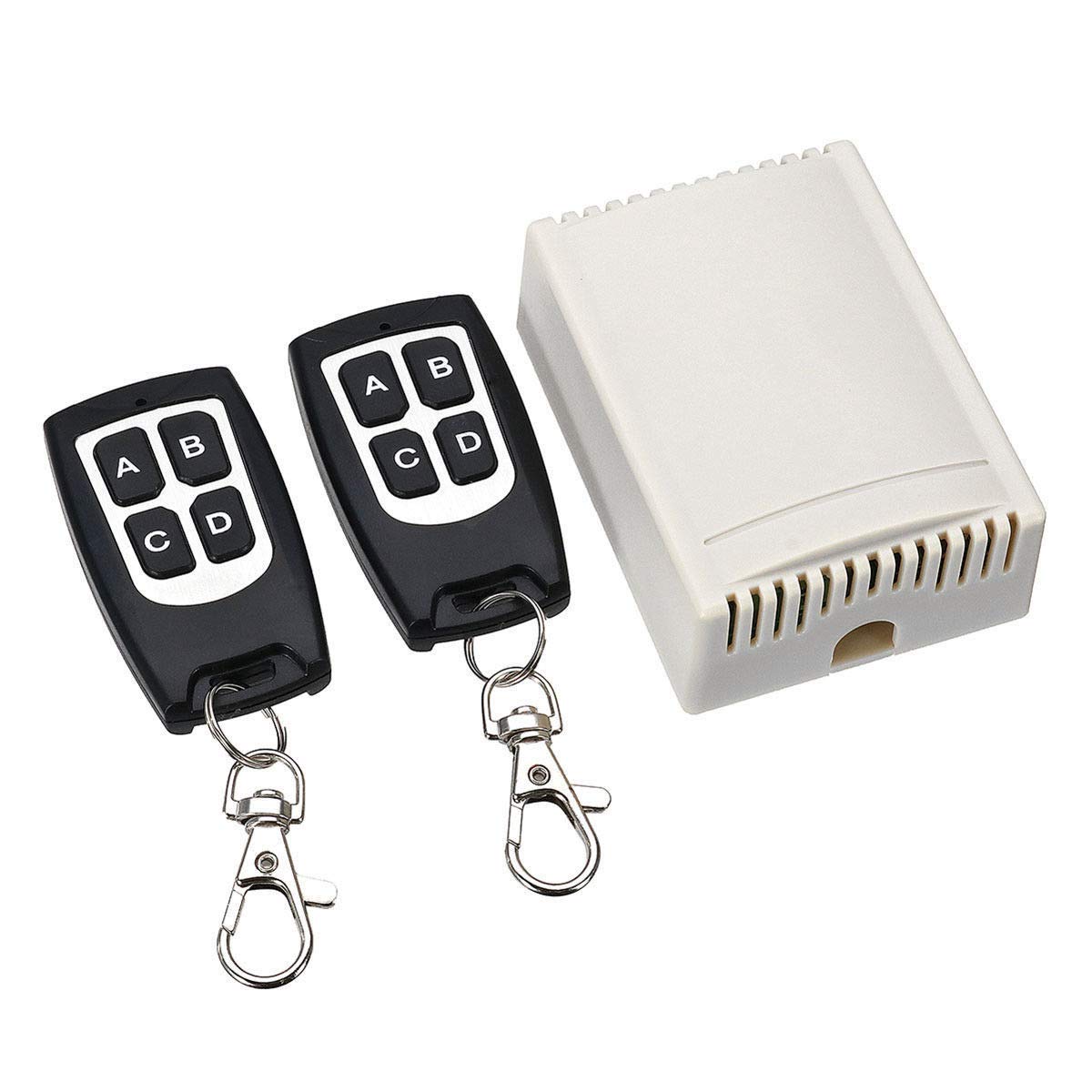

Riloer 12V 4CH Channel 433Mhz Wireless Remote Control RF Switch with box 2 transmitters

• [Long distance] The signal can pass through walls, floors and doors, and control the receiver stably from anywhere within a reliable distance. The maximum range can reach 98ft / 30m, without obstacles.
• [4CH for more control] Adjustable operating mode, control equipment rotation / reverse, on / off. The switch is self-locking, slow advance and interlocking.
• [Security control] The learning code has low repetition rate and relearn mode, so it has high security. It can remove the old code and relearn the new code when the remote control is lost, so that you can still control it.
• [Easy to use] Extremely easy to configure, learn, relearn and control (see introduction). Stable and reliable performance, high receiving sensitivity.
• [Wide range of applications] From simple home remote control to a wide range of stand-alone control applications, such as windows, driveways, garage doors, alarm systems, lifting equipment, etc.

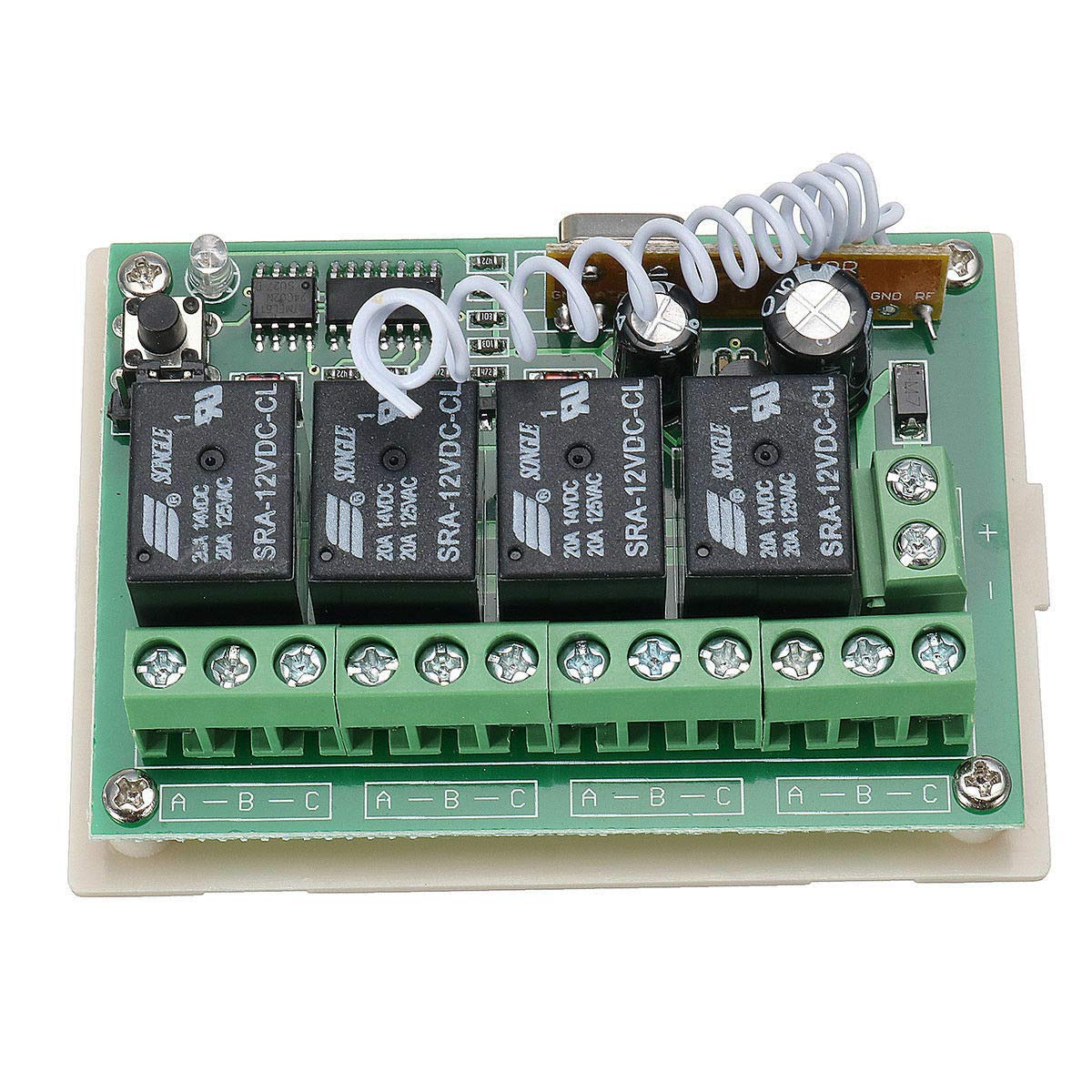

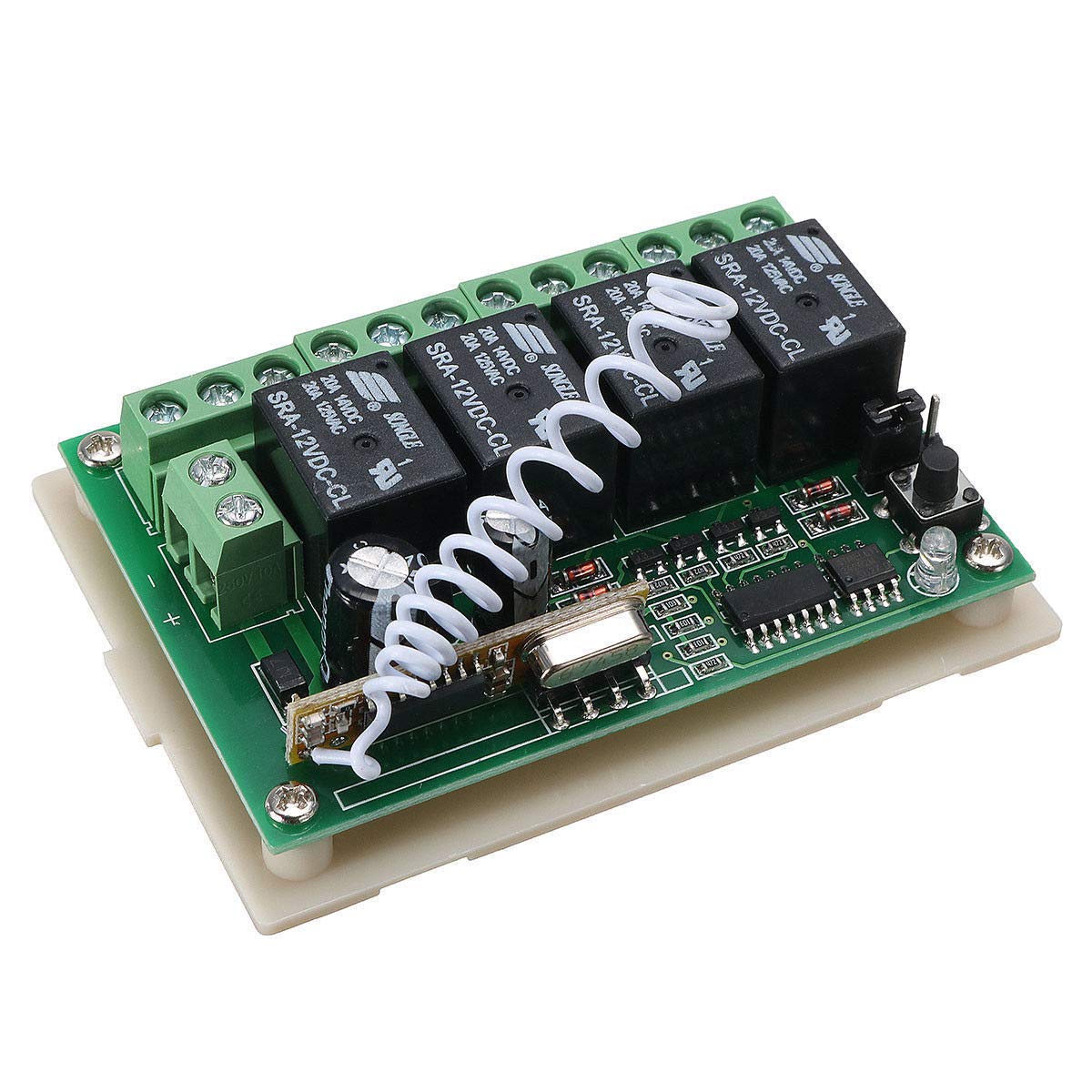

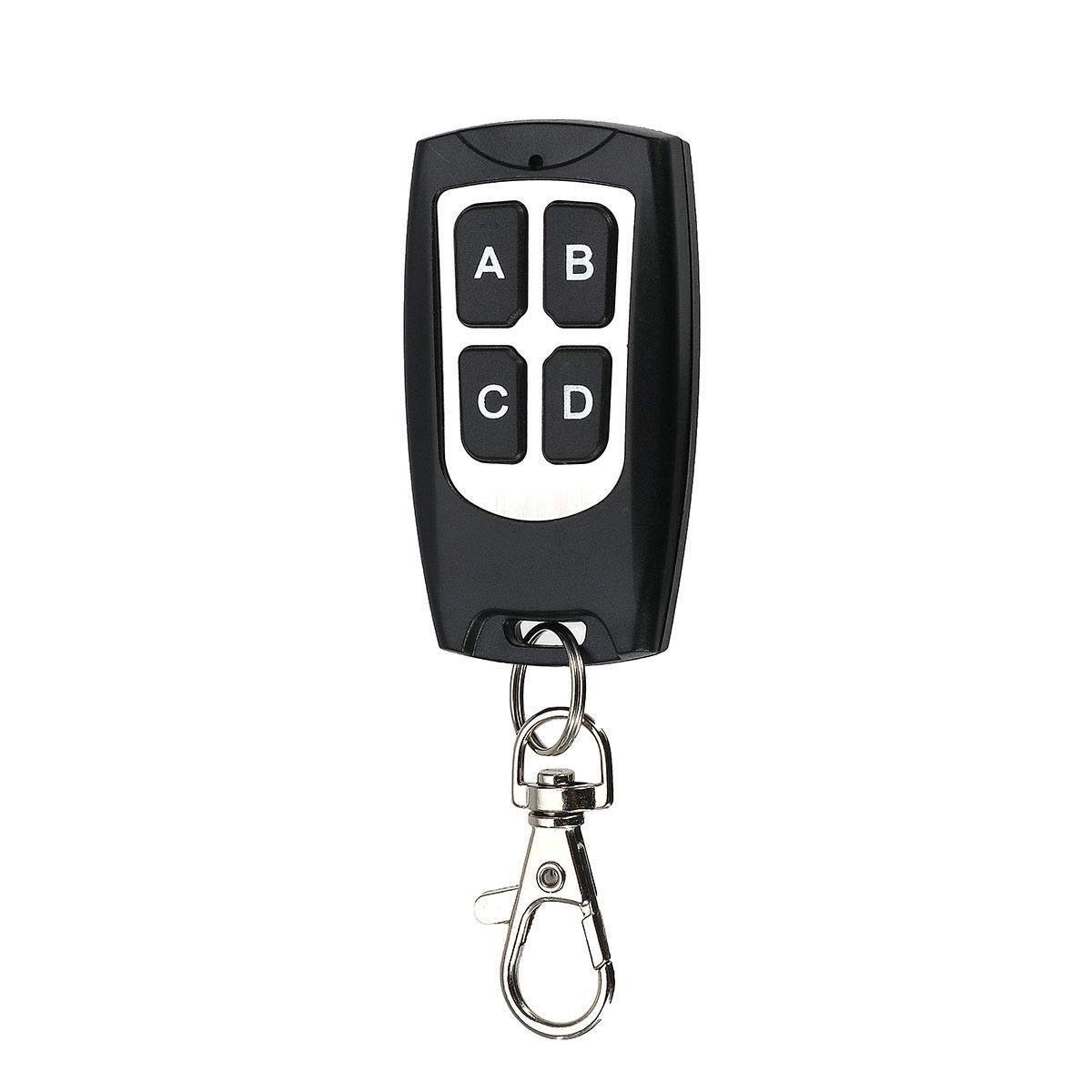

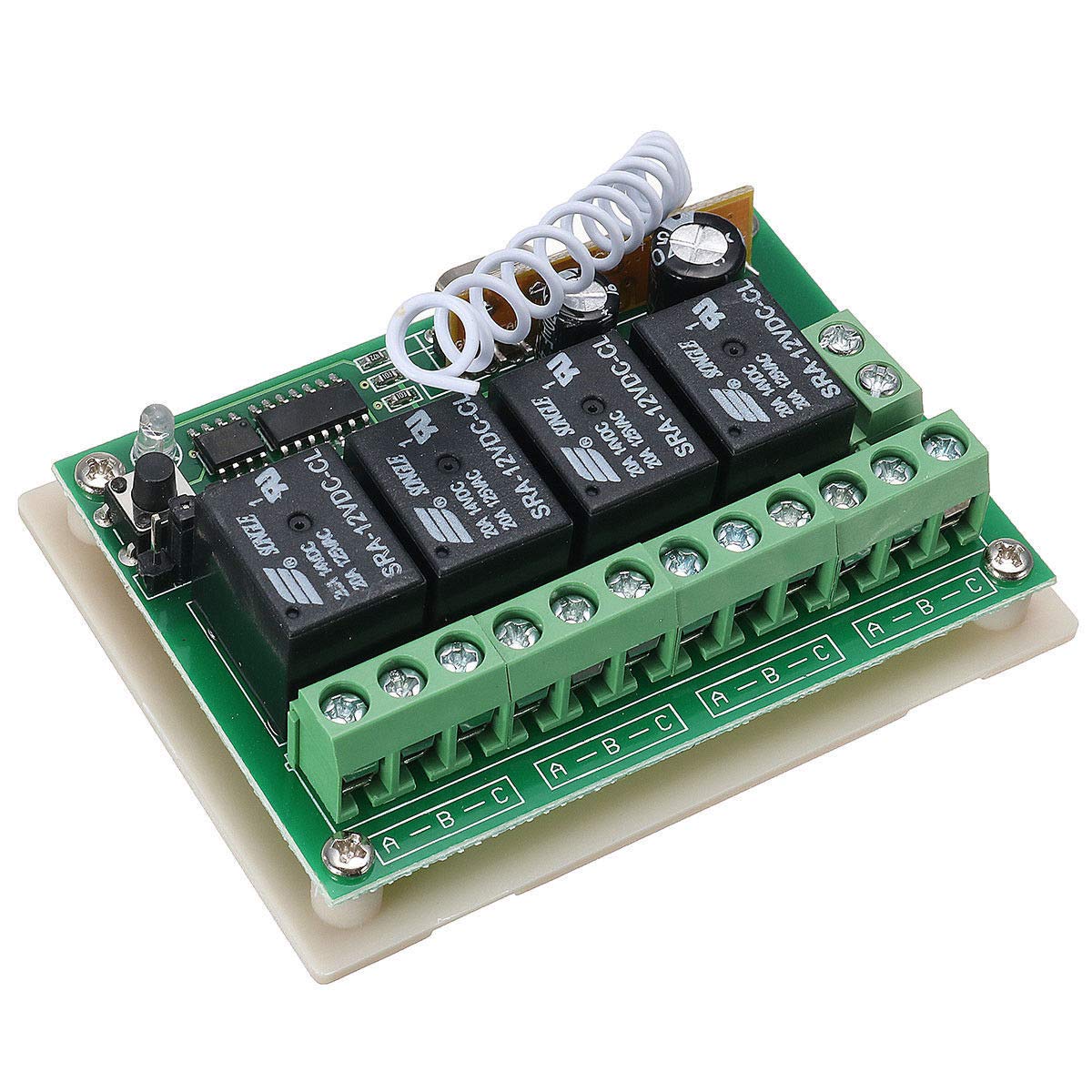

Output working way: Auto lock: connect JP1 with cutout cap. Jog: Cutout cap is unoccupied, JP1 and JP2 also do not connect. Inter-lock: connect the Jp2 with the cutout cap, Jog: press one button to turn on, release your finger the same button is off (need channel switch and one button remote control). Auto lock: press one button once to turn on, press the same button again to turn off (need channel switch and one button remote control). Inter-lock: press one button to turn on, press another button to turn off (need channel switch and 2 button remote control). Recipient: Working voltage: DC12V Idle condition: less than 6 mA Operating temperature: -40 ° c + 80 ° c Receiver sensitivity: more than -105dBm Working frequency: 433mhz Output voltage: DC and AC is optional Output current: less than 3A Maximum charge current: 10A Dimensions: 72 x 52 x 26 mm Remote control transmitter: Remote Distance: 200M Working voltage: DC 6V Frequency: 433 mhz Operating current: 13mAh Code type: fixed code / learning code Dimensions: 58 x 39 x 14 mm Type of used battery: button cell 2016 The package includes: 2 x transmitter 1 x receiver "
