RIIEYOCA Busbar Insulator, SM-30 Polyester Standoff Insulators (M8), High-Strength Busbar Insulator Supporter, Red Resin(2 pcs)

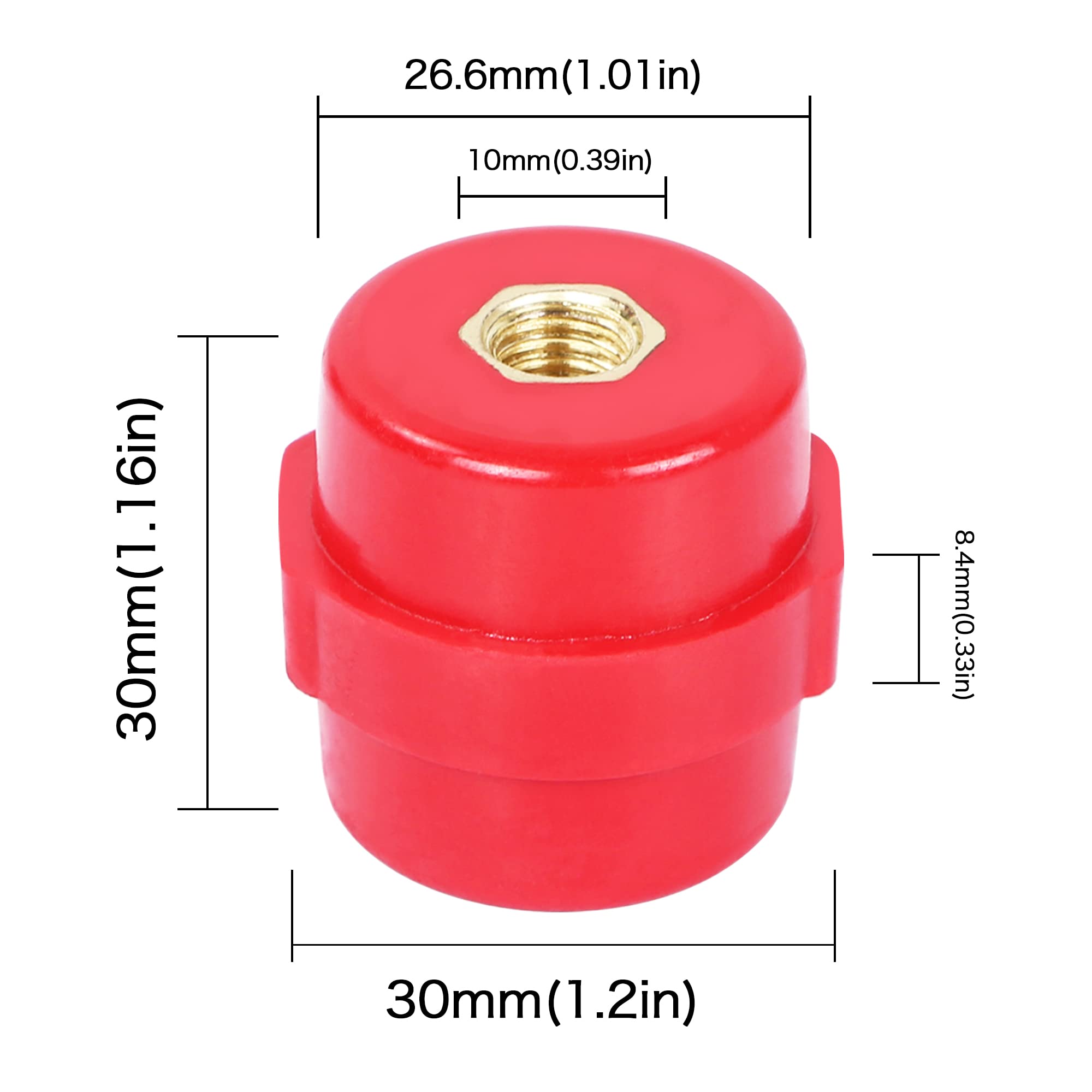

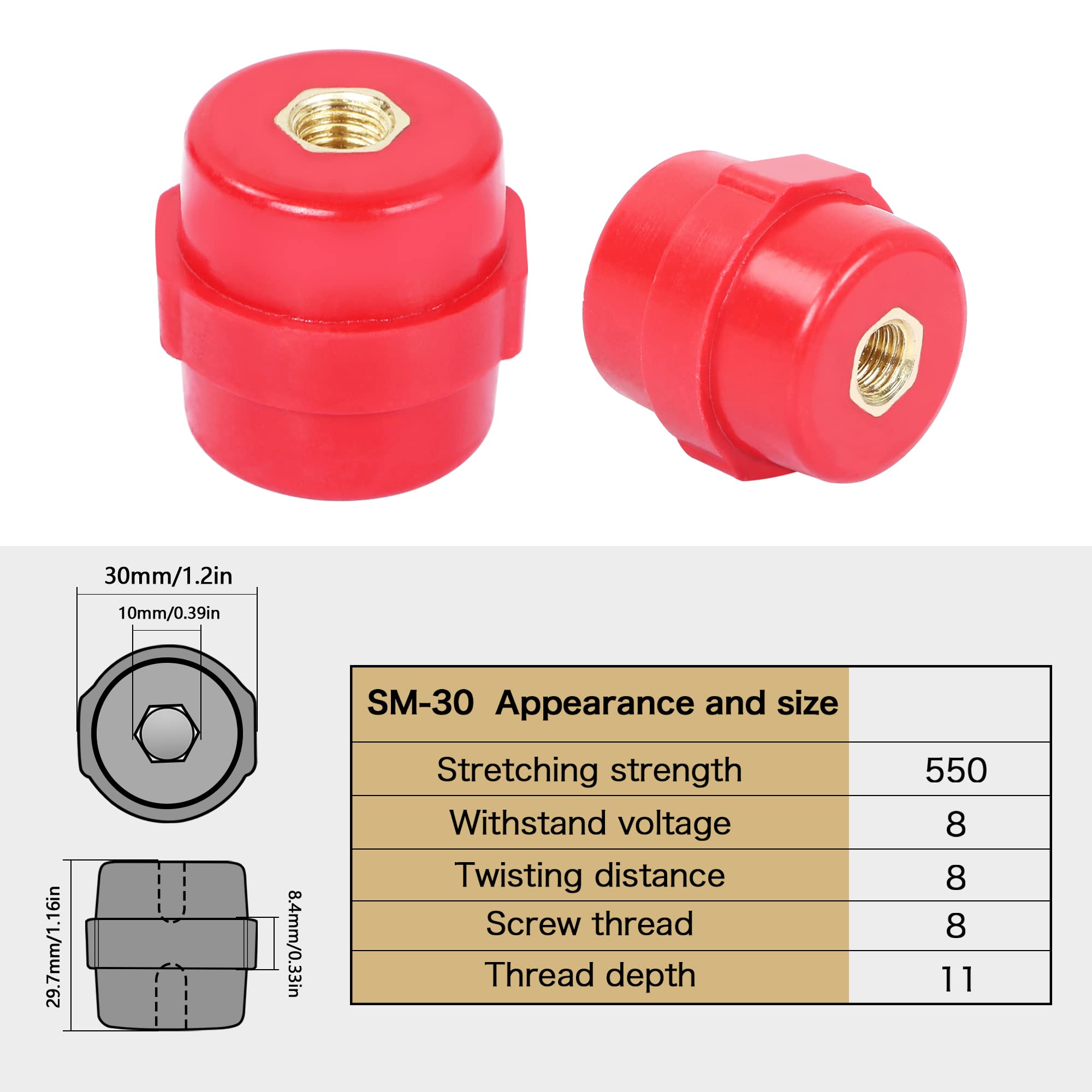

Specification: Product Name:Busbar Insulator. Model：SM-30 Height: 30 mm Material: resin Nut size: M8 Nut material:copper Screw hole depth:11mm Insulation resistance >500MΩ Electrical properties: Operating voltage:600V, Withstand voltage: 8kV Leakage current :Less than 1mA (at 2000V operating voltage). Minimum arc distance: 10 (mm) Working temperature: -40degrees Celsius-+140 degrees Celsius. Description: SM-30 with screw High-strength insulator,complex insulators. The product is generally cylindrical, with one screw hole at each end and a screw to fix the line that needs to be connected. Widely used in high low power distribution cabinet.For power distribution, transmission, fixing copperor alumnium busbar, etc, play the role of insulation and connection. Good electrical resistance, heat resistance, fire resistance, low shrinkage and water resistance.Excellent texture and good workmanship are your choice. Package:2 x Busbar Insulator SM-30
