RIB compatible radio receiver module in housing, 2-channel universal receiver for RIB SUN T433, MOON T433, 433-1, 433-2, 433-3 hand-held transmitter, 12-24V AC/DC, NO/NC 433.92Mhz rolling / fixed code

• Universal 2-channel 12-24V AC/DC receiver
• Can be programmed with: RIB SUN T433, MOON T433, 433-1, 433-2, 433-3 remote controls. !
• Frequency: 433.92 MHz fixed / rolling code. !
• Range: up to 100 – 200 metres. !
• Memory up to 400 remotes. !

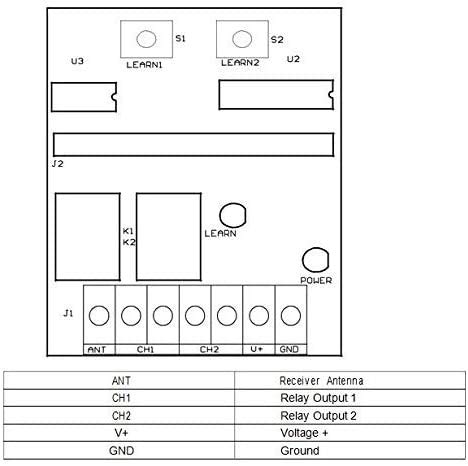

This universal 433.92 MHz rolling / fixed code 2-channel receiver 100% compatible with RIB SUN T433, MOON T433, 433-1, 433-2, 433-3 433.92 MHz remote controls. The 2 channels allow you to operate 2 different garage gates and/or other electronics using your original RIB remote control. Parameters: 433.92 MHz rolling / fixed code frequency 2-channel receiver memory: up to 400 remotes. Instructions for programming receiver: Learning new remotes: Press "learn 1" or "learn 2" button - Learn LED will go on. Then press the button which you wish to learn on your remote control. Learn LED will start flashing and go off - This means that you have successfully learned your remote to the receiver. Repeat the above steps for other transmitters. Erasing receivers memory: Press "learn 1" or "learn 2" and keep holding until Learn LED will go off - Once Learn LED is off, it means that you have successfully erased the memory of the appropriate channel. How to connect your receiver: Connect 2 wires of CH1 or CH2 to your control board between: 1) COM and N/O, 2) COM and P/P (push button) in parallel to push button. All you need to do is to connect this receiver to your control board by using only 4 wires (2 - for power; 2 - for relay). Note: The abriviations of your board may be different, so follow your manual. Video instructions for programming receiver: https://www.youtube.com/watch?v=NfpZvDAadWU&feature=youtu.be . If you want to increase the remote control reception range up to 150-200 meters, then you can connect this aerial: https://www.amazon.de/dp/B01MTOYB0F. If you have any questions about your purchase please contact us.
