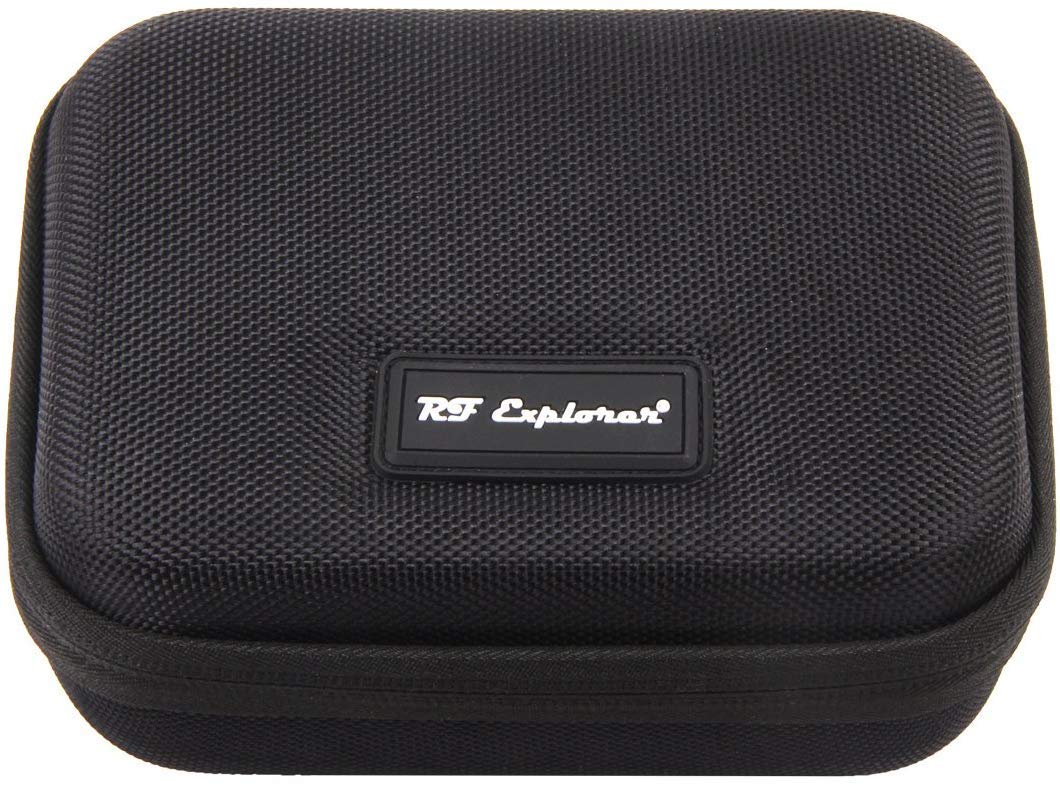

RFandEMF RF Explorer WSUB1G Plus Slim 50KHz - 960Mhz with EVA Case

• Low frequency support from 50KHz covering LF, MF, HF, VHF and UHF up to 960Mhz
• Frequency band: 0.05 – 960MHz, Frequency span: 0.1 – 960MHz
• Wide band coverage to all popular sub-1Ghz bands, including FM, TV and DTV, ISM, RFID, GSM, etc.
• High capacity internal Lithium battery for 16hs+ of continuous run, rechargeable by USB
• Can be extended with internal Expansion Modules for additional band and functionality

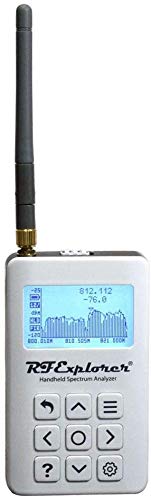

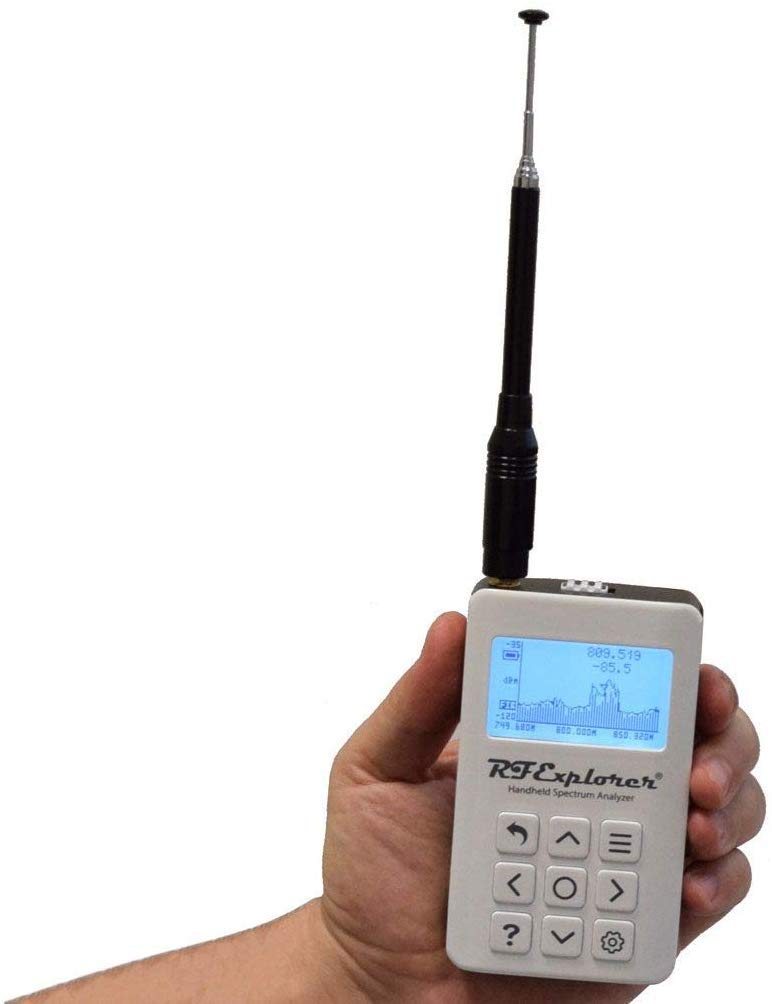

Description: RF Explorer WSUB1G+ is a powerful, high performance digital spectrum analyzer covering the 1GHz frequency range starting at 50KHz. The new SLIM model offers an outstanding robust design, a more convenient USB connector on the side and larger internal battery capacity. It is a very affordable solution replacing base model WSUB1G with additional features, capabilities and frequency coverage. Features: - Internal LNA amplifier and selectable attenuator - New HELP and SET buttons to improve user interface and configuration selection with 2-clicks - Ideal choice for HAM bands from 160 meters to 33cm - Pocket size and light weight - Solid metal case - Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes - Multi-platform Windows/Linux/MacOS Open Source software and API libraries - CE / FCC / RoHS compliant Specification: - Internal selectable LNA 25dB gain - Internal selectable Attenuator 30dB - Graphics LCD 128x64 pixels, great visibility outdoors - Support included for Windows, Linux and MacOS X - Backlight for great visibility indoor - Standard SMA 50 ohms connector - Wideband Nagoya NA-773 telescopic antenna included - UHF 400-900MHz rubber duck articulated antenna included - High quality flexible silicone rubber boot included - Amplitude resolution: 0.5dBm - Dynamic range: -125dBm to 10dBm - Absolute Max input power: +30dBm - Average noise level (typical LNA): -125dBm - Frequency stability and accuracy (typical): +-10ppm - Amplitude stability and accuracy (typical): +-2dBm - Frequency resolution: 1Khz - Resolution bandwidth (RBW): automatic 2.6Khz to 600Khz
