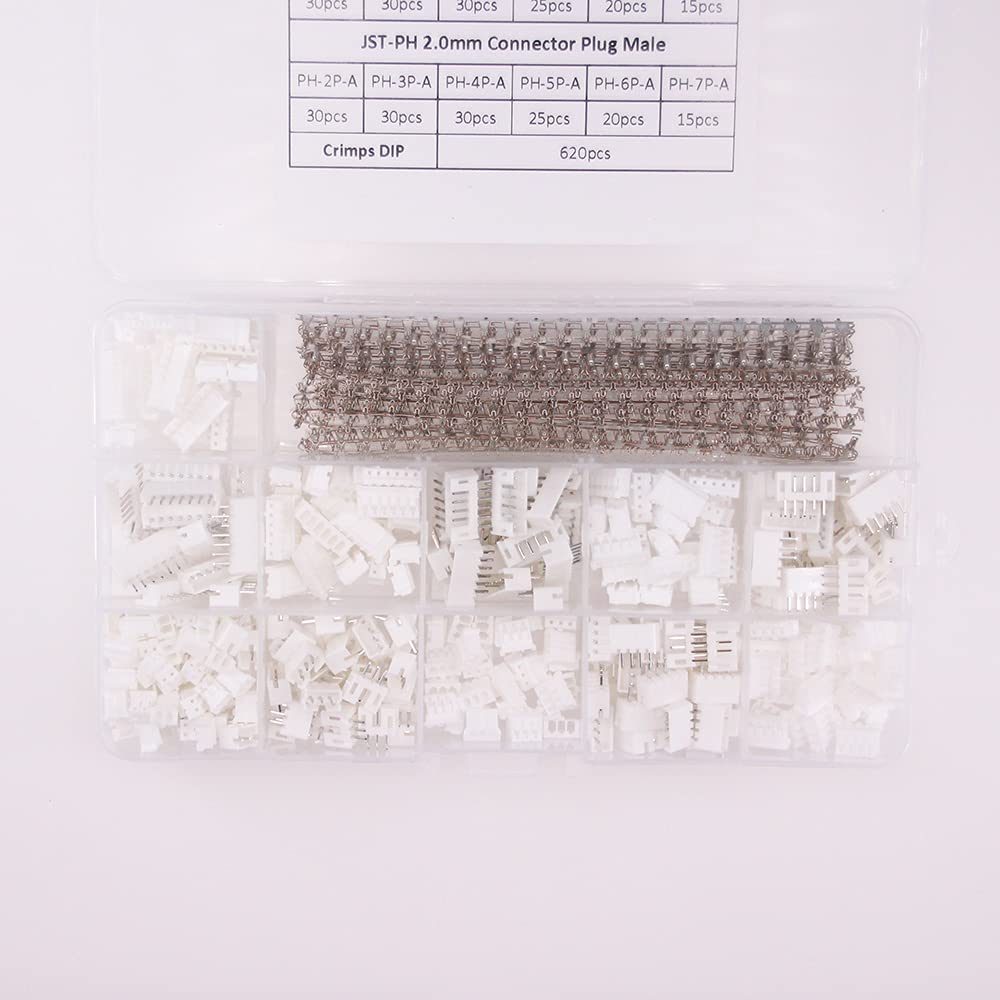

RFaha 920pcs JST-PH Kit 2.0mm 2/3/4/5/6/7 Pin Female Head Plug JST Adapter Housing Connector Cable Socket Male Female Crimp DIP Kit(PH#2-7)

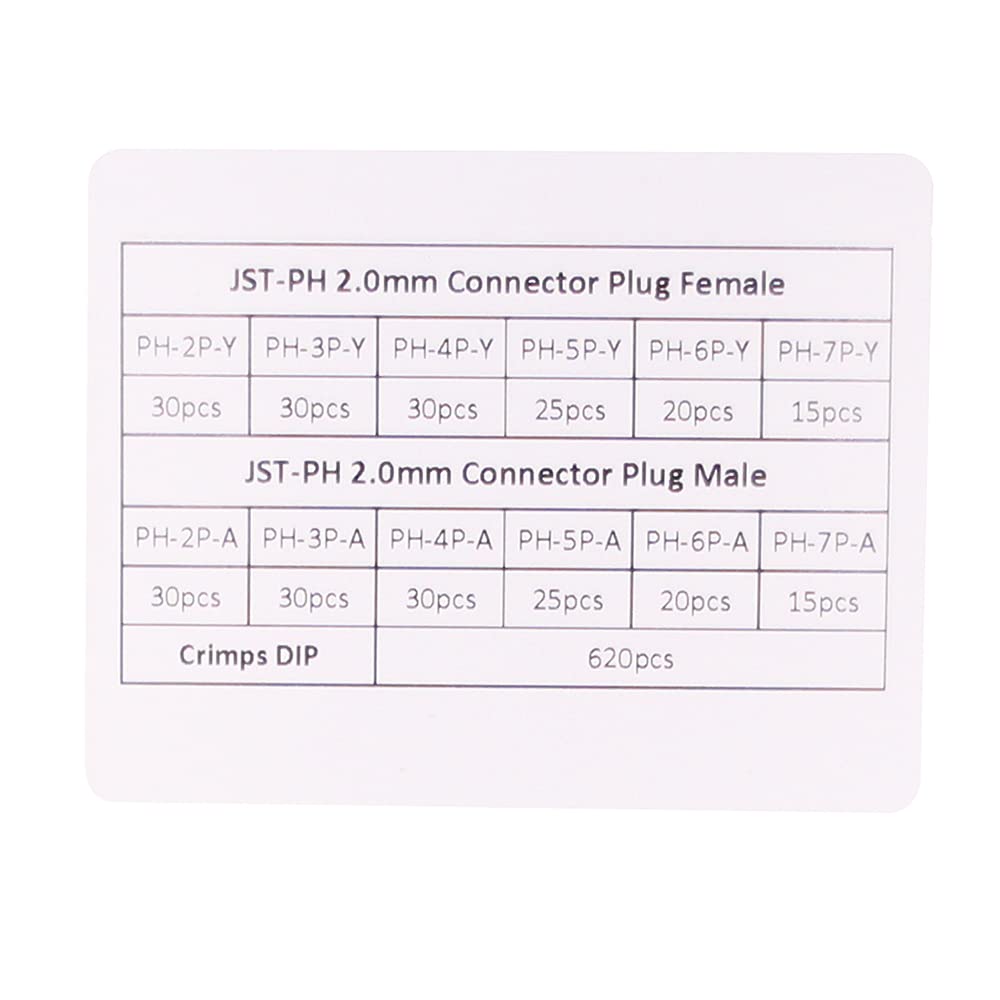

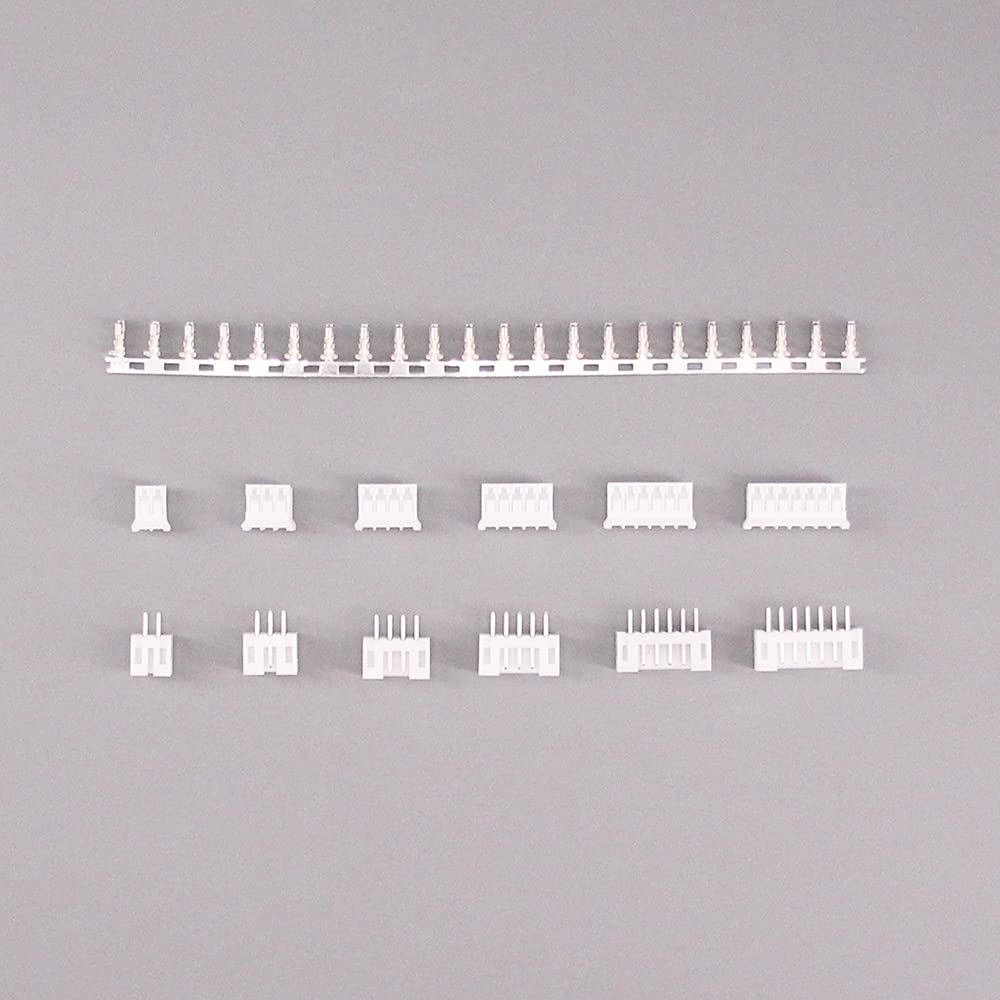

• JST 2.0mm PH - 2/3/4/5/6/7 Pin Housing (150pcs)
• JST 2.0mm B2B/B3B/B4B/B5B/B6B/B7B-PH Through-Hole Type Shrouded Header (150pcs)
• Widely used in electrical appliances, automobiles, robots, lighting, LED strips, toys, PCB control panel, speakers, audio, batteries, toys, household appliances, etc.

Specifications: Pitch: 2.0 mm(0.079 inch) Current Rating: 2A AC,DC (AWG #24) Voltage Rating: 100V AC,DC Temperature Range: -25 Degree Celsius to 85 Degree Celsius(including temperature rise in applying electrical current) Contact Resistance: Initial value/10m Ohm max. After Environmental Testing/20 m Ohm max. Insulation Resistance: 1000 M Ohm min. Withstanding Voltage: 800V AC/minute Applicable Wire: 32awg to 24awg Applicable PC Board Thickness: 0.8 mm to 1.6 mm (0.03 inch to 0.06 inch) Widely used for Speakers, Monitors, Computers, Electronic Toys, Copiers, FAX Machines, Batteries, Circuit boards etc.
