RF Test Board, 18 Functional Modules RF Demo Kit NanoVNA RF Test Module Vector Network Analyzer Board Filter/Attenuator Module Nanovna Demo Kit

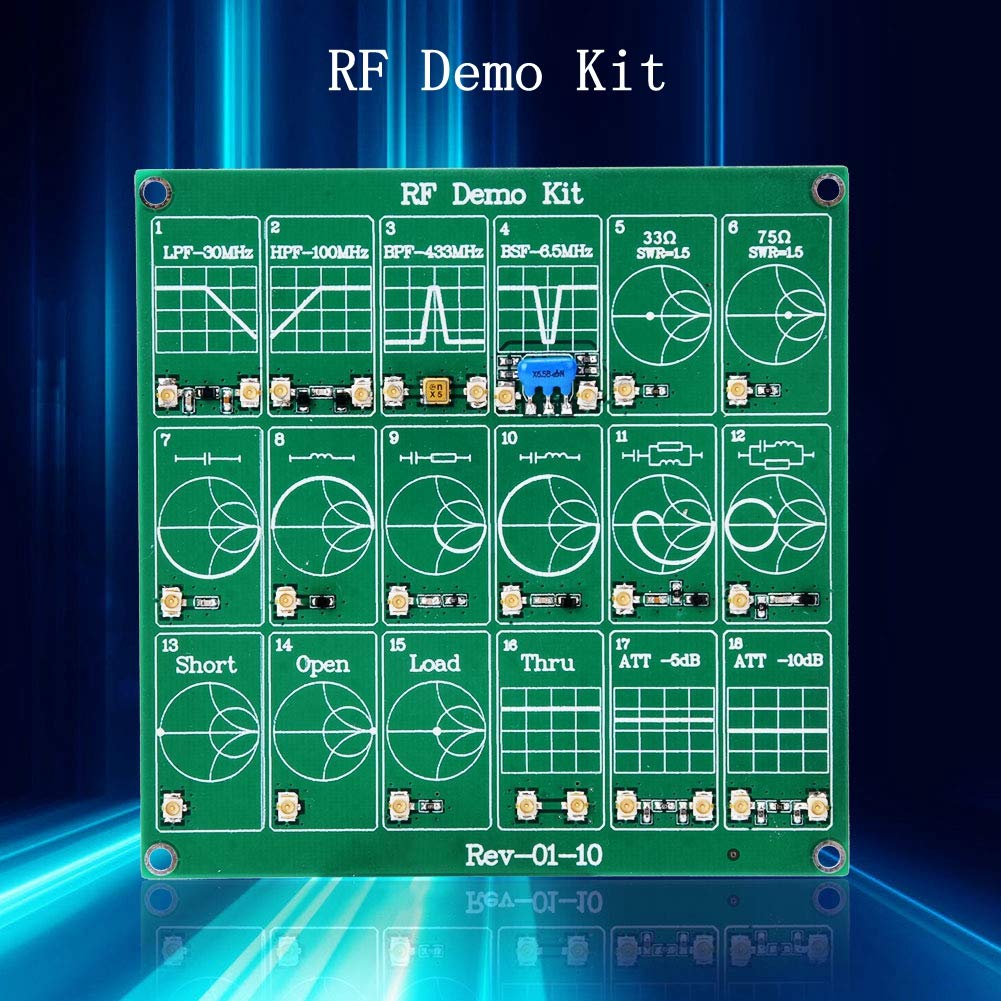

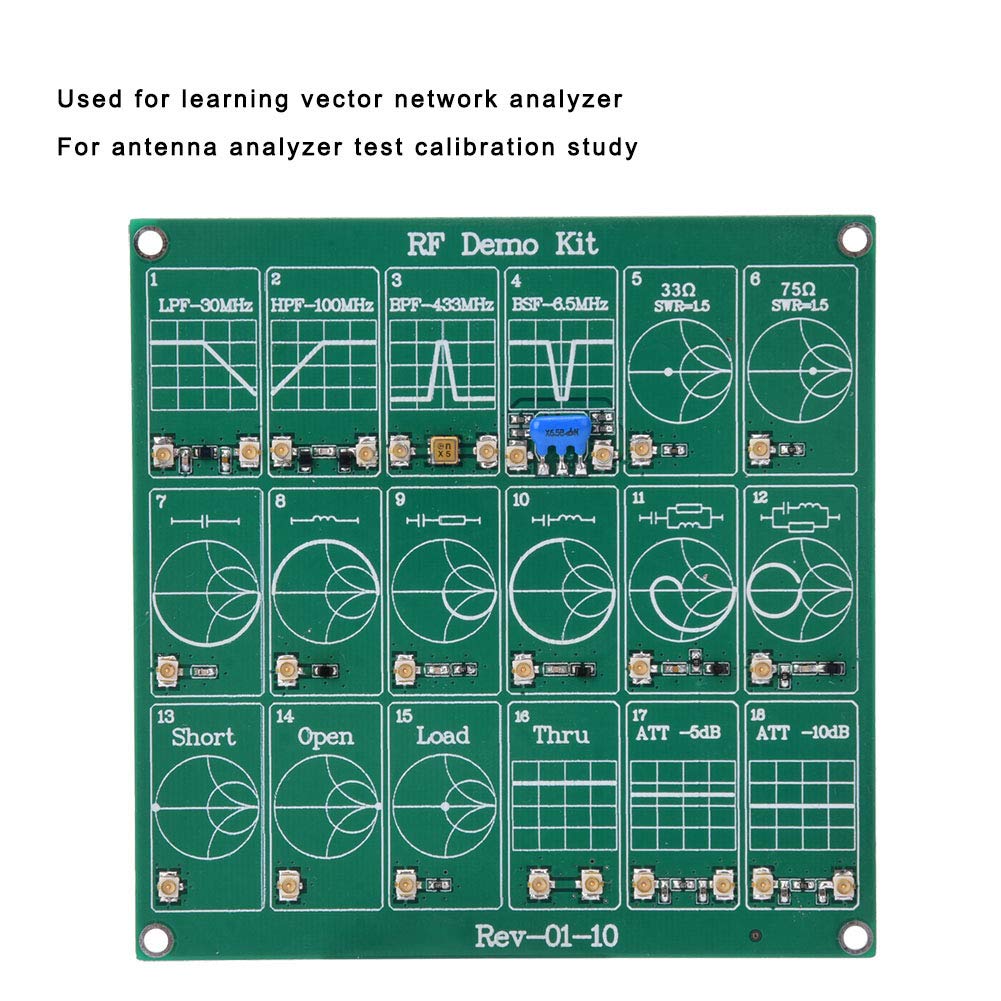

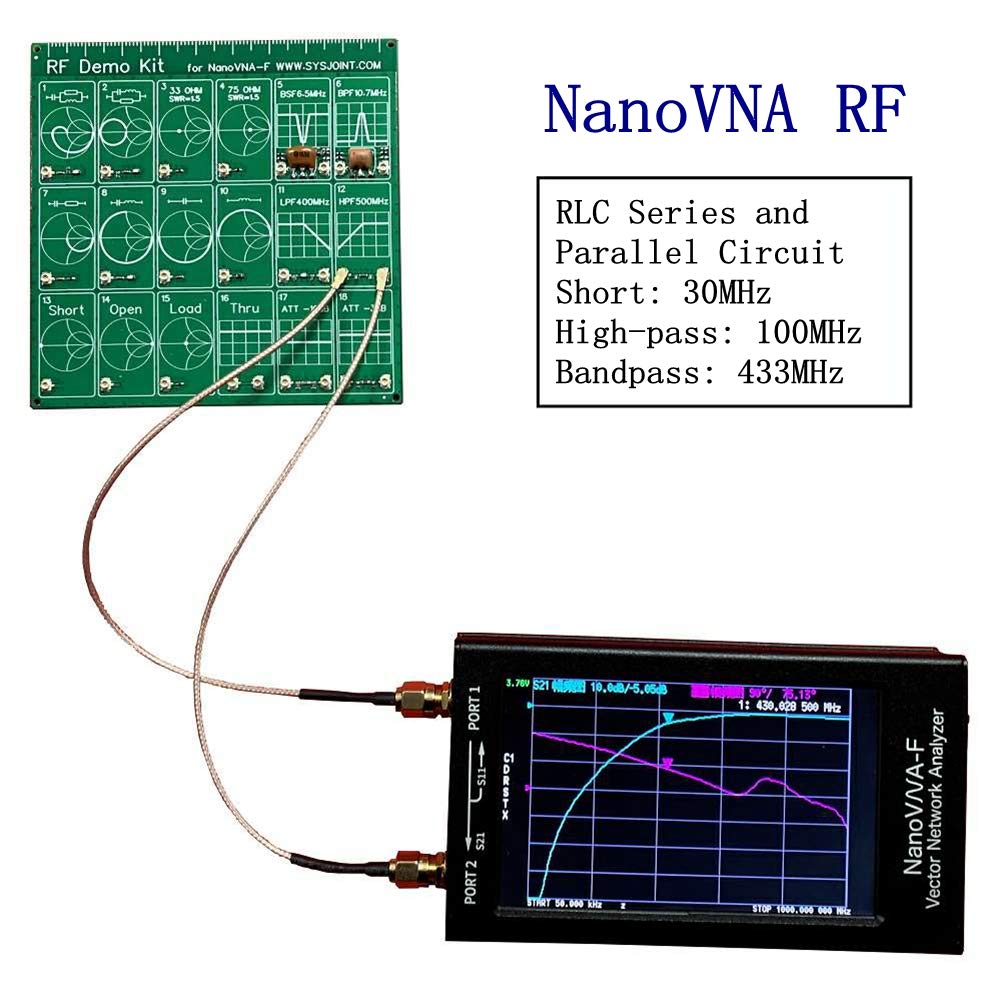

• 【RF Test Board 】--RF Demo Kit RF test board demo calibration board for learning Vector Network Analyzer , Antenna Analyzer test calibration learning.the RF test board is useful for beginners who want to discover the secrets of spectrum/vector analyzer.

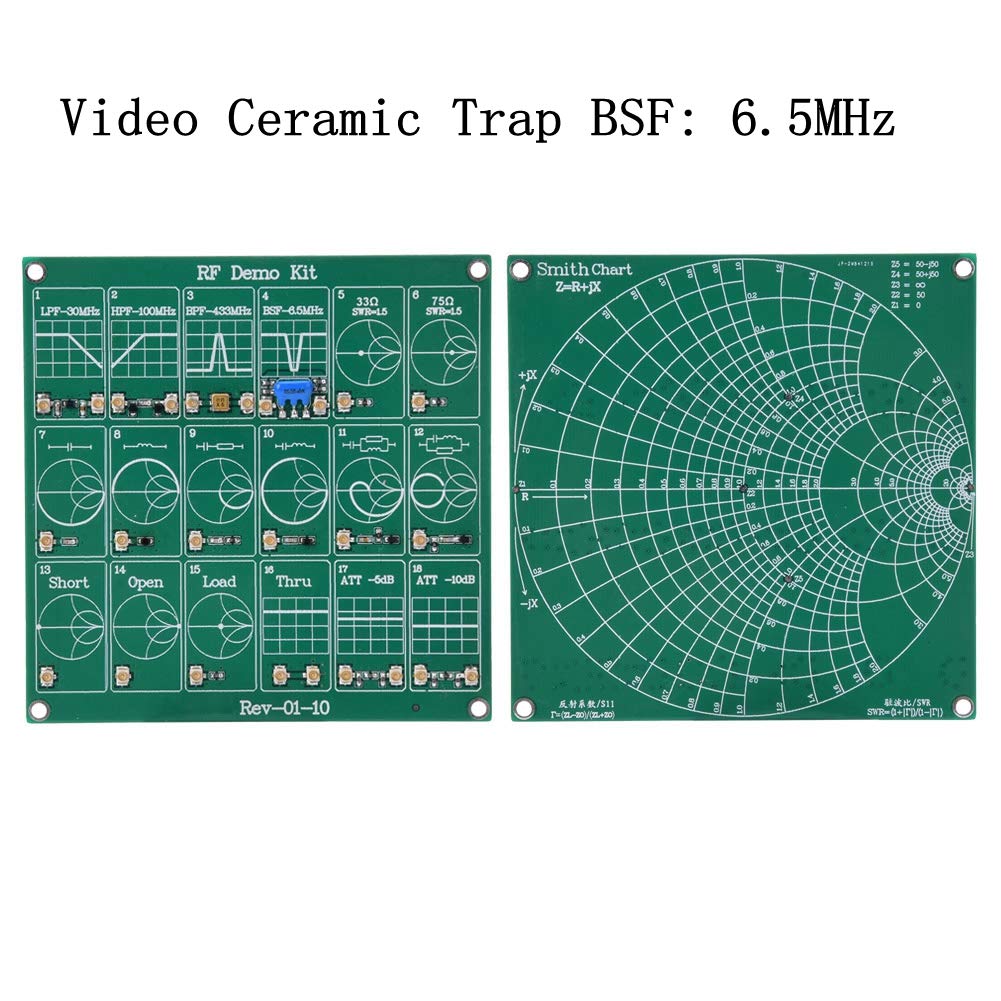

• 【The Filter】--Short-wave low-pass filter LPF: 30MHz;FM high-pass filter HPF: 100MHz;Commonly used SAW bandpass filter BPF: 433MHz;Video ceramic trap BSF: 6.5MHz
• 【Specification 】--RLC series and parallel circuit Includes R, L, C and combinational circuits;Open /short circuit and load calibration circuit;The attenuation circuit.

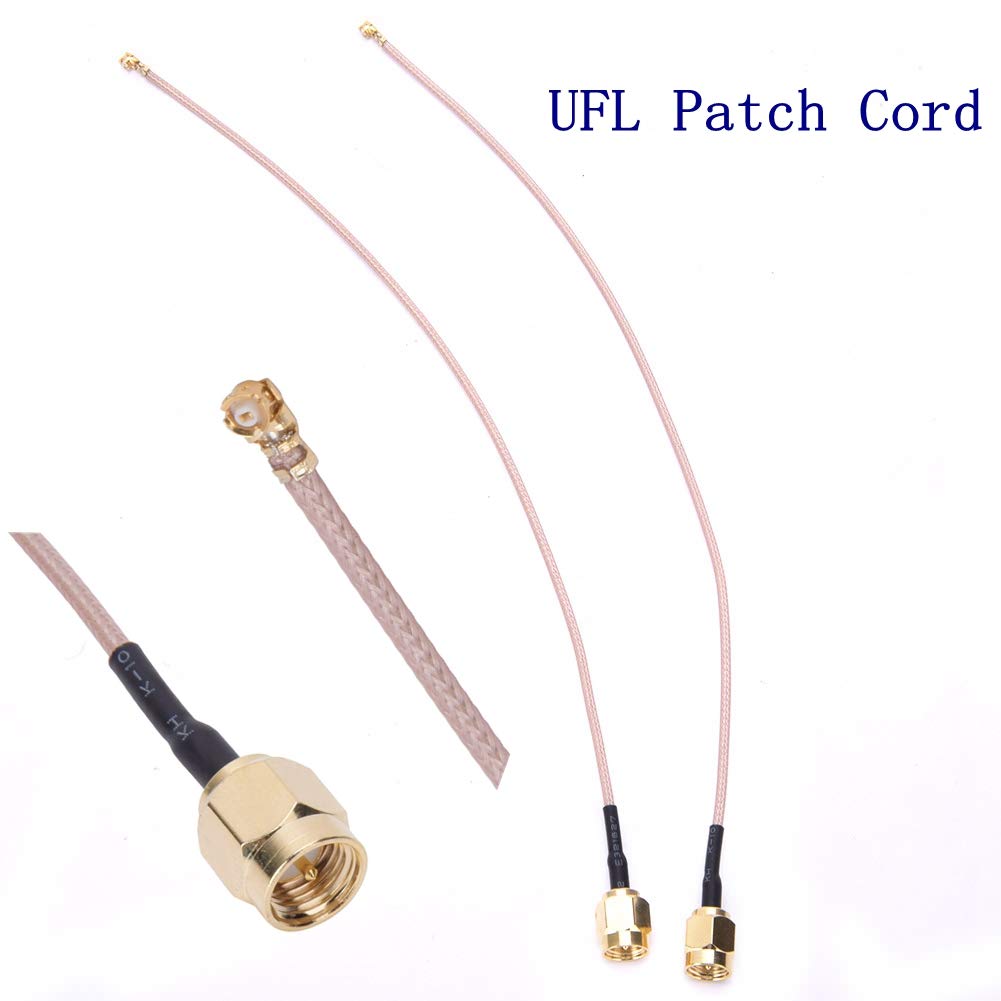

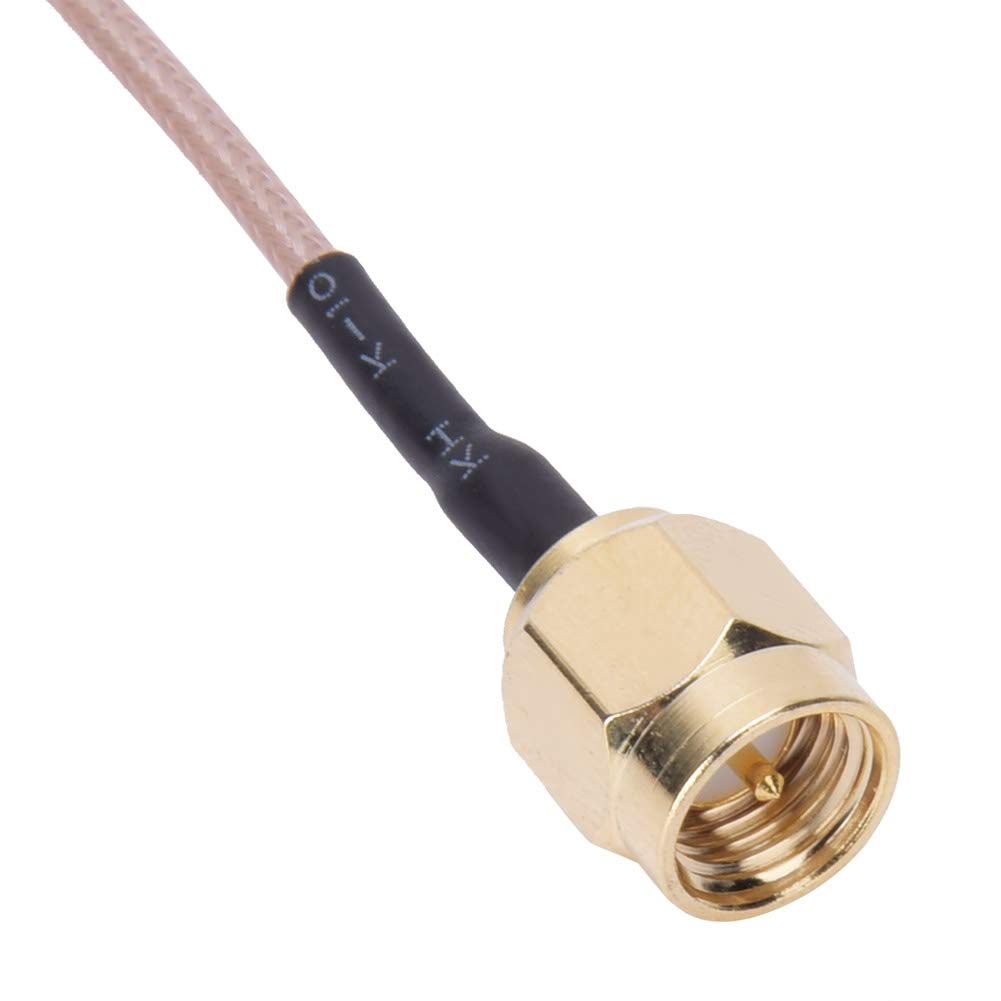

• 【18 Functional Modules& 2 Pcs Of Ufl Patch Cord】-- The board is totally integrated with 18 functional modules.Equipped with 2 pcs of UFL patch cord for convenient use.Each module is well selected of high quality and great reliability.The board is small and light ,suitable for carrying with.
• 【Quality Assurance】-- brand new and the quality of our products is guaranteed and can be used without hesitation. If you have any questions during use, please feel to contact us.

Feature: 1. RF Demo Kit NanoVNA RF test board demo calibration board for learning Vector Network Analyzer , Antenna Analyzer test calibration learning. 2. The board is totally integrated with 18 functional modules. 3. Equipped with 2 pcs of UFL patch cord for convenient use. 4. Each module is well selected of high quality and great reliability. 5. The board is small and light ,suitable for carrying with. Specification: Item Type:RF Demo Kit 1, The filter: A, Short-wave low-pass filter LPF: 30MHz B, FM high-pass filter HPF: 100MHz C, Commonly used SAW bandpass filter BPF: 433MHz D, Video ceramic trap BSF: 6.5MHz 2, RLC series and parallel circuit Includes R, L, C and combinational circuits 3, Open /short circuit and load calibration circuit 4, The attenuation circuit Package List: 1 x RF Demo Kit Board2 x UFL Patch Cord
