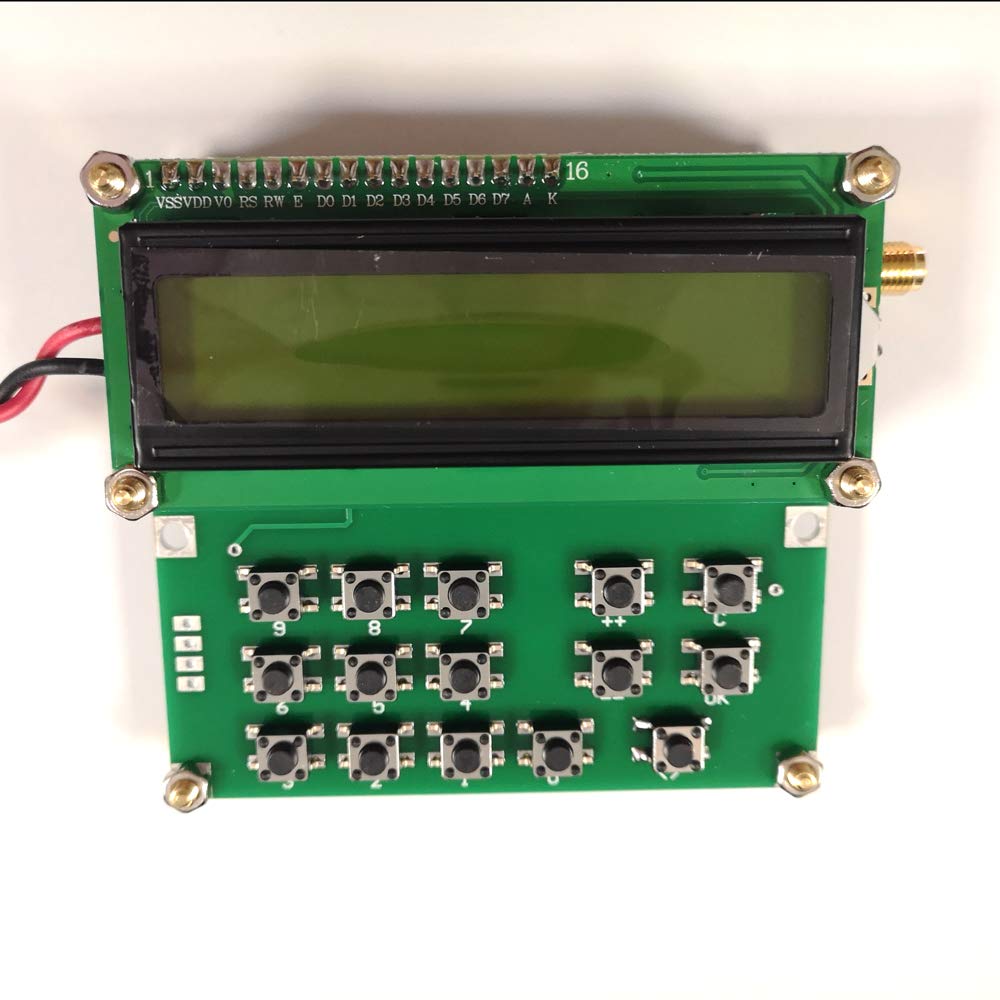

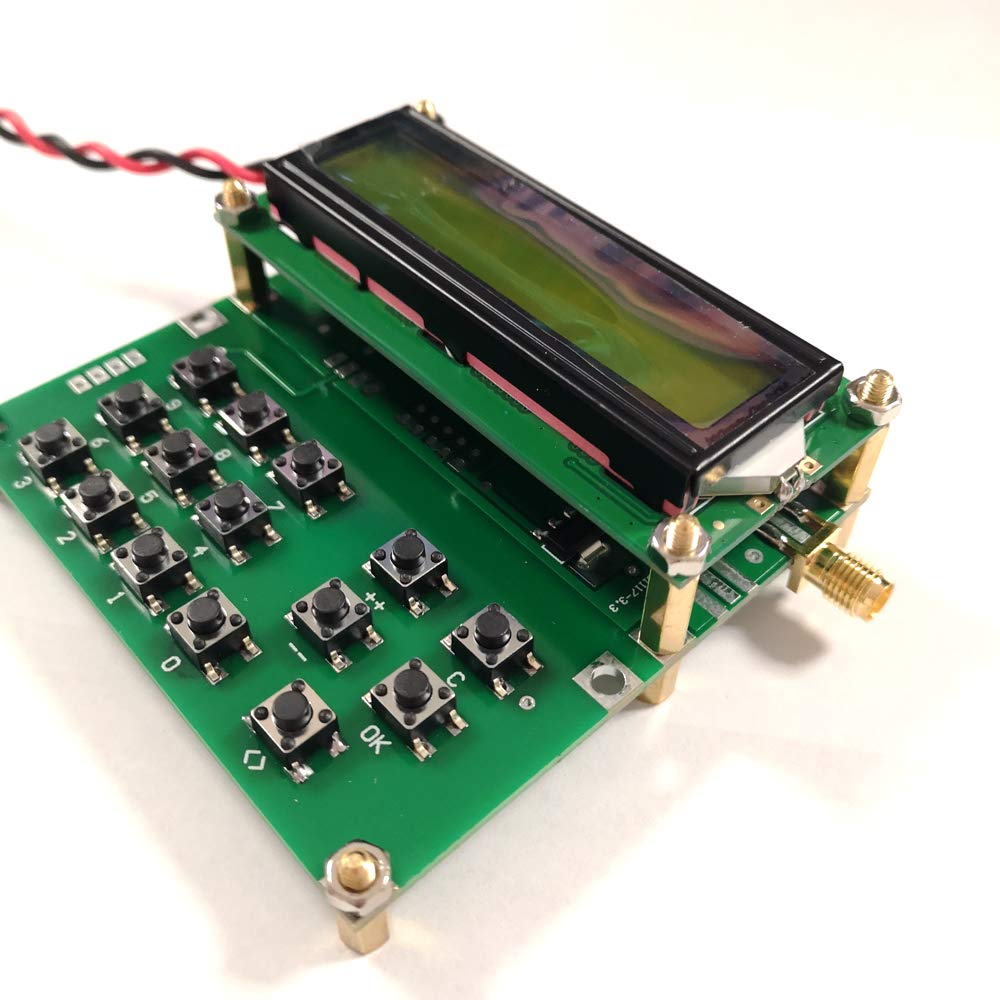

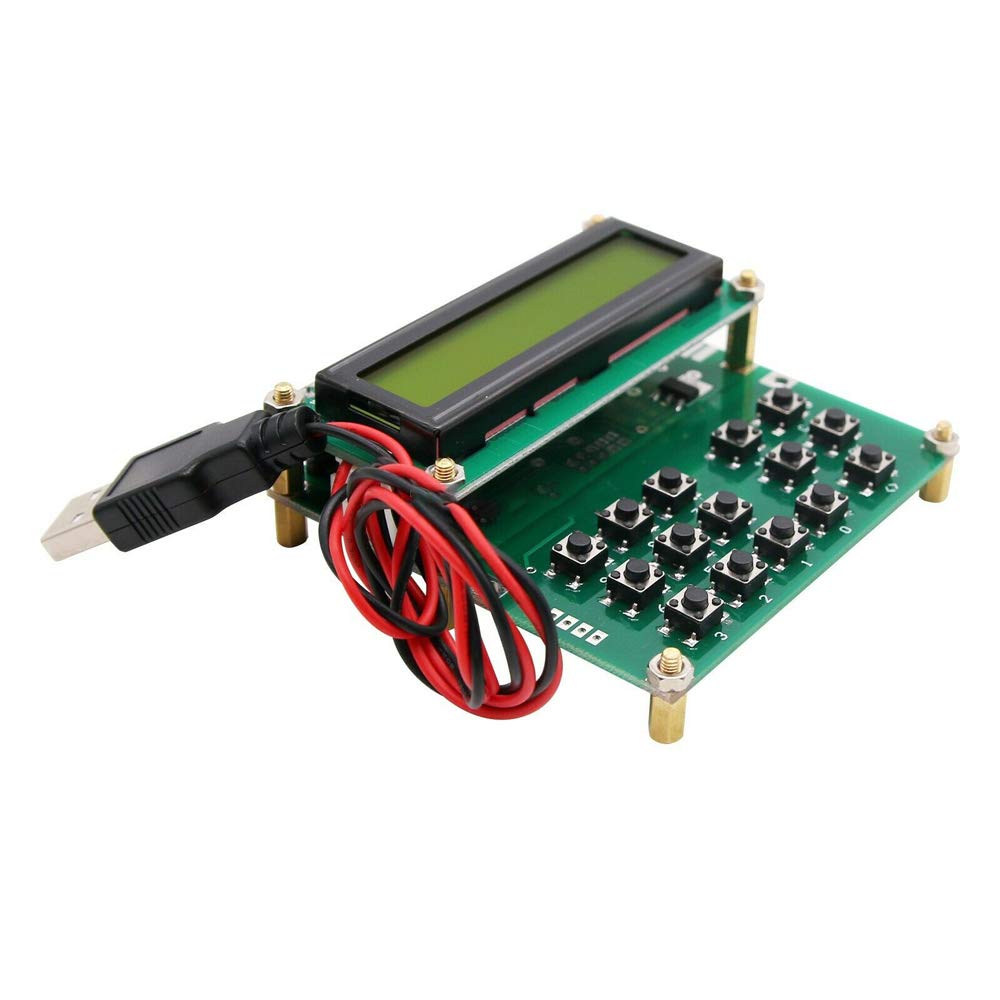

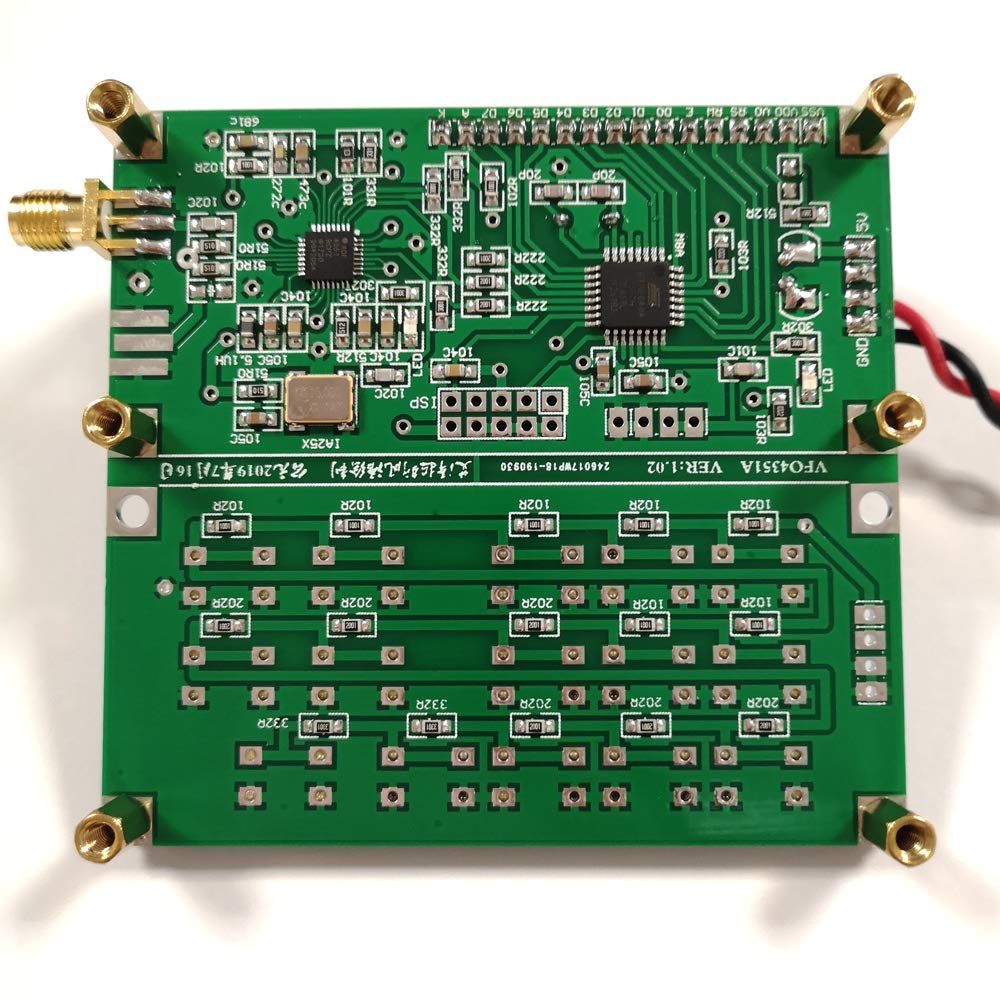

RF Signal Generator,32MHz-4400MHz RF Signal Source Generator ADF4351 VFO HXY D6 V1.02 New

 Description:Supply voltage: DC 4.5V-5.5V, please note that this machine does not have built-in voltage regulator unit, must not supply over voltage rangeStandby current: <25mA Emission current: <150mA Output impedance: 50 ohms Output frequency range: 32mHz---4400mHz Output stepping: 1khz---8khz Output power: -1dBm (W) @ 150MHZ (test power absolute value) about 1 milliwatt  This product operation keyboard has 15 ppt keys, 0~9 number keys, 10, "++"  and "--" keys adjust the frequency to use, and also generate emission  output behavior.  short press "++" or "-- ”Key stepping adds 1khz or minus 1khz to the original frequency output. Pressing “++” or “--” for more than 1 second will result in a continuous or continuous subtraction scan mode.   The scanning mode is 1khz at 35mhz~138mhz; 10khz at 138mhz~550mhz; 100khz at 550mhz~4000mhz.  To end the scan, simply press the "++" "--" button or the "ok" button. The “ok” button is the output control button. Click to launch, and press again to stop the transmission.  The launch behavior caused by "++" or "--" requires two "OK"s to end the launch behavior. This product is on the upper right of the display when there is output emission behavior.  The corner will appear ">>", the "C" button will end the emission and the frequency will be zero.Package Included:- 1 x Simple RF Source Generator
