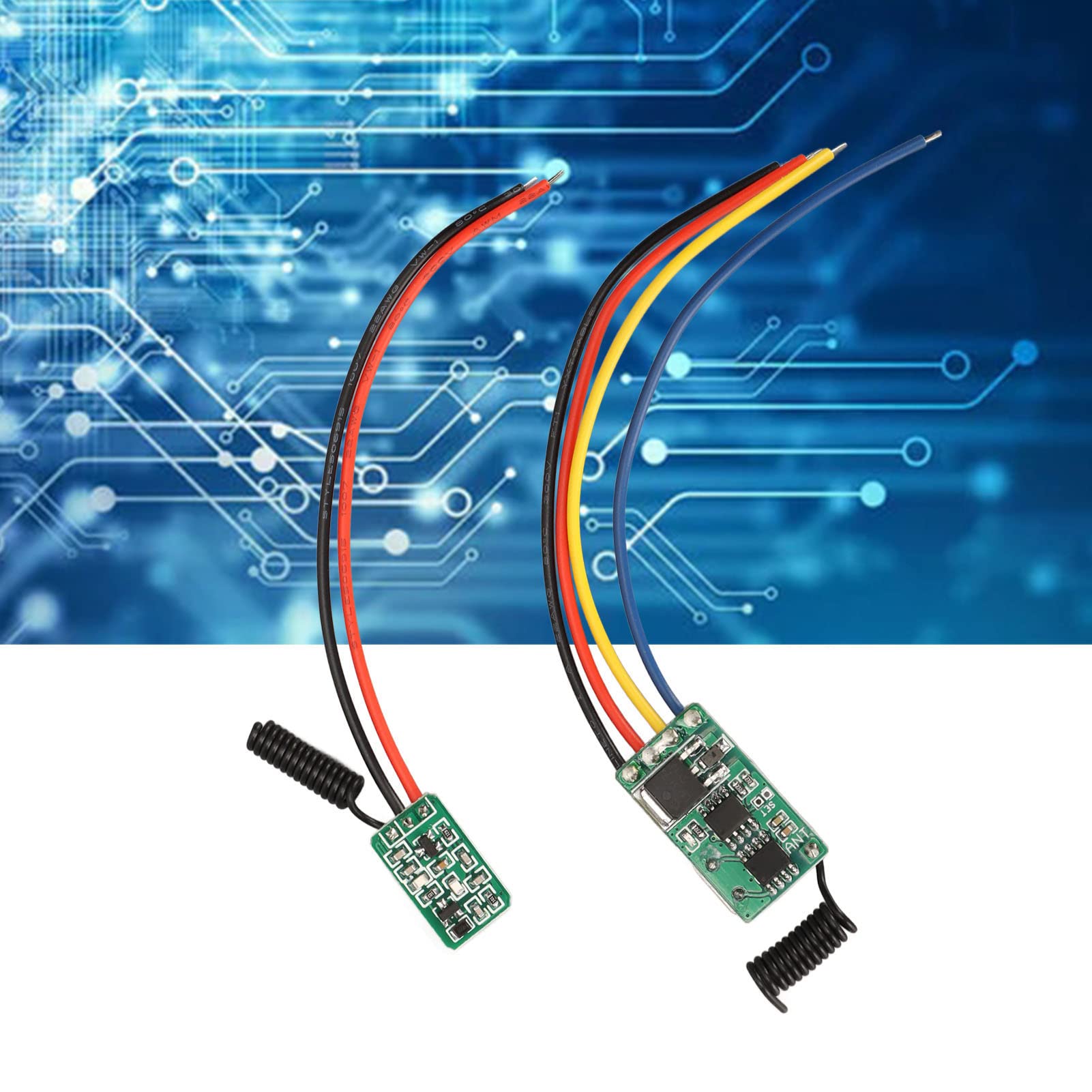

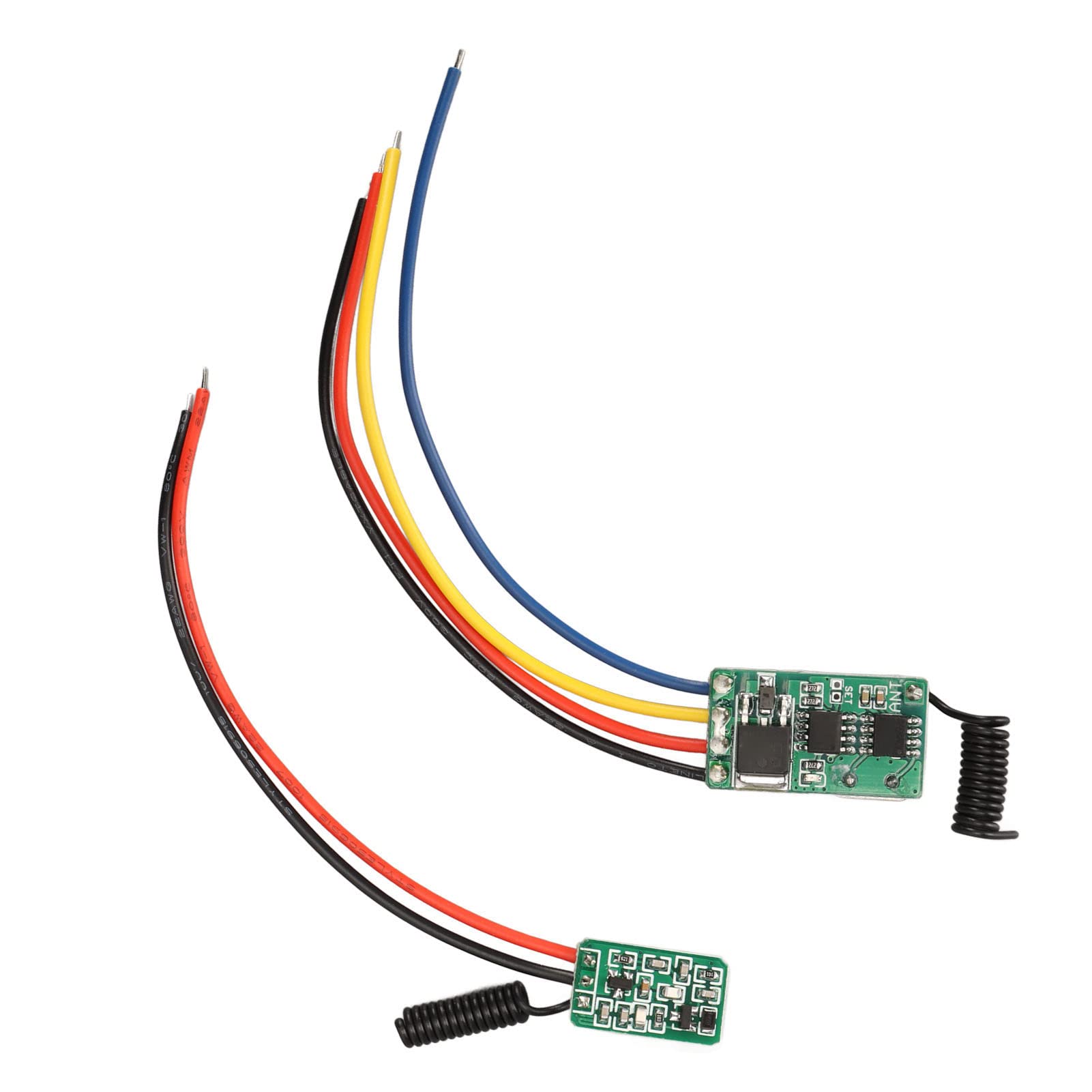

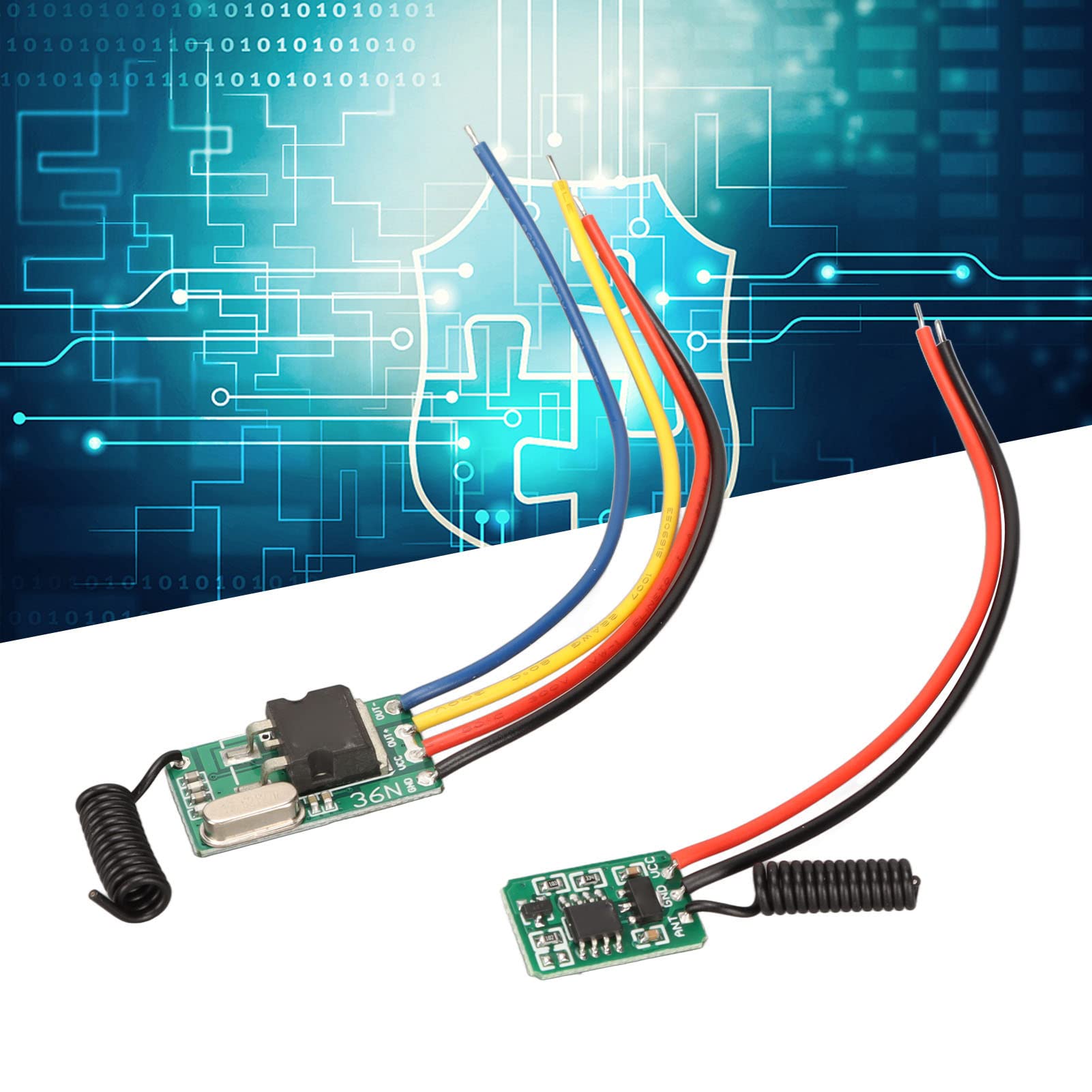

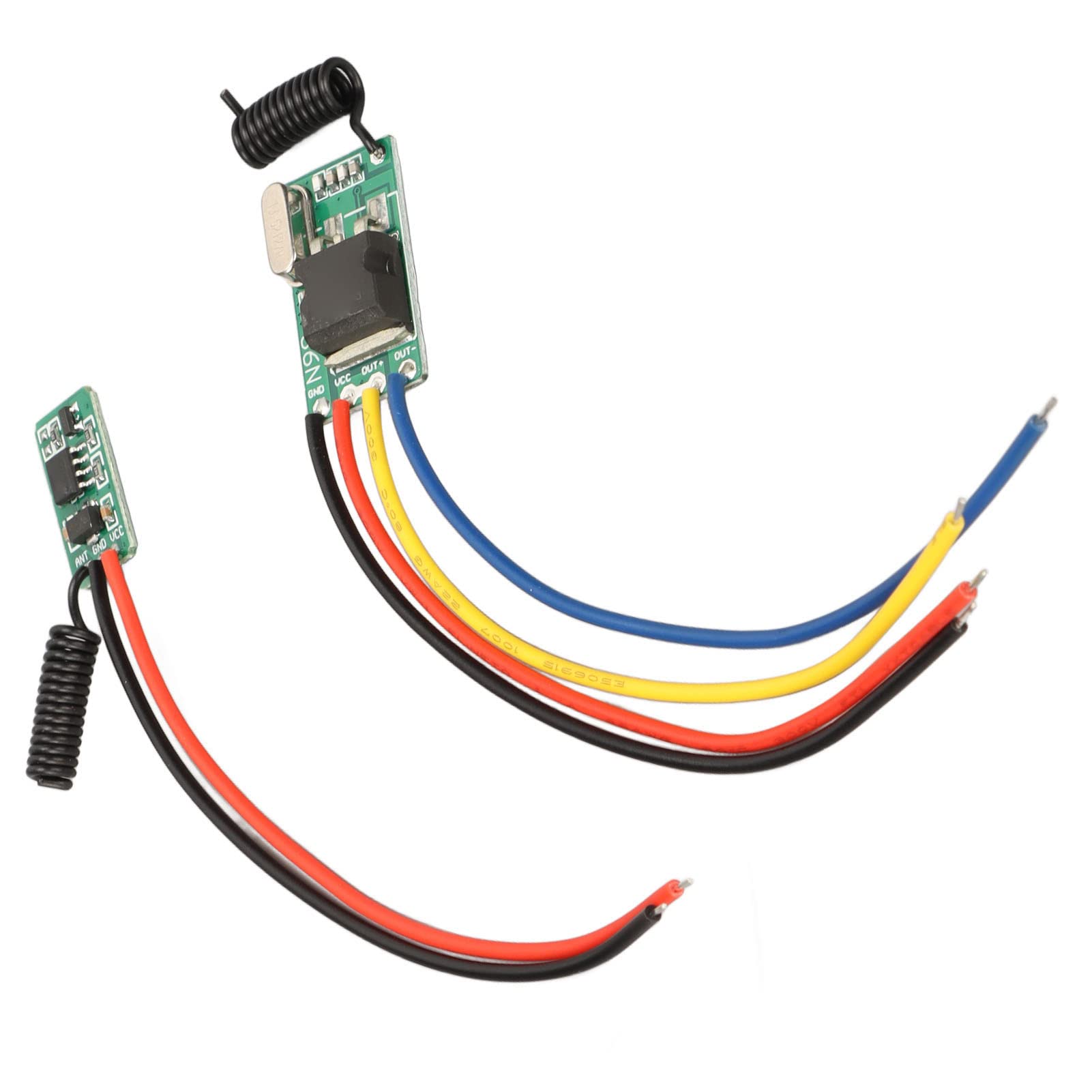

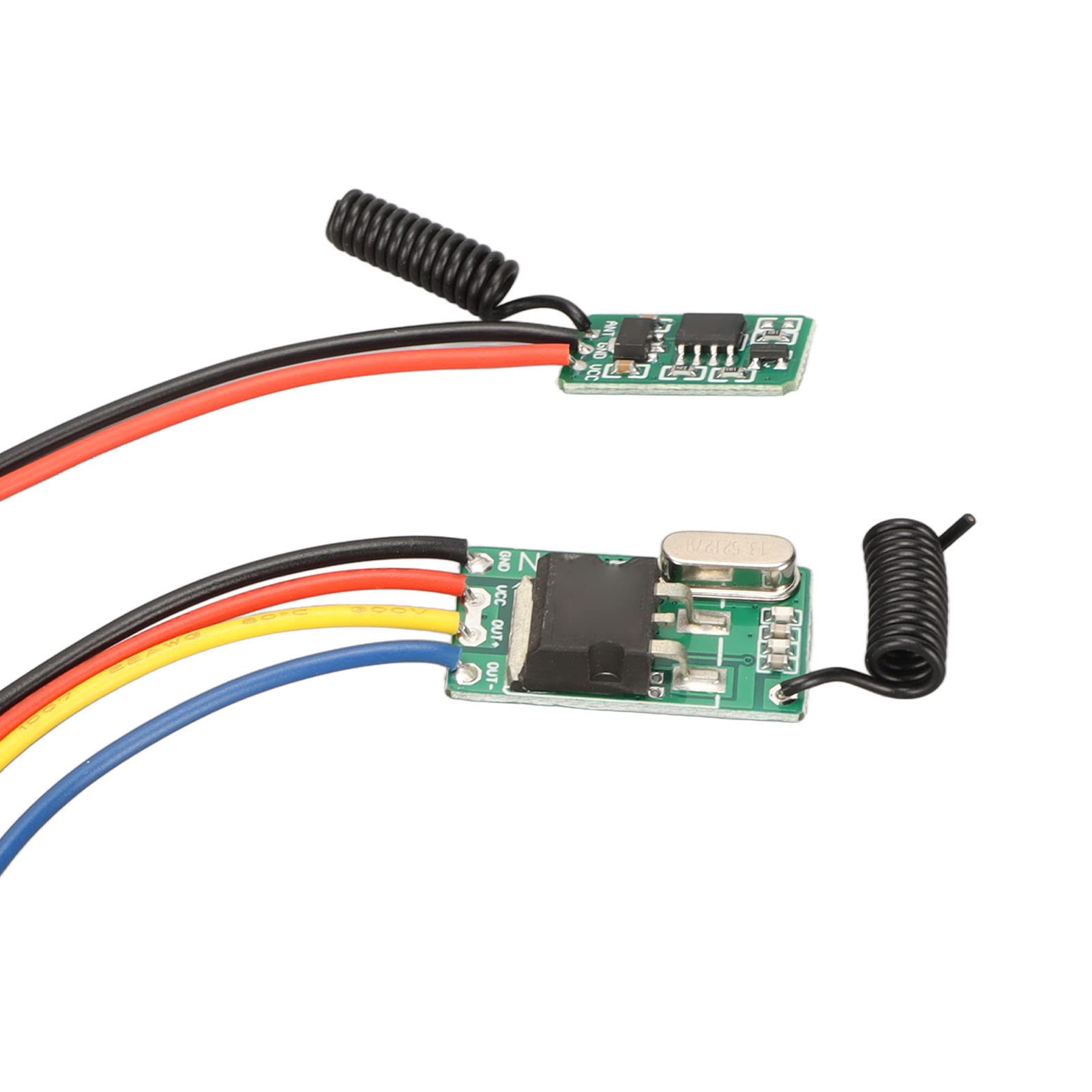

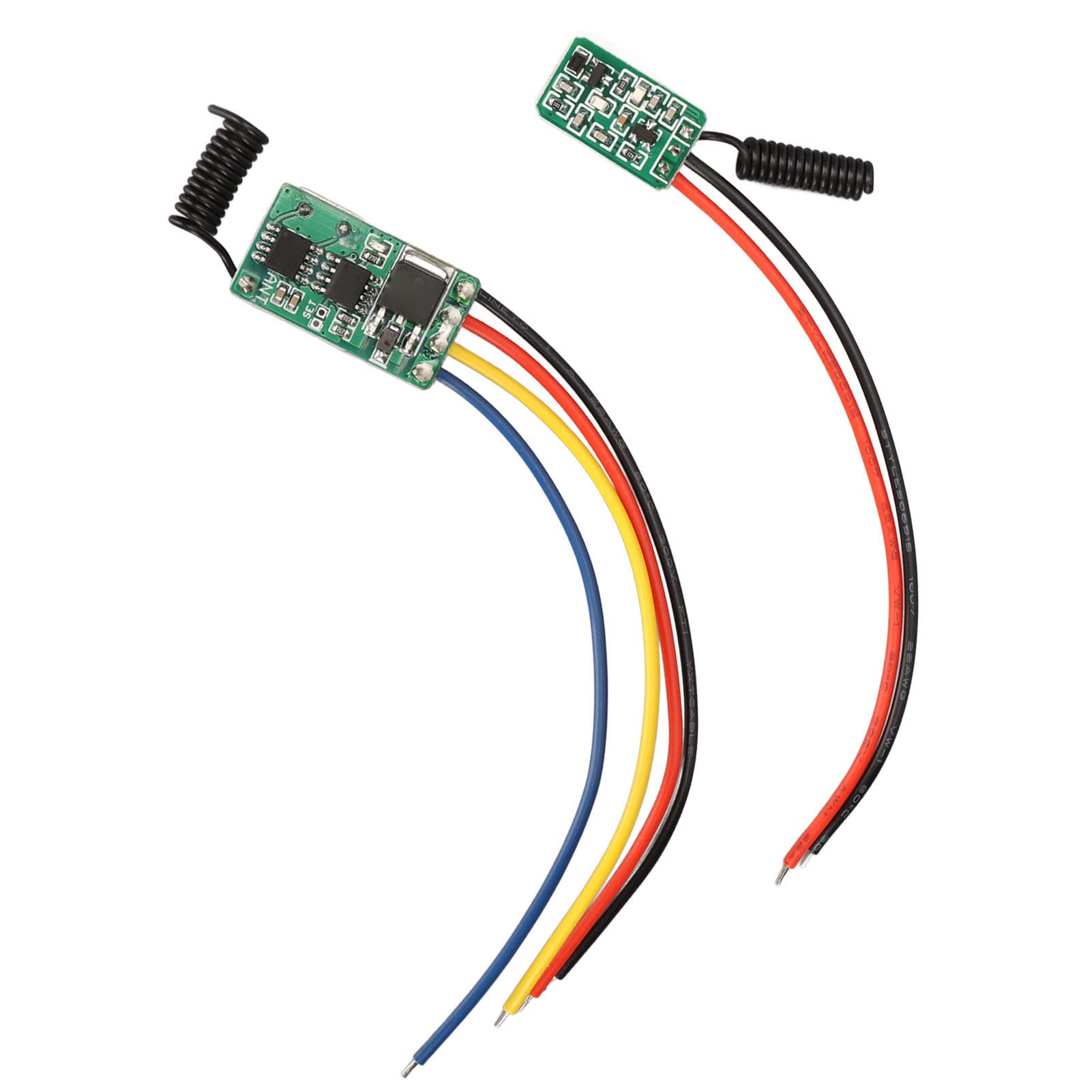

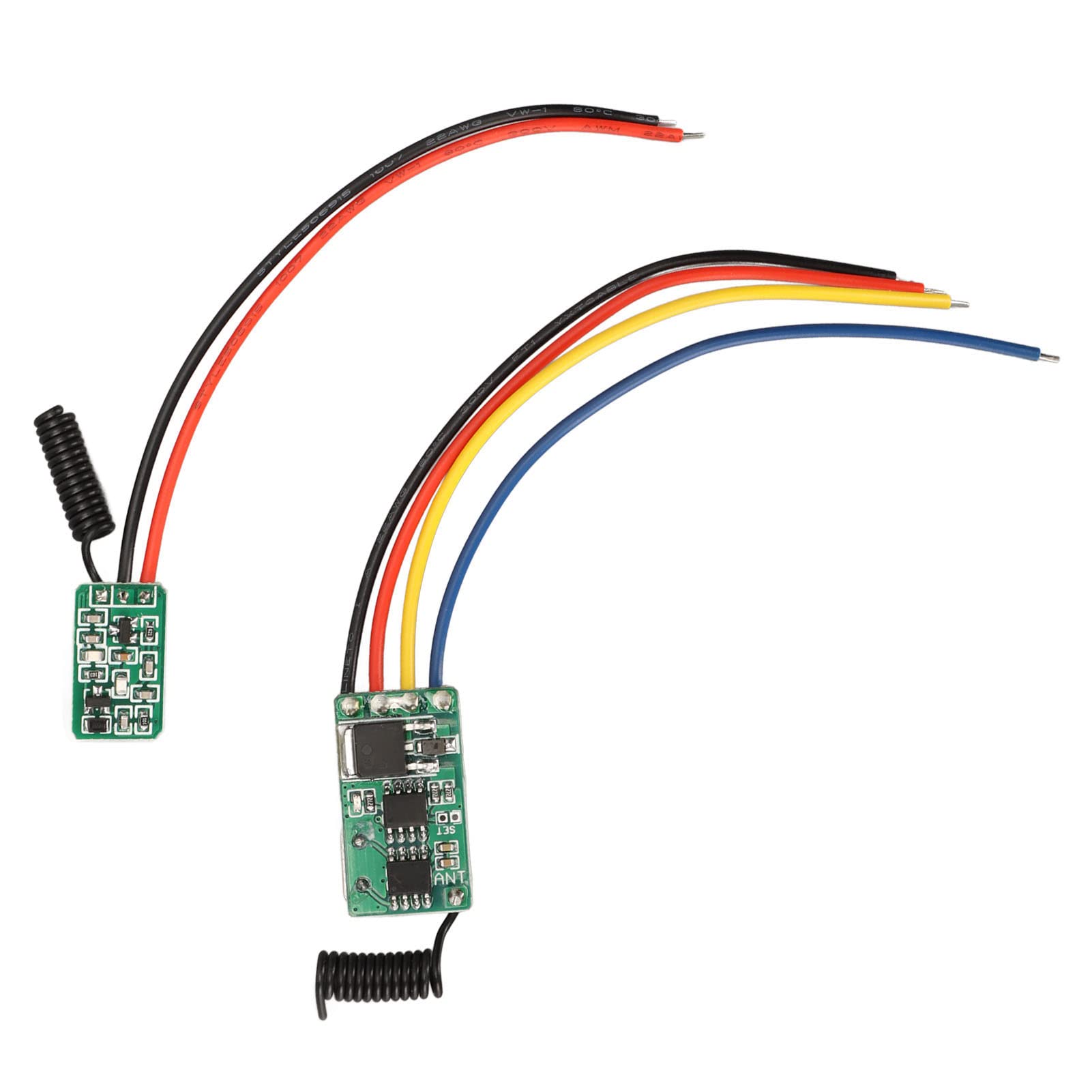

RF Remote Control Switch Kit, Including DC6V to 36V Receiver and DC5V to 24V Transmitter Mini RF Switch Contactless Small PCB Board 433MHz for Wall Floors Doors

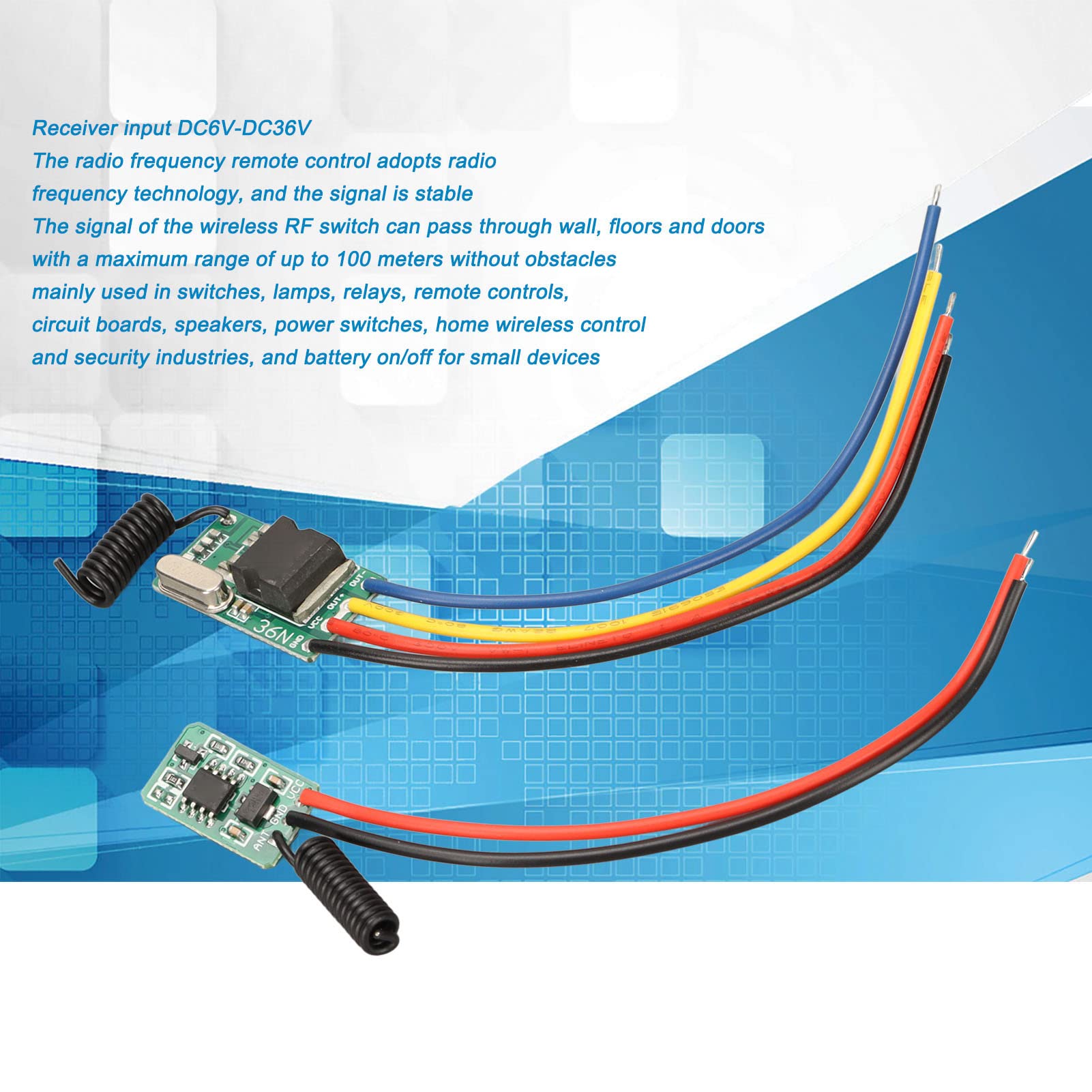

• DC6V‑36V Receiver: Receiver input DC6V‑DC36V, miniature, the learning point is matched with the transmitter on the receiver, the low voltage relay is inward, the superheterodyne receiver module has high receiving sensitivity and good anti interference performance.
• DC5V‑24V Transmitter: It is a radio frequency transmitter board without shell and buttons, just input DC5V‑DC24V power supply to it, it can transmit signals, it is a miniature transmitter module for learning code receiver.
• Stable Signal: The transmitter module can be controlled by smoke detectors or other sensors or microcontrollers. The radio frequency remote control adopts radio frequency technology, and the signal is stable.
• Large Range: The signal of the mini RF switch can pass through wall, floors and doors, stably controlling the receiver from anywhere within a distance, with a maximum range of up to 100 meters without obstacles.
• Application: RF remote control switch is mainly used in switches, lamps, relays, remote controls, circuit boards, speakers, power switches, home wireless control and security industries, and battery on/off for small devices.

How to Use: Momentary: Press the button to open. Release your finger, the button closes Toggle: Press one button at a time to turn on. Press the same button again to close Momentary: Connect the learn button. Until the receiver LED indicator flashes 2 times, it means the replacement is successful Specification: Item Type: RF Remote Control Switch Material: PCB Receiver: Working Voltage: DC6V-36V Maximum Load: 5A (If You Control the Motor, the Load is Less Than 3A) Working Frequency: 433MHz Frequency Deviation: Greater or Less Than 0.2MHz Operating Temperature: -20 Degrees Celsius - +80 Degrees Celsius Receive Sensitivity: ≥-109dBm Modulation: Amplitude Modulation (AM) Encoding Type: Learning Point Add Emitter Output Status: Momentary. Switch. Lock and Adjust by Connecting Different Points Transmitter: Working Voltage: DC5V-24V Modulation Mode: ASK Working Frequency: 433MHz Working Current: 8-10mA Transmit Power: 21mW Coding Type: Learning Code (Ev1527) Transmission Distance: Approx. 10-100m/32.8-328ft Receive Sensitivity: 108dBm Package List: 1 x Receiver 1 x Transmitter
