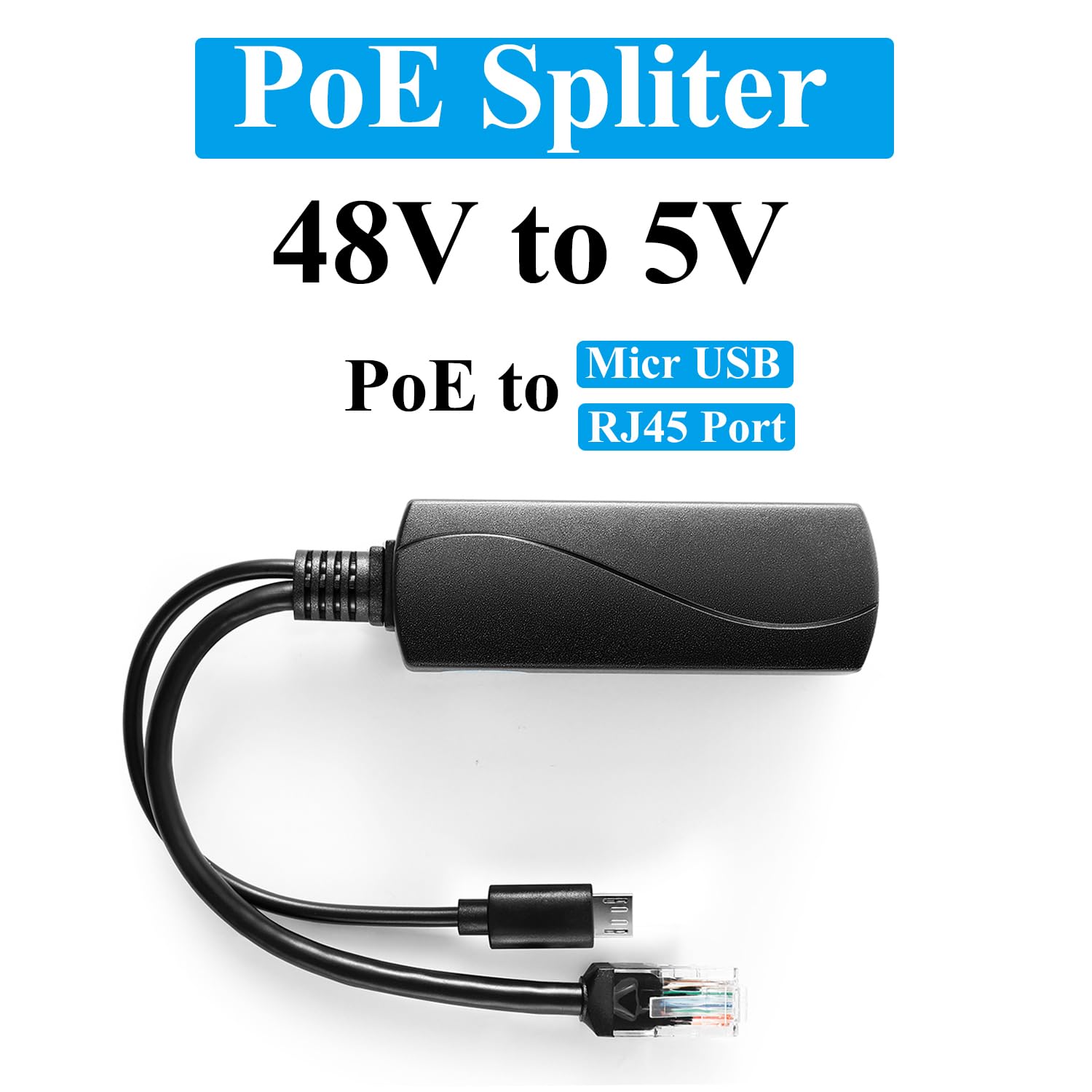

REVODATA Micro USB PoE Splitter 5V 2.4A Output, IEEE 802.3af Standard 10,100Mbps for USB Charging Cable RJ45 Port Power Over Ethernet Splitter Connector (USB0502 Black)

• Support international standard IEEE802.3 af(12.5W); POE port Support 10/100Mdata transmission, transfer Rate: 10/100M, Standard: IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 af
• PD support 37V - 57V voltage transmission. Automatically detects power supply from PSE power supply module

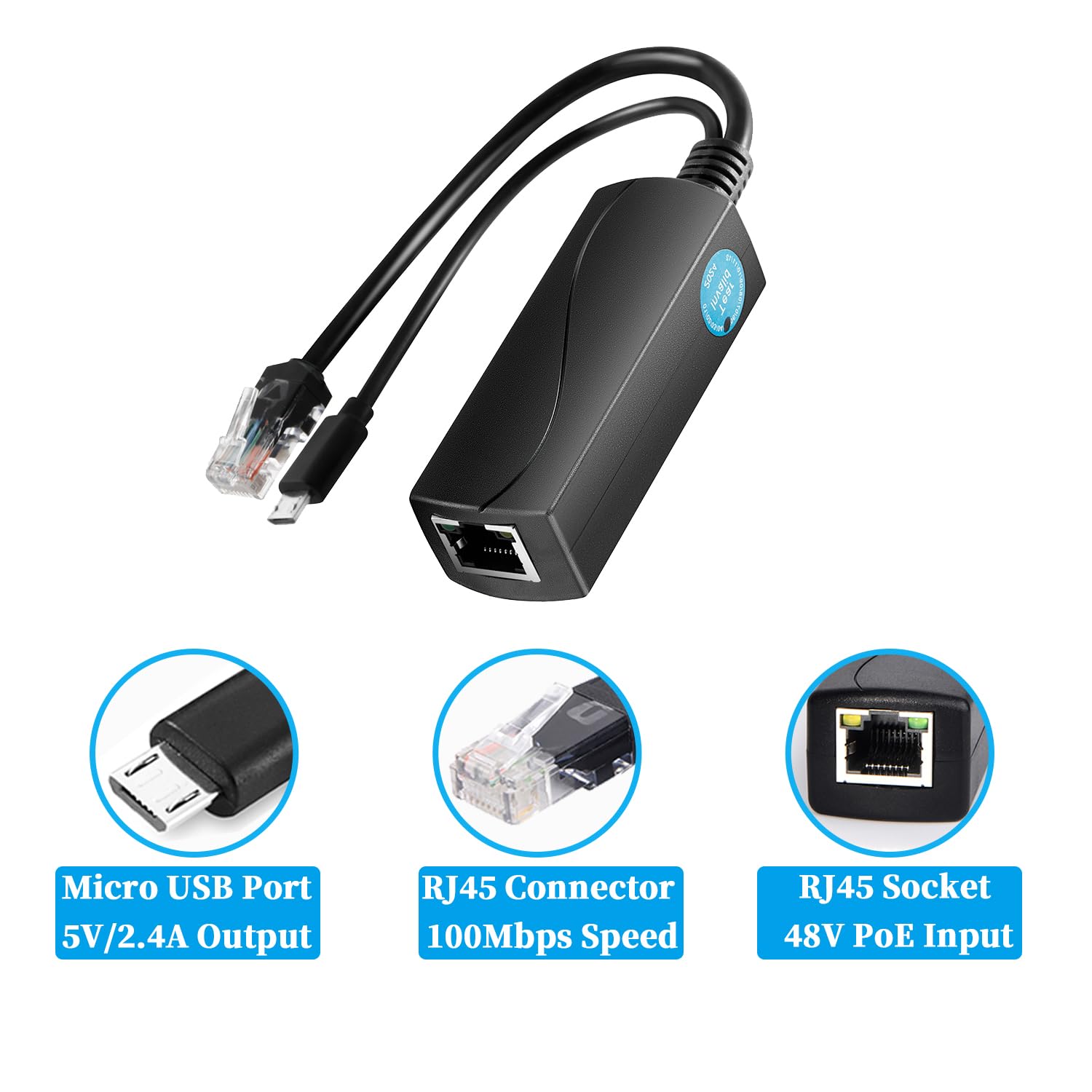

• 5V/2.4A power output is using Micro USB, the Micro USB port only for power-charging.
• Support the isolation circuit protection, can effectively protect electrical equipment; Support the short circuit, overvoltage protection, 1500V high voltage isolation.
• POE splitter can separate the power and data via cable transmission. Proper matching use with POE switch or PSE injector which meet standard IEEE802.3af, provides power and data at the same time for the terminal device does not support PoE so that non-PoE devices can be powered over Ethernet.

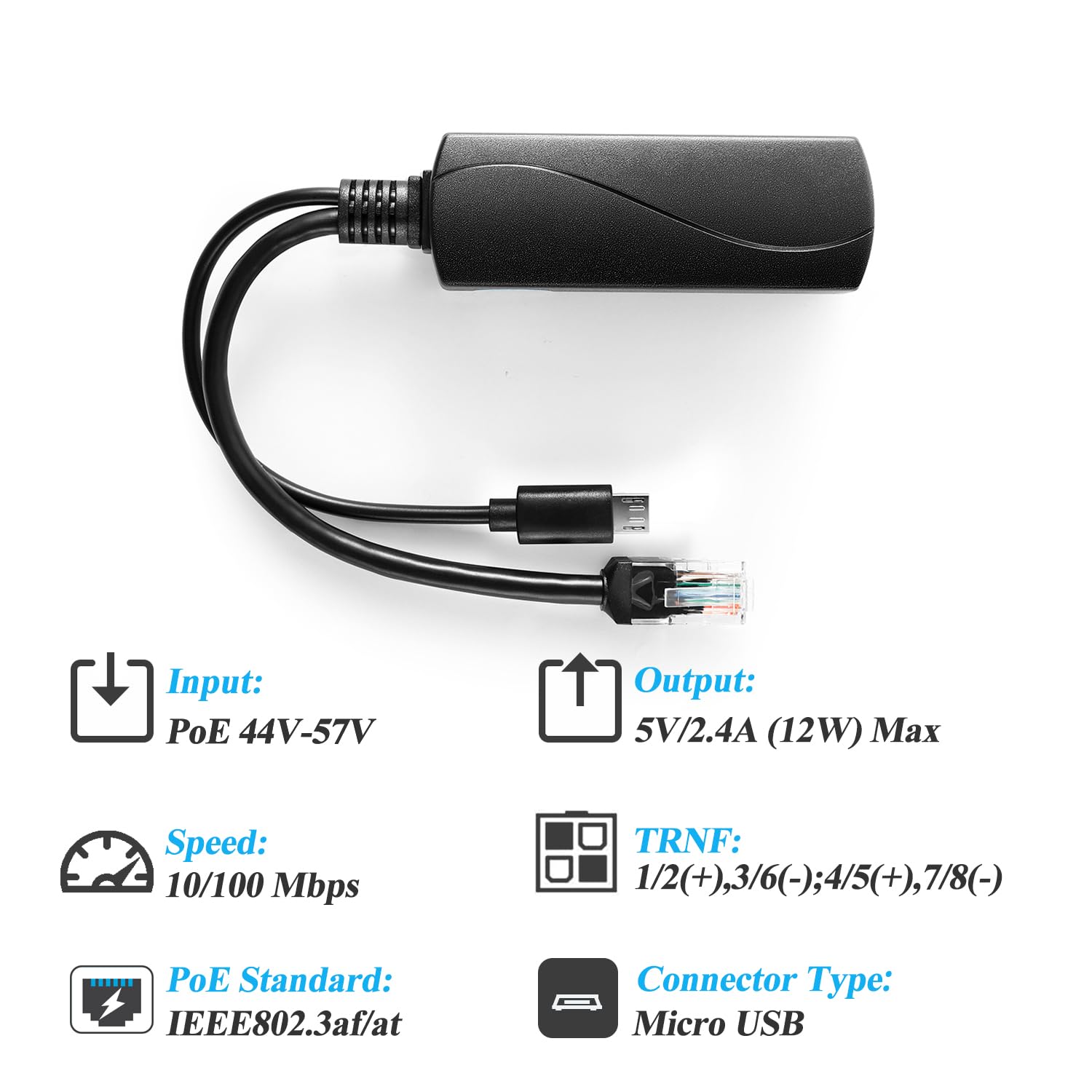

Overview: PoE Splitter USB0502, a new model: With RJ45 port and DC port with Micro USB. It is an economical and convenient PoE remote power equipment base that complies with IEEE802.3af standard. It can separate power and data via cable transmission. Appropriate use of suitability with POE switch or PSE injector that meet IEEE802.3af standard. Simultaneously provides power and data so that the terminal does not support PoE. PoE splitter, 5V output voltage with power supply equipment, it helps to extend wireless city, security monitoring and other convenient POE places, and is not limited by the layout of the power line. Features: Support international standard IEEE802.3 af (12.5 W); Supports POE port 10/100Mdata transmission. Support 37V-57V PD voltage transmission, automatically detect PSE power module power supply 5V/2.4A power output using Micro USB, the Micro USB port only for power charging. Support isolation circuit protection, can effectively protect electrical equipment. Support short circuit, surge protection Model No.: USB0502 Transfer rate: 10 / 100 m. Power: input 48 V DC / 0.35 A, output 5 V/2.4 A. Standard: IEEE802.3 af (12.5 W). TRNF: 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) Interface type: 1 input RJ45 port, 1 output RJ45 port, 1 DC output (Micro USB) Standard: IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 af. LED: Yellow PoE Lamp Temperature: work in -20~50°, storage in -30~60° Humidity: working within 10%~90% (no condensation), storage within 5%~95% (no condensation) Dimensions: 27.5 x 2.8 x 2.2 cm. Weight: 0.05 kg Box contents: 1 x 1 x POE separator
