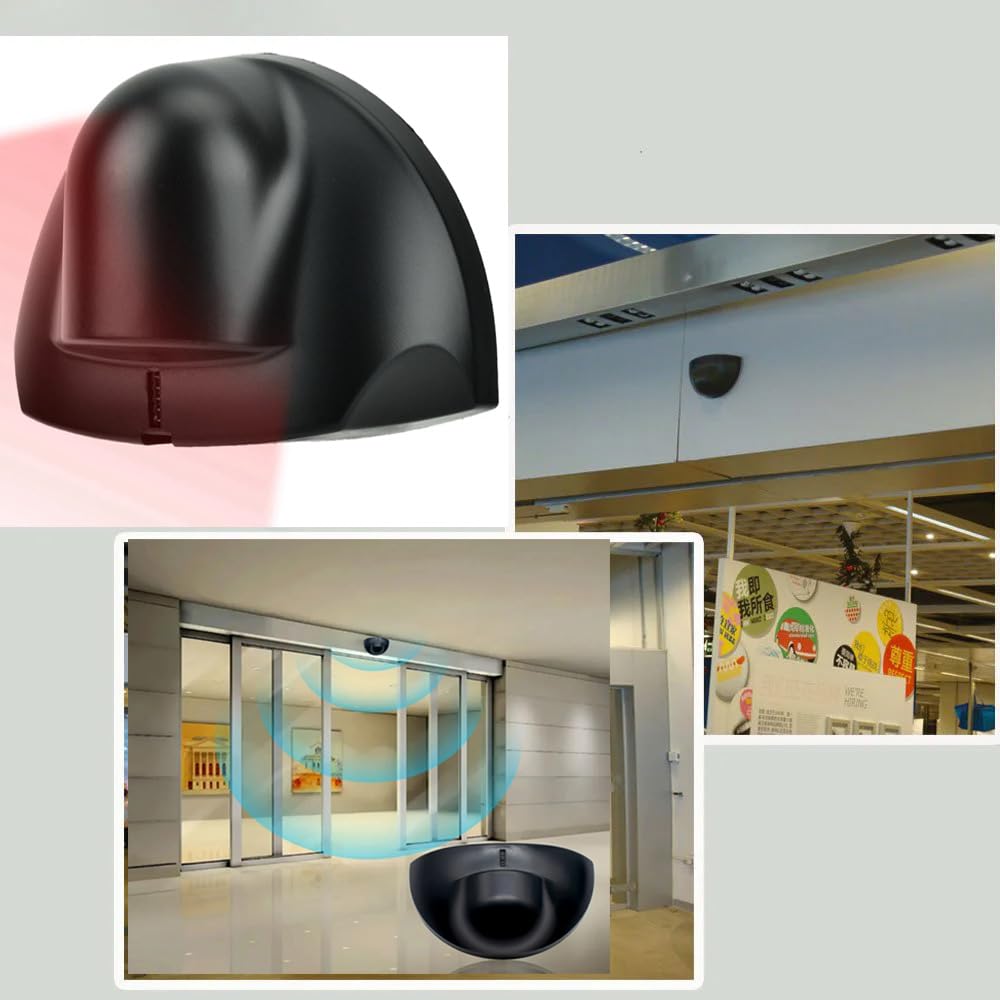

MENGQI-CONTROL Request to Exit PIR Motion Sensor Exit Infrared Detector for Exit for Automatic Opening Door Access Control

• Support NO(Normal Open) and COM, not support NC( Normal Close). it normally work together with another master device( control device or a professional power unit) to trigger relay
• Max mounting height:3-4M;Detection Area:4m(W)x2m(D)
• Technology:24G Microwave abd microprocessor
• Detection mode: Movement

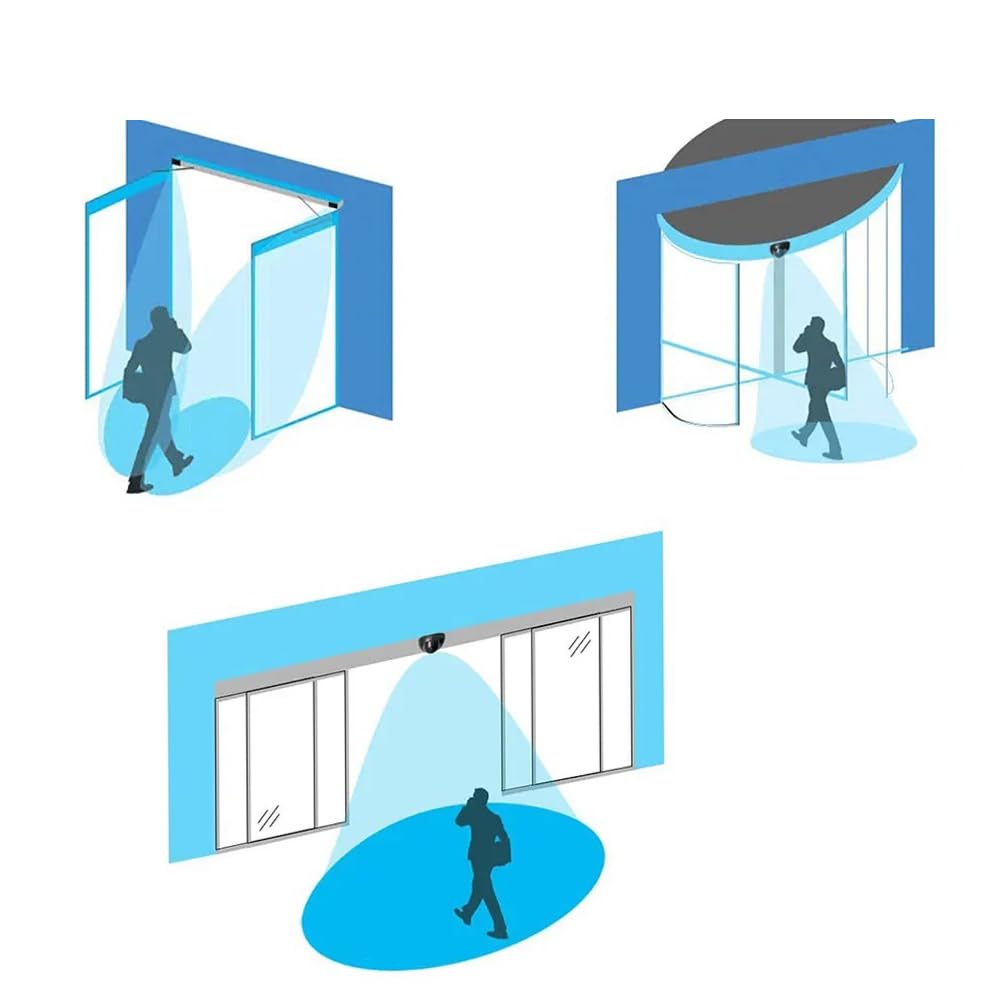

• When walk close to door, it will detect person and trigger to open lock automatically. High-sensitivity, quick and accurate response. Specially apply in commercial, industrial and demanding of automatic access area.

Package including: 1 x Automatic Doors Motion Sensor(Black) 2 x Mounting Screws 1 x English User Manual It's working Logic: It work as a connection switch, when detect person walking close , It's NO and COM terminal connect and trigger door open. If you want to use as NC(Normal Close) and COM, need to add one extermal small module,we will send to you. Exit Motion Sensor: When walk close to door, it will detect person and trigger to open lock automatically. High-sensitivity, quick and accurate response. Specially apply in commercial, industrial and demanding of automatic access area. Technology:24G Microwave abd microprocessor Max mounting height:3-4M Detection Area:4m(W)x2m(D) Detection mode: Movement Technical data: 1. microwave sensor with frequency of 24.125GHz; 2. Sending Power: less than 20 dBM EIRP; and signal density: less than 5 mW per square meter; 3. mounting height: 4 meters; mounting angle: 0 to 90 degree (vertically) or -30 to +30 degree (horizontally); 4. detection model: motion detection; 5. connection voltage: AC42V tp DC60V; 6. current: 2W, 7. detetion time: 0.5seconds; 8. IP54; 9. Standard voltage: DC12V to 36V; 10. Material: ABS; 11. Dimension : 110 x 80 x 50mm 12. Weight : 0.22kg
