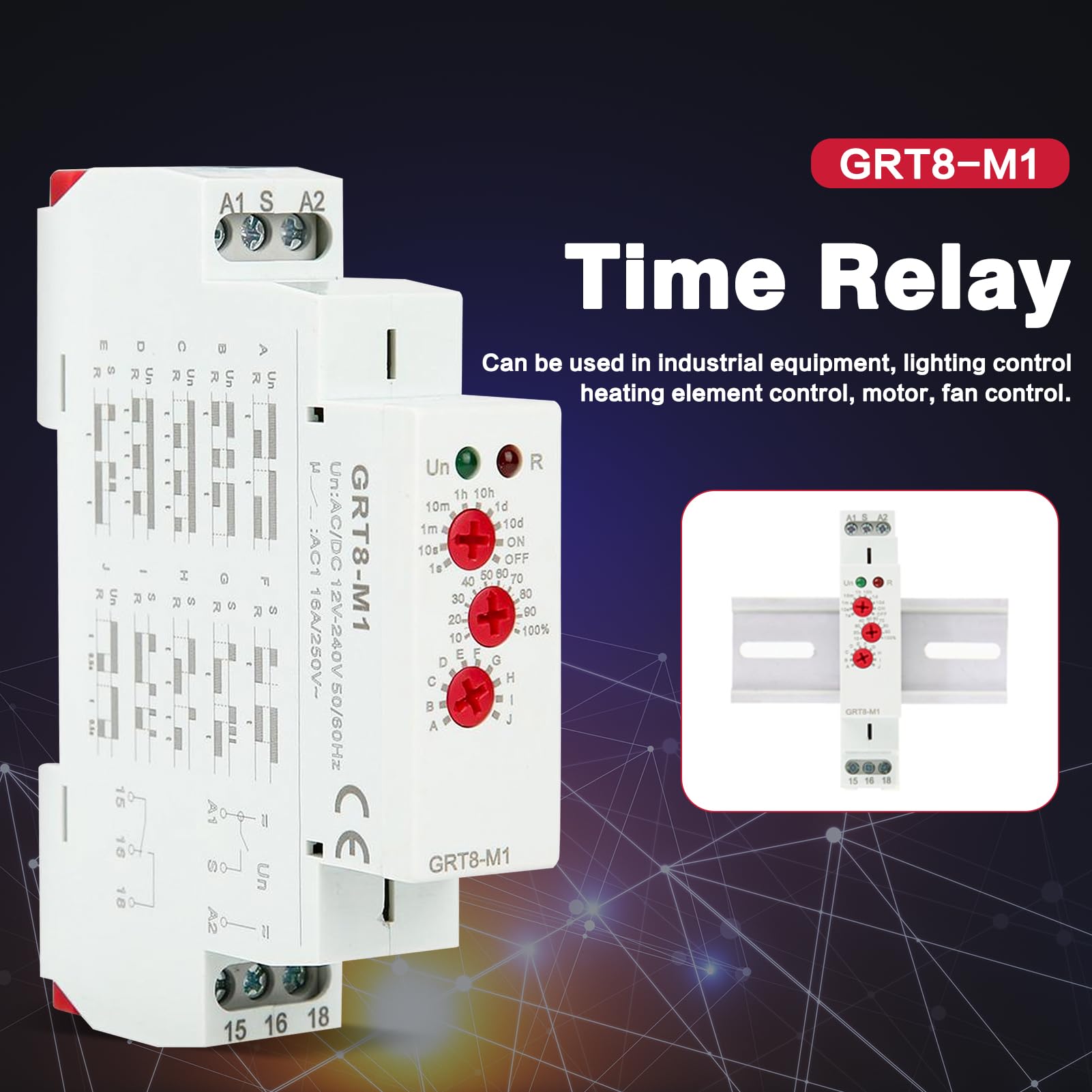

Relay Module, AC/DC 12V 240V GRT8-M1 Multifunctional Delay Time Relay with 10 Functions DIN Rail Mount Relay Module

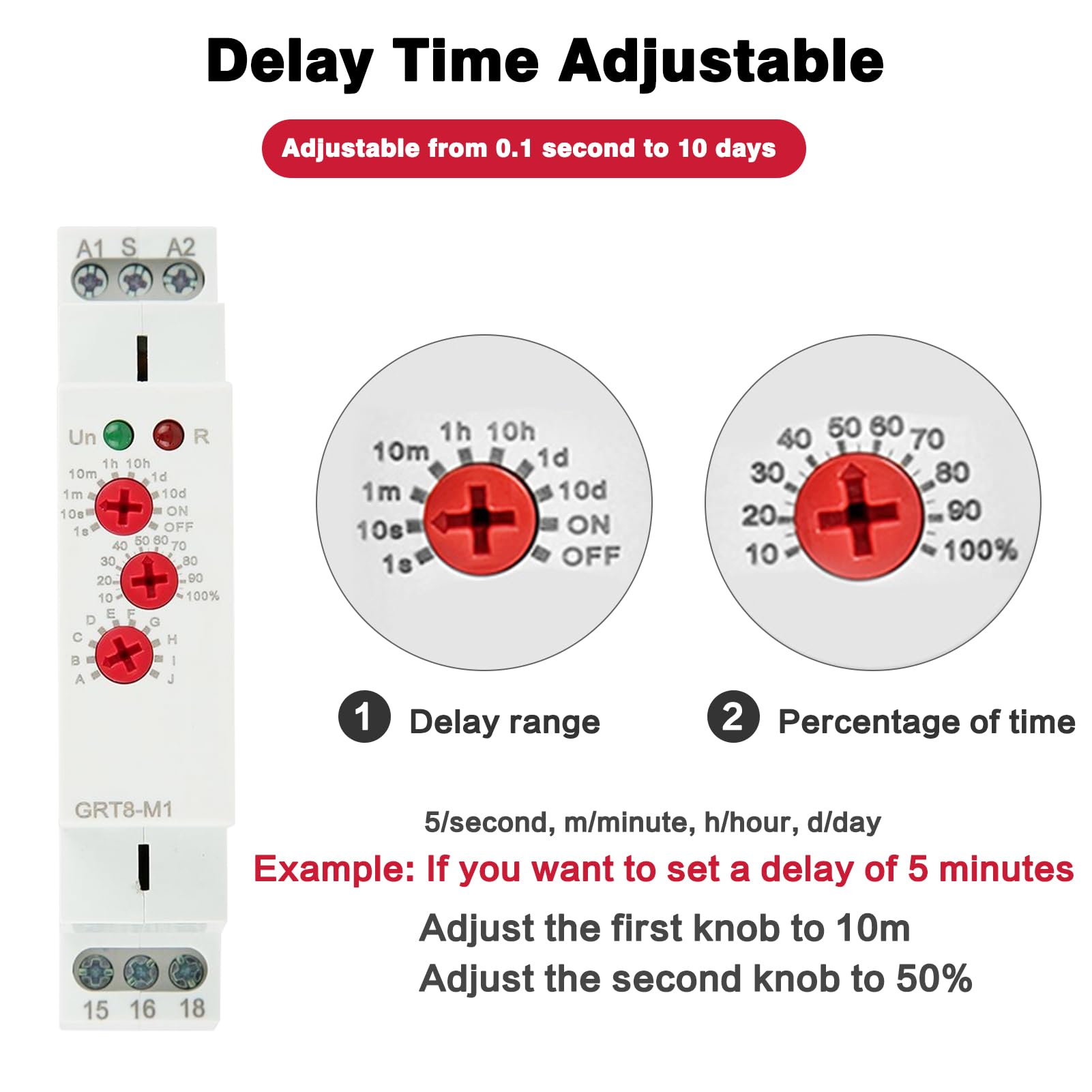

• 1. This is a multifunctional time relay and time delay can be set by panel knob.

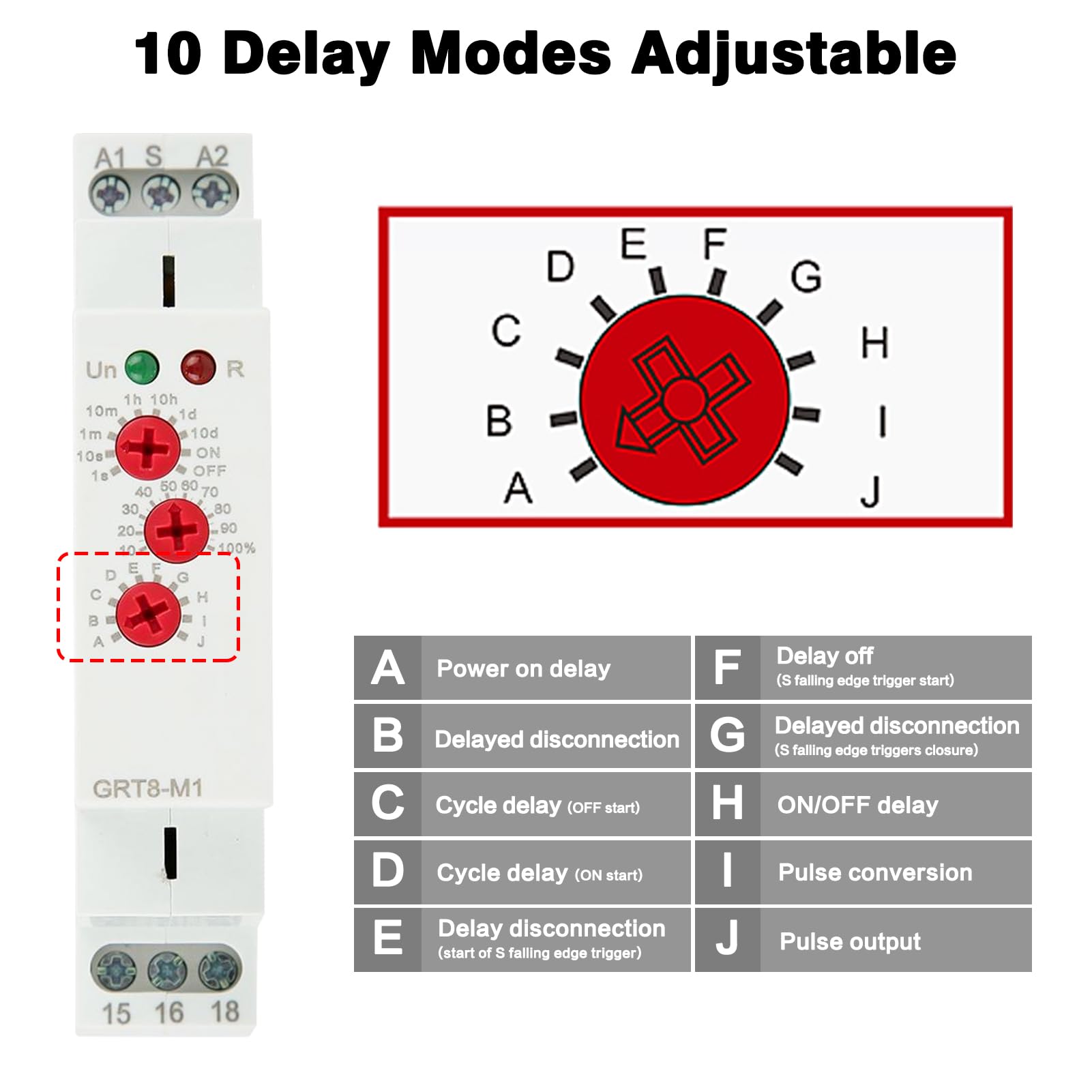

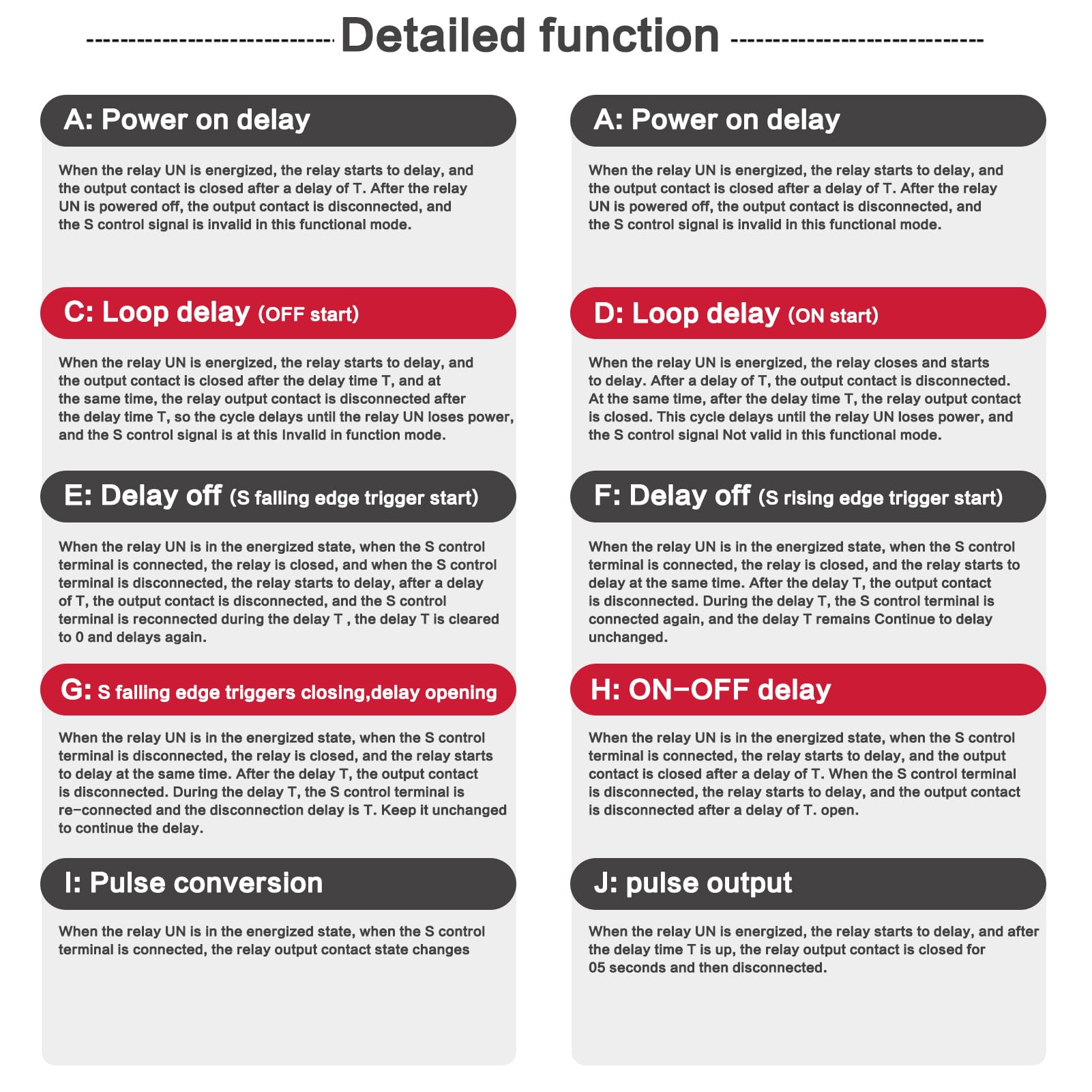

• 2. With 10 kinds of delay functions including delay on, delay off, cycle delay and so on,Super wide time delay setting range of 0.1s - 10days.

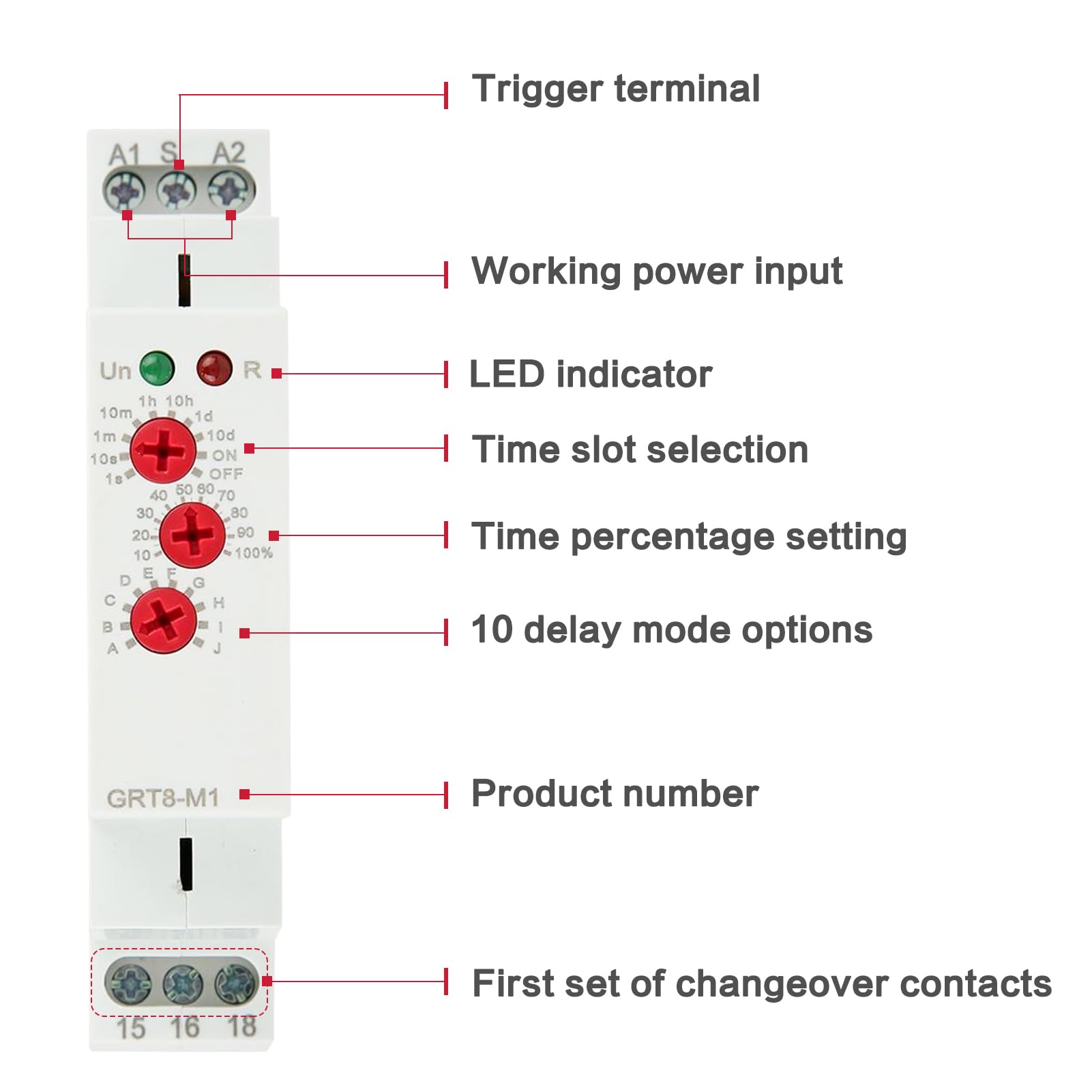

• 3. Relay working status is indicated by LED indicators,with super small volume, this relay can be mounted on 35mm DIN rail.
• 4. This time relay can be used for industrial equipment, lighting control, heating element control, motor, fan control and more.
• 5.Quality assurance, perfect after-sales system, worry-free shopping,if you have any questions, please contact us in time, reply within 24 hours.

Features:1. This is a multifunctional time relay and time delay can be set by panel knob.2. With 10 kinds of delay functions including delay on, delay off, cycle delay and so on,Super wide time delay setting range of 0.1s - 10days.3. Relay working status is indicated by LED indicators,with super small volume, this relay can be mounted on 35mm DIN rail.4. This time relay can be used for industrial equipment, lighting control, heating element control, motor, fan control and more.5.Quality assurance, perfect after-sales system, worry-free shopping,if you have any questions, please contact us in time, reply within 24 hours.Specification:Rated power supply voltage: AC/DC 12V~240V (50-60Hz)Power terminal: A1-A2Power consumption: AC0.09-3VA/DC0.05-1.7W Setting method: knobSetting accuracy: 10%Power indicator: Green LEDDelay range: 0.1s-10 days, normally open, normally closedRepeated accuracy: 0.2%Temperature fluctuation error: 0.05%/℃, at = 20℃Output contact: 1 x SPDT, 250VAC/24VDCMinimum switching power: 500mWOutput relay indication: red LEDMechanical life: 1x107Reset time: Max 200msWorking temperature: -20℃~55℃Mounting method: 35mm DIN railMounting altitude: ≤2000mWeight: Approx. 75g/2.6ozPackage list:1 * Multifunctional Delay Time Relay
