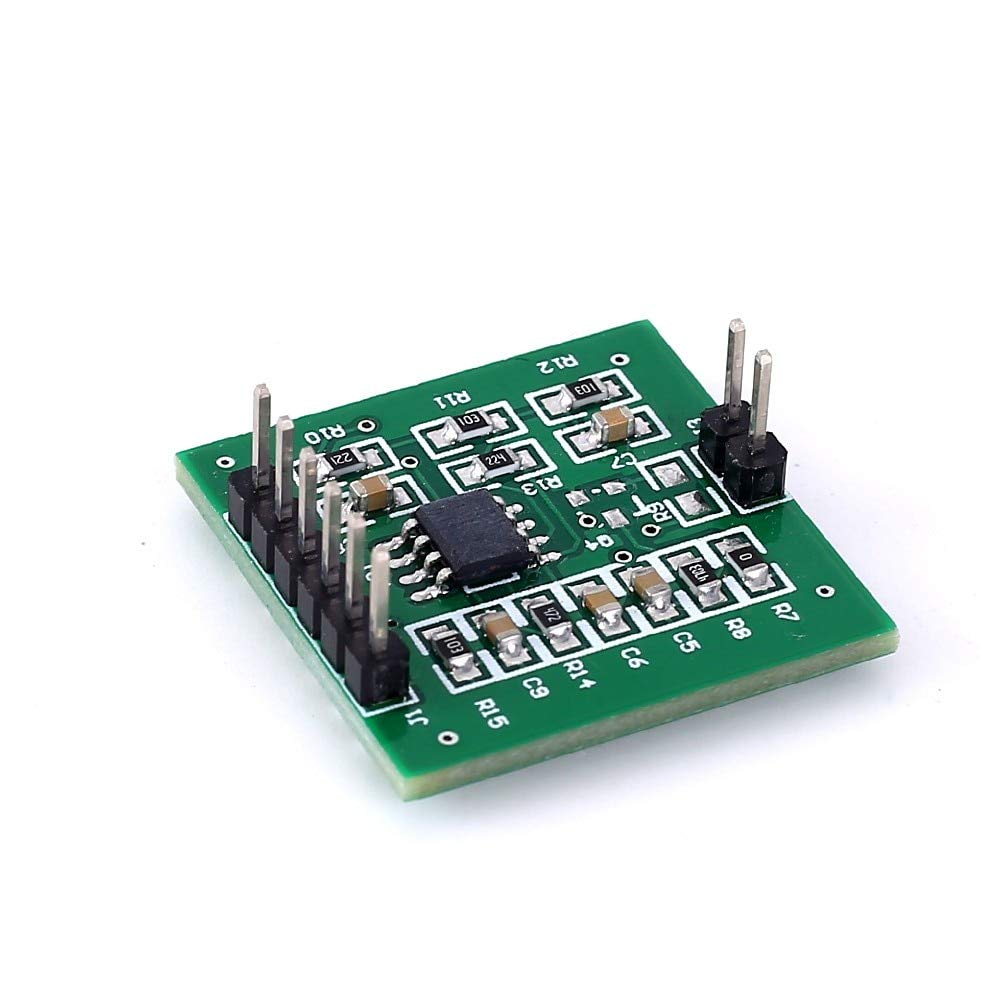

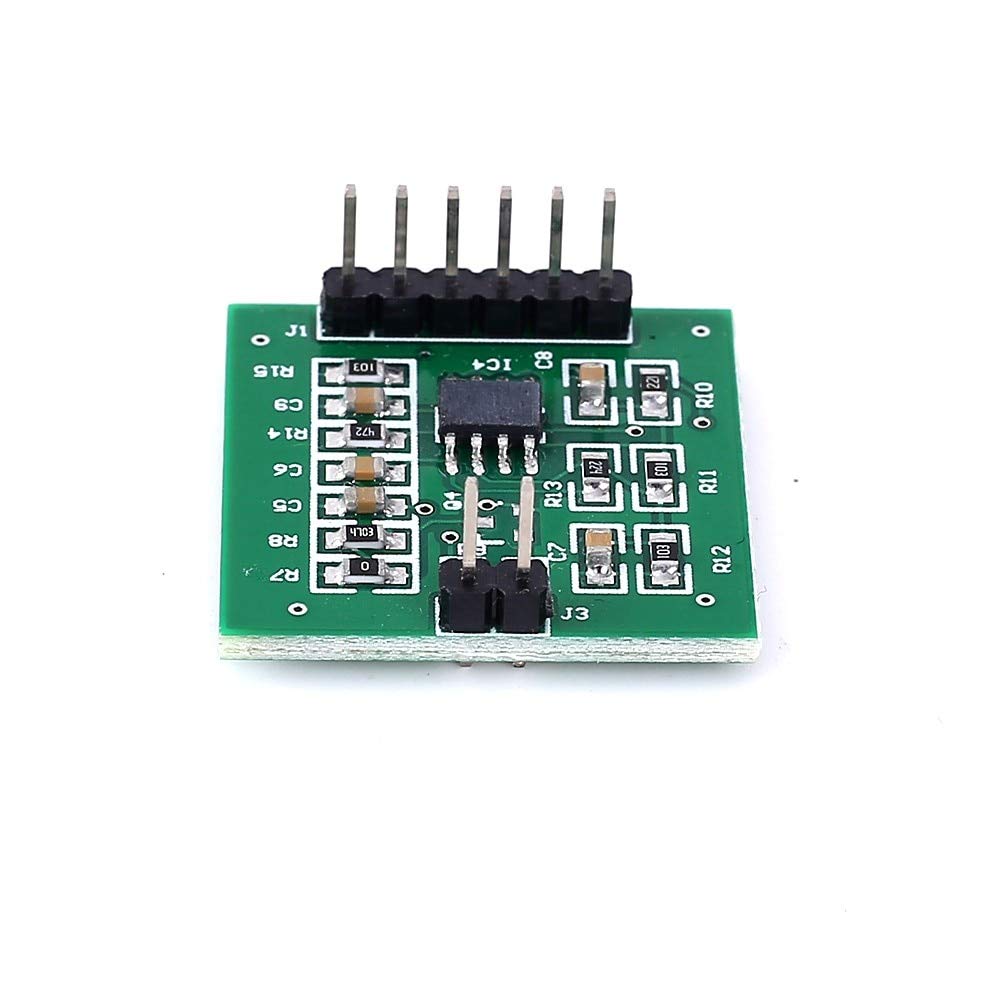

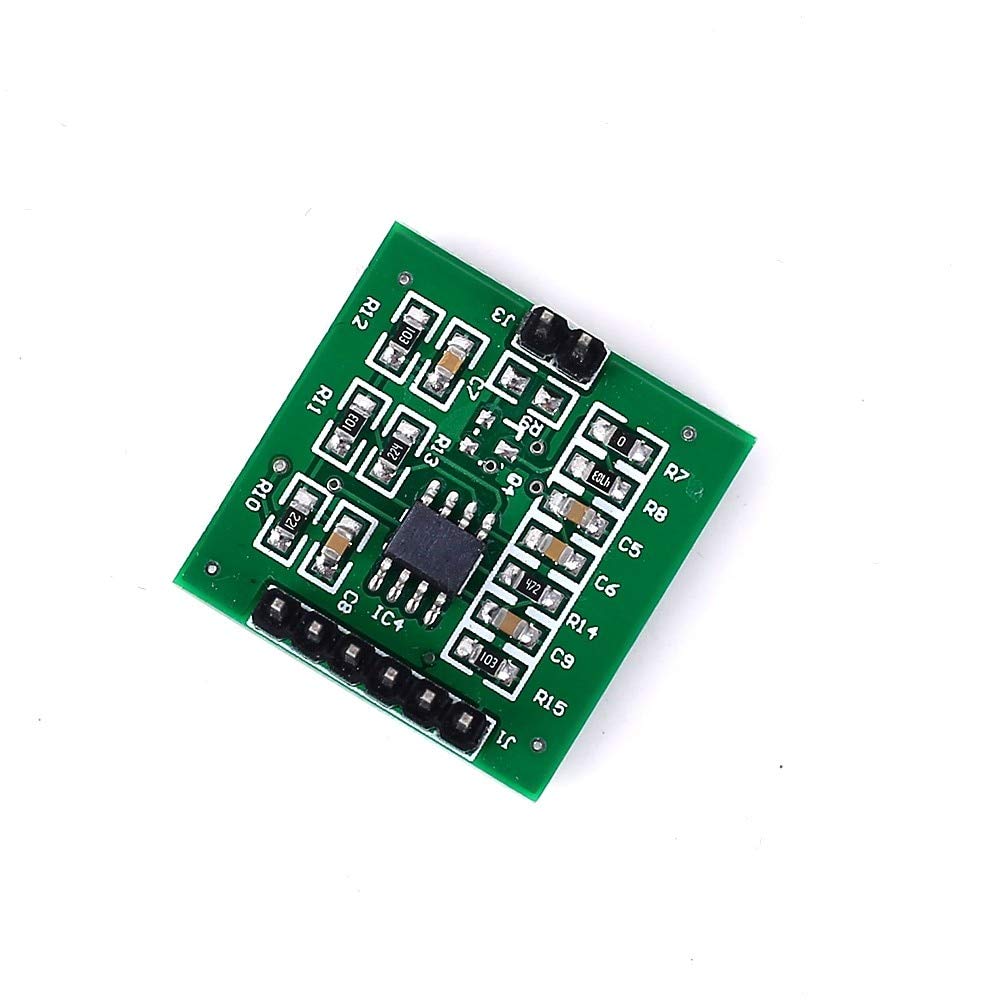

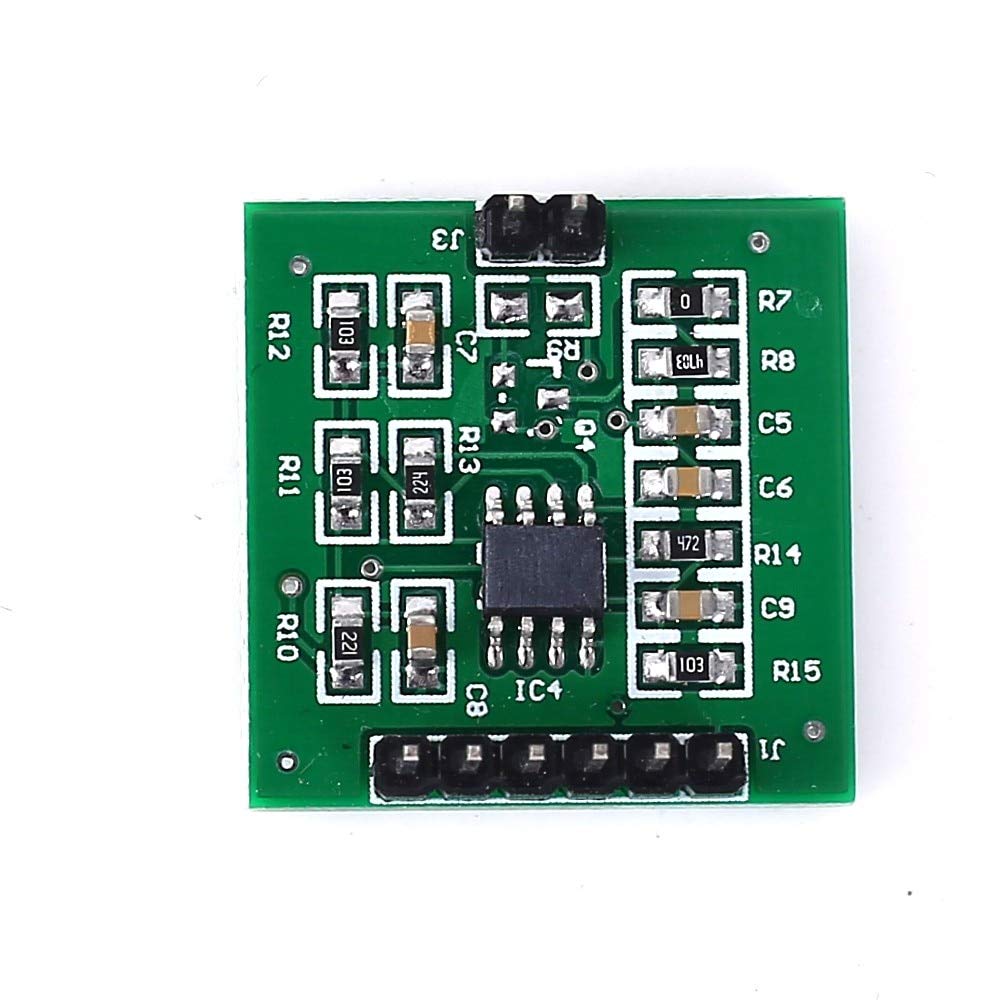

AILOVA RFID Card Read Wireless Module, 134.2KHz FDX-B Reader, UART Contactless Controller with Antenna

• The reading frequency of the card reader module is 134.2KHZ (error 1KHZ)
• Module operating voltage: 5V, current less than 50mA
• The card reader module reads a label conforming to ISO 11784/85 FDX-B format or its compatible RFID card.
• Card reading distance: the ear mark is 6CM, the foot ring, etc. 4CM
• The card reading module is a TTL-level serial port output, which can be directly connected to the serial port of the target microcontroller. Baud rate is 9600.

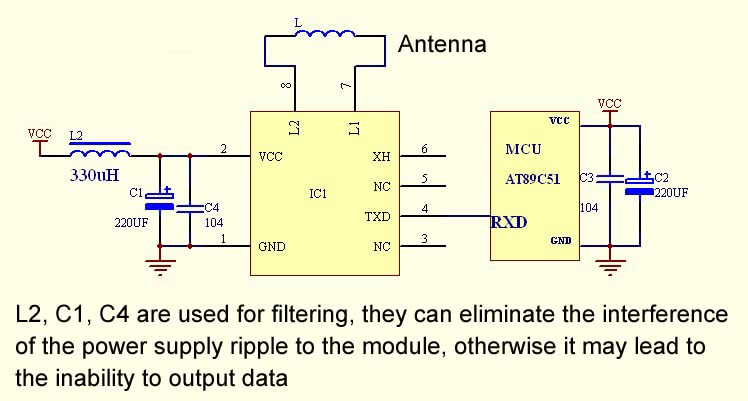

Parameters: 1>. Input voltage: DC 5V. 2>. Working current: 50mA. Working frequency 3>. : 134.2KHz. 4>. Suitable type: ISO 11784/85 or compatible card 5>.Format: FDX-B 6>. Reading distance: <4 cm 7>. Working temperature range: -20? ~ 85? Humidity range 8>.Working: 0%-95%RH Size: 26 x 26 x 11 mm Antenna size 10>. : 74 x 54 x 1.5 mm. Features: Receiver data: 03 84 12 DB FA E7 D5 Country ID: 03 84 National ID: 12 DB FA E7 D5 Serial protocol: AA 0F 08 00 03 84 12 DB FA E7 D5 81 BB Start code: AA Fixed code: 0F 08 00 Point data: 03 84 12 DB FA E7 D5 Control code: B1 End Code: BB Control code calculation: 0F (XOR) 08 (XOR) 00 (XOR) 03 (XOR) 84 (XOR) 12 (XOR) DB (XOR) FA (XOR) E7 (XOR) D5 = 81 Pin Definition: 1.GND 2.VCC 3.NC: no function, no use 4.TXD: sending data 5.NC: no function, no use 6.NC: no function, no use 7.L1: connection to the antenna 8.L2: connection to the antenna Package: 1pc 134.2KHz RFID Wireless Module 1 x aerial Note: 1. Please allow for a 1-2 cm error due to manual measurement. Thank you for your understanding. 2. Monitors are not calibrated the same, the colour of the item shown in the photos may be slightly different from the actual item. Please take the real one as standard.
