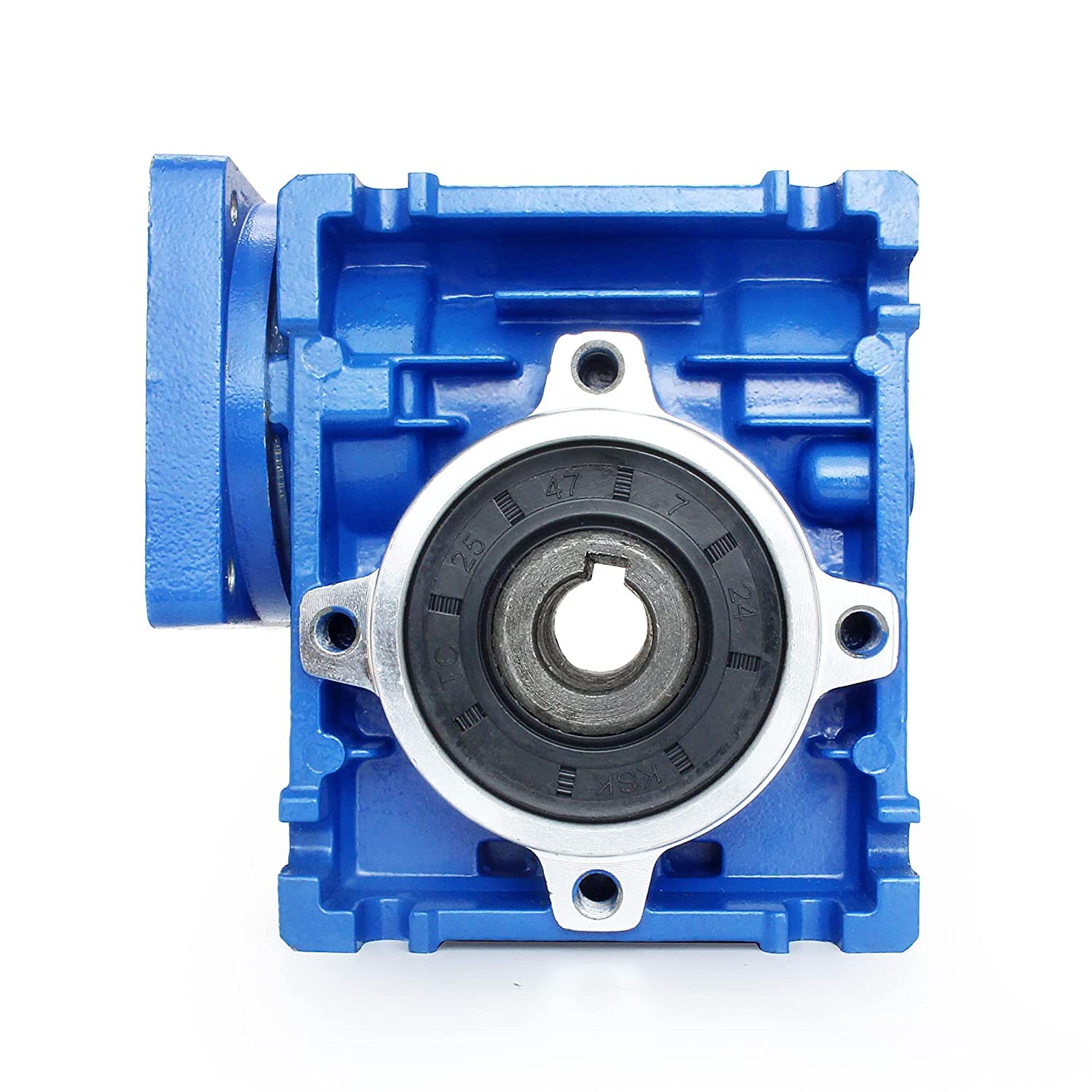

RATTMMOTOR Small Worm Gear NMRV-030 Reduction Ratio 10:1 Square Flange Aluminum Alloy Housing Gear for NEMA23 Stepper Motor/Servo Motor

• Basic parameter: model: NMRV030 (small), type: worm gear, speed ratio: 10:1, input hole size: 11 mm, output hole size: 14 mm, speed range: 10:1, input flange model: NEMA23, material of the service housing: aluminium alloy housing; application: suitable with omotor / step. Motor; Product Color: Blue

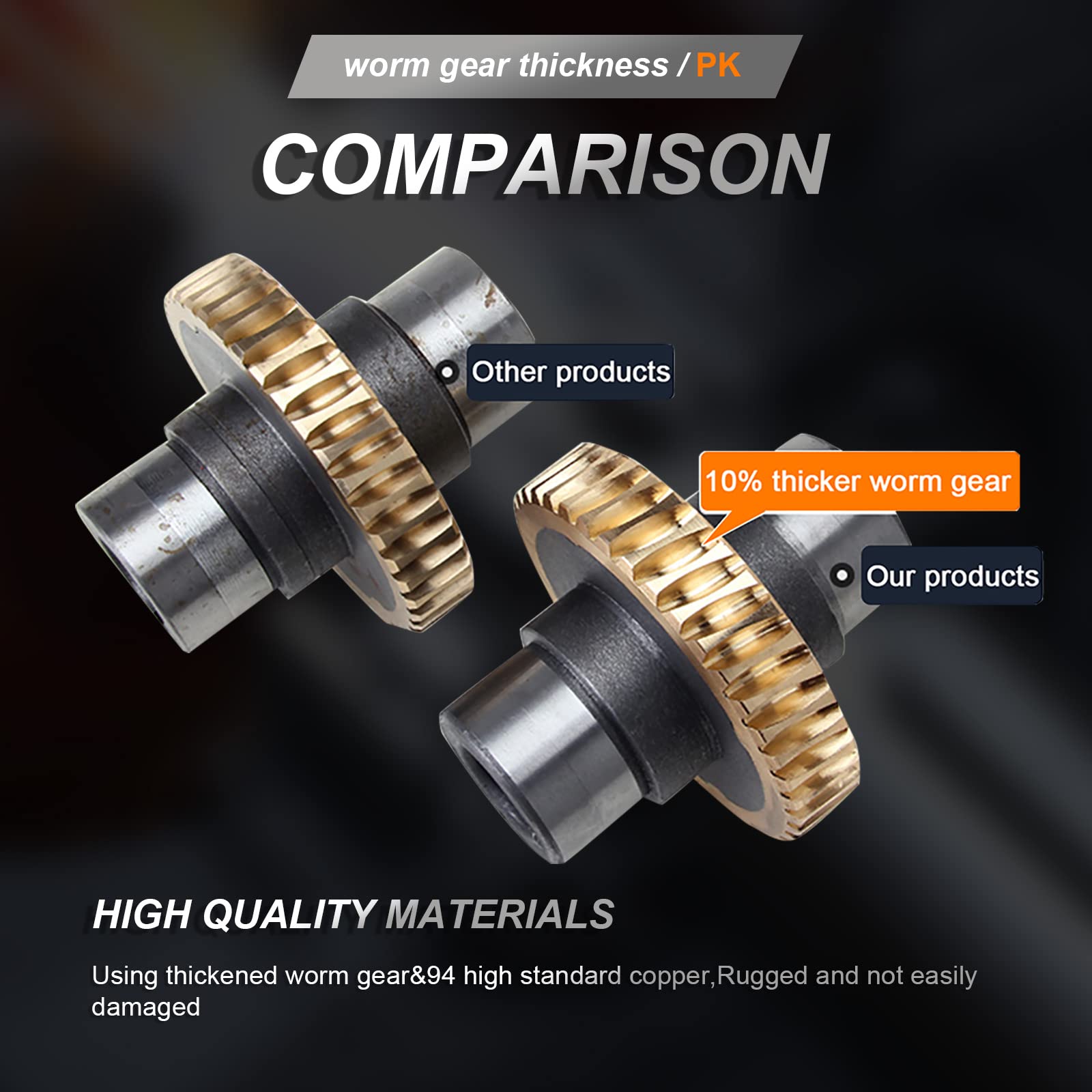

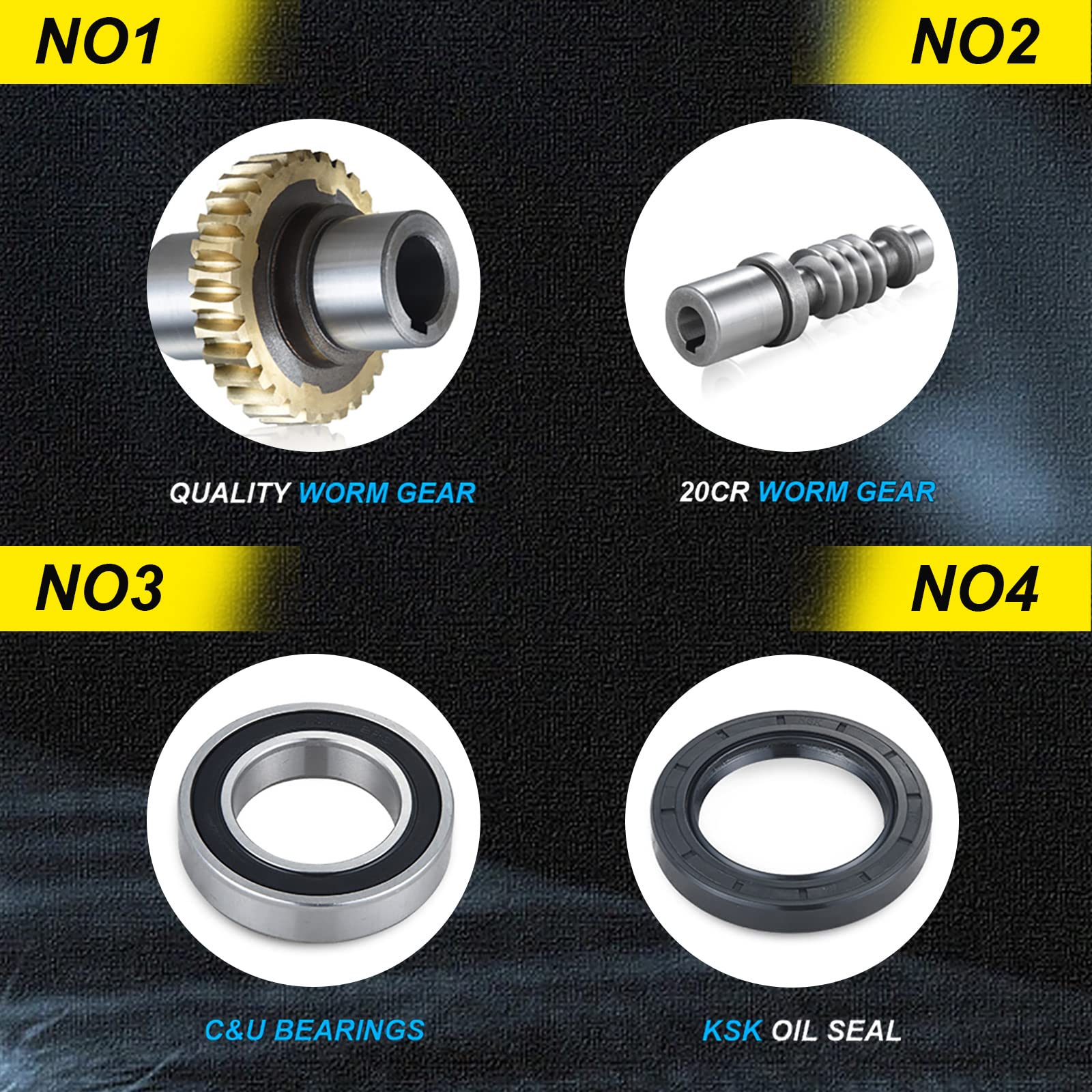

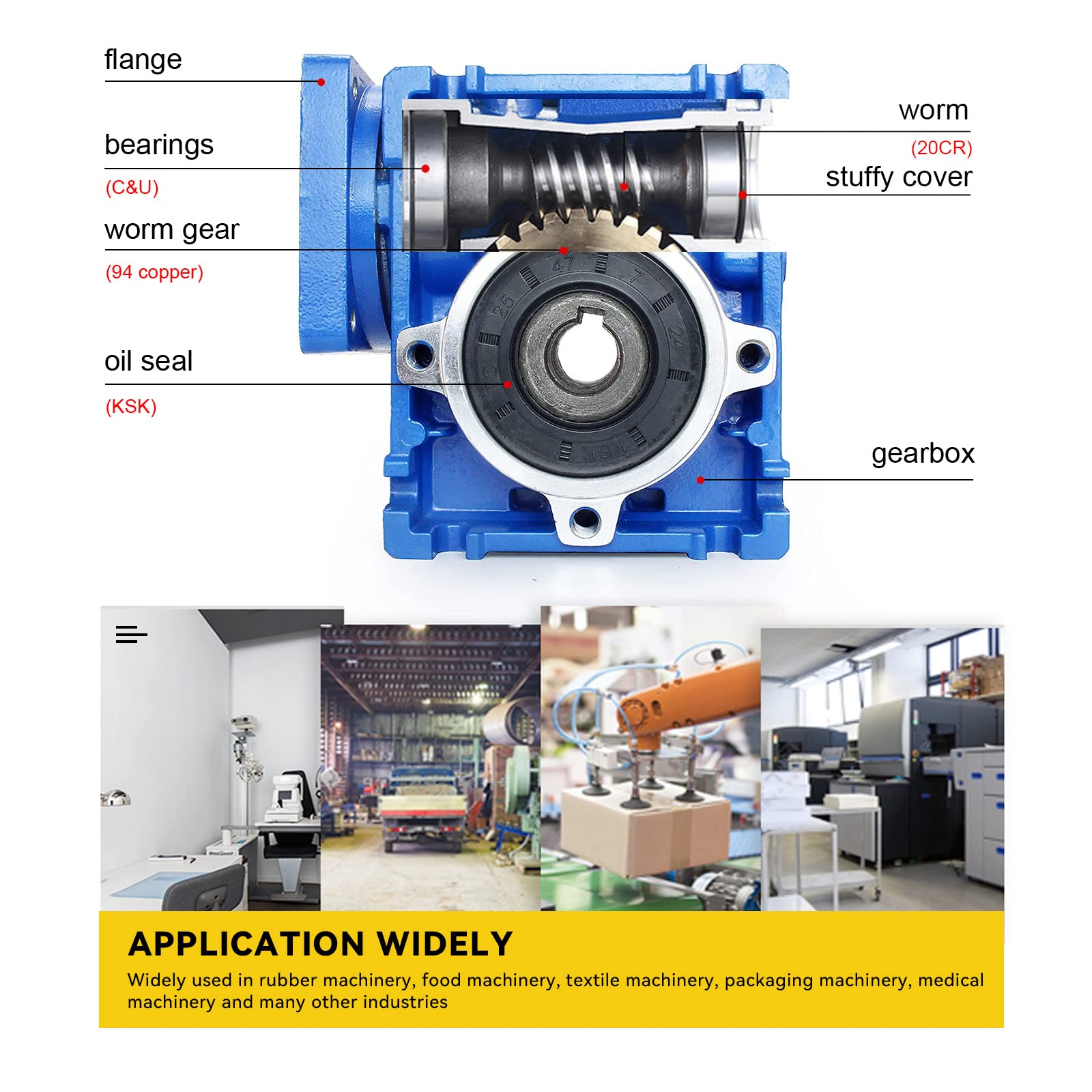

• Product features: 1.) The worm gear is made of ductile cast iron QT-400, which is well made and not easy to carry. 2) The worm gear bar is made of 20CR round steel (carbonated and scared heat treatment, stable transmission and high efficiency), 3.) The reduction housing is made of high-quality ADC12 aluminium die-cast housing, strong sealing, small size, light weight, space-saving installation, not easy to corrode.
• High quality: this worm gear has the properties of waterproof and dustproof, and the structure of the protection class IP55 has a good insulating effect on dust and moisture. It also has the characteristics of large torque, low noise level, stable operation, strong adaptability, large overload and strong impact resistance.
• Wide range of applications: It has a wide range of applications with the function of delay and increase the torque. It is widely used in light industry, food industry, chemical construction, machinery and equipment, textile industry, building materials, logistics, environmental protection and other fields.
• Excellent service - We have 16 years of experience in manufacturing in this field. If you have any questions or problems, please contact us, we will satisfy you and solve any problems.

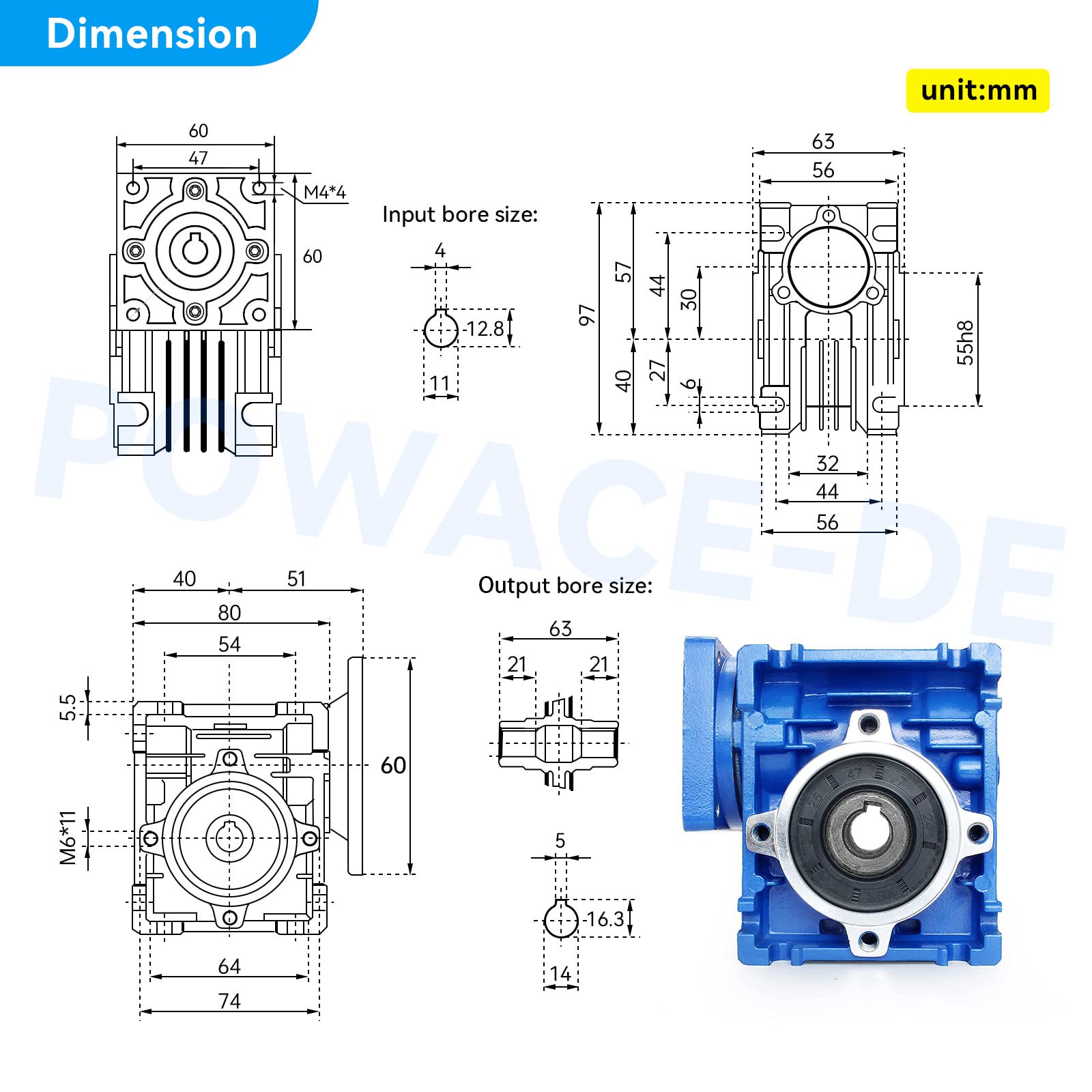

Specification: Basic parameters: Model: NMRV030 (small); type: worm gear; speed ratio: 10:1; input hole size: 11 mm; output hole size: 14 mm; speed range: 10:1; input flange model: NEMA23; gear housing material: aluminium alloy housing; application: suitable with servo motor/stepper motor; goods Color: Blue Package includes: 1 x NMRV-030 stepper motor worm gear 10:1 square flange aluminium housing gear If you are not satisfied with the products after receiving the package or there is another problem, e.g. B. a defective product, please tell us the reason for the details and provide the photos. We offer every customer a perfect after-sales service.
