RATTMMOTOR Closed Loop Servo Motor Hybrid Step Servo Driver CNC Controller Kit 2 Metre Cable (8N.m)

• Safe operation: the built-in position and the alarm output signal can help the upper monitor monitor with monitoring and control. The function of the position difference alarm can ensure the safe work of the machine.
• Advanced technology – The stepper motor control has a new generation of 32-bit DSP. The vector control technology can ensure the accuracy of the motor.
• Optimised design - The current regulation is based on the load, which can effectively reduce the engine temperature increase and then extend the life of the motor.
• Ideal choice – the closed loop system is an ideal improvement and a good for the open loop system. In addition, it also has some functions of AC servo motors, but the price is only half the AC servo.
• Applications - The stepper motor control kit fits all types of machine load conditions (including pulley and low stiffness pulley) without adjusting the gain parameters. It supports over-current protection, over-voltage protection, position outside the tolerance protection.

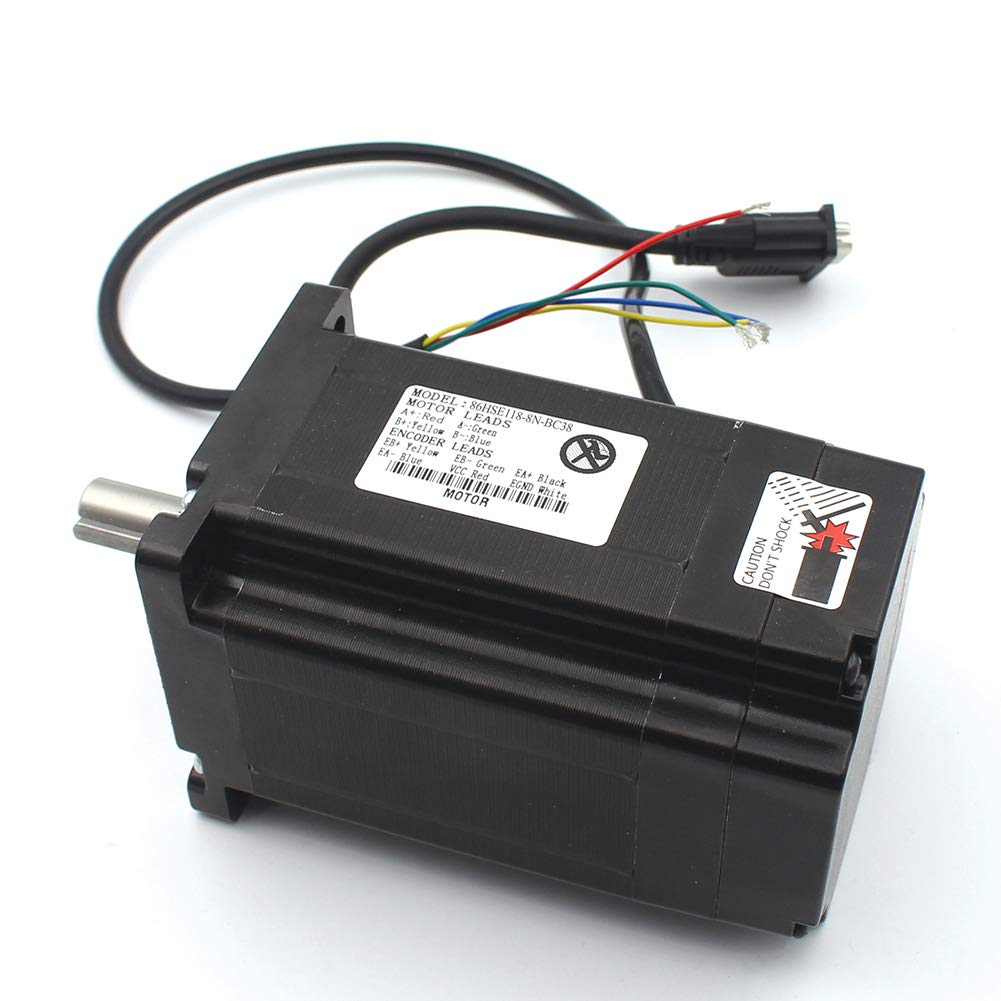

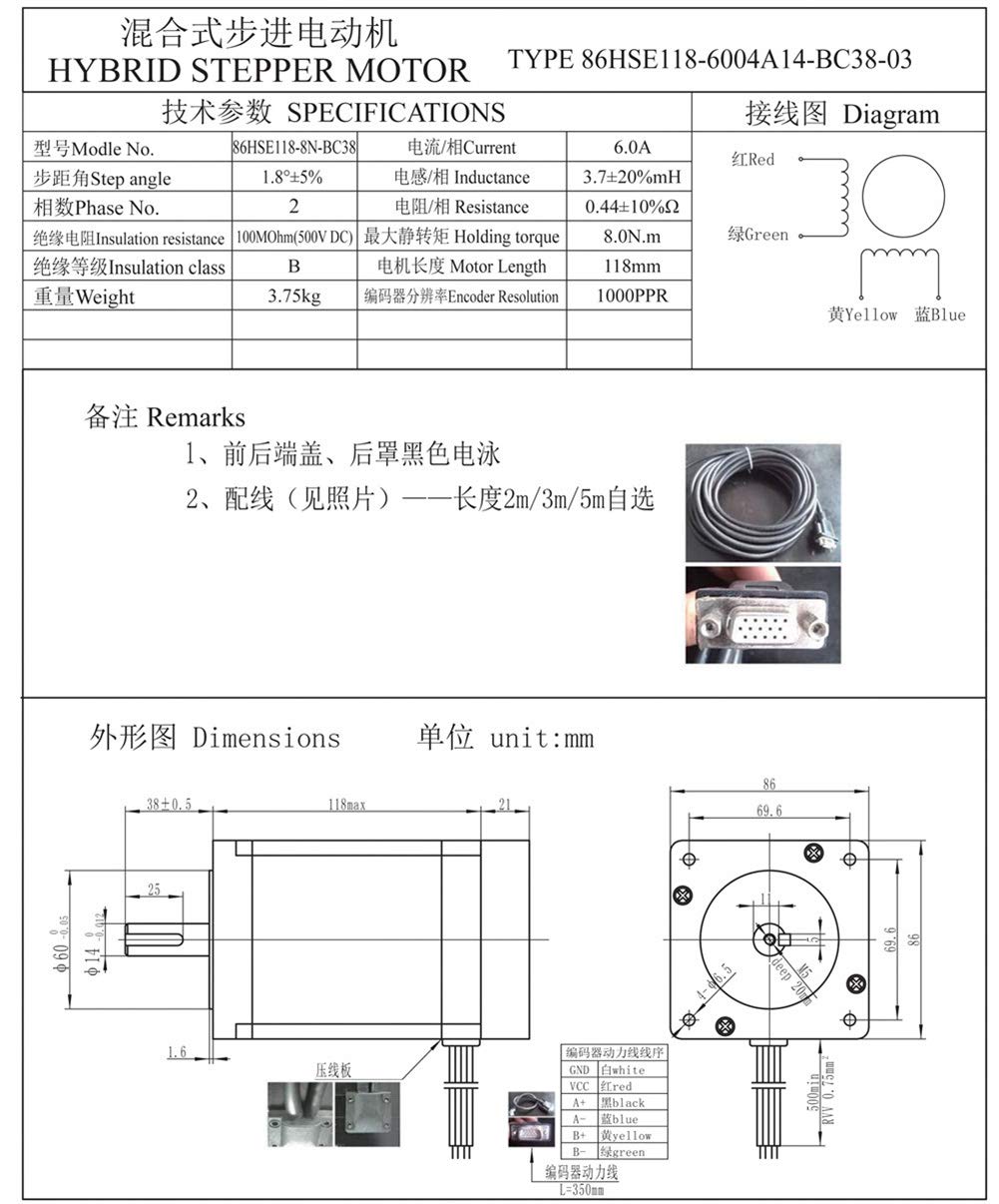

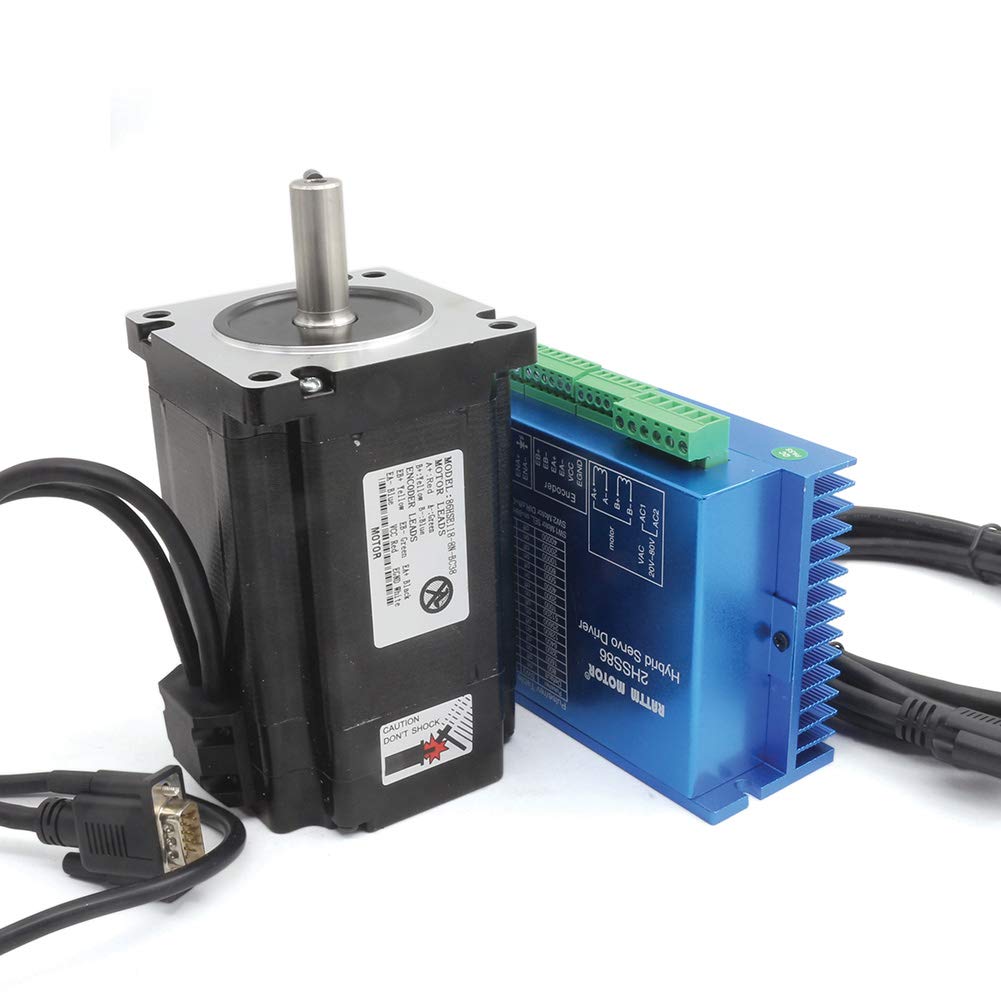

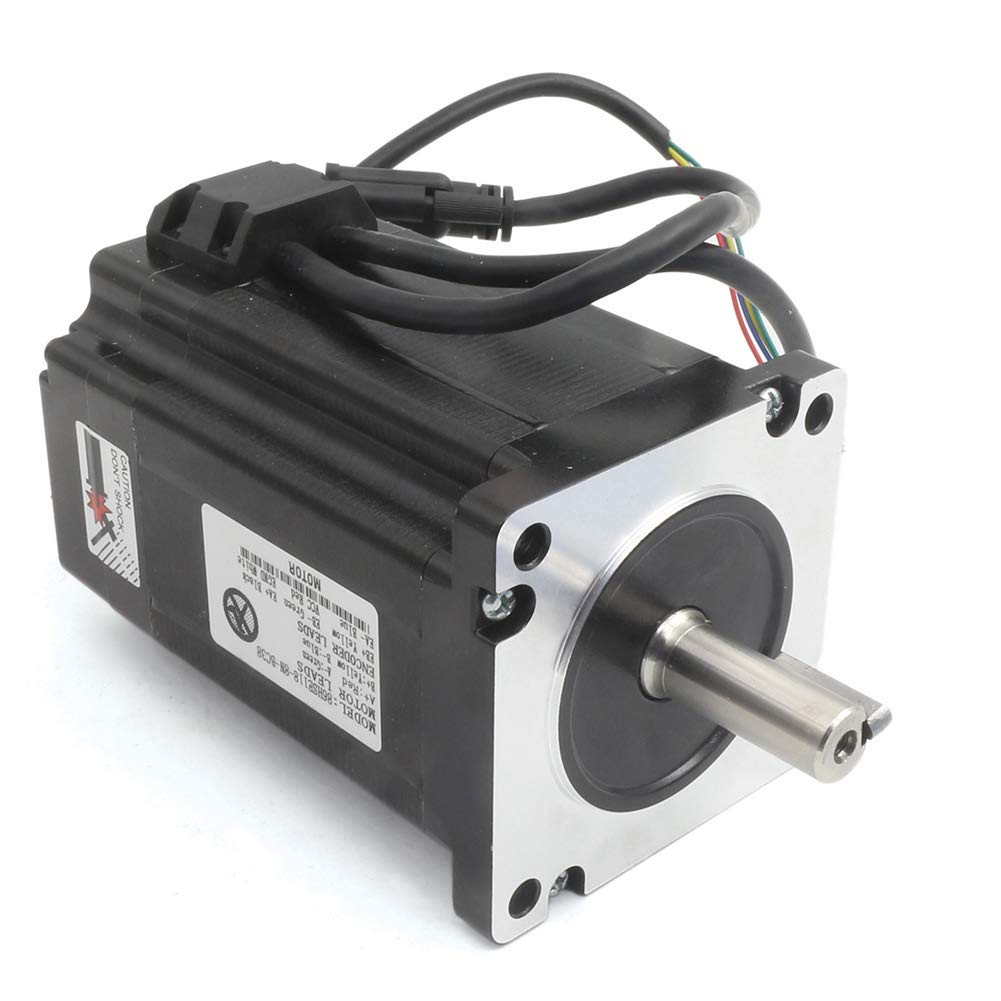

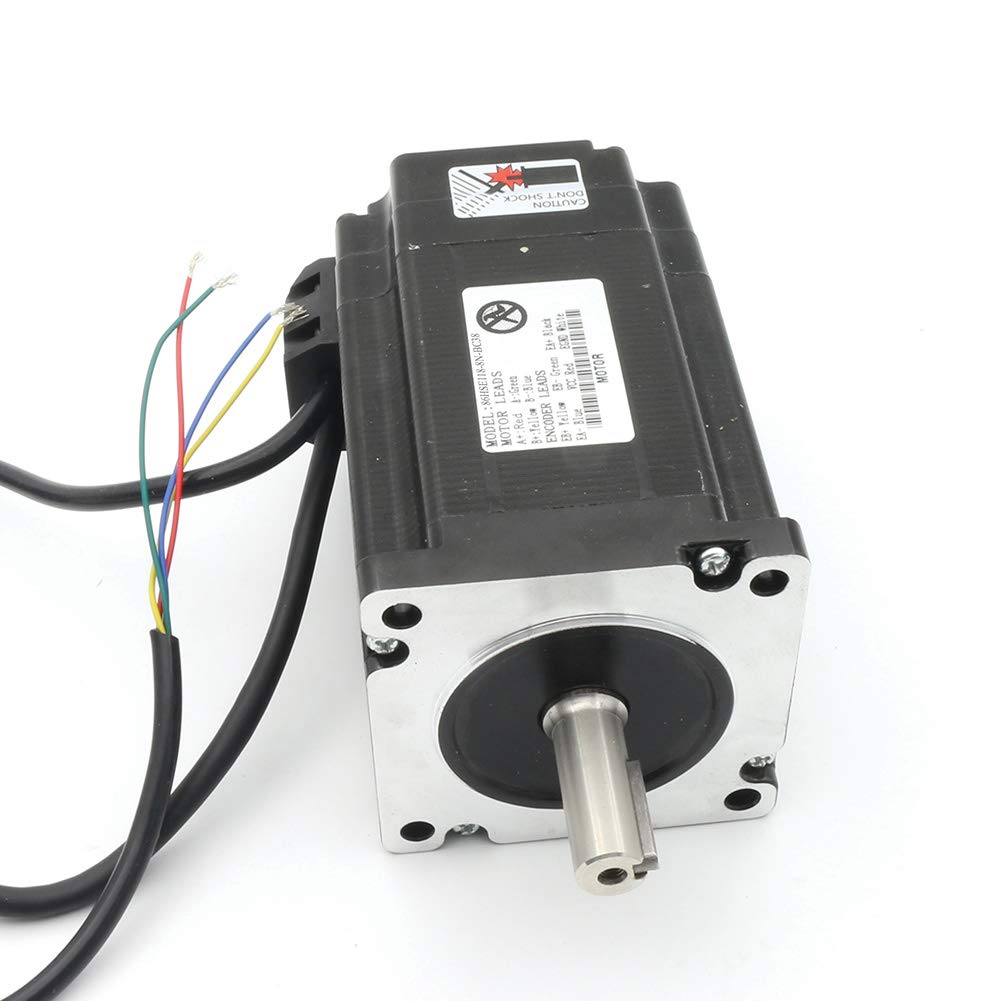

Package includes: 1 x 86HSE116 Nema34 8N.m Closed Control Circuit Servo Motor 1 x HSS86 servo driver, 8A AC24~70V or DC30~100V. 1 x 3M extension cable. English manual will be sent to your Amazon email, if you do not receive the user manual, please contact us via amazon message, thank you! 1. Servmotor. Features: Type: Hybrid. Phase: 2. Current/phase: 6.0 A. Step angle (degrees): 1.8. Holding torque: 8 Nm. Size: 86 x 86 x 116 mm. Connection cable: Pack of 4. Insulation class: B. Insulation resistance: 100 Mohm (500 V). Frequency: 0 ~ 200 kHz. 2. HSS86 2-phase hybrid step servo driver Voltage range AC24~70V or DC30~100V. Peak current 8.0 A (current change depending on load). Logic input current 7 ~ 20 mA, Frequency: 0 ~ 200 kHz. Suitable motor: HSE156, 86HSE118, 86HSE82, 1000 conductors. Insulation resistance: ≥500 MΩ
