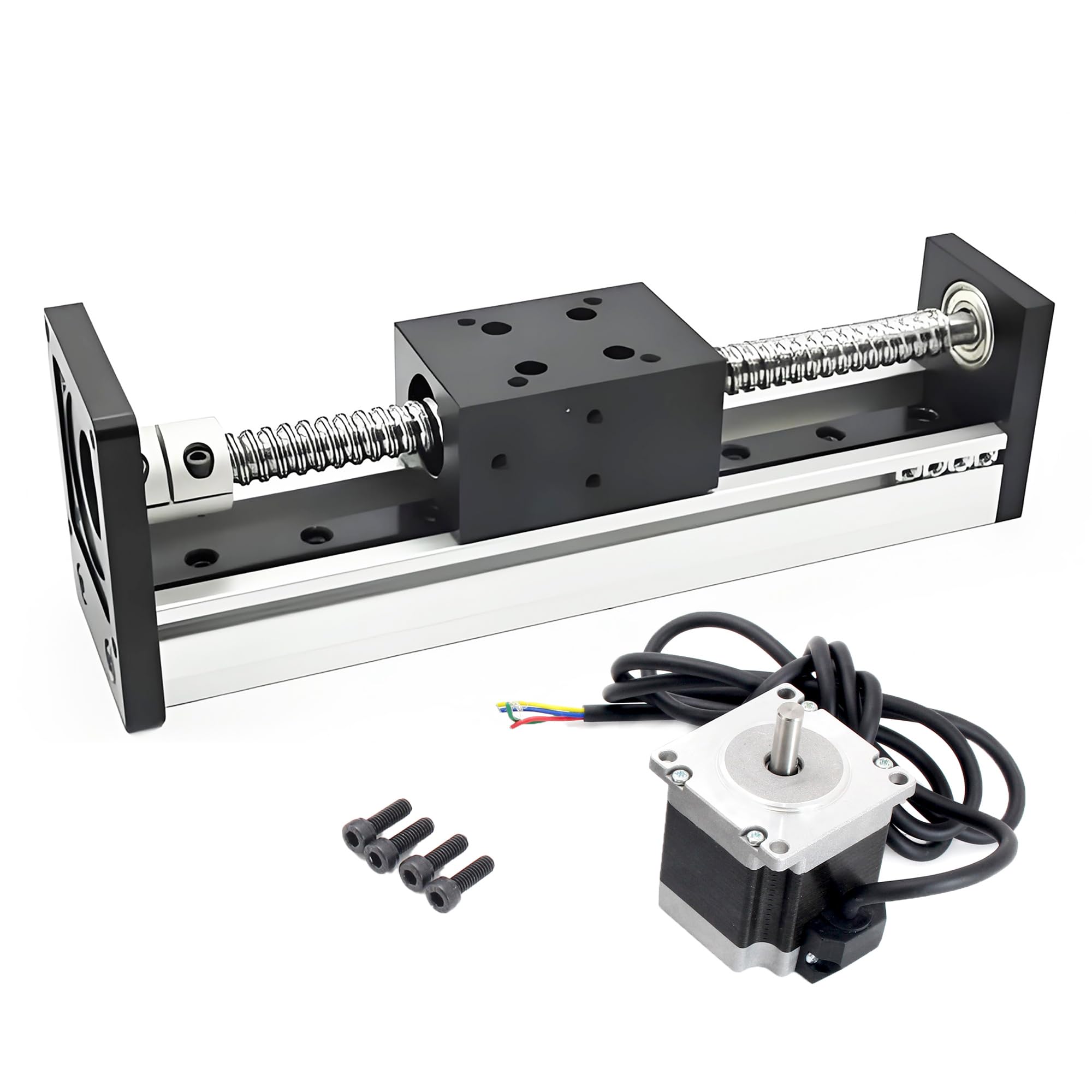

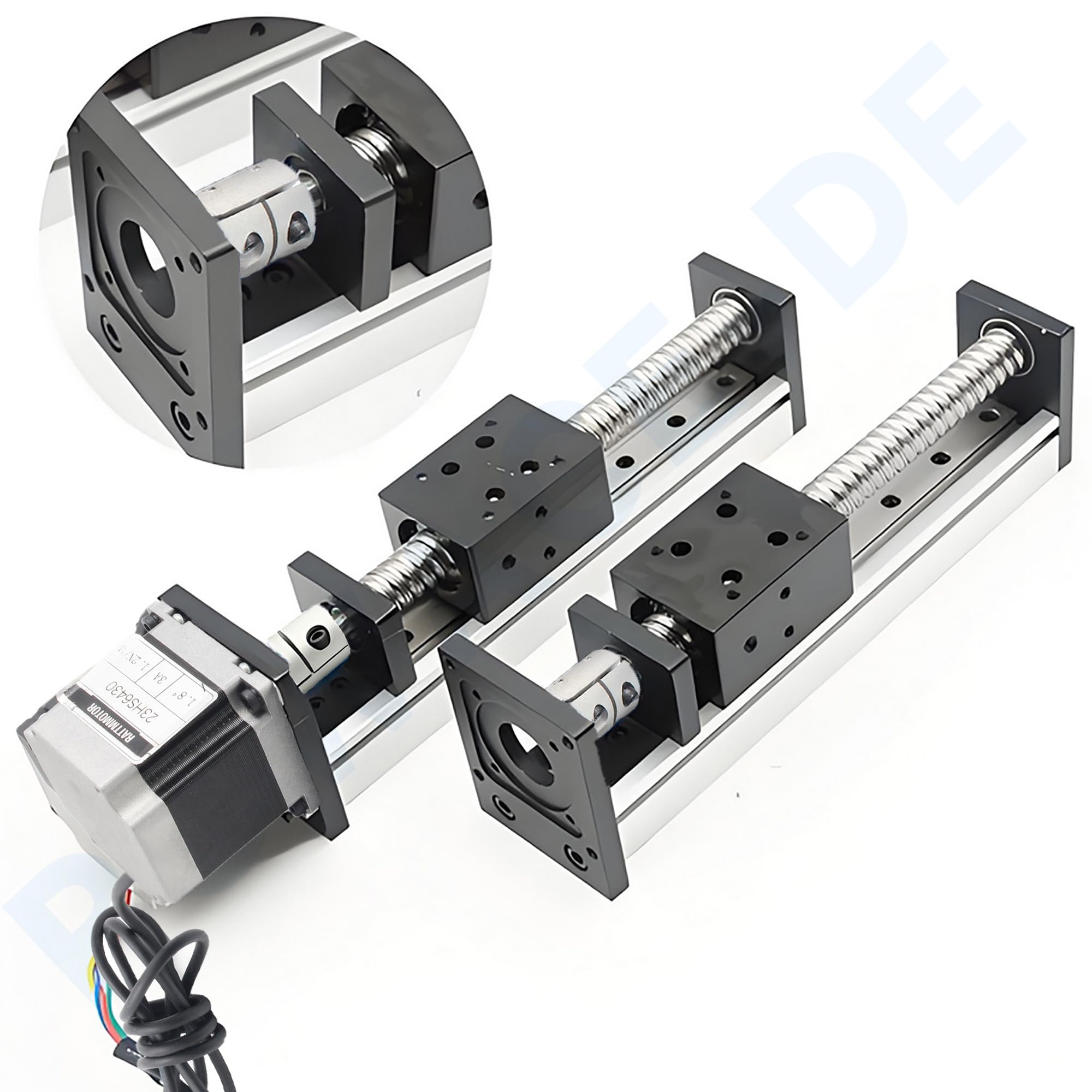

RATTMMOTOR Linear Rail Guide 400 mm Travel Length CNC Linear Slide Table Linear Table Drive CBX1605 Ball Round Spindle with NEMA23 Stepper Motor

• 【Basic parameters】-speed 0-200 mm/s, effective stroke 400 mm, repeat the positioning accuracy of ± 0.03 mm； pitch 5 mm (the incline spindle moves 5 mm in one rotation)
• 【Nema23 Stepper Motor】- Motor Length: 56Mm. Motor Flange Size: 57Mm. Holding Torque: 1.2N.M. Phase: 2. Current: 3A. Resistance: 0.8 Ω. Inductance: 2.4Mh. Rotor Inertia: 440G.Cm. Wiring: Red(A+), Green(A-), Yellow(B+), Blue(B-).
• 【1605 Ball Screw】- Drive Type: Cbx1605 Ball Screw. Effective Travel Length: 400Mm. Screw Precision Grade: C7. Screw Pitch: 5Mm. Flange Nut Screw Rod With Precision Up To 0.03Mm.

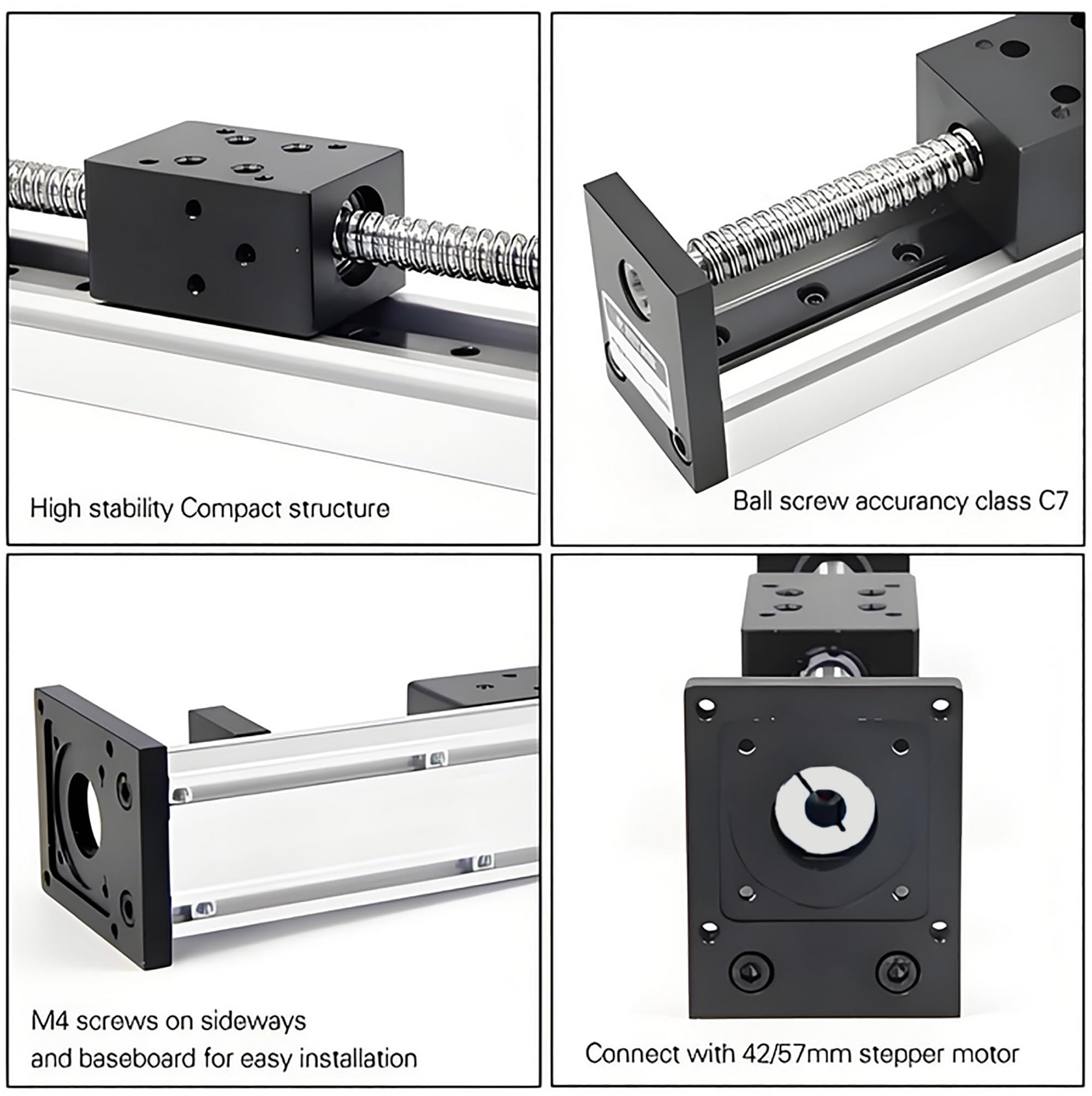

• 【Slide Block】- Length: 60Mm. M4 Sliding Nut Design On The Side, Limit Switch Can Be Installed At Any Position. The Slider Is Made Of 6030 Aluminum And Are Oxidized, Which Is Beautiful And Generous.
• 【Main Application】- The Important Hardware Equipment That Constitutes Industrialized Machinery Can Accurately Control The Accuracy And Speed Of The Moving Parts Of Mechanical Equipment. It Is Suitable For Cnc Machine, Placement Equipment, Laser Cutting Equipment, Spraying Equipment, Medical Equipment, Battery Equipment And Other Industrial Automation Fields.

CBX1605 Linear Motion Guide Parameter Model: CBX1605-100A/200A/300A/400A/500A  Profile Width: 42mm  Drive Type: CBX1605 Ballscrew  Screw precision grade: C7  Screw Pitch: 5mm  Linear Type: Square Linear Rails  Bearing Type: Single Square HGH Carriages  Motor Type: 2-Phase Nema23 High torque Stepper Motor 56mm  Effective Travel Length: 100mm / 200mm / 300mm / 400mm / 500mm  Max. Speed: 50mm/s,2inch/s  Horizontal load: 30Kgs / 66.2lbs  Vertical load: 10Kgs / 44lbs  Axial Load Capacity: 22Kgs / 44lbs
