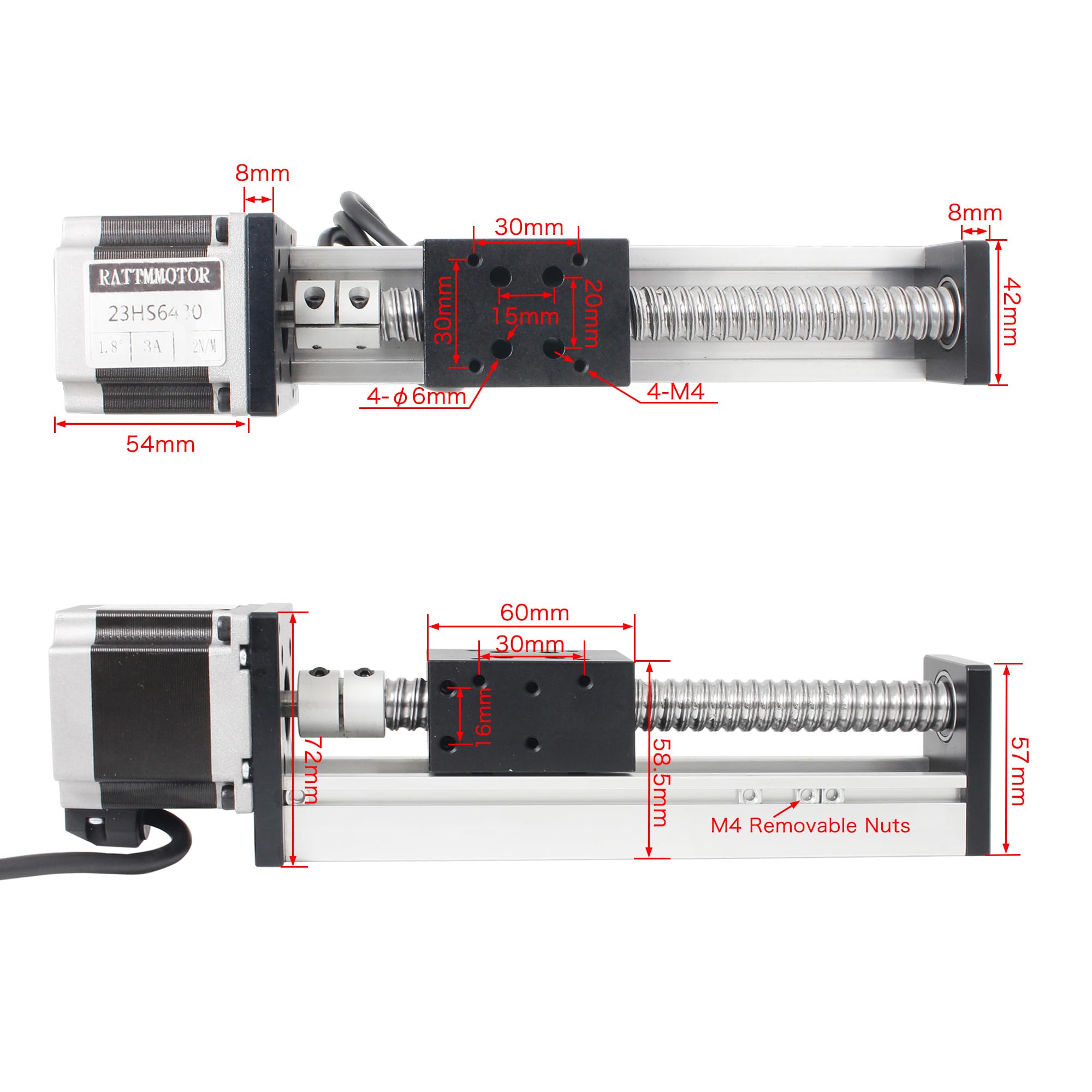

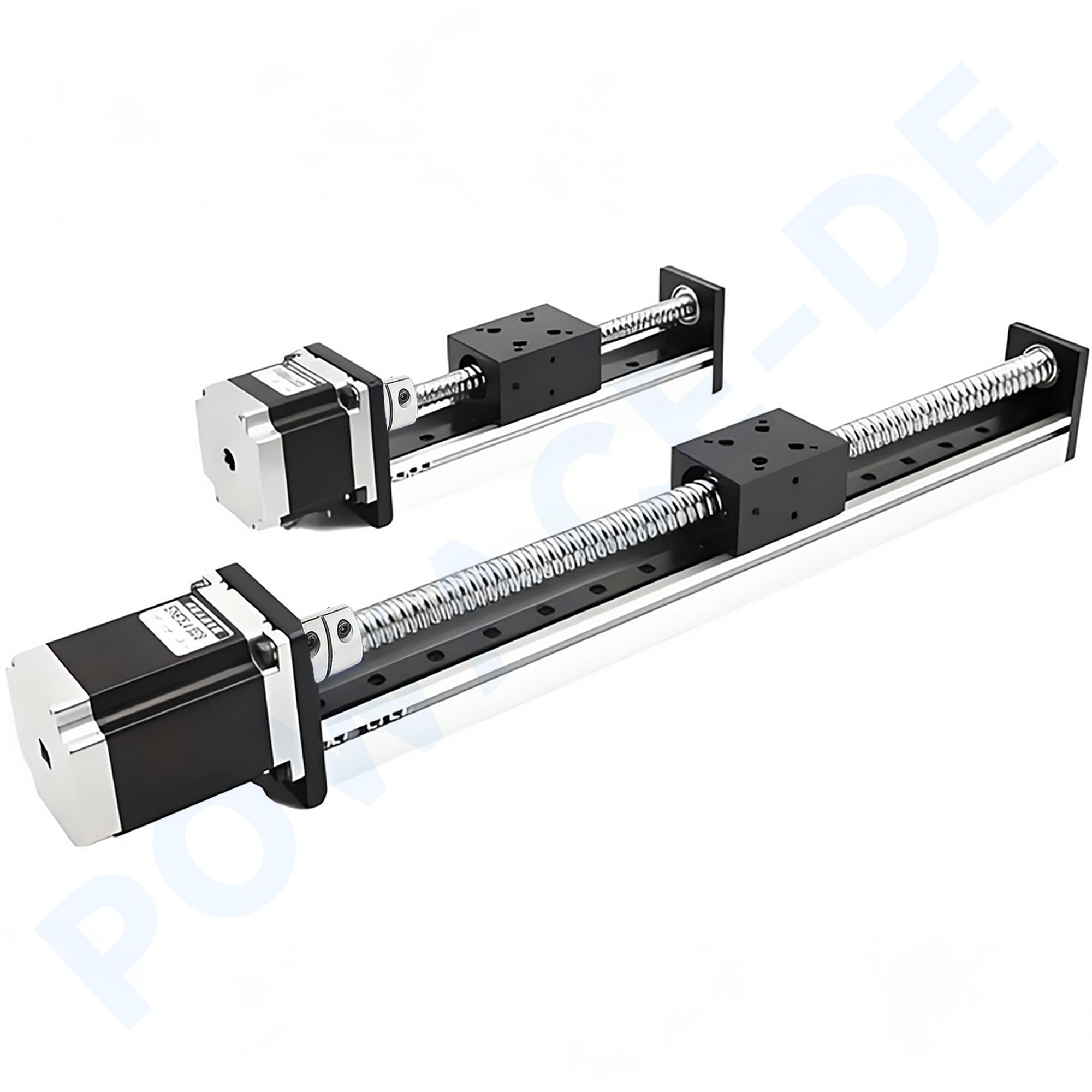

RATTMMOTOR CNC Linear Guide Rail 200 mm Travel Length Linear Actuator Slide Stage Linear Motion Table SFU1605 Ballscrew with NEMA23 Stepper Motor

• 【Basic parameters】-speed 0-200 mm/s, effective stroke 200 mm, repeat the positioning accuracy of ± 0.03 mm； pitch 5 mm (the incline spindle moves 5 mm in one rotation)

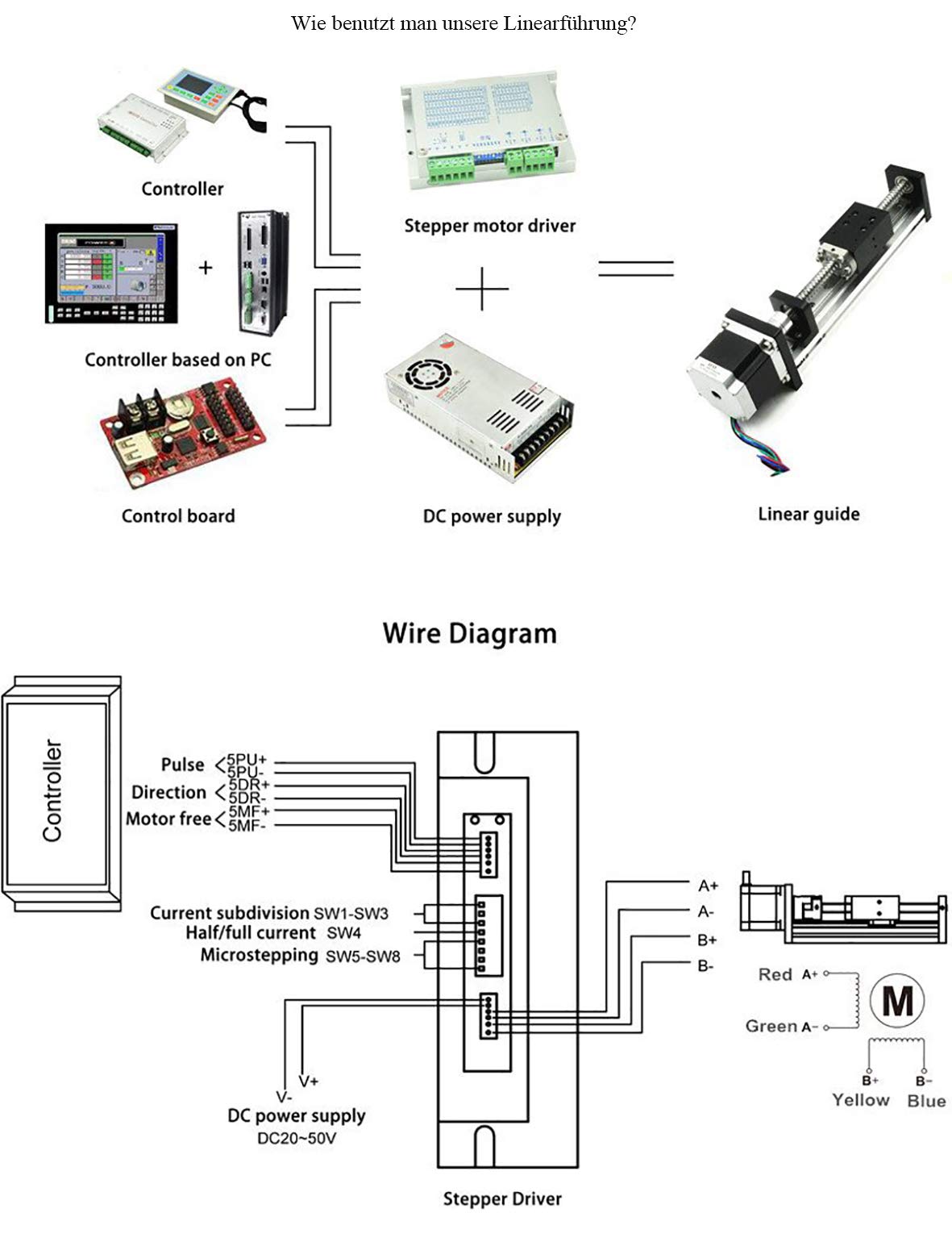

• 【Nema23 Stepper Motor】- Motor Length: 56Mm. Motor Flange Size: 57Mm. Holding Torque: 1.2N.M. Phase: 2. Current: 3A. Resistance: 0.8 Ω. Inductance: 2.4Mh. Rotor Inertia: 440G.Cm. Wiring: Red(A+), Green(A-), Yellow(B+), Blue(B-).

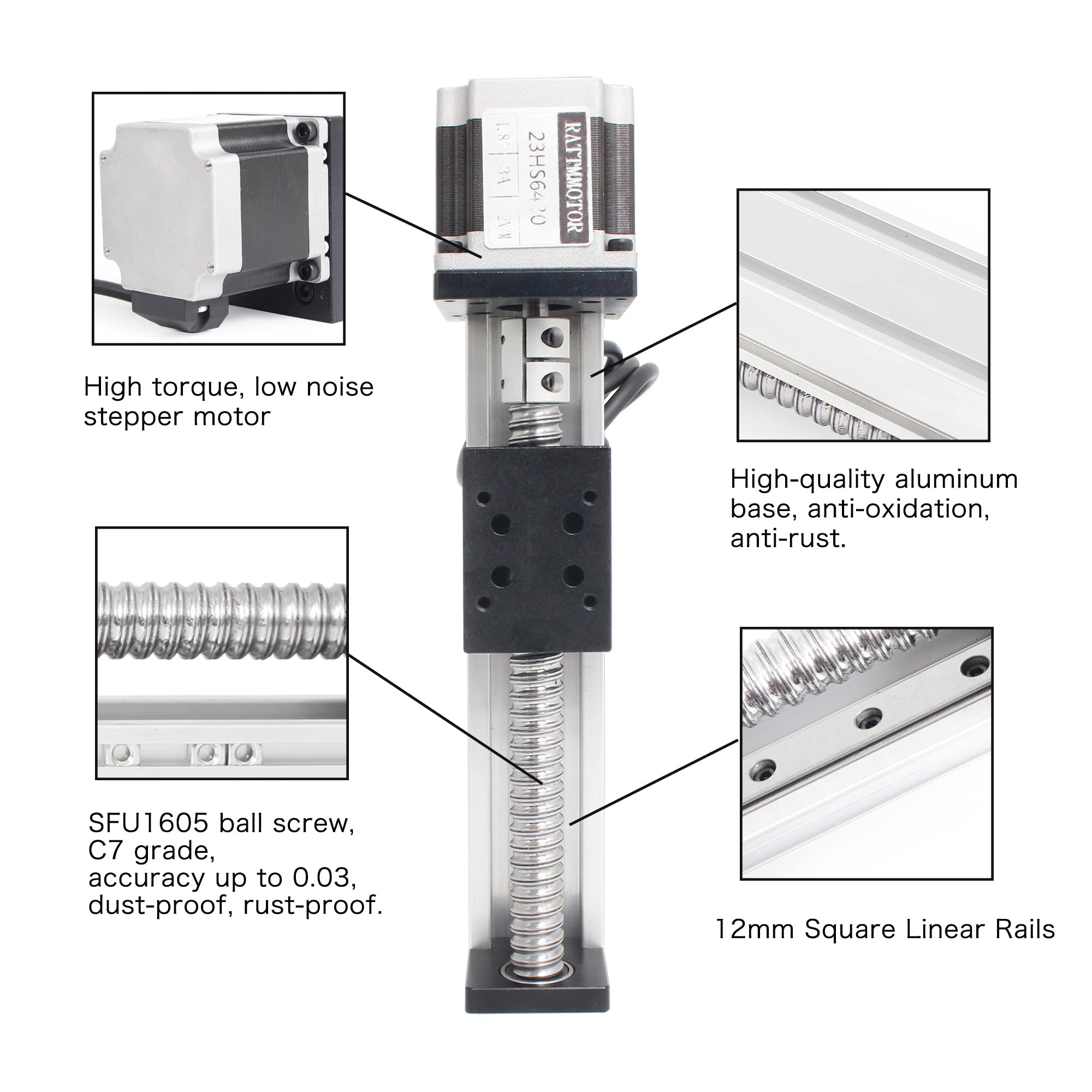

• 【1605 Ball Screw】- Drive Type: Cbx1605 Ball Screw. Effective Travel Length: 200Mm. Screw Precision Grade: C7. Screw Pitch: 5Mm. Flange Nut Screw Rod With Precision Up To 0.03Mm.

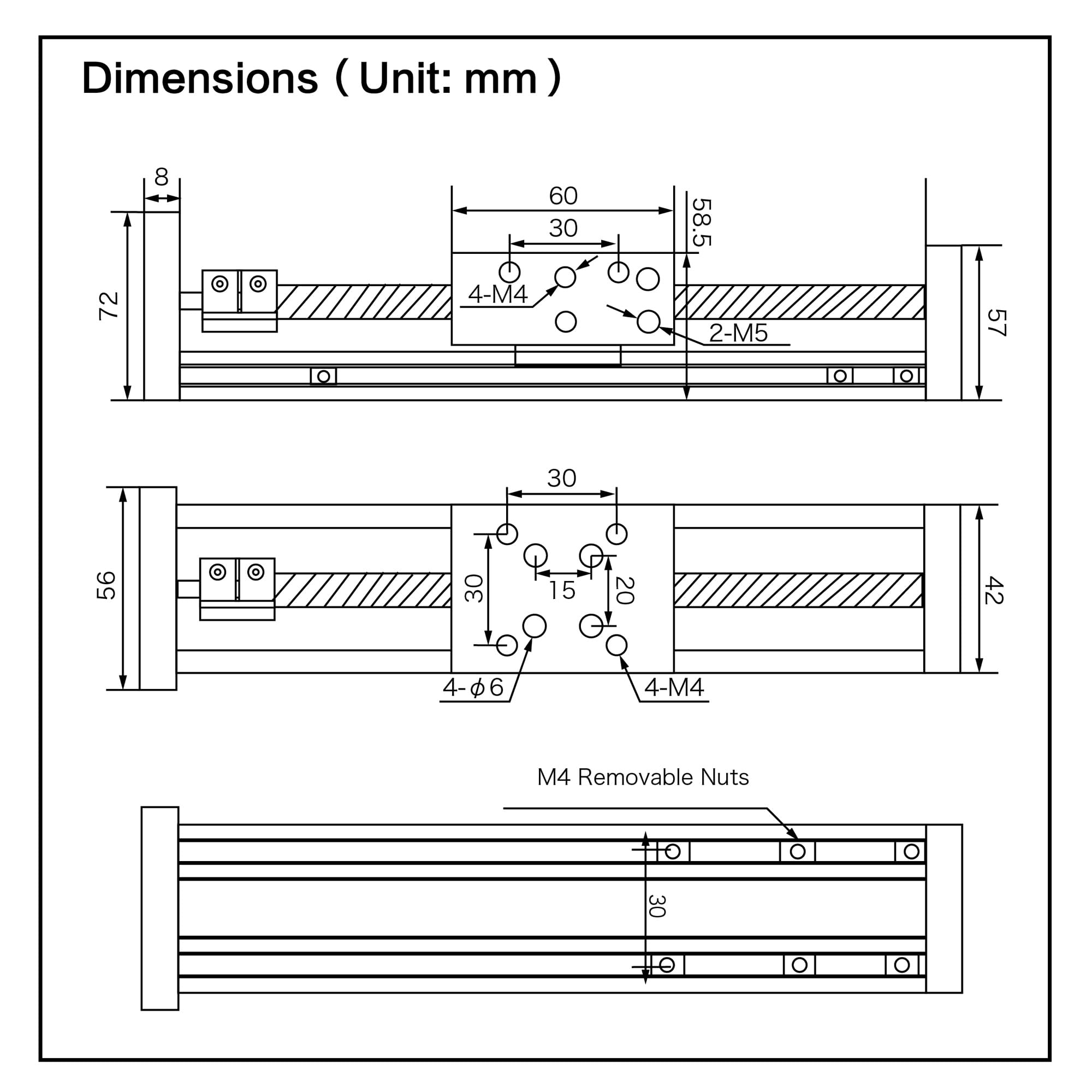

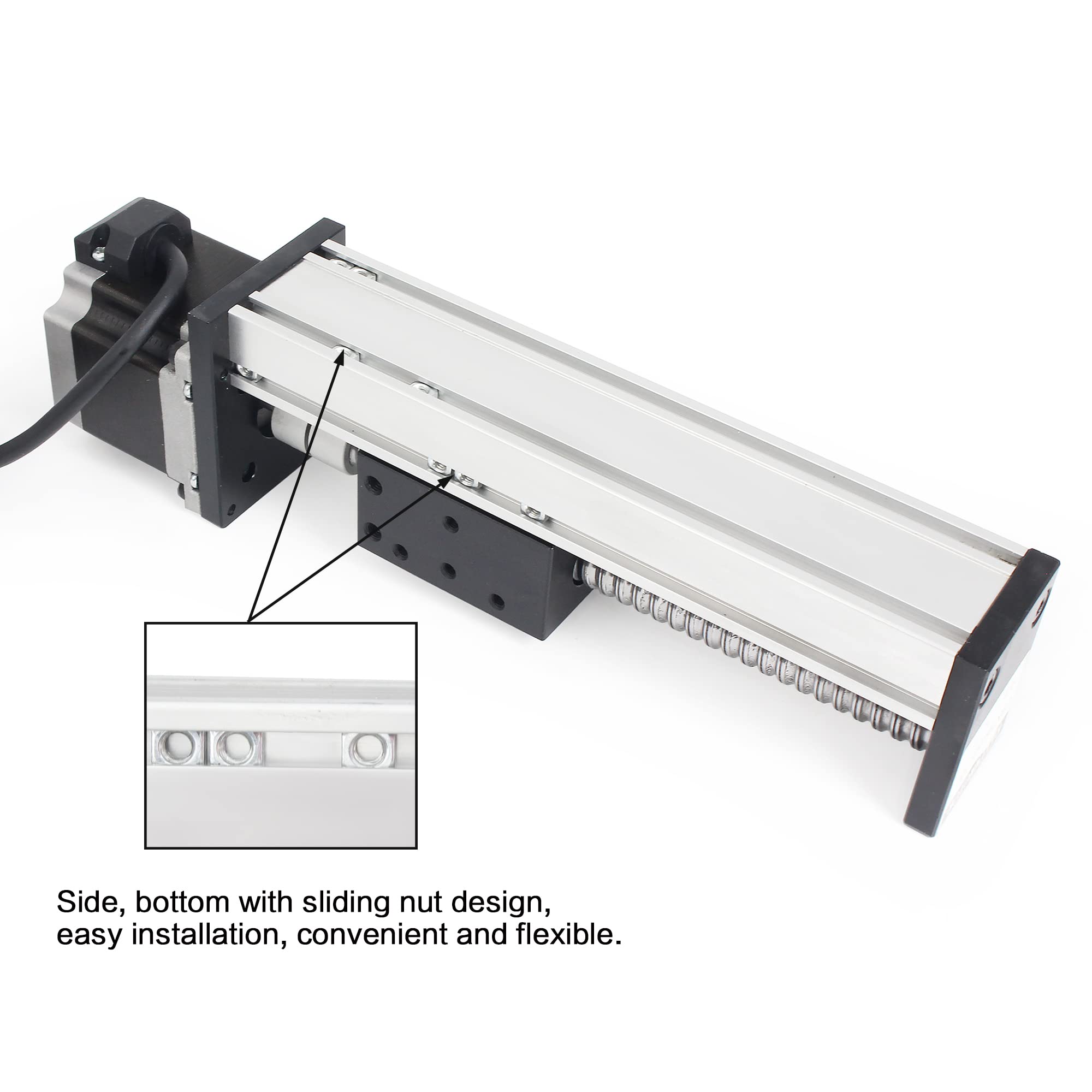

• 【Slide Block】- Length: 60Mm. M4 Sliding Nut Design On The Side, Limit Switch Can Be Installed At Any Position. The Slider Is Made Of 6030 Aluminum And Are Oxidized, Which Is Beautiful And Generous.
• 【Main Application】- The Important Hardware Equipment That Constitutes Industrialized Machinery Can Accurately Control The Accuracy And Speed Of The Moving Parts Of Mechanical Equipment. It Is Suitable For Cnc Machine, Placement Equipment, Laser Cutting Equipment, Spraying Equipment, Medical Equipment, Battery Equipment And Other Industrial Automation Fields.

RATTMMOTOR Basic parameters: Speed 0-200 mm/s, effective stroke 200 mm, pitch 5 mm (the pitch spindle moves 5 mm in one rotation)
