Raspberry Pi Pico Board with Pre-soldered Header Flexible Microcontroller Board Based the Raspberry Pi RP2040 Chip Featured Dual-core ARM Cortex M0+

• RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom;Castellated module allows soldering direct to carrier boards;Pre-soldered header, easy to use
• USB 1.1 with device and host support;Accelerated floating-point libraries on-chip
• Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz; 264KB of SRAM, and 2MB of on-board Flash memory
• Low-power sleep and dormant modes;Drag-and-drop programming using mass storage over USB;Accurate clock and timer on-chip

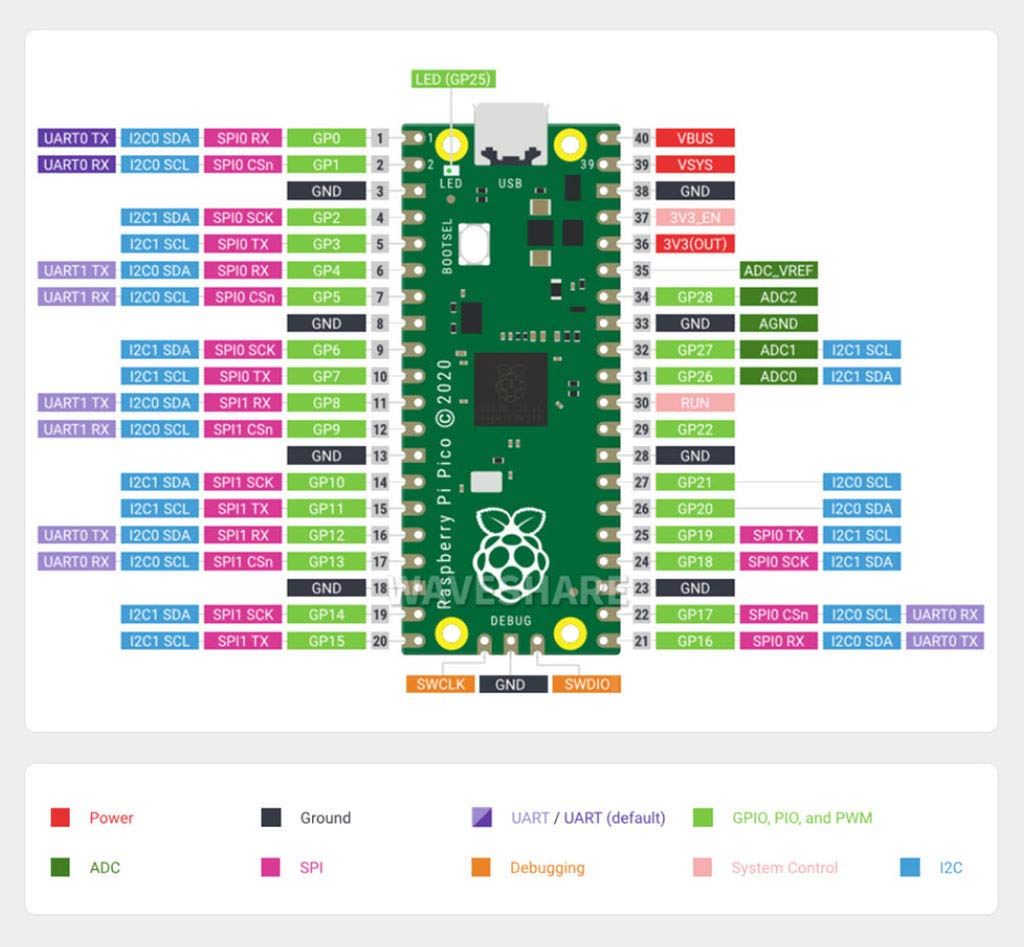

• 26 × multi-function GPIO pins;2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels;8 × Programmable I/O (PIO) state machines for custom peripheral support

Description Raspberry Pi Pico is a low-cost, high-performance microcontroller board with flexible digital interfaces. It incorporates Raspberry Pi's own RP2040 microcontroller chip, with dual-core Arm Cortex M0+ processor running up to 133 MHz, embedded 264KB of SRAM and 2MB of on-board Flash memory, as well as 26x multi-function GPIO pins. For software development, either Raspberry Pi's C/C++ SDK, or the MicroPython is available. There're also complete development resources and tutorials to help you get started easily, and integrate it into end products quickly. Key Features With Pre-soldered Header, easy to use Dual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz 264KB of SRAM, and 2MB of on-board Flash memory Castellated module allows soldering direct to carrier boards USB 1.1 Host and Device support Low-power sleep and dormant modes Comprehensive C/C++/Micropython SDK, software examples, and documentation Drag & drop programming using mass storage over USB 26 × multi-function GPIO pins 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels Accurate clock and timer on-chip Temperature sensor Accelerated floating-point libraries on-chip 8 × Programmable I/O (PIO) state machines for custom peripheral support Part ListOverview 1. Raspberry Pi Pico with Header x1 2. USB-A to micro-B cable x1(White color) 3. 3pin Pin-header x2
