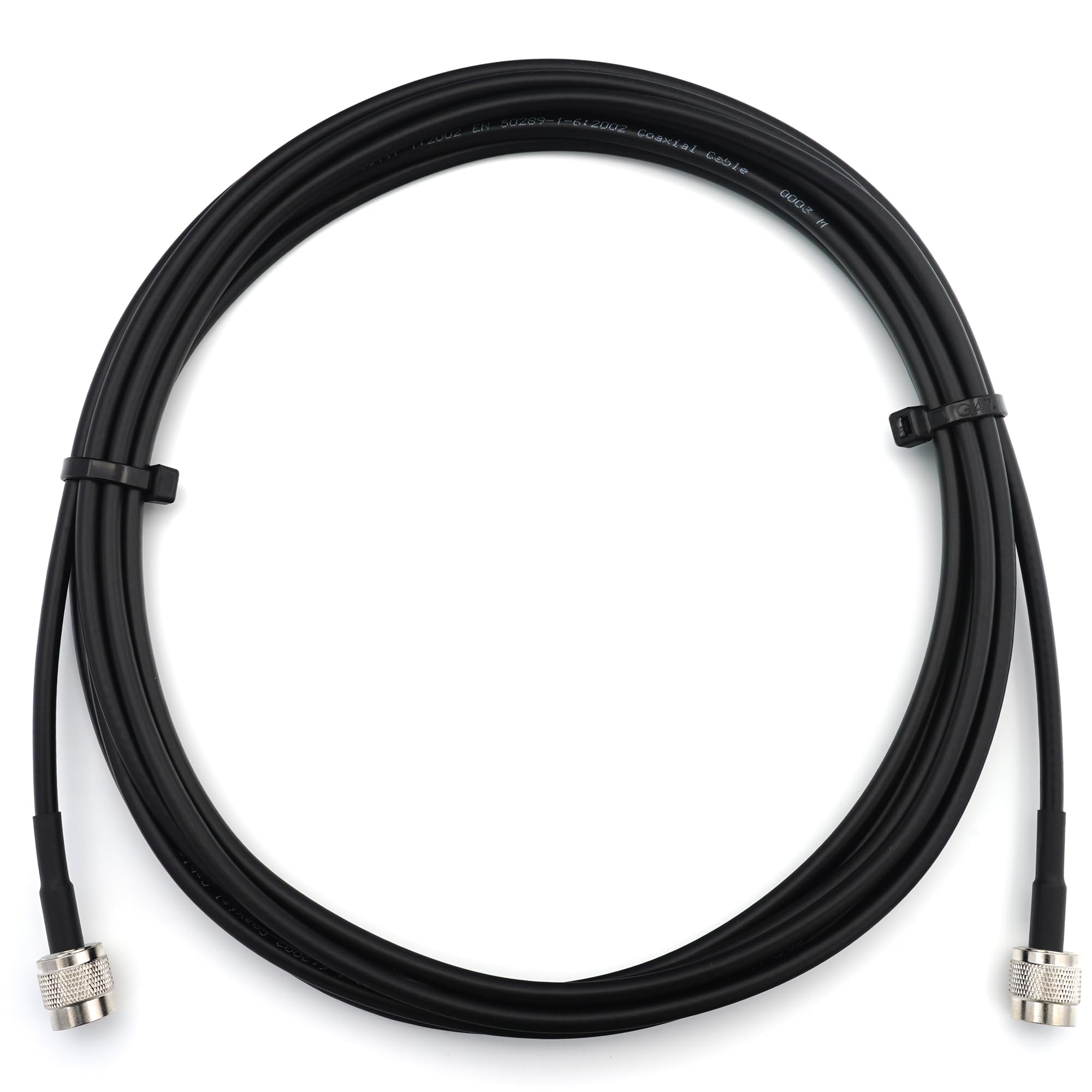

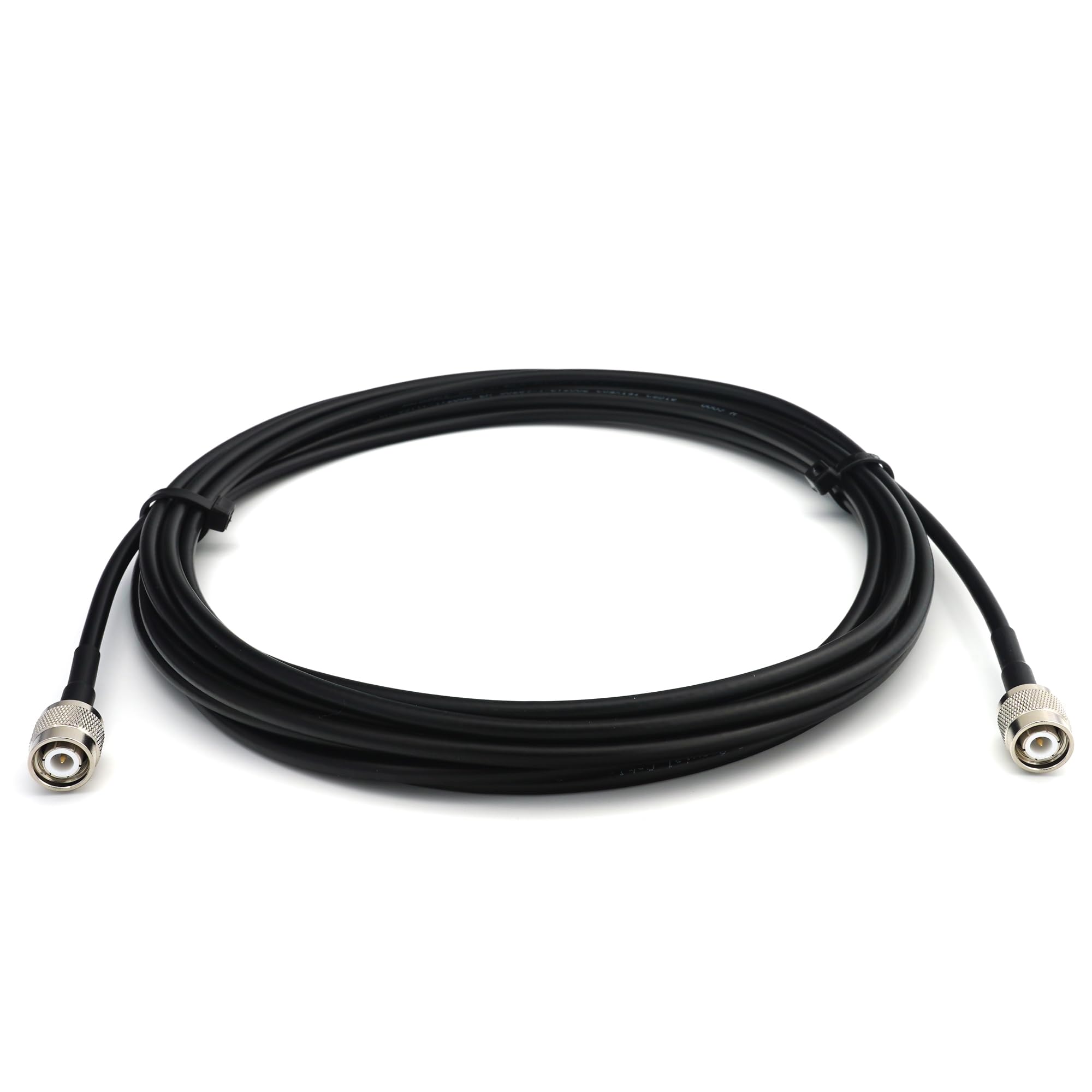

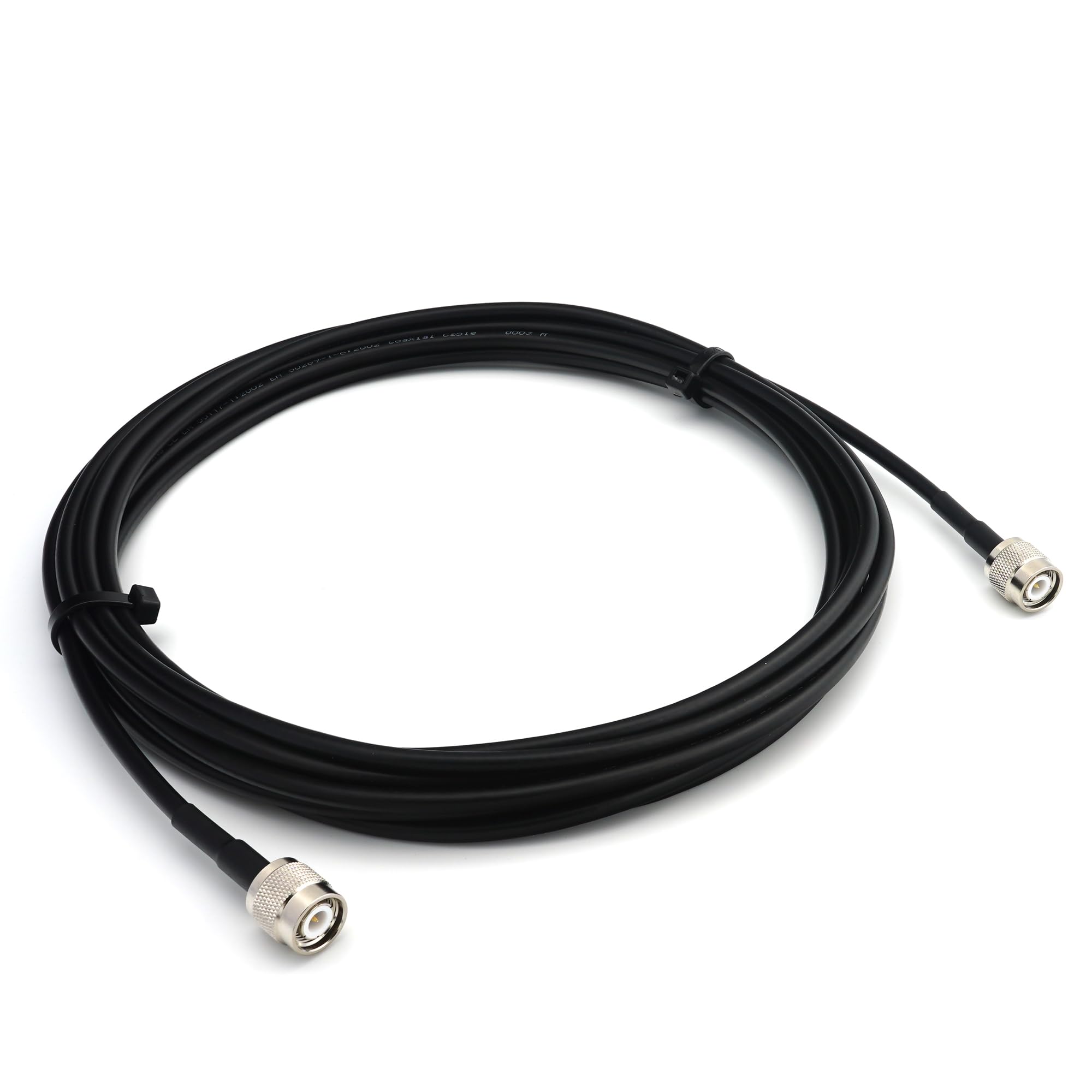

RANGEFUL 5m TNC Male to TNC Male RG58 Coaxial Cable — TNC Extension Cable 16.4ft 50 Ohm — Coax for Antenna HAM Radio CB Aerial Walkie Talkie VHF UHF Two Way Radio

• ✅【 Application 】 This extension lead 5m / 16.4ft is ideal for use with the TNC antenna, Router, Radio Scanner, Modem, CB Radio, WiFi, as an aerial cable, etc.
• ✅【 Indoor/Outdoor use 】 Flexible TNC black extension cable 5m UV-resistant, Waterproof and Frostproof with PVC jacket.
• ✅【 Solid Copper Conductor 】 Copper conductor 1,02mm and tinned copper braid shield provide best-in-class data transmission with minimal attenuation.
• ✅【 Double-wall shrink tubing 】 Additional adhesive layer for better protection of connectors from external environment.
• ✅【 Assembled in EU 】 The connectors are soldered with silver-added solder for best contact and long life. Each cable is tested before shipment. Full compliance with European standards CE, RoHS, REACH, UL 94.

TNC Male to TNC Male Low Loss Flexible RG58/U Coaxial Cable Double Shielded with Black PVC Jacket Length: 5 meters (16.4 ft) Application Widely used with CB radio, HAM radio, Antennas, FM radio, Amateur radio, FRS GMRS MURS radio, Public radio scanner, various RF devices, SWR meters and Testing equipment, etc. Features ✅ Indoor/Outdoor use. Flexible UV-protected black PVC jacket. ✅ Solid Copper Conductor and Tinned Copper Braided Shield for best-in-class data transmission with minimal attenuation. ✅ 2x TNC Male connectors are used to connect devices with TNC Female connectors. ✅ Double-wall shrink tubing with adhesive layer for better protection of connectors from external environment. ✅ Assembled in EU, fully tested and packed. Full compliance with European standards CE, RoHS, REACH, UL 94. Package includes 1 piece of 5m (16.4ft) TNC Male to TNC Male Extension Cable Connector 1: TNC Male Connector 2: TNC Male Specifications Cable Type: RG58/U Center Conductor Type: Solid Copper (1 Strand) Impedance: 50 Ohm Frequency Range: DC-6GHz V.S.W.R: ≤ 2 Operating voltage: 1000Vrms Input Power (Peak): 2.5 KW Velocity of propagation: 82% Shielding Effectiveness: >90dB Capacitance: 83 pF/m Dielectric Type: PE Jacket Material: UV PVC No. of Shields: 2 (Aluminium foil + Tinned Copper Braid) Operating Temperature: -40 to +80 deg C Mechanical Specifications Diameter: 4.95mm Inner Conductor: 1.02mm Dielectric: 2.90mm Second Shield: 3.40mm Bending Radius: 50mm Attenuation dB/100m: 150Mhz: 13 450Mhz: 22 800Mhz: 29 900Mhz: 32 1200Mhz: 39 1800Mhz: 48 2450Mhz: 55 3500Mhz: 66
