Rainwater Drainage Gutter Drainage rainwater Drain DN 110 125 Combined 325 C.

• Made of high- Shock resistant polypropylene - Standard EN 1253-1.
• DN-110/125 combined.

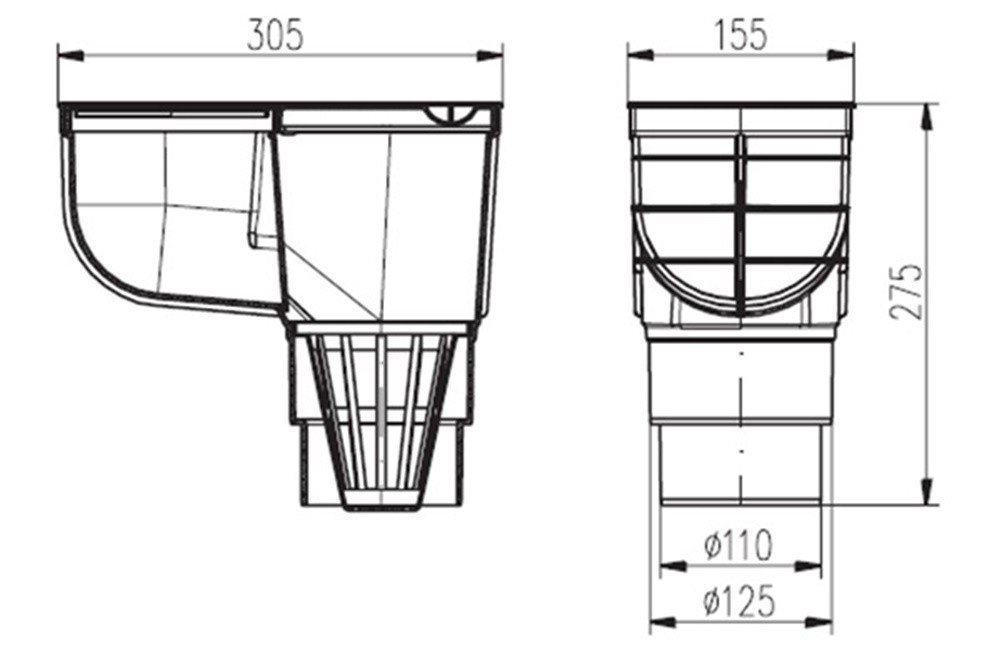

• Dimensions: 305 x 155 x 290 mm
• Weight: approx.1.20 kg.
• Load K3-300 kg.

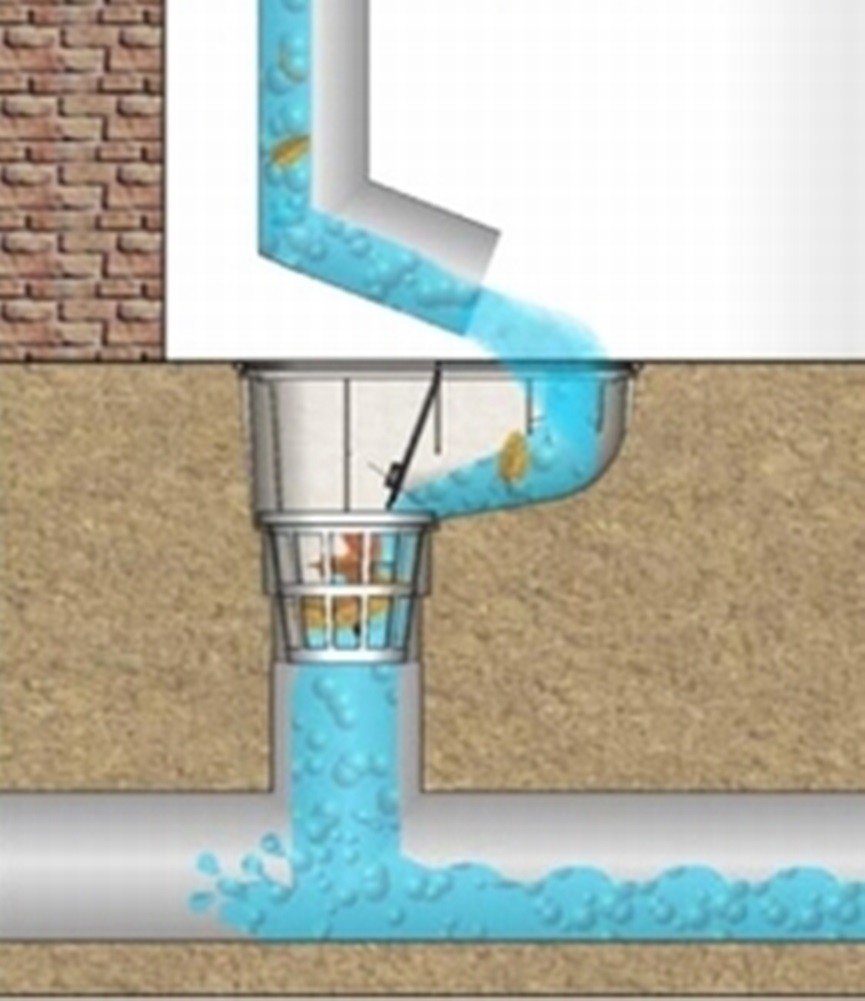

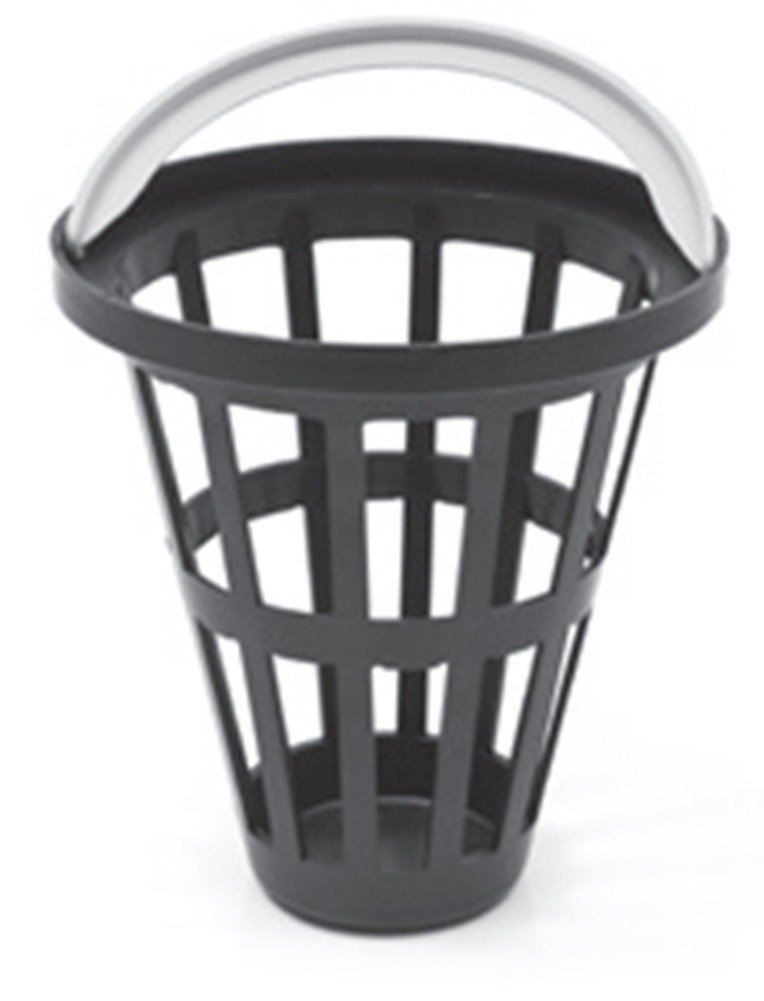

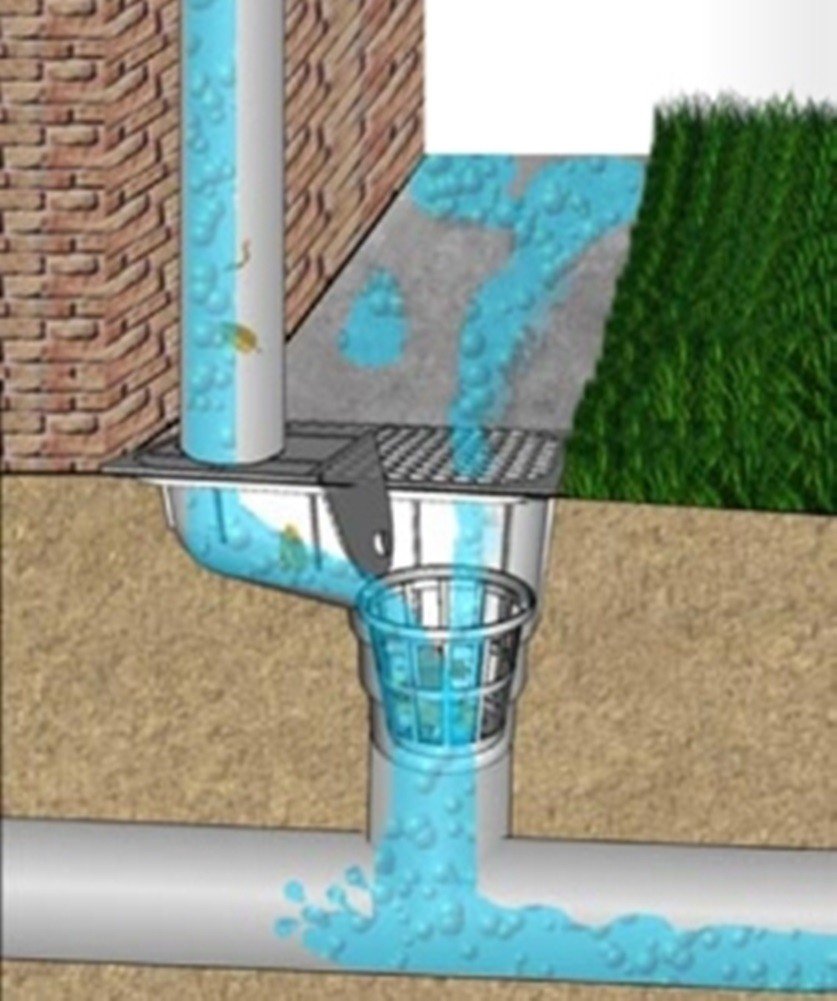

Rain gutter - gutter drain - rainwater drainage. In highest quality - order no.: 325-C. Safety and isocertified by the TÜV-Süd. Vertical outlet - DN-110/125 combined, suitable for 100 and 125er HT and KG pipes. Fits for all fall pipes 75-80-90-100-110 and 125 mm through different ring inserts. The Ring inserts are held eccentrically, so that by rotating the inserts the downpipe does not have to be exactly centered. Thus, inaccuracies in the downpipe can easily be compensated for. The inserts are ready for use, so you do not have to cut the right size with a knife. Instead of using the insert for the fallpipe or the closed lid you can also use the supplied grid cover (see picture next to Ring inserts), so that the drain can also be used as floor drain for surface water in the yard or the entrance. Made of polypropylene Standard EN 1253-1 Load K3-300 kg Thermal resistance up to 90° C, Flow rate: 390 or 530 l/min. Frost-proof, due to the slanting flow sole. With integrated pendulum flap as odor stop. With dirt collecting basket and cleaning opening for easy cleaning without needing to dismantling downpipe. Drainage of rainwater from the roof or surface drainage. The introduction of other liquids is not permissible. Leaf trap and odor lock. Installation depth: 275 mm. Installation instructions are included. #supremeWidgetFooter216725 {padding: 5px 0px 0px 0px; font-family: Arial, Helvetica, sans-serif;} #supremeWidgetFooter216725 p {float: left; font-size: 8px; color: #FFF; margin: 0px; padding: 5px 0px 0px 0px;} #supremeWidgetFooter216725 a,#supremeWidgetFooter216725 a:visited {font-size: 12px !important; text-decoration: none;} #supremeWid
