Rain Gutter Drainage Pipe DN 110 (325-D)

• Made from high impact and shock-resistant polypropylene - standard EN 1253-1
• Installation depth: 171 mm
• DN-110

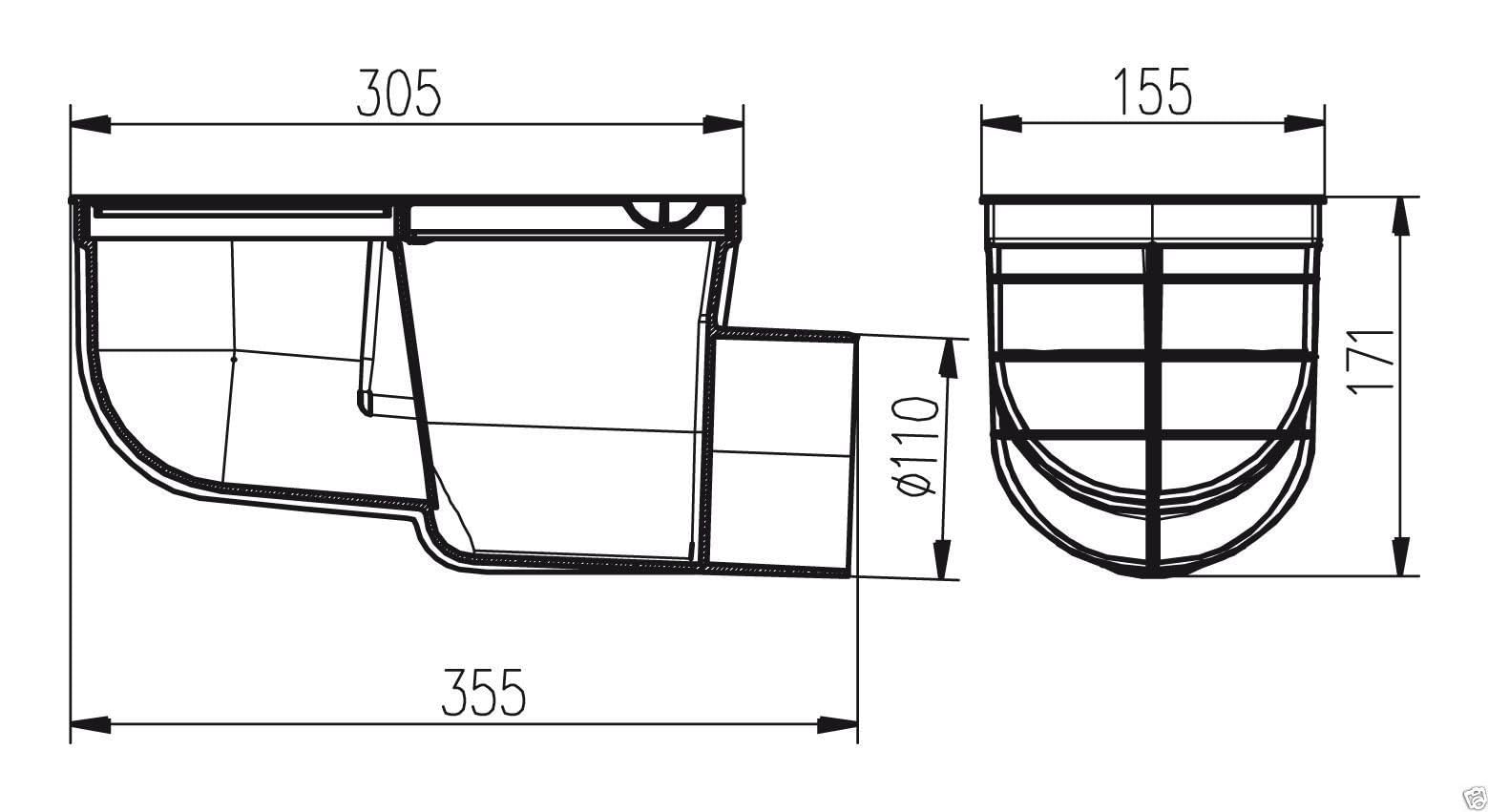

• Dimensions: 305 x 155 x 171 mm
• Weight: approx. 1.14 kg
• Load K3-300 kg
• Heat resistance up to 90 °C
• Flow rate: 375 l/min.
• Frost-proof, as it runs idle thanks to the slanted flow sole
• With integrated dry pendulum flap to stop odours

Rain gutter/gutter drain/rainwater drainage. The highest quality. Item no.325-G. Security and ISO-certified by TÜV-Süd (German safety authority); horizontal outlet; 110 mm; suitable for high-temperatures (100°C) and waste water pipes; suitable for all 75 mm, 80 mm, 90 mm, 100 mm, 110 mm and 125 mm downpipes thanks to cuttable ring inserts. The ring inserts are held in place eccentrically, so that by rotating the inserts, the drop pipe is not exactly in the centre. So any inaccuracies can easily be compensated for.Made of polypropylene standard EN 1253-1; load of K3-300 kg; thermal resistance up to 90°C; flow rate: 375l/min.; frost-proof due to the slanting smooth flow surface; with integrated pendulum flap as odour stop; with dirt collecting basket and cleaning opening for easy cleaning without having to dismantle the downpipe; drainage of rainwater from the roof or surface drainage; the use of other liquids is not permissible; leaf trap and odour lock; installation depth: 171 mm; Installation instructions are included (may not be in English). - - - - - - - - -
