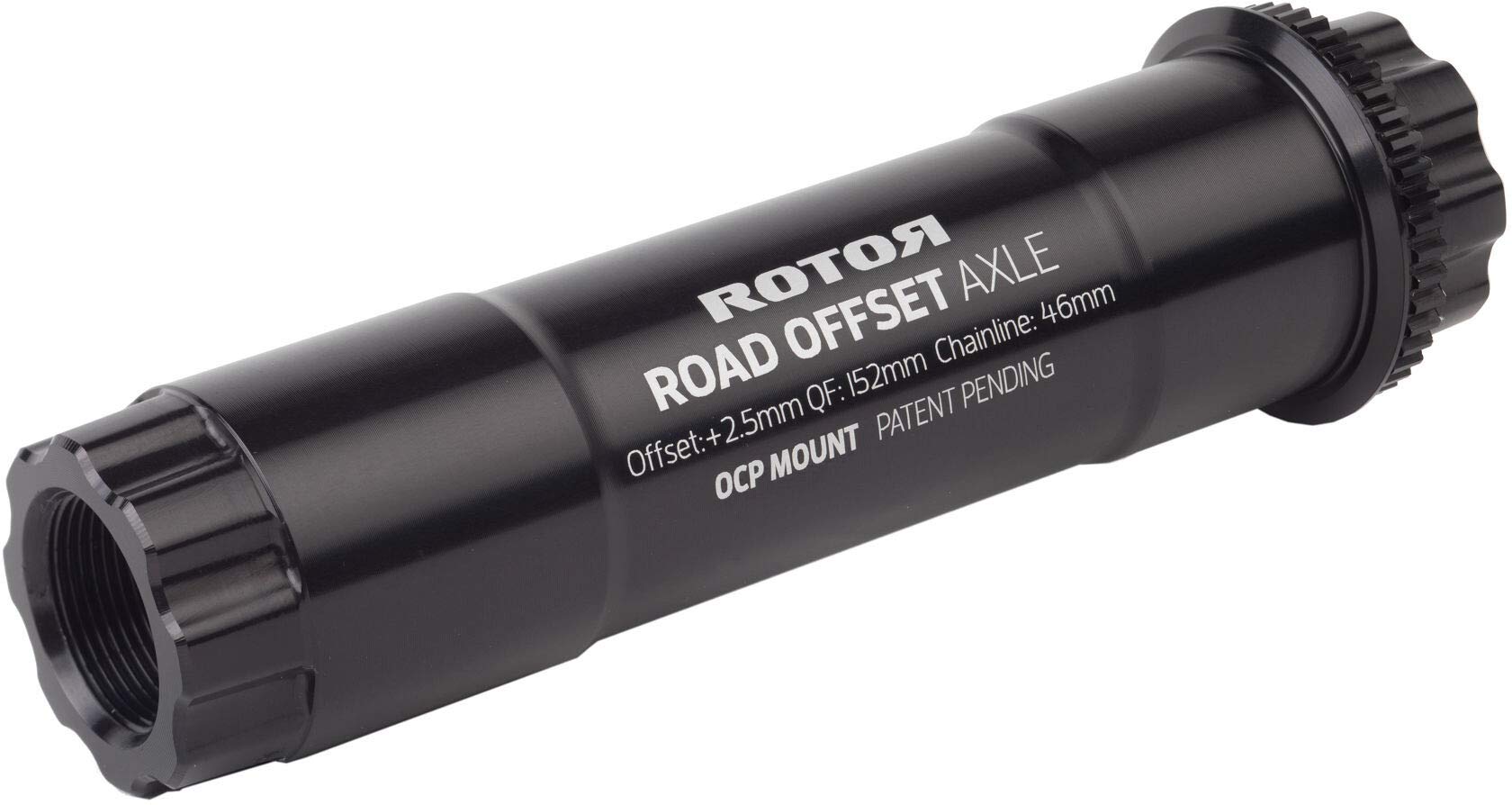

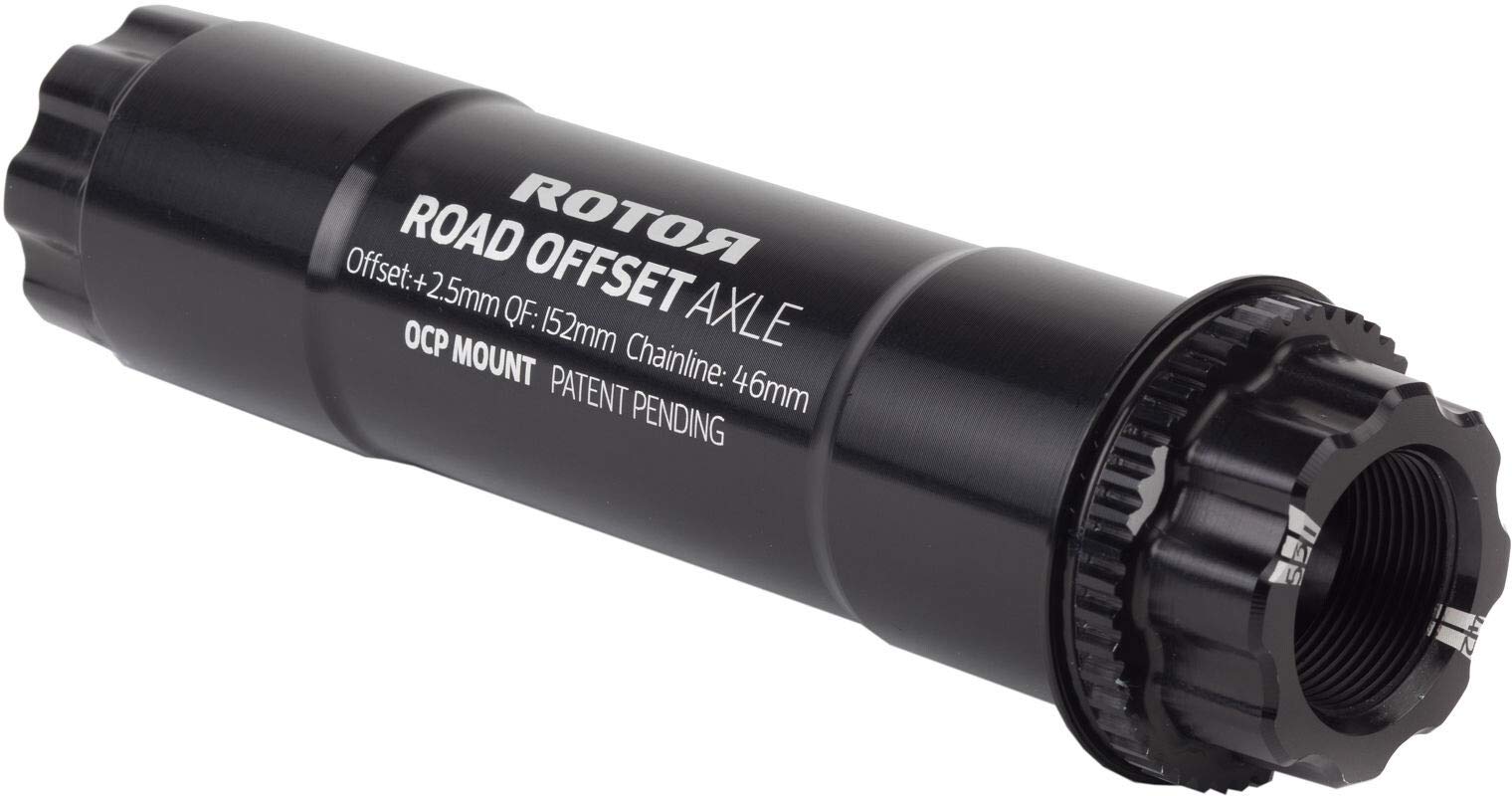

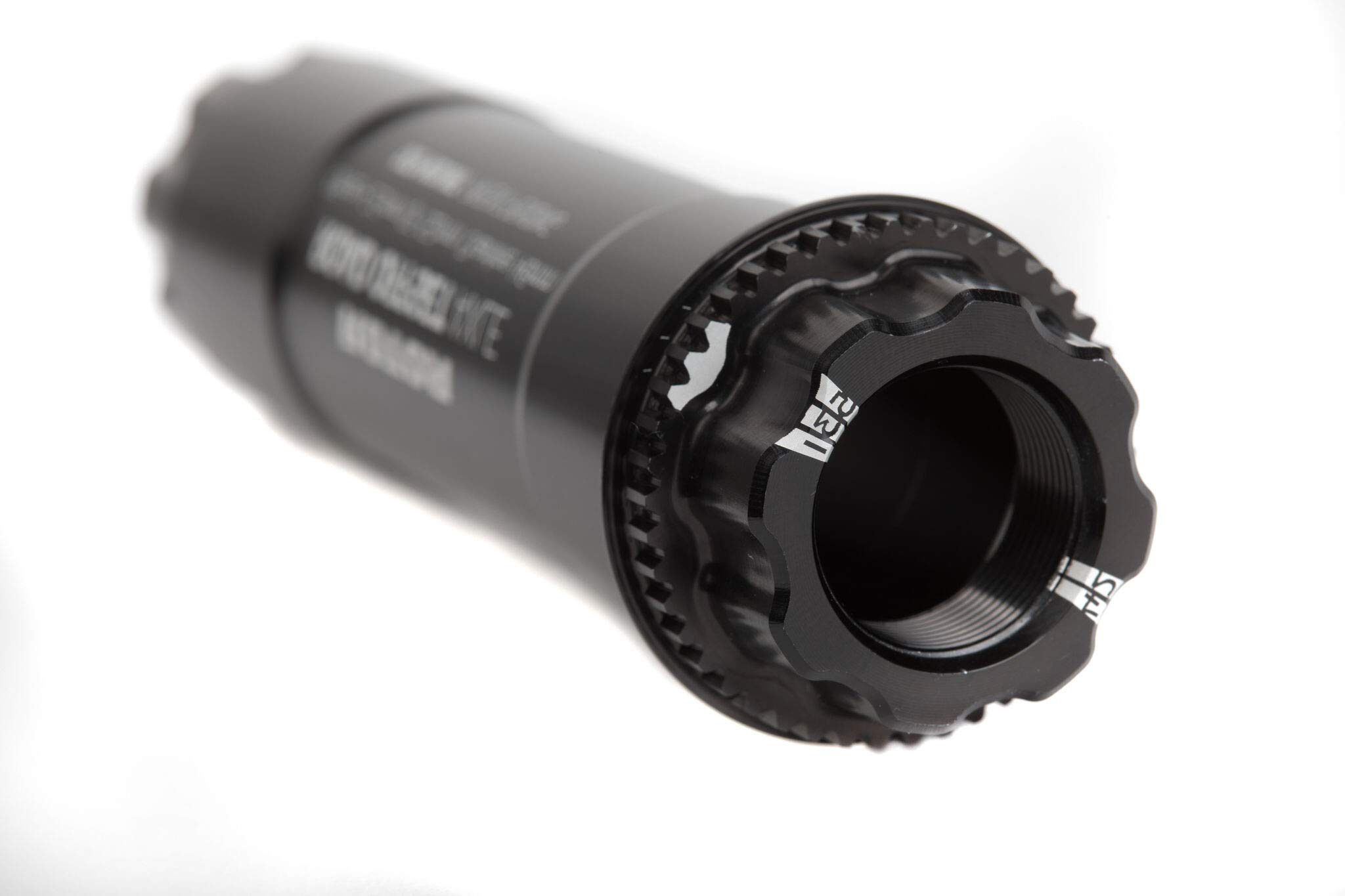

Rotor Unisex Adult Alhu + Vegast Axle Road Offset for 46 mm Chain Line Crank Arms, Black, 30 mm

• 30 mm rotor axles for the modular Aldhu/Vegast crank systems
• Chain line: 43.5 mm (rim brake) / 153 mm (disc brake)
• Weight of the axle: 96 g (rim brake) / 99 g (disc brake)

30 mm Rotor axles for the modular ALDHU/VEGAST crank systems. No. 1: Rotor 30 mm standard axle 148 mm for the modular ALDHU/VEGAST crank systems. Q factor: 148 mm (sweep brake) chain line: 43.5 mm (rim brake) colour: anthracite/matte no. 2 rotor 30 mm roadoffset axle 152 mm for the modular Aldhu/Vegast crank systems. Q factor: 152 mm (disc brake). Chain line: 46 mm (disc brake). Colour: anthracite/matte no. 3 rotor 30 mm track axle 140 mm for the modular ALDHU/VEGAST crank systems. Please note: only with 144 x 5 track spider. Q factor: 140 mm. Chain line: 43 mm. Colour: anthracite/matte. Due to the three axle lengths: No. 1: 148 mm (standard road), No. 2: 152 mm, (road offset) and No. 3: 140 mm (track), the modular rotor cranks for the most diverse areas of application track/fixie, road, tria TT, gravel cranks. Xuse. They also fit in almost any frame. With the matching 30 mm Rotor bearing and the corresponding spacers, the modular Rotor crank systems can be mounted in almost any frame.
