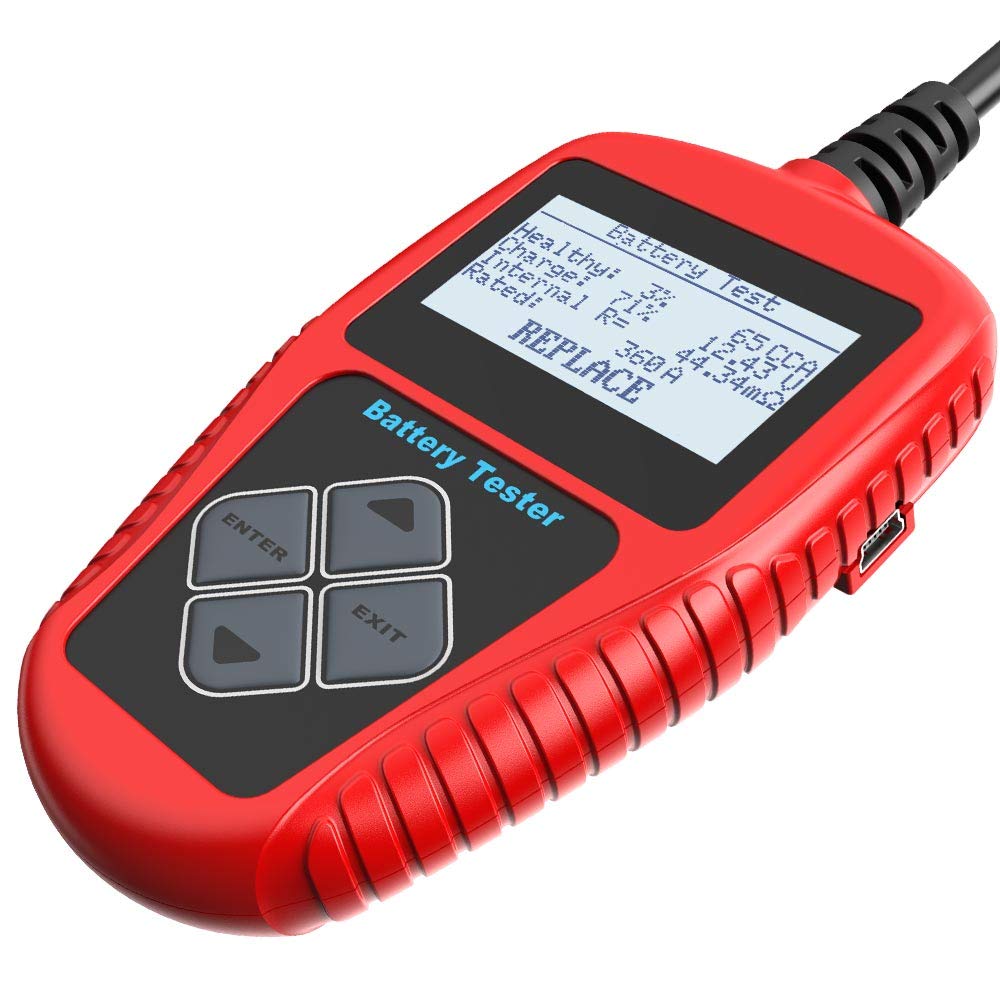

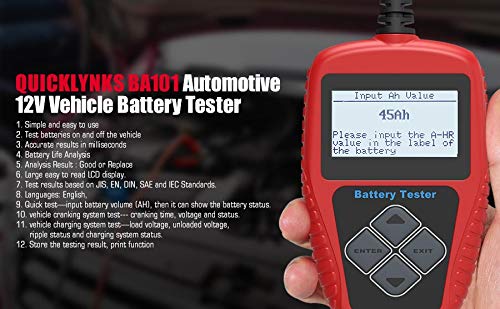

QUICKLYNKS Automotive Load Battery Tester BA101 100-2000 CCA 220AH 12V Car Battery Tester Analyzer Diagnost Tool for Car/Boat/Motorcycle etc

• TEST BATTERY : This car battery tester can easily, quickly and accurately measure the actual cold cranking amps capability of the vehicle starting battery, healthy state of the battery itself, and common fault of the vehicle starting system and charging system, which can help maintenance personnel to find the problem quickly and accurately, thus to achieve quick vehicle repair.
• IN/OUT OF VEHICLE TESTING: The automotive battery tester support in/out of vehicle test, you can detect bad cell battery directly, save your time to take out the battery from the car. And this battery tester 12v directly test the battery with loss of electricity, no need to full charge before testing

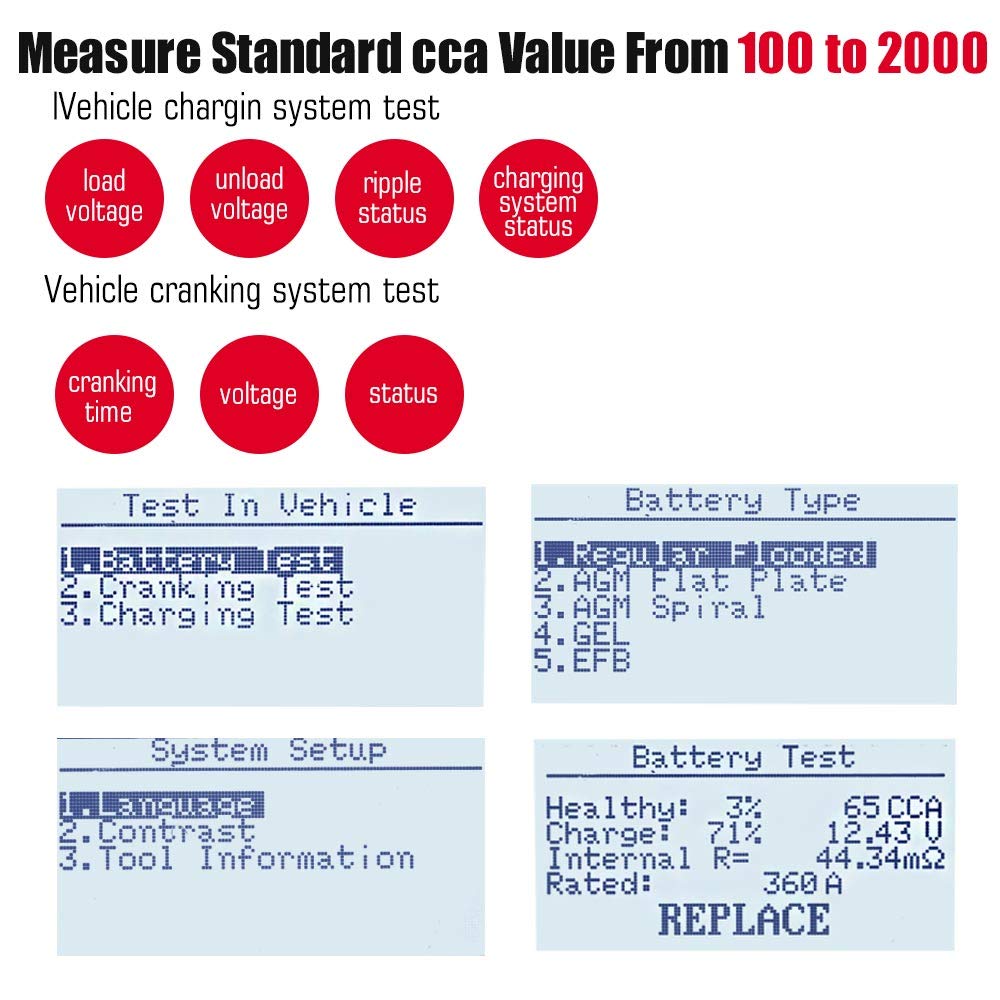

• MULTI-TESTING: The auto battery tester support Battery Test , Cranking Test and Charging Test . It can test all automotive cranking lead acid battery, including ordinary lead acid battery, AGM flat plate battery, AGM spiral battery, and Gel battery, EFB battery, etc. Testing standards include CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB

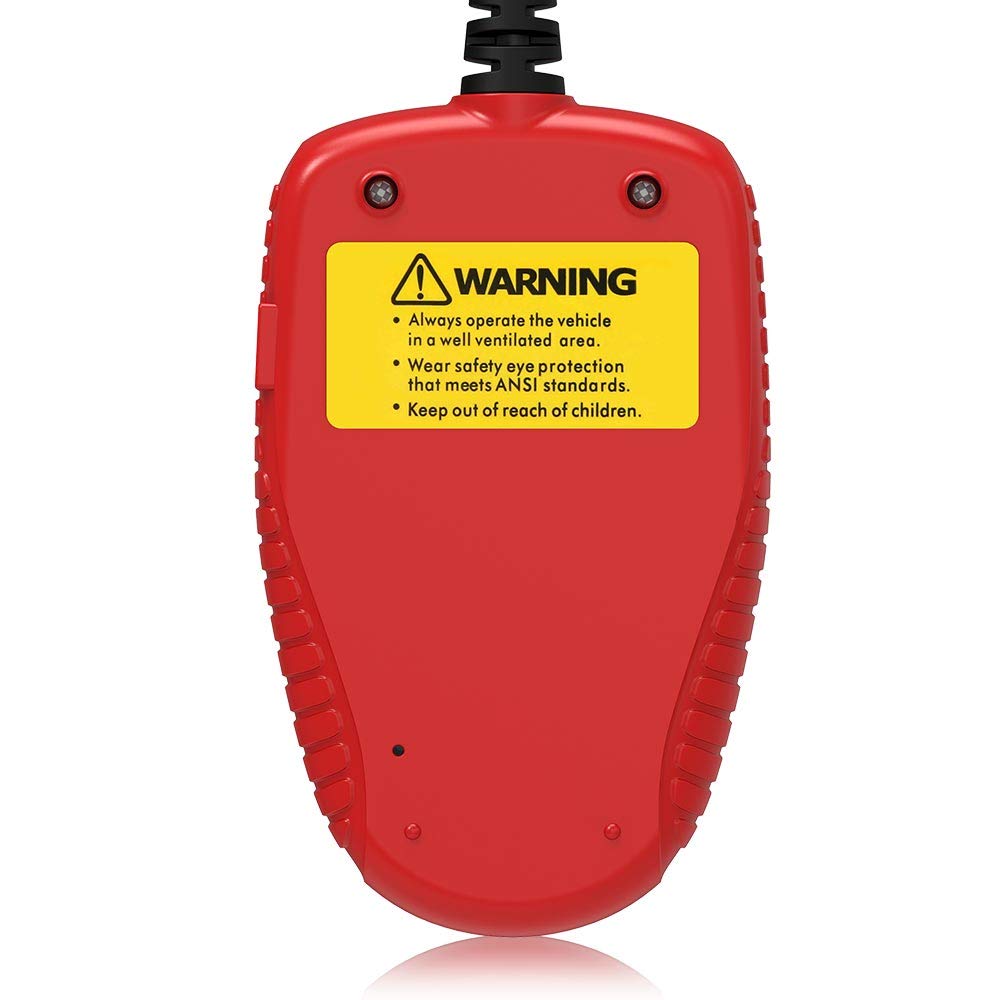

• SAFTY PROTECT ITSALF: This car battery load tester support polarity reverse connection protection, reverse connection will not damage the tester or affect the vehicle and battery. And It's equipped with a 3.0 feet long cable and made of a very thick flexible insulator, much safer thank other battery analyzers.

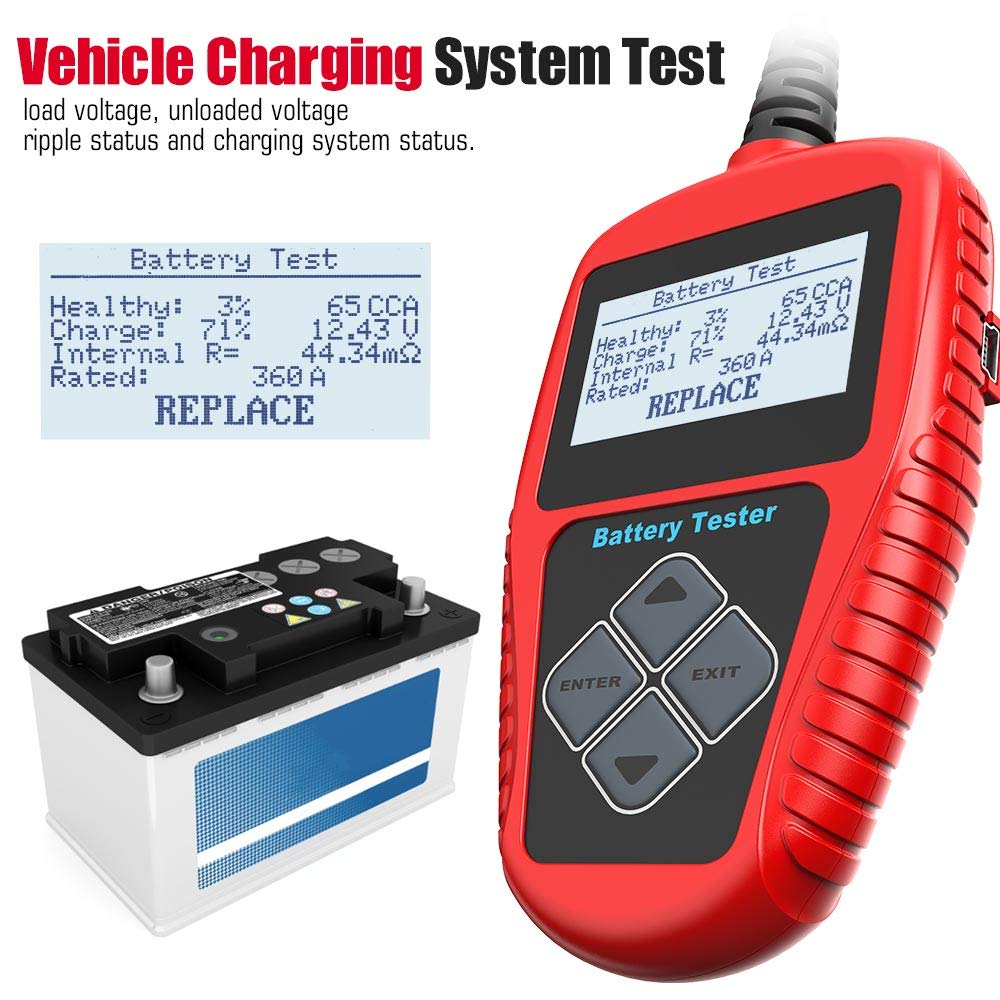

BA101 Battery Load Tester is work for 12 volts vehicles, which is applicable for automotive manufacturers, automotive maintenance and repair workshops, automotive battery factories, automotive battery distributors, and educational organizations, etc. Main functions of BA101 battery tester * Battery test : analyze the battery healthy status to calculate the actual cold cranking capability of the battery and the aging extent, which provide reliable analysis evidence for the test and maintenance of the battery. It notifies the user to replace battery in advance when the battery getting aged. Charging test: analyze the charging system, including generator, rectifier, rectifier diode, etc., which it give you reliable data for your reference. If one of the above mentioned parts is not in normal situation, it will lead to over charge or incomplete charge of the battery, thus the battery will be quickly damaged and also greatly shorten the using life BA101 Benefit: 1. Conductance correlates directly to the battery capacity 2. Passive testing method is safe. 3. Never discharges or drain the battery. 4. Able to test condition of discharged battery. 5. Consistent and repeatable results. 6. Provides unique indication of battery conditions. 7. Provides check the Alternator's charging and Starter's cranking conditions. It is maintenance free and no internal batteries required. Print Data Steps: 1. Connect with the computer via USB cable 2. Insert the CD to the computer 3. Install the USB driver 4. Open the Print software 5. Choose the COM Port NO. 6. Choose the function of Print Data in the tool Note: This battery tester has to been haven a rest for 30 minutes after switching off engine or charging because of lead-acid battery, it is not stable after using, and the test value is not correct.
