Economical Green Line Laser Module 520 nm, Class 1, 7~10 VDC, >60° Fan Angle, 0.3~1.8m Working Distance, VLM-520-28 LPT - Industrial Alignment Laser for Automation & Machine Vision

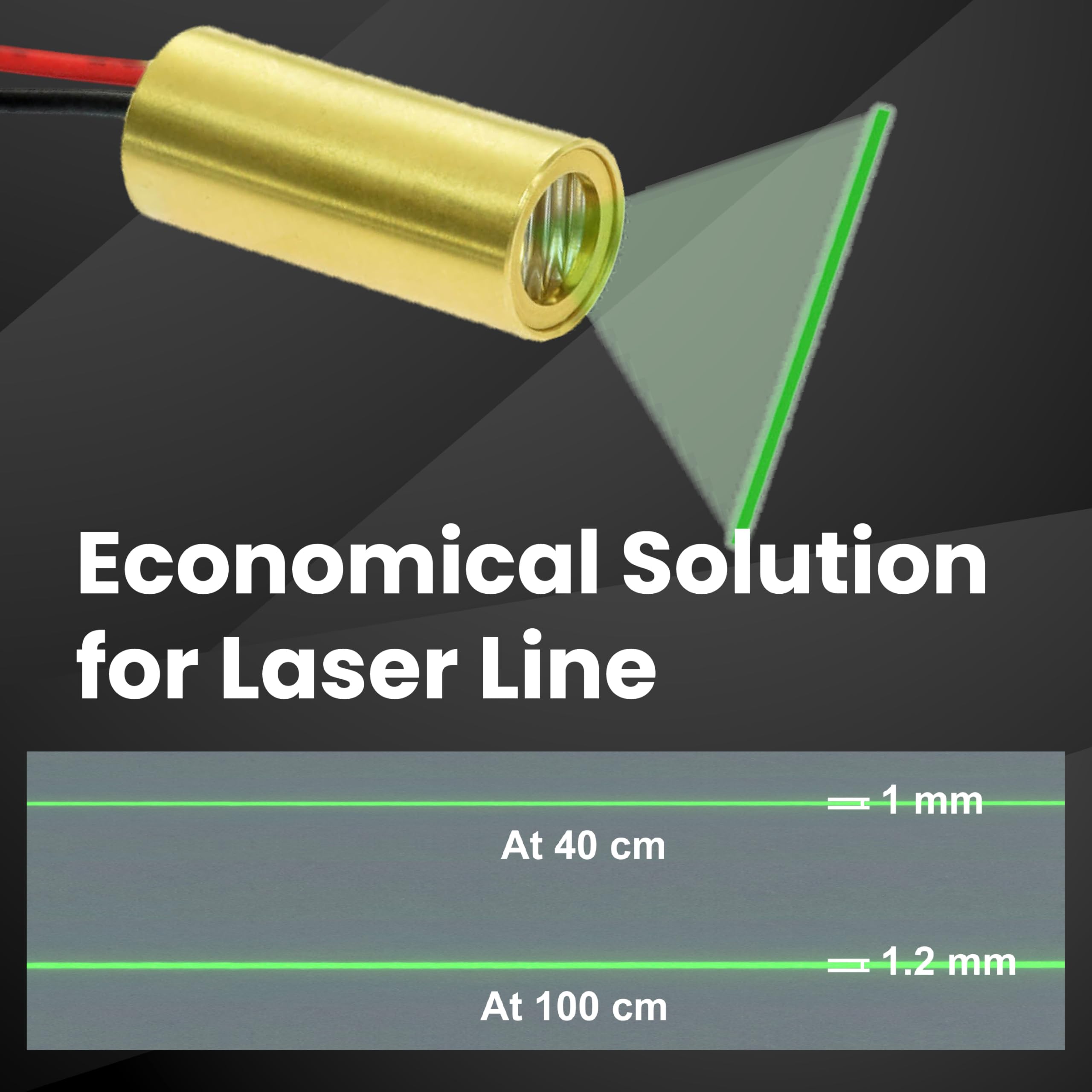

• ECONOMICAL GREEN LINE LASER FOR SHORT-RANGE USE: The VLM-520-28 LPT is an economical green line laser module designed for short-distance projection. Its direct green laser diode delivers a clear 510~530 nm line optimized for 0.3~1.8 m working distance, ideal for 3D scanners and basic alignment tasks.
• INDUSTRIAL-GRADE DESIGN: Although positioned as a cost-saving model, this module integrates essential industrial features: an aspherical plastic lens, plastic wave lens, APC driver circuit, and brass housing. Suitable for consumer-grade devices that require stable line projection without high system cost.

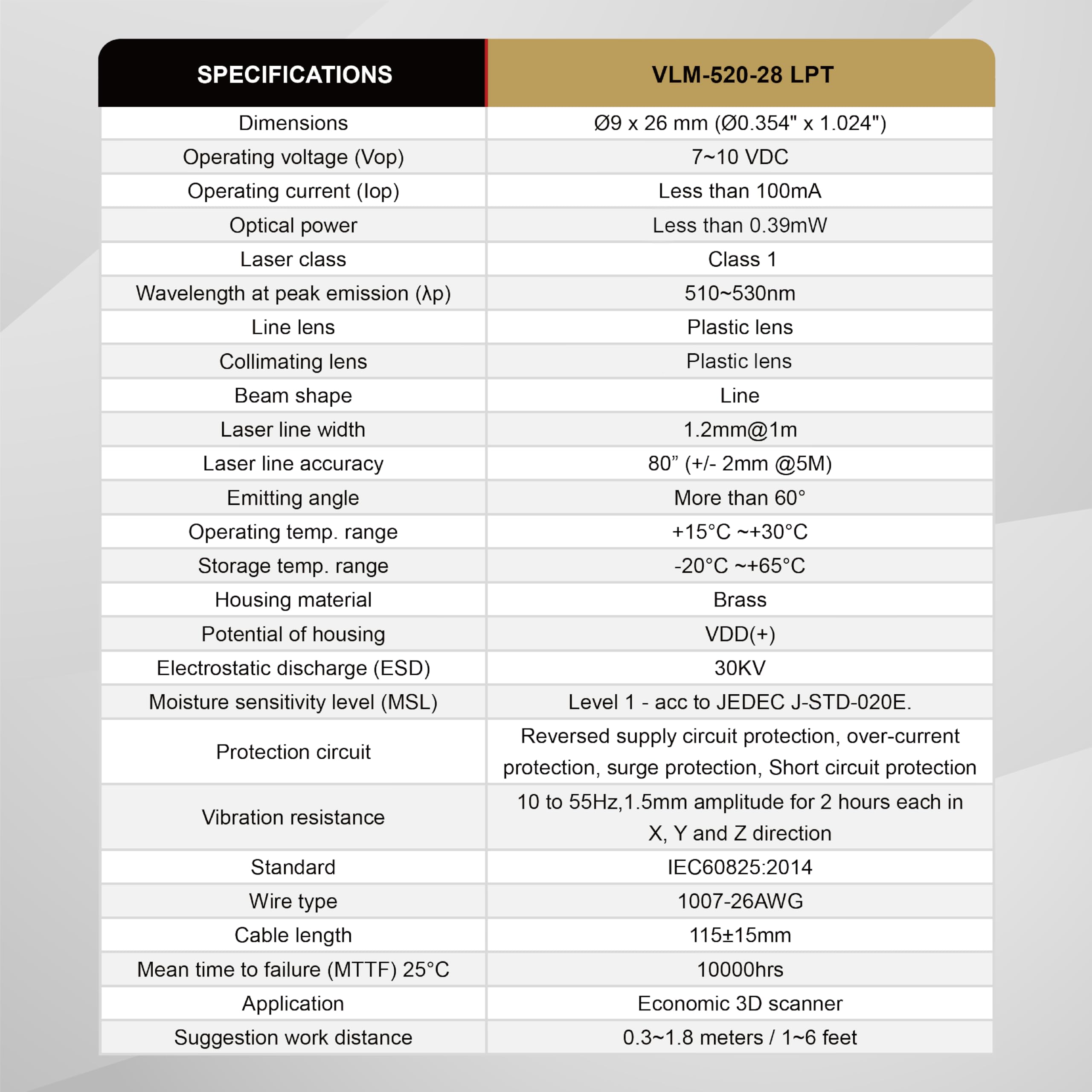

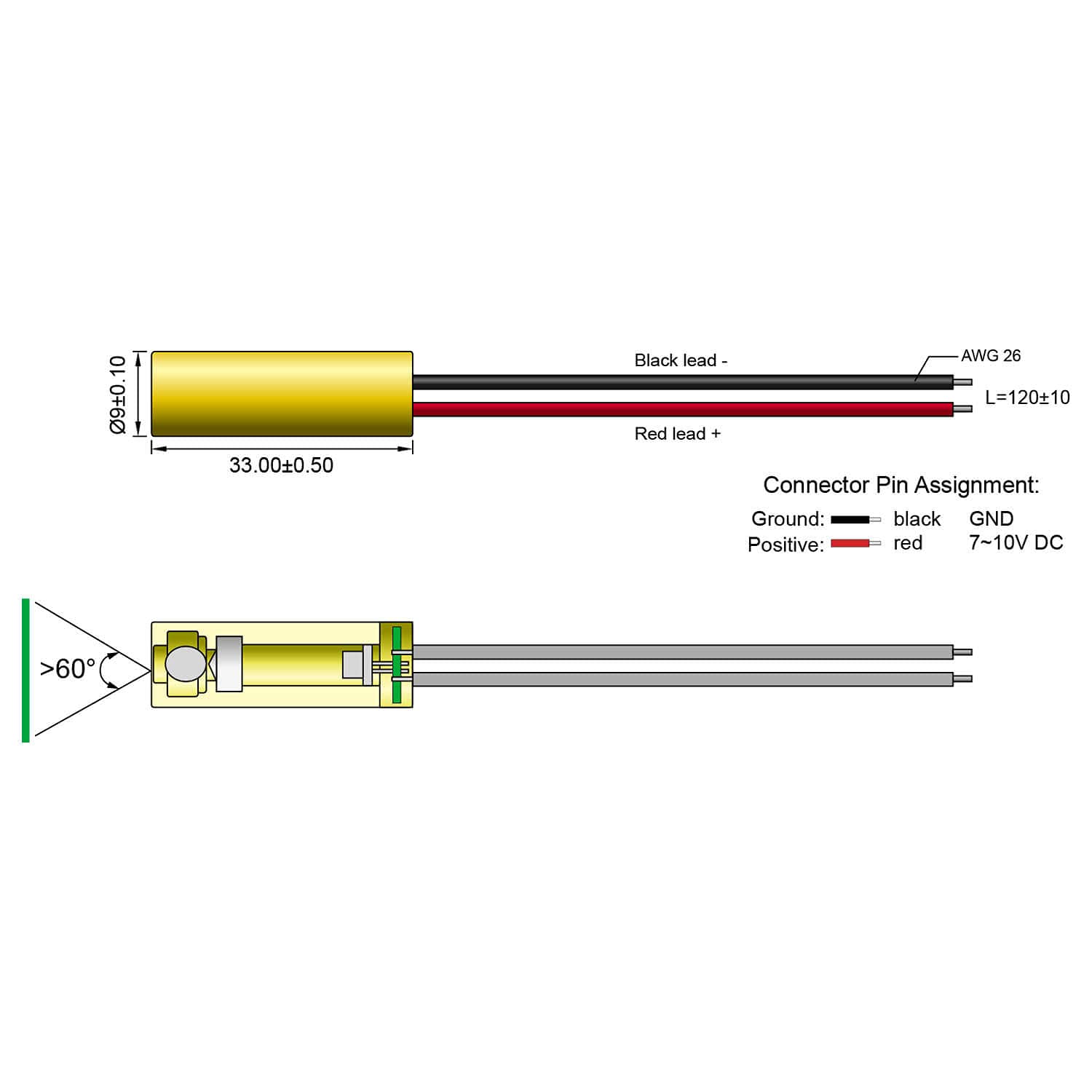

• ENGINEERED PERFORMANCE FOR EASY INTEGRATION: Specifications include: Class 1 output (<0.39 mW), 7~10 VDC, >60° emitting angle, and compact Ø9 × 26 mm size. The APC control keeps output stable and helps protect against current surges, allowing smooth integration into OEM equipment.
• OPTIMIZED FOR INDOOR STABLE TEMPERATURE ENVIRONMENTS: Built with plastic optics to reduce cost and weight, this module performs best in standard indoor room-temperature settings (+15°C ~ +30°C). Not recommended for high-heat, low-temperature, or outdoor extreme environments.

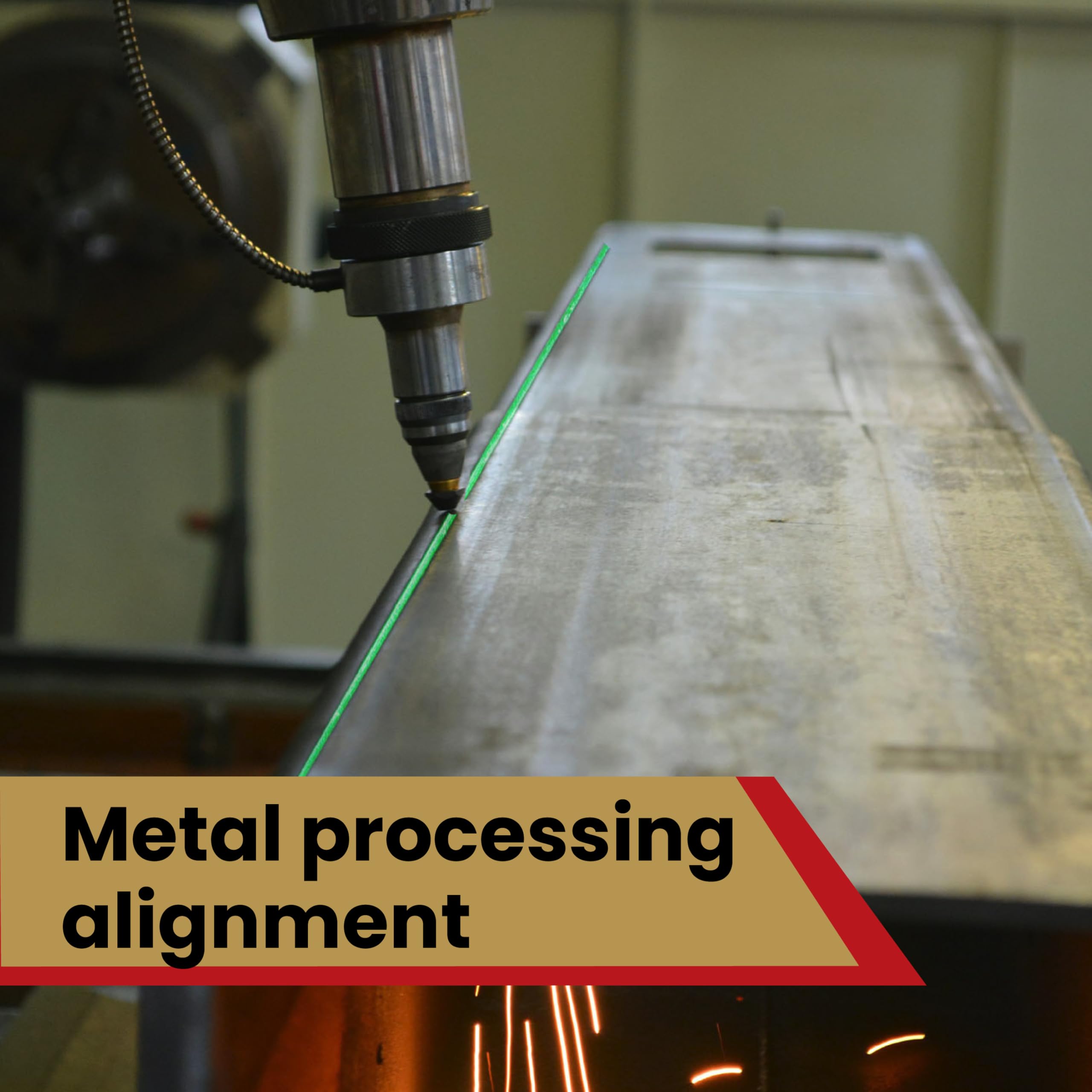

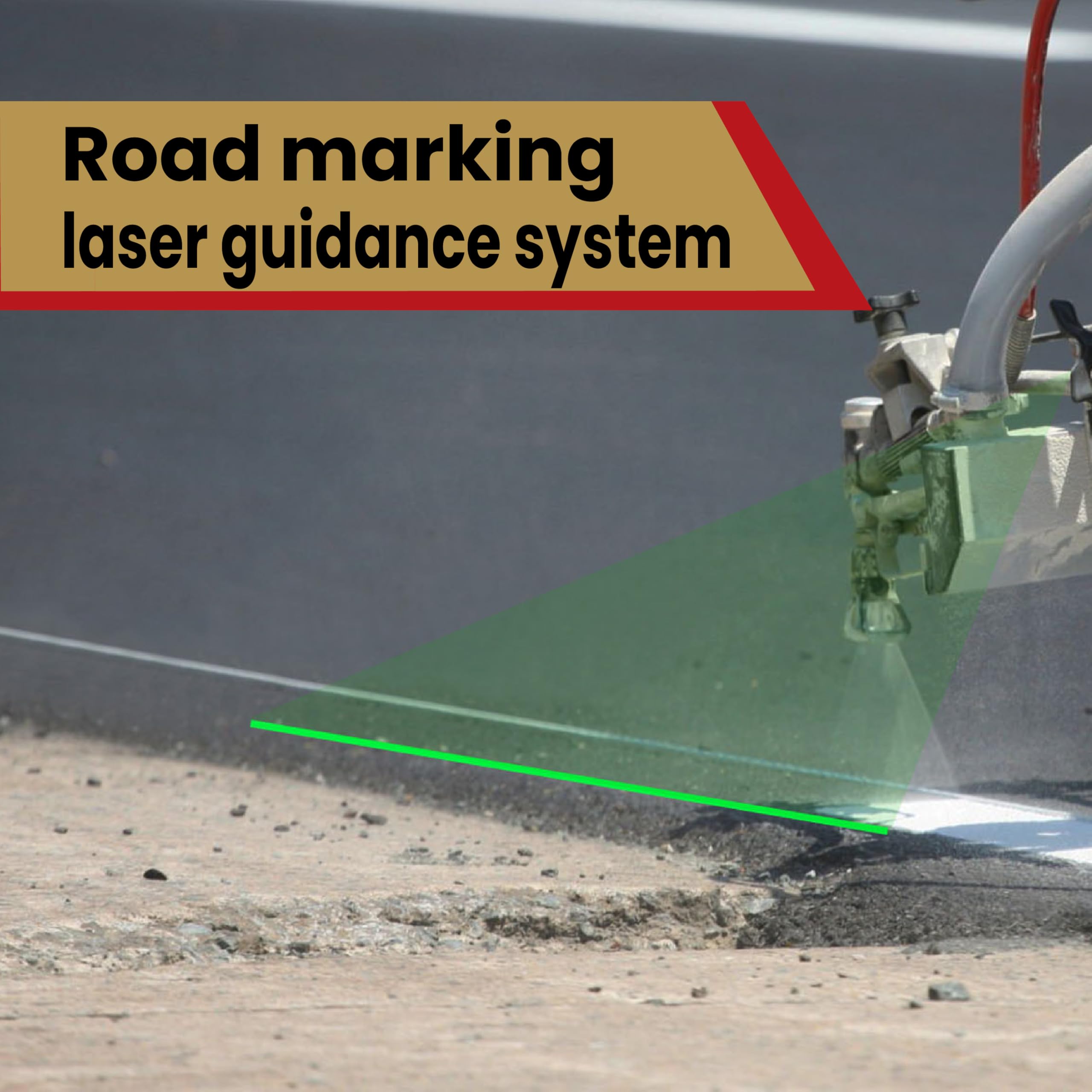

• BUILT FOR LINE-PROJECTION APPLICATIONS: Designed for consumer-grade 3D scanners, barcode readers, leveling tools, alignment systems, and positioning or measuring devices. Also applicable in light-duty tasks across wood processing, metal processing, textiles, food equipment, automotive setups, and scientific devices.
• Notice: Our laser modules are NOT laser pens and are NOT intended for general commercial or consumer use like standard laser pointer. They feature NO built-in switch or battery compartment and must be operated with an external power supply or battery holder.

Product description The VLM-520-28 LPT is a compact and cost-efficient 510~530 nm green line laser module designed for applications requiring short-range, high-visibility line projection. Although positioned as an economical series, it incorporates multiple industrial-grade elements, including an APC-controlled driver circuit, integrated wave lens, collimating lens, and a durable brass housing for improved heat transfer and vibration resistance. Its aspherical plastic lens and plastic wave lens help generate a tight, clean laser line at a distance of around 1 meter, making it ideal for consumer-grade 3D scanners, barcode reading, alignment, leveling, and targeting devices. The module provides an emitting angle greater than 60° and is optimized for short-range tasks from 0.5 to 1.5 meters. With a rated 10,000-hour MTTF (25°C) laser diode life and a 7~10 VDC operating range, the VLM-520-28 LPT delivers consistent performance within typical indoor temperatures (+15°C to +30°C). It is not intended for outdoor extreme temperatures or high-stress thermal environments. Suitable for light-industrial and consumer applications including wood, metal, stone, textile, food processing, automotive systems, and basic scientific or medical equipment. Legal Disclaimer Please carefully read this statement before buying this item. This is an electronic component or replacement part for consumer grade barcode reader, leveling, alignment, adjusting, positioning, measuring and targeting device etc. This is a component, which is exempt from complying to 21 CFR 1040. Because this is simply a component, which is sold to a manufacturer of an electronic product for use as a component in such electronic product. The professional who purchase this component should be quite aware of that your complete laser products which comply to 21 CFR 1040. This item is only intended for use only by professionals, trained operators, laser manufacturers or other qualified users. Any individual or company who buy this item to build or produce laser product, please be sure your products are in compliance with FDA regulations:21CFR1040.10.
