QIIRUN TM530 4 in 1 Fiber Optical Power Meter with Visual Fault Locator Powered by Rechargeable Battery Multifunctional Fiber Optic Tester with VFL RJ45 FC/SC connectors

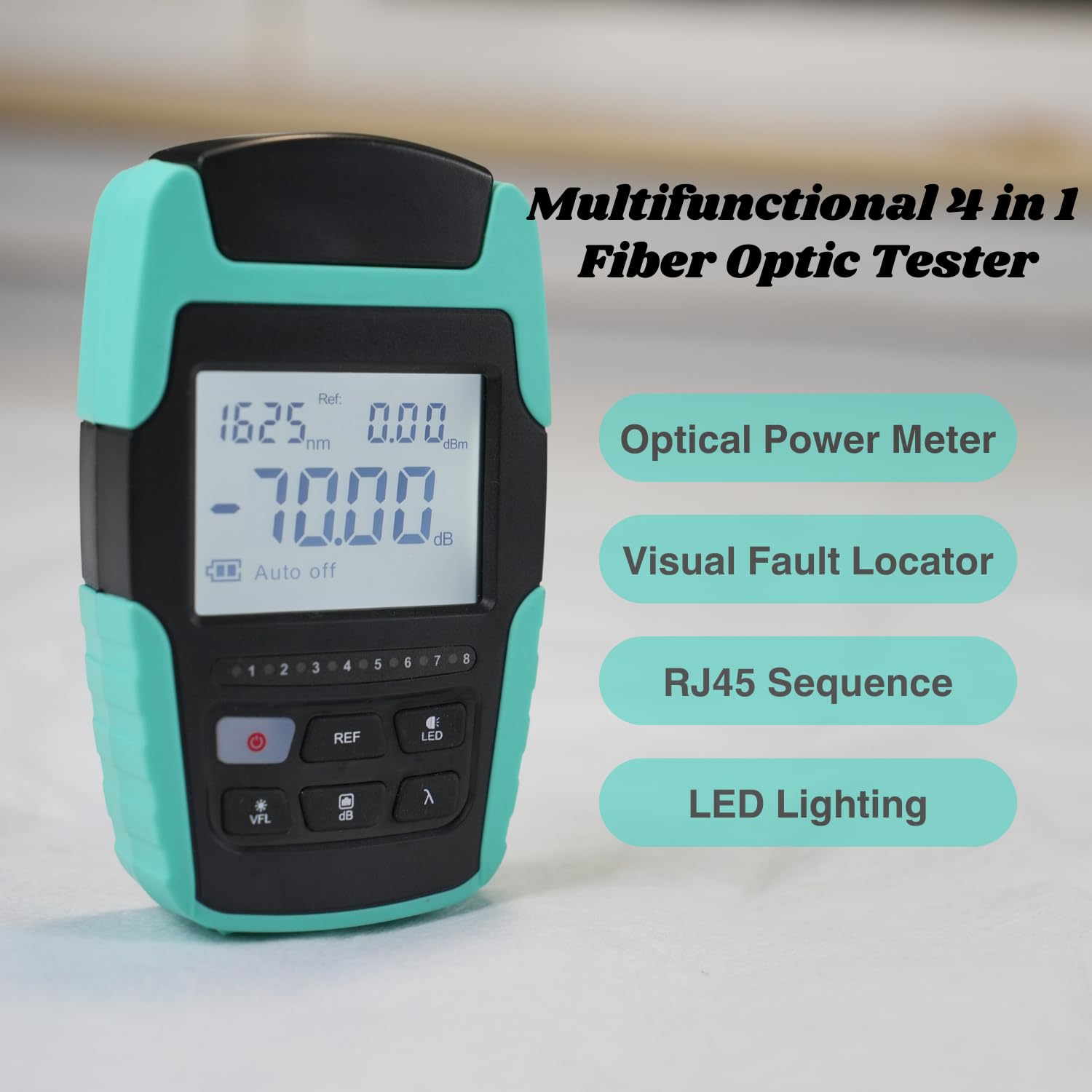

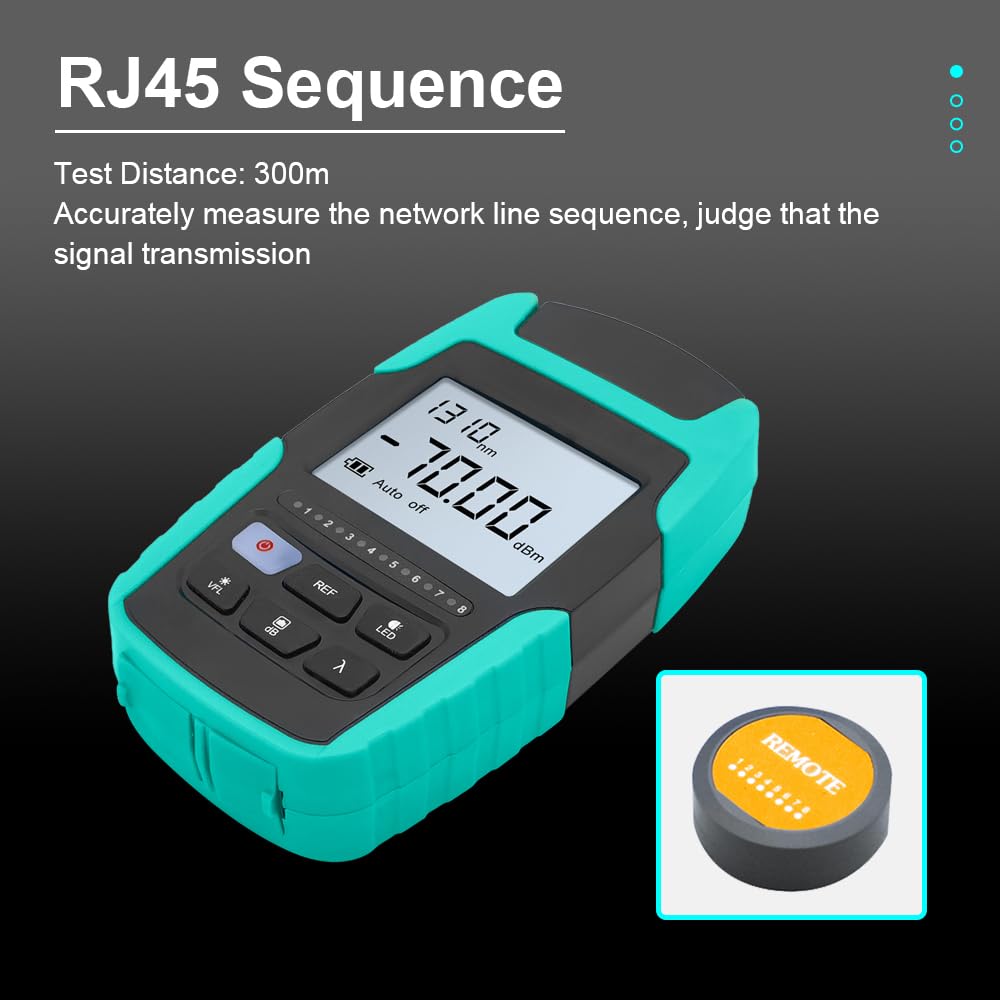

• QIIRUN’s latest 4 in 1 Mini Fibre Optic Power Meter integrates Optical Power Meter OPM (-70~+10 dBm), Visual Fault Locator VFL (10 km), RJ45 network cable tester (up to 300m) and LED lighting functions, you no longer need to bring separate fiber optic testers, it’s more convenient and efficient for your field work

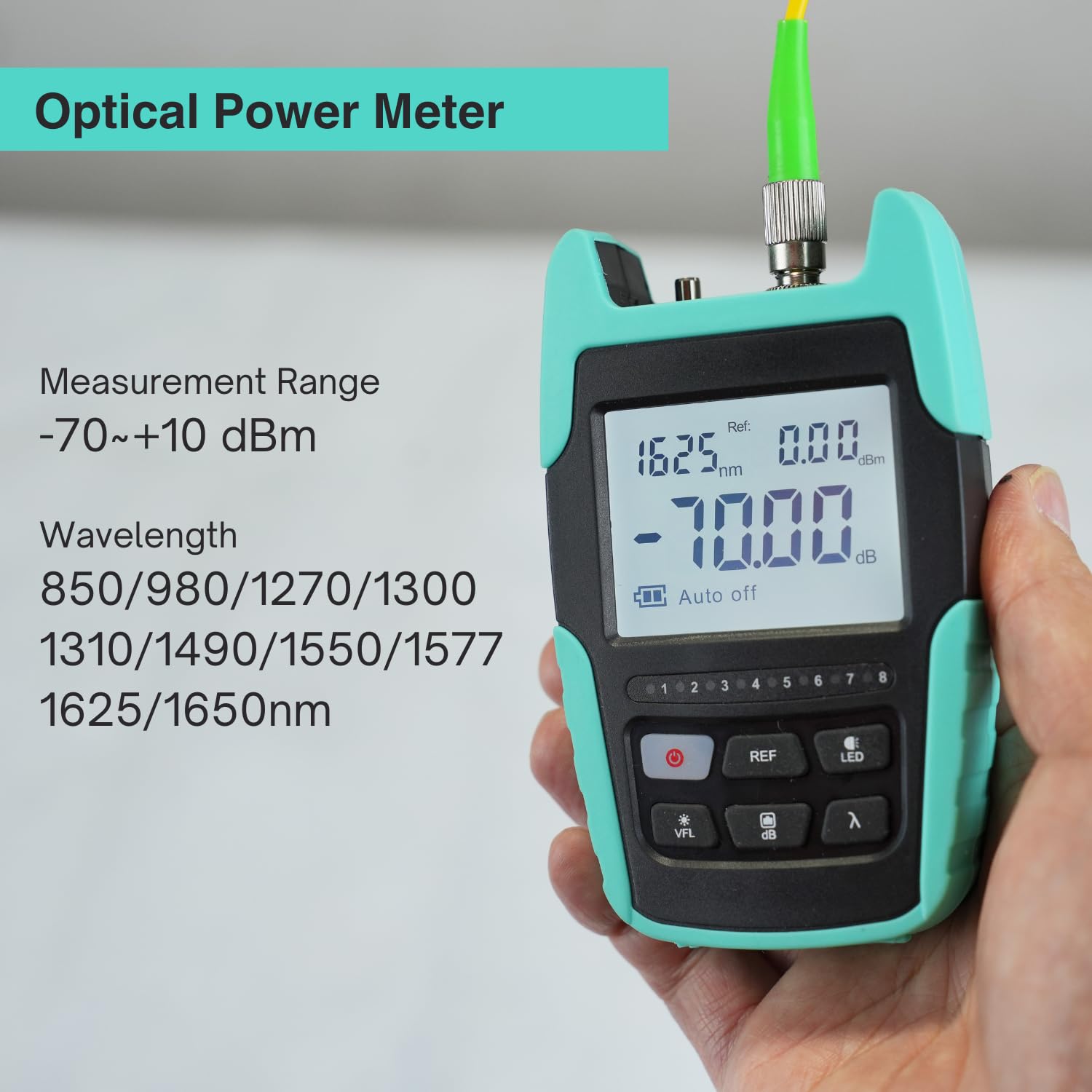

• TM530 fiber optic light meter supports 10 wavelengths super wide testing range (800-1700nm), with embedded strong red-light. Its high accuracy and linearity features make this fiber light tester suitable for continuous optical signal power measurement, optical fiber link loss testing and optical fiber line on-off testing

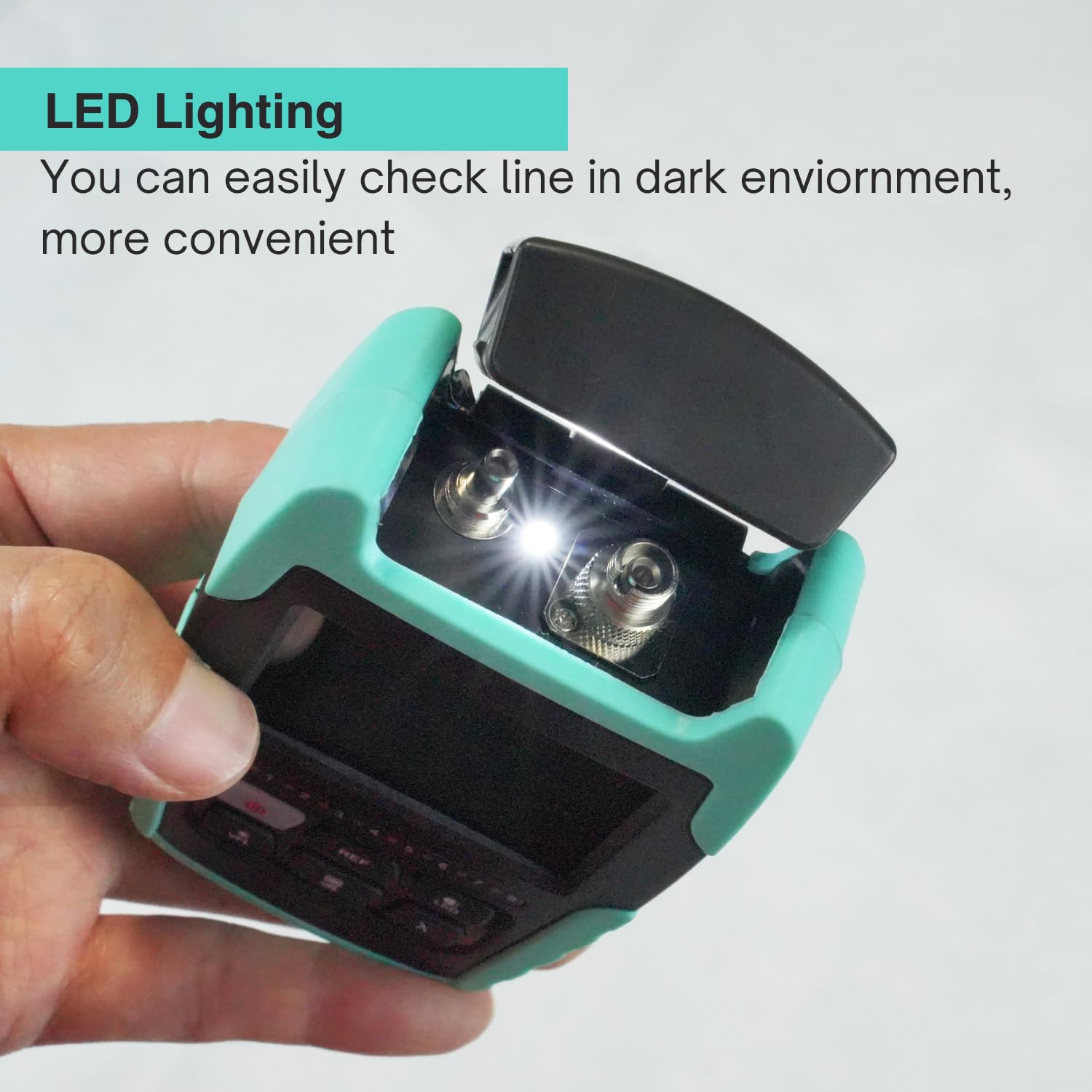

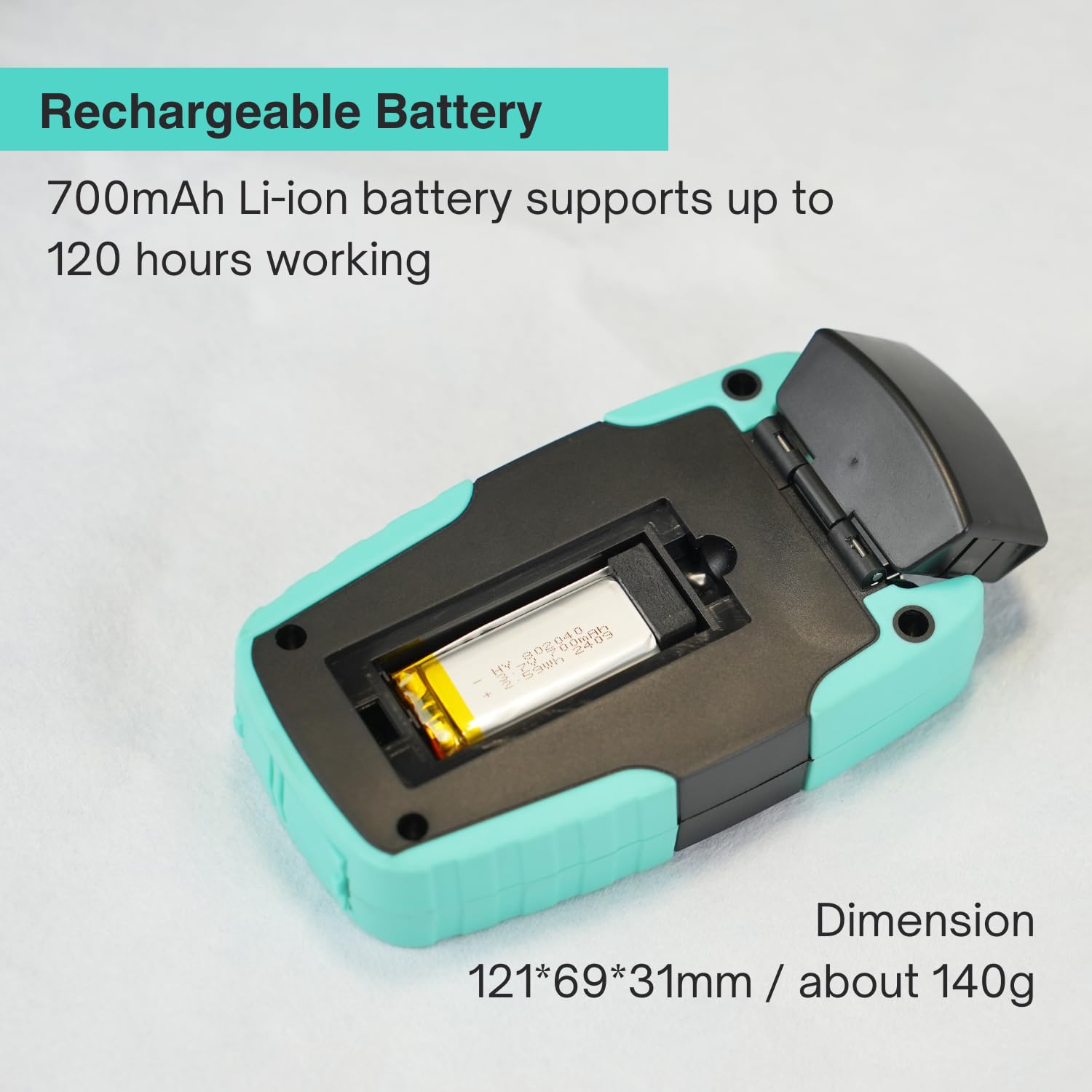

• This fiber optic tester is powered by 3.7v / 700mAh rechargeable battery, you don’t need to replace battery and can save cost. Auto off (after 10 mintues) and LED flash lighting functions further ensures longer working hour and standby time

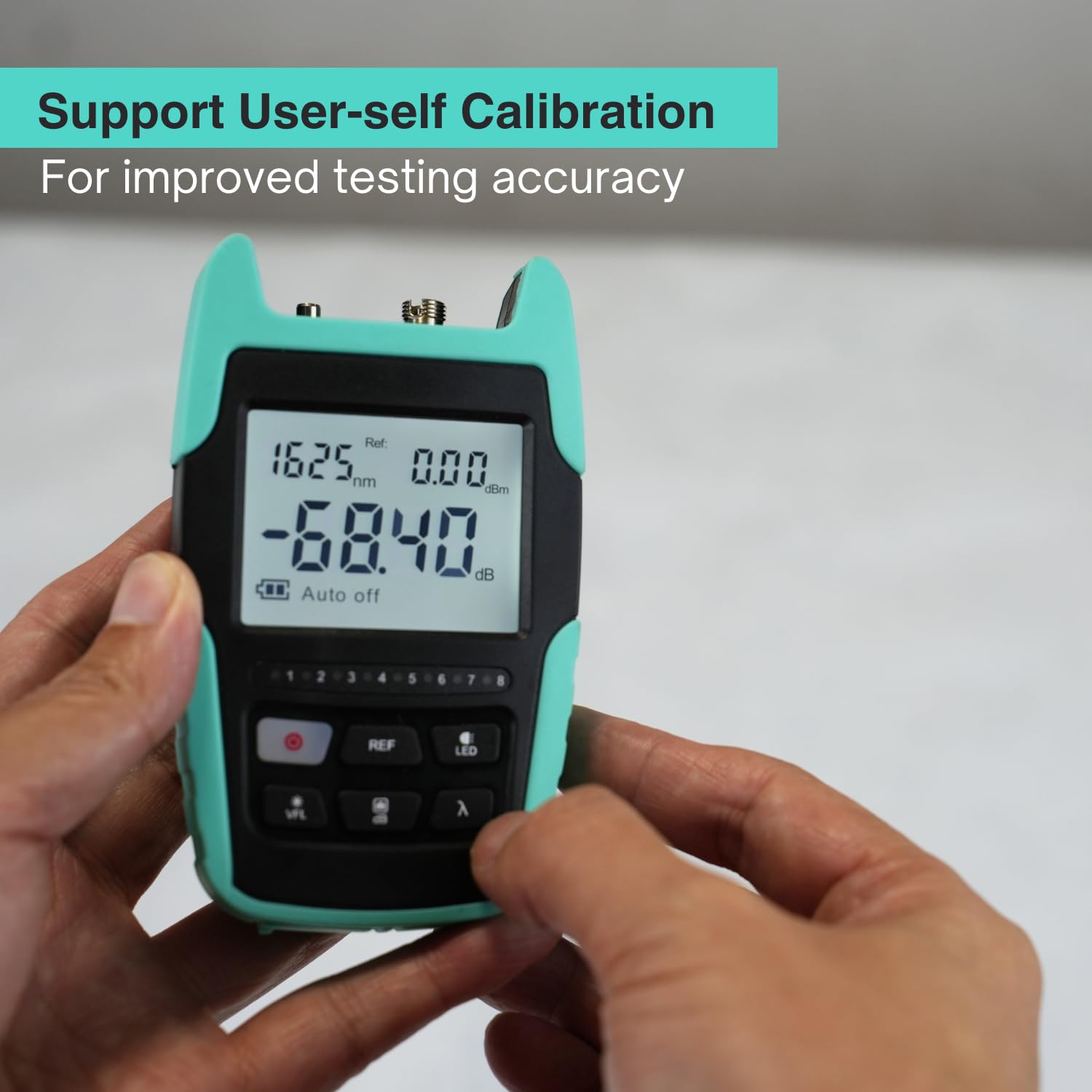

• Other features of this Fiber Optical Power Meter and red light tester -- compact shape with unique color, automatic shutdown function, backlight display, wavelength memory function, supports user-self calibration, and SC FC connectors included

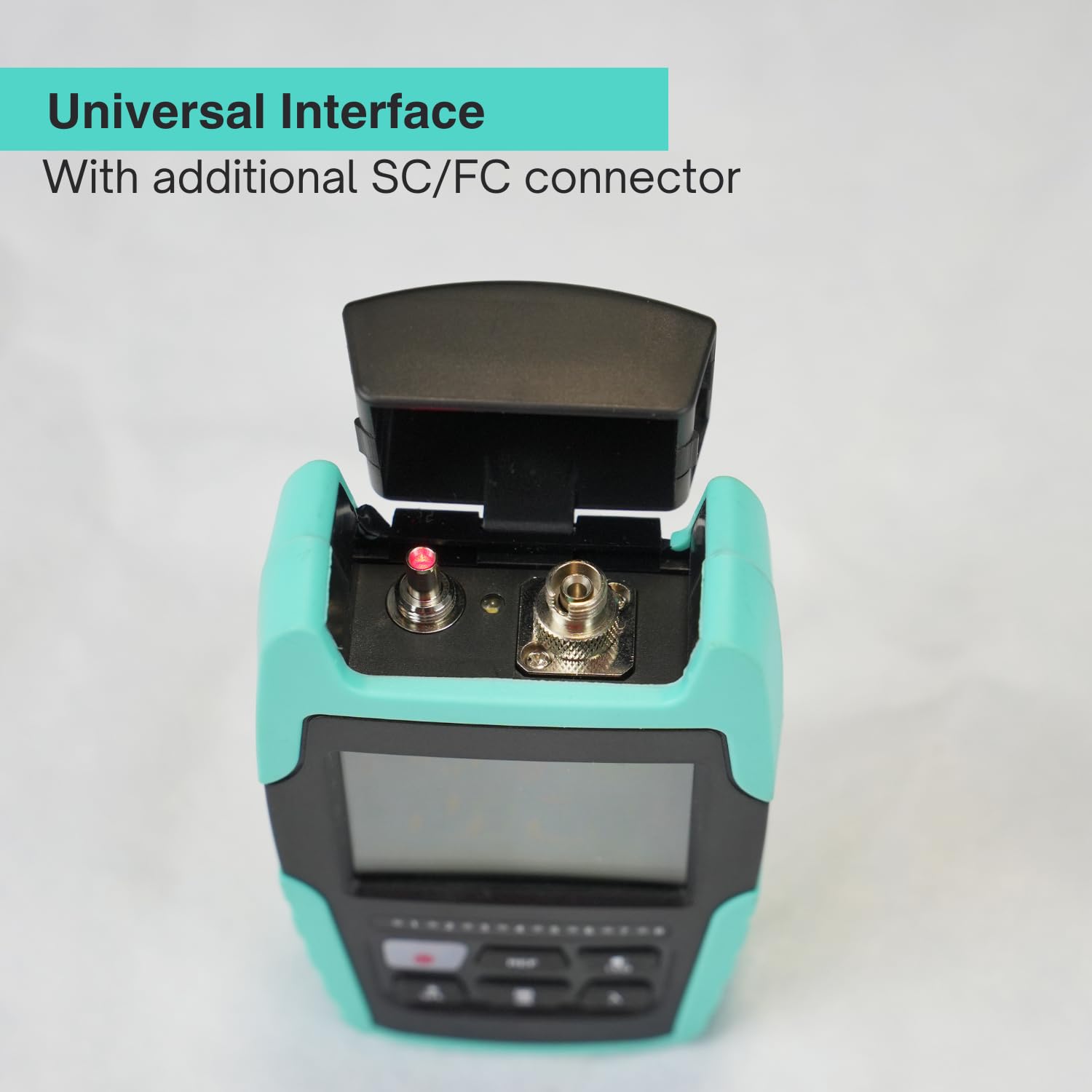

• This QIIRUN TM530 handheld mini Optical Power Meter has Universal 2.5mm interface, supports FC, ST and SC connectors. Size and Weight: 121*69*31mm / 140g

This QIIRUN TM530 is our latest fiber optic power meter. This 4 in 1 hand-held Optical Power Meter and red-light integrated tester is mainly used for continuous optical signal power measurement, optical fiber link loss testing and optical fiber line on-off testing. It can be widely used in optical cable construction and maintenance, optical fiber communication, optical cable sensing, optical CATV and other fields. Specification for Optical Power Meter OPM Measurement Range: -70~+10 dBm Calibrated Wavelength: 850/980/1270/1300/1310/1490/1550/1577/1625/1650nm Sensor Type: InGa As Accuracy: ±0.2 dB Power Measurement Linearity: 0.1% Display Resolution: ±0.1 dB Connector: Universal joint Specification for Visual Fault Locator VFL Output power: 10km Connector: 2.5mm Universal Wavelength: 650nm±30nm Output modes: Continuous (CW), 1Hz/2Hz Power Source: Li-ion battery Dimension: 121*69*31mm / about 140g Packing List Optical Power Meter with battery SC FC connectors USB cable line English User Manual
