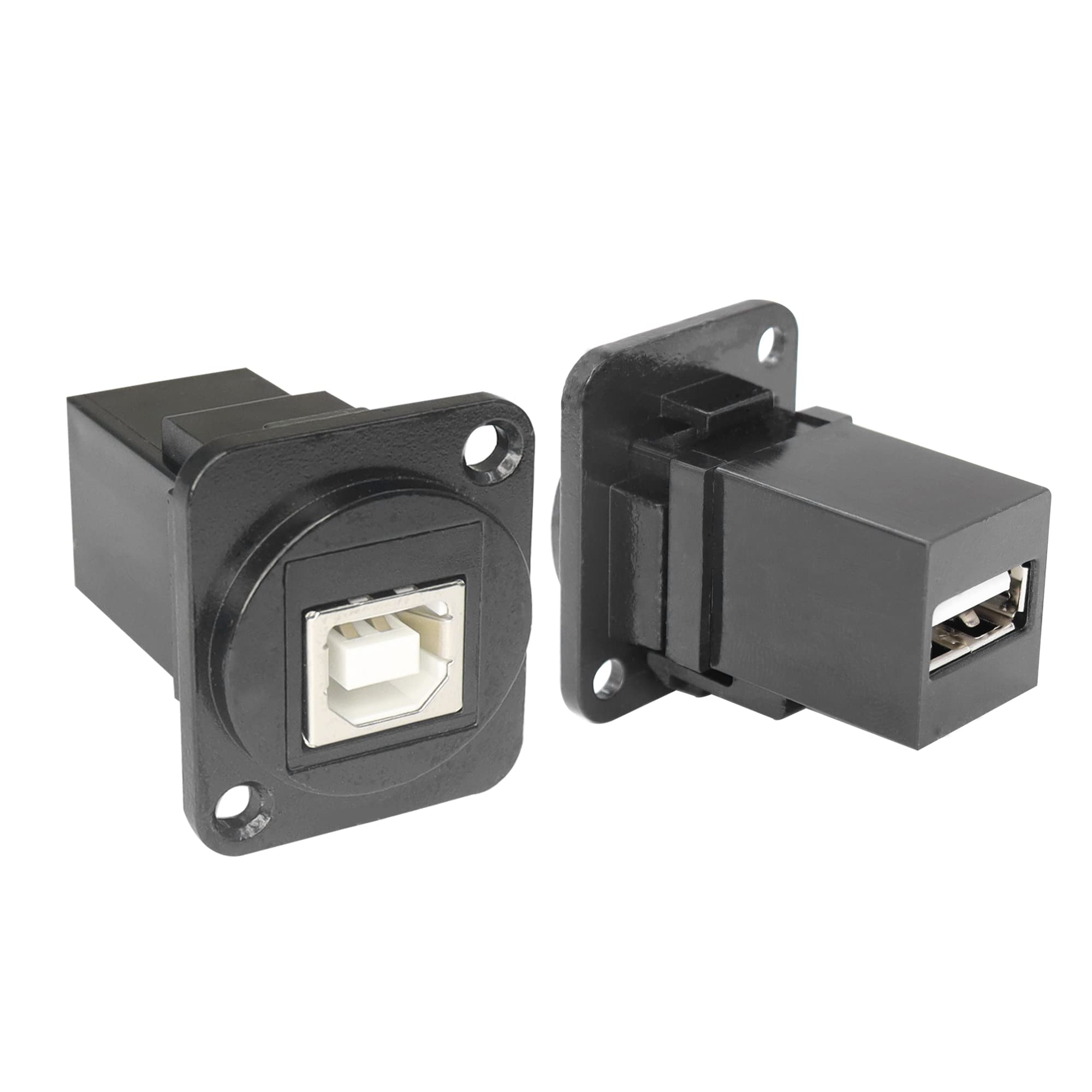

QIANRENON USB B to A Panel Mount Print Adapter USB B Female to USB 2.0 female Printer Data Connector,For peripheral device printer scanner fax machines phone external hard drive

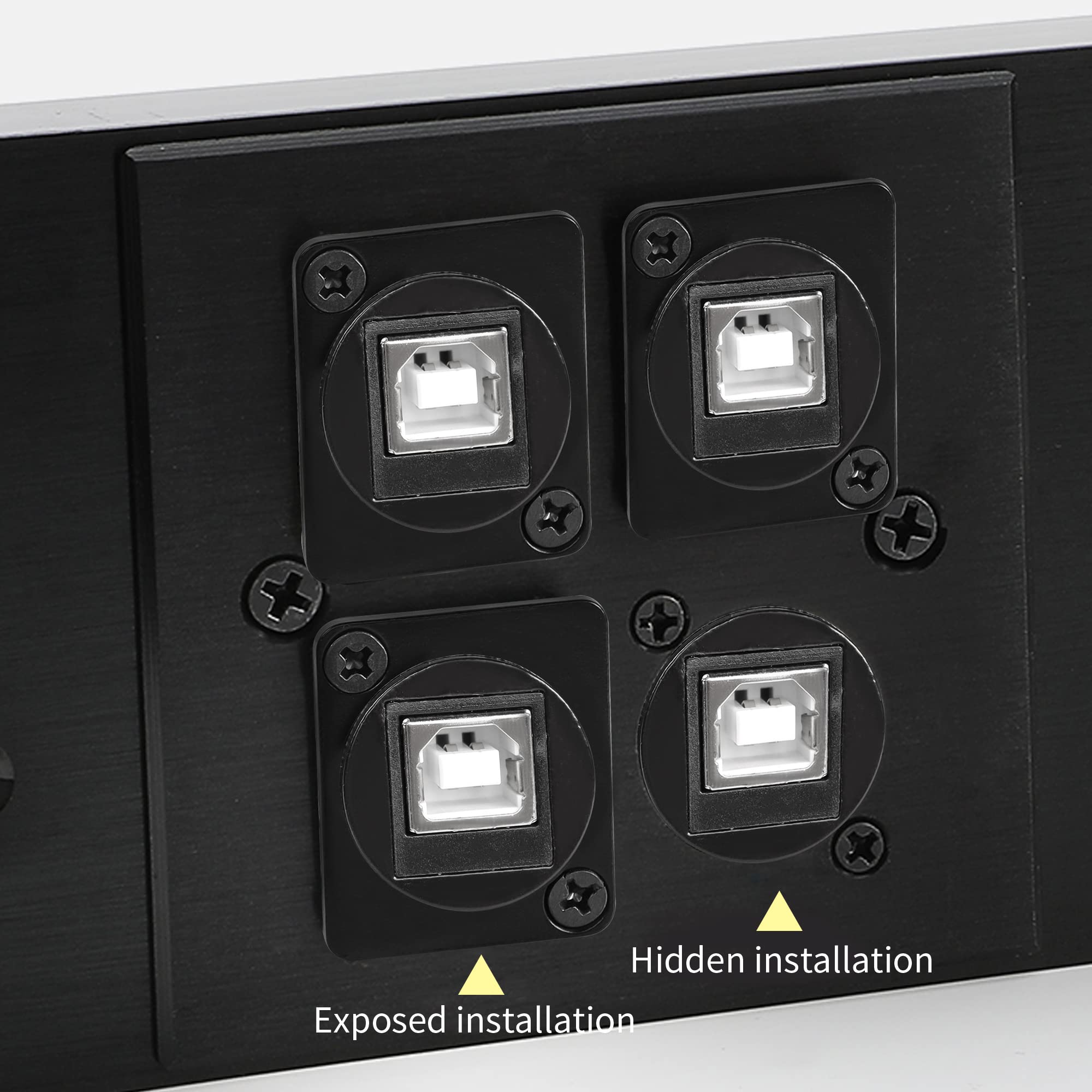

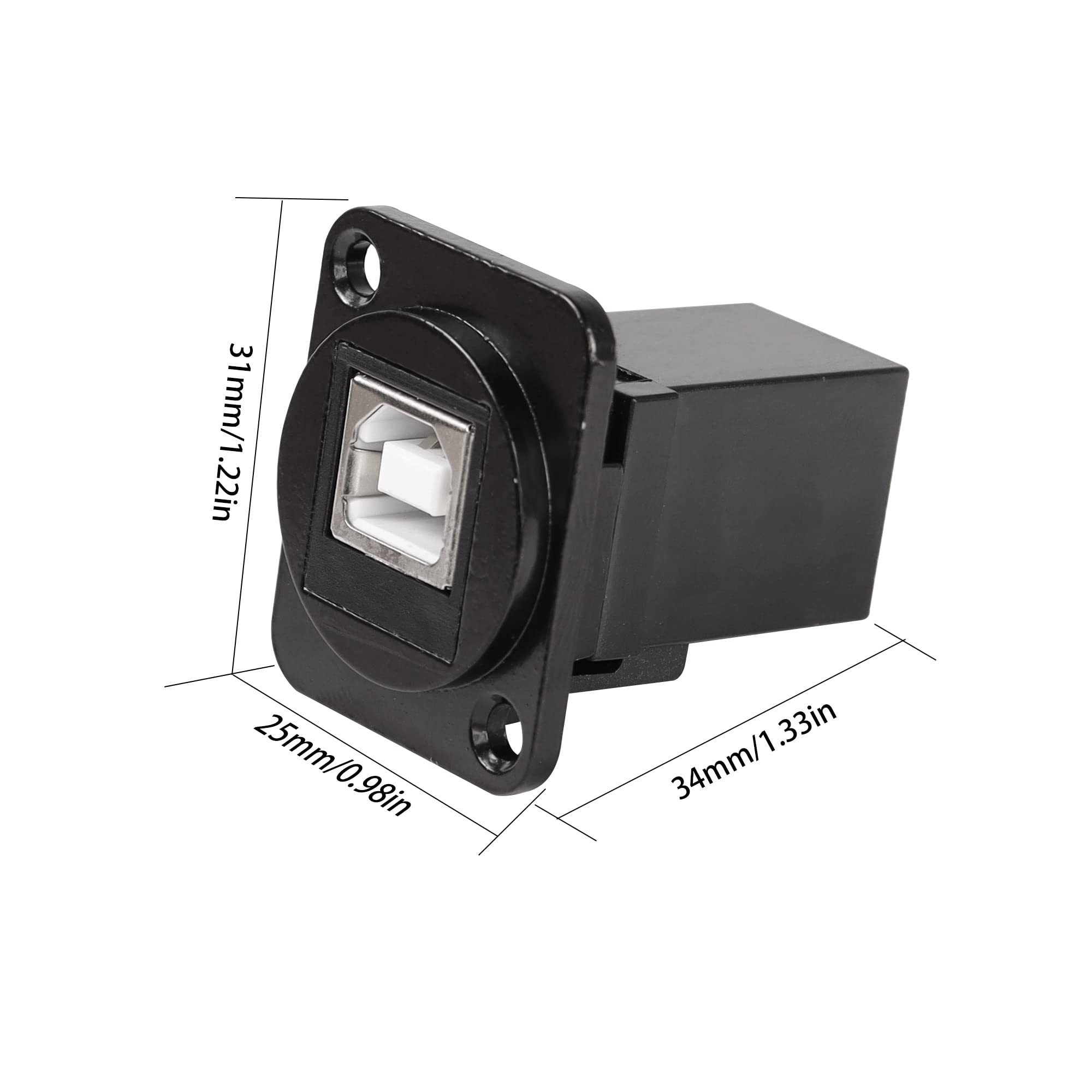

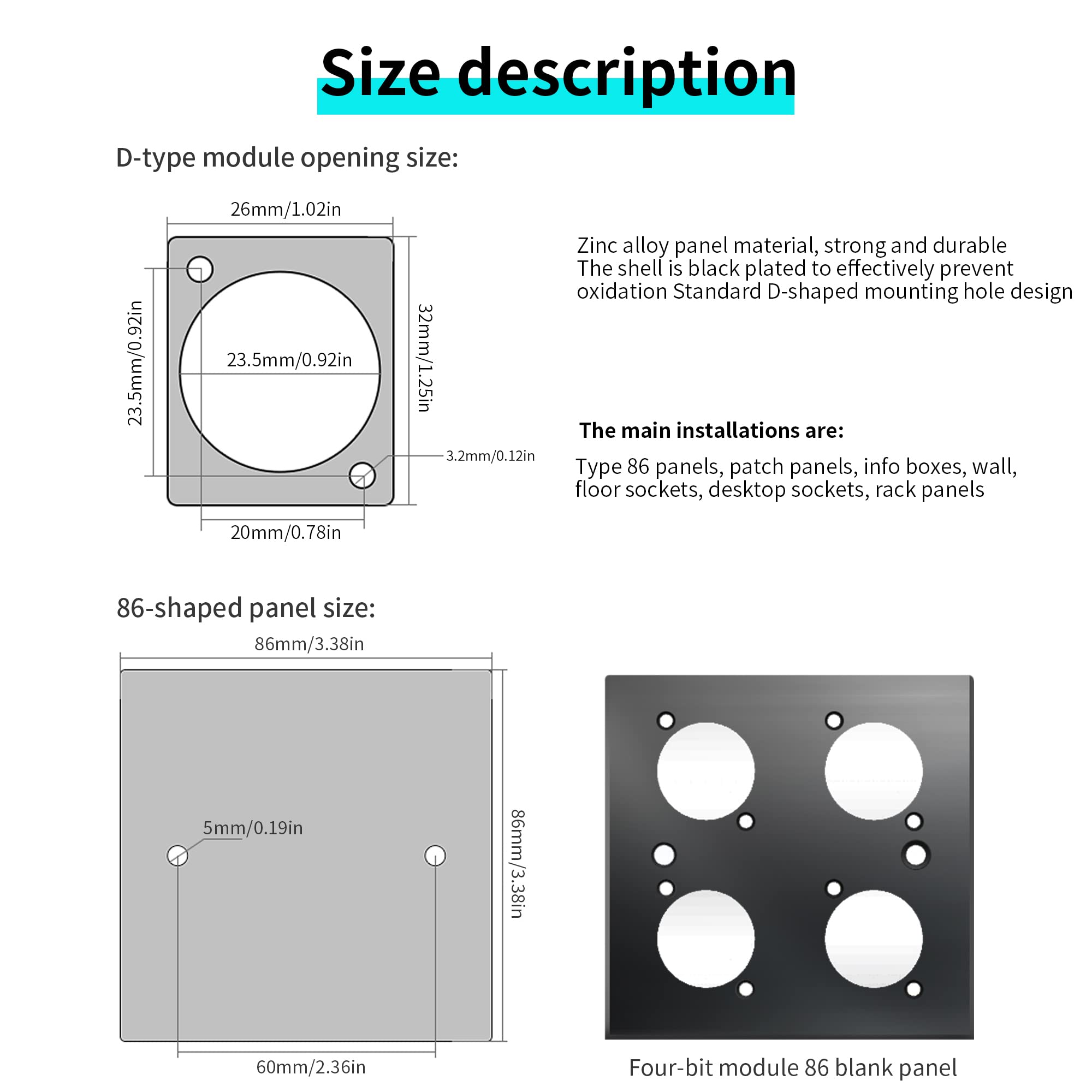

• 【D-Type installation size】The series of products adopts standard d-type installation size,it provides solid chassis protection to ensure durability and to meet special needs under some harsh conditions.
• 【Reversible Adapter】Reversible adapter type B to A.
• 【Plug and Play】Very easy to use,plug and play!Gold-plated interface with shielding fuction anti-interference.

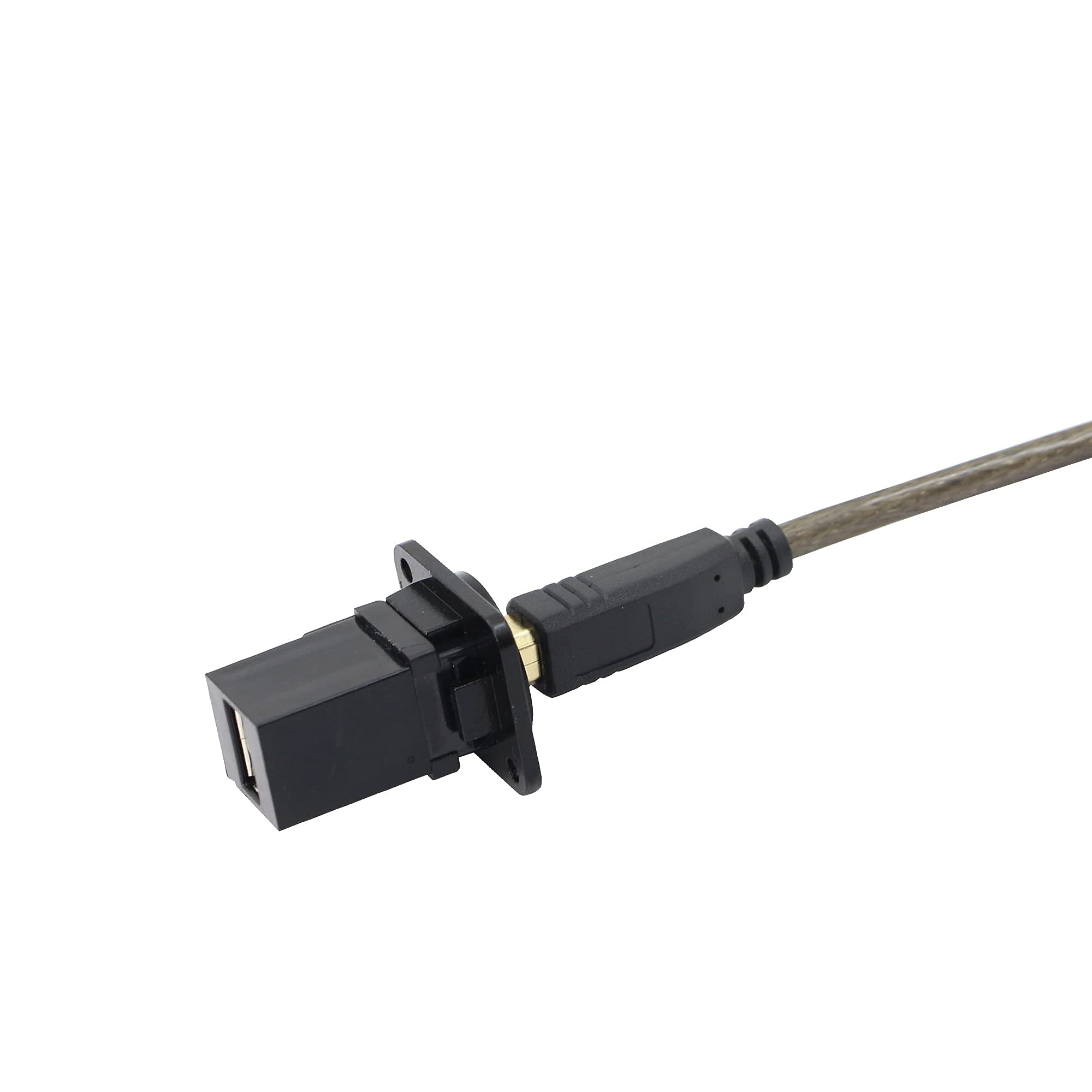

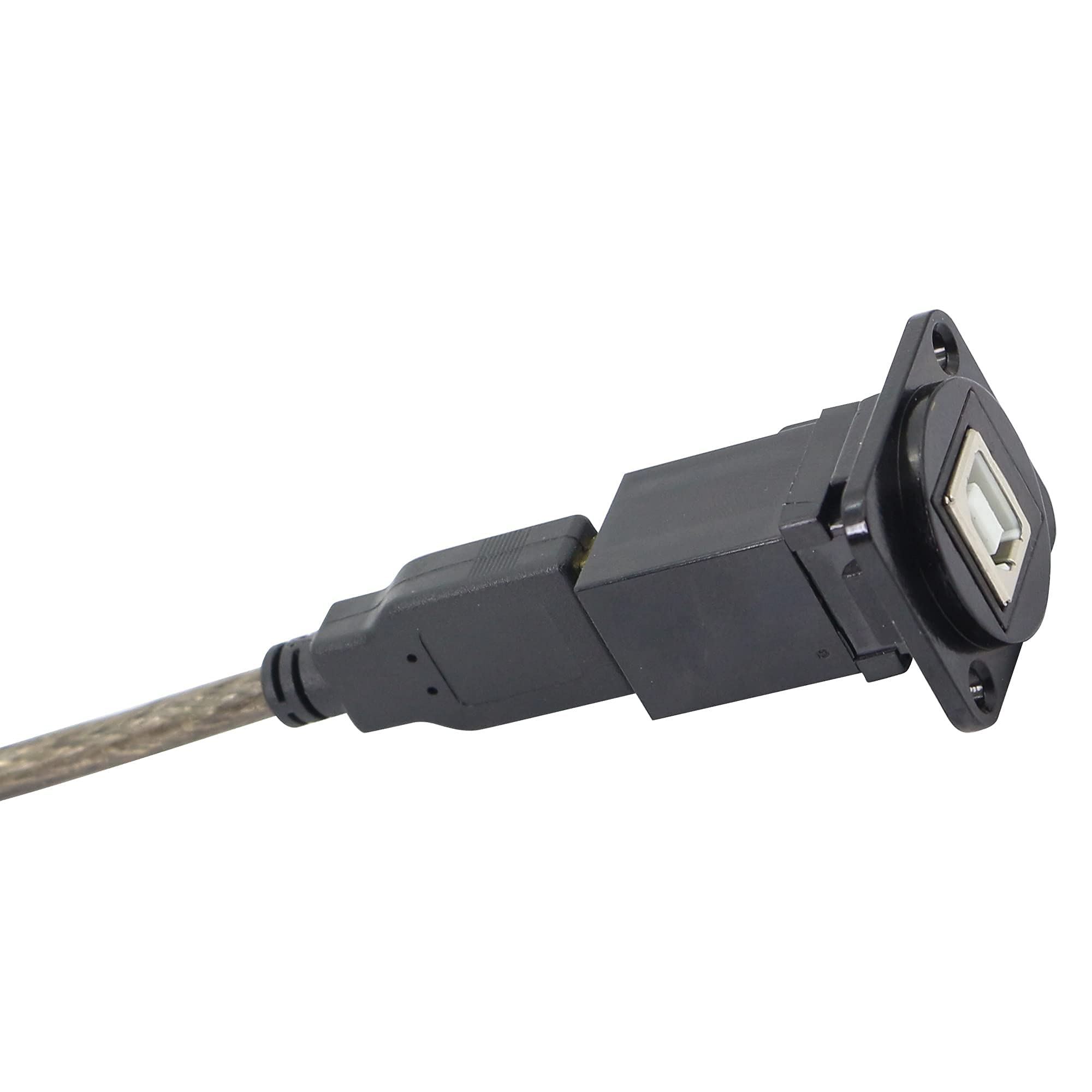

• 【Suitable for Data Transmission】:Using this adapter, USB cable can be transferred to printer data cable, which can be used for extension of transfer.
• 【Screws Included】Easy to Install,The screws that need to be installed are provided with the product, ensure safe and stable,no need soldering.

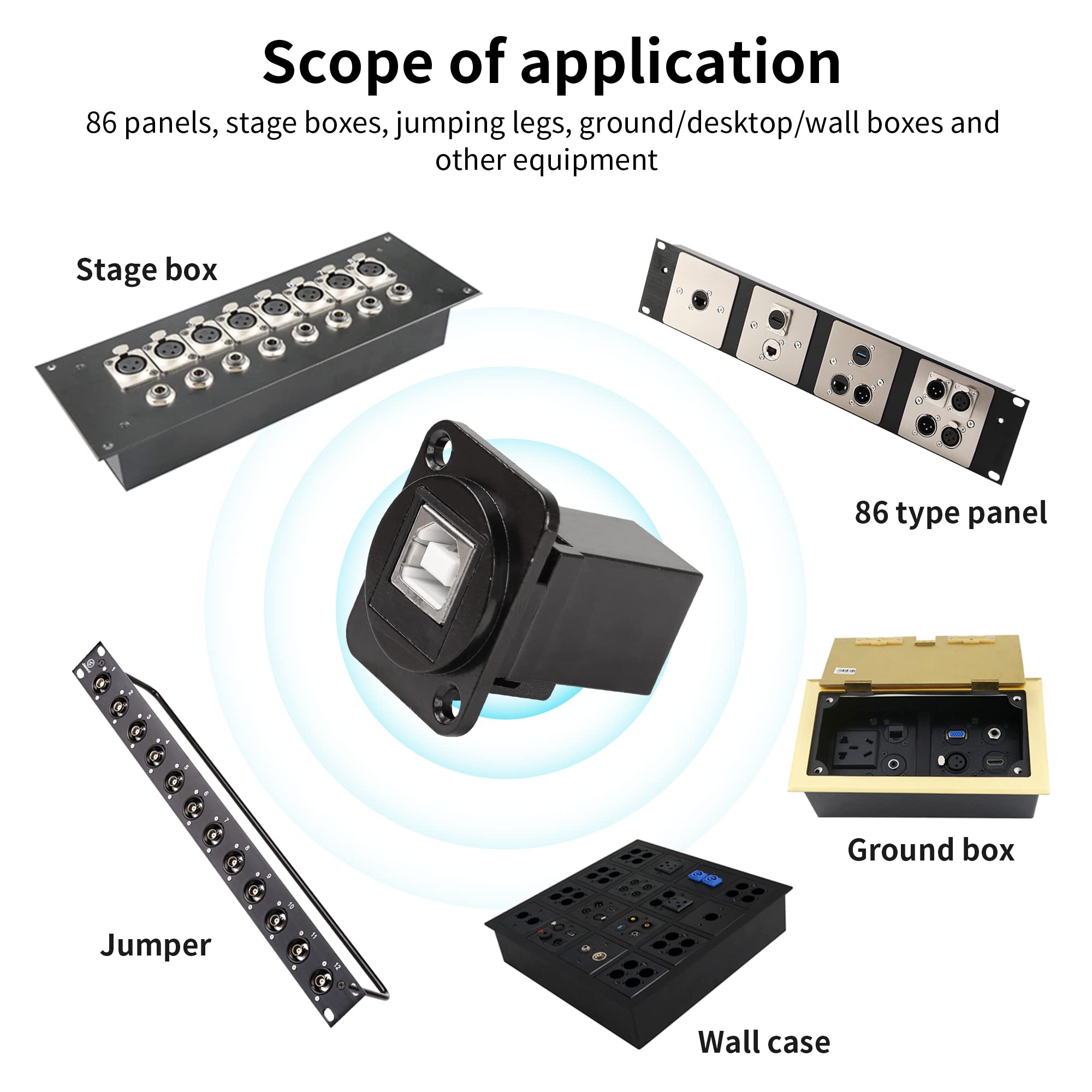

It is widely used in audio, video and photoelectric networks. Its base design is based on industrial standard panel apertures Electrical parameters Contact resistance: <10MΩ Dielectric strength: DC1kV Frequency range: 1-100MHz Insulation resistance:> 0.5GΩ Rated current: 1.5A Rated voltage: 50V Mechanical parameters Insertion pressure: ≤ 10 N Withdrawal pressure: ≤ 10 N Service life:> 1000 times Base shape: D type Material Contact plating: 7µm Au over Ni plating Insulator: PBTP 15% GR Panel: Zinc diecast (ZnAl4Cu1) Package : 1 x USB B to A data Connector Socket;2 x screws.
