QIANRENON USB 3.0 Panel Mount Feedthrough Connectors 5Gbps USB Female to Female Panel Coupler, D-type and XLR Panel Mount,with LED Indicator,For Data Transfer and Charging.

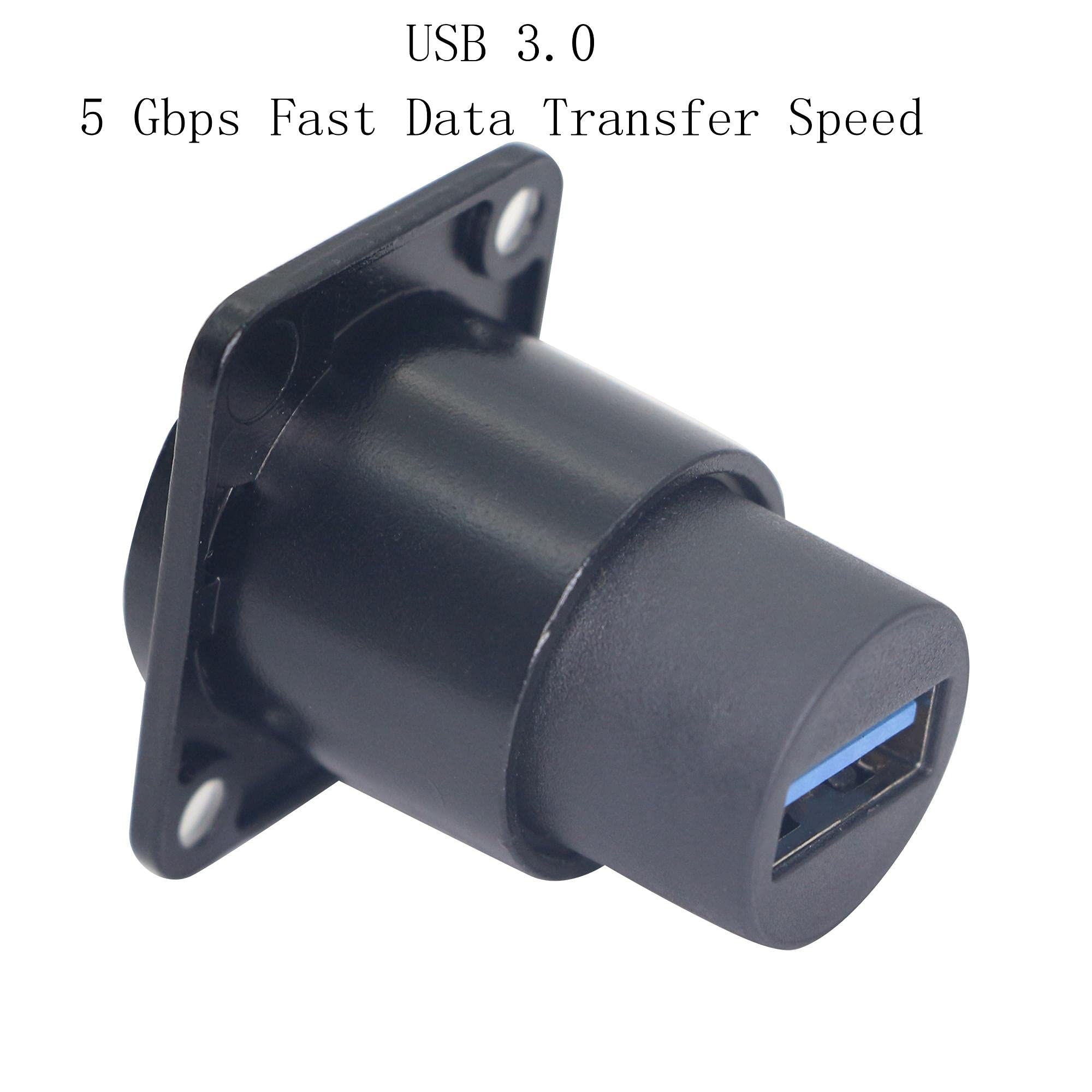

• 【USB3.0 Connector】USB 3.0 panel mount socket provides a more stable and super speed transmission environment for data in the electronic information environment.
• 【USB 3.0 Port Female to Female Converter】Optional front panel mounting and rear panel mounting.
• 【Wide Compatibility】USB 3.0 is compatible with USB3.0 / 2.0.
• 【LED Display】The LED light also makes it quick and easy to find the USB socket in the dark or at night.
• 【In-line D-through Type】Easy to Install,The screws that need to be installed are provided with the product, ensure safe and stable,no need soldering.

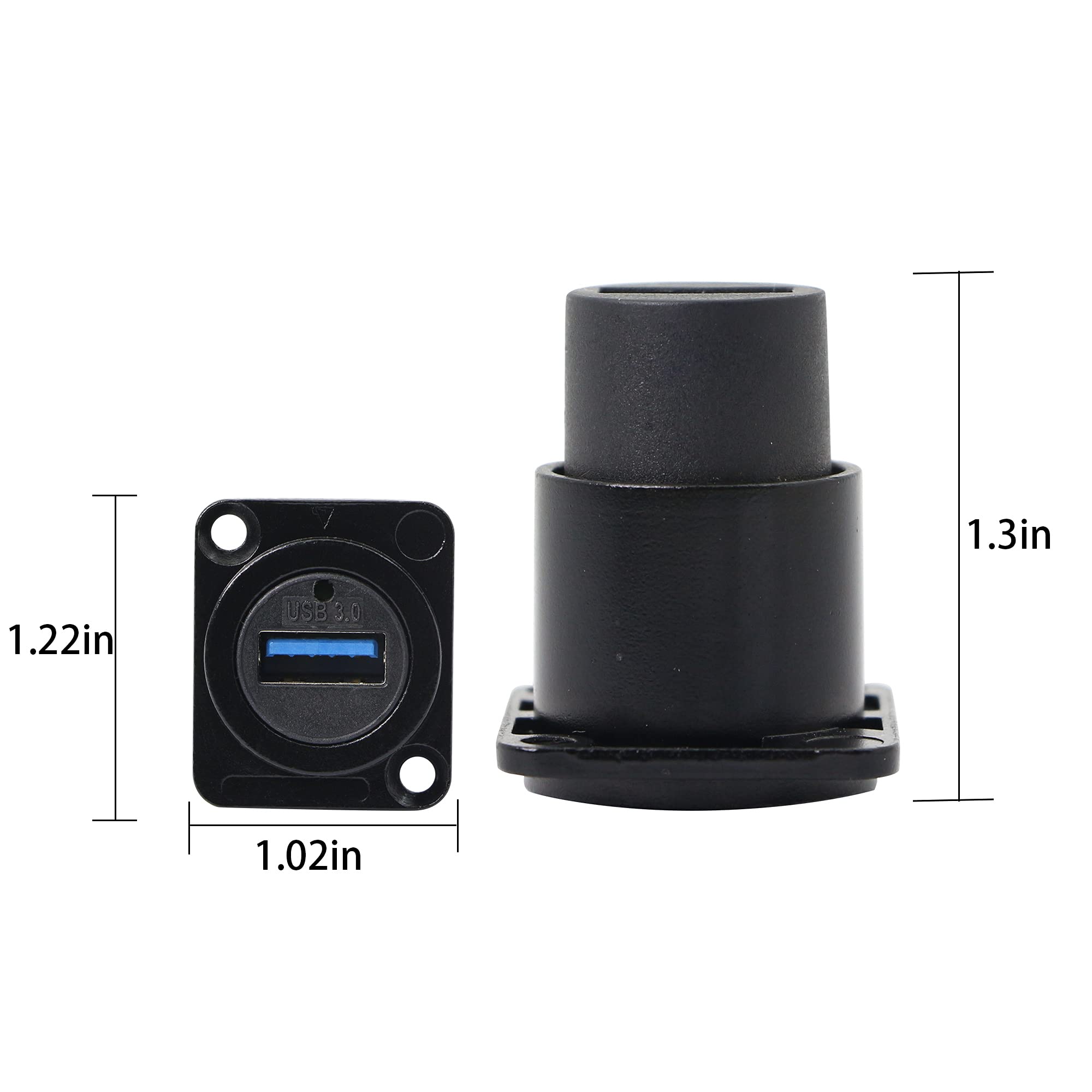

It is widely used in audio, video and photoelectric networks. Its base design is based on industrial standard panel apertures. Type: Connectors. Interface: USB 3.0. Color: Black. In-line D-through data connector,ensure safe and stable. Electrical parameters Contact resistance: <10MΩ Dielectric strength: DC1kV Frequency range: 1-100MHz Insulation resistance:> 0.5GΩ Rated current: 1.5A Rated voltage: 50V Mechanical parameters Insertion pressure: ≤ 10 N Withdrawal pressure: ≤ 10 N Service life:> 1000 times Base shape: D type Material Contact plating: 7µm Au over Ni plating Insulator: PBTP 15% GR Panel: Zinc diecast (ZnAl4Cu1) Package : 1 x USB 3.0 socket;2 x screws.
