QIANRENON RS232 DB9 Male Breakout Board DB9 Male to Wiring Terminal Solderless Connector RS232 Serial Test Block Adaptor, for DB9 Serial Communication Prototyping or Troubleshooting

• 【Free Definition】RS232 DB9 male connector Wiring terminals Adapter.Suitable for custom development of input/output configurations for DB9 serial communication systems.

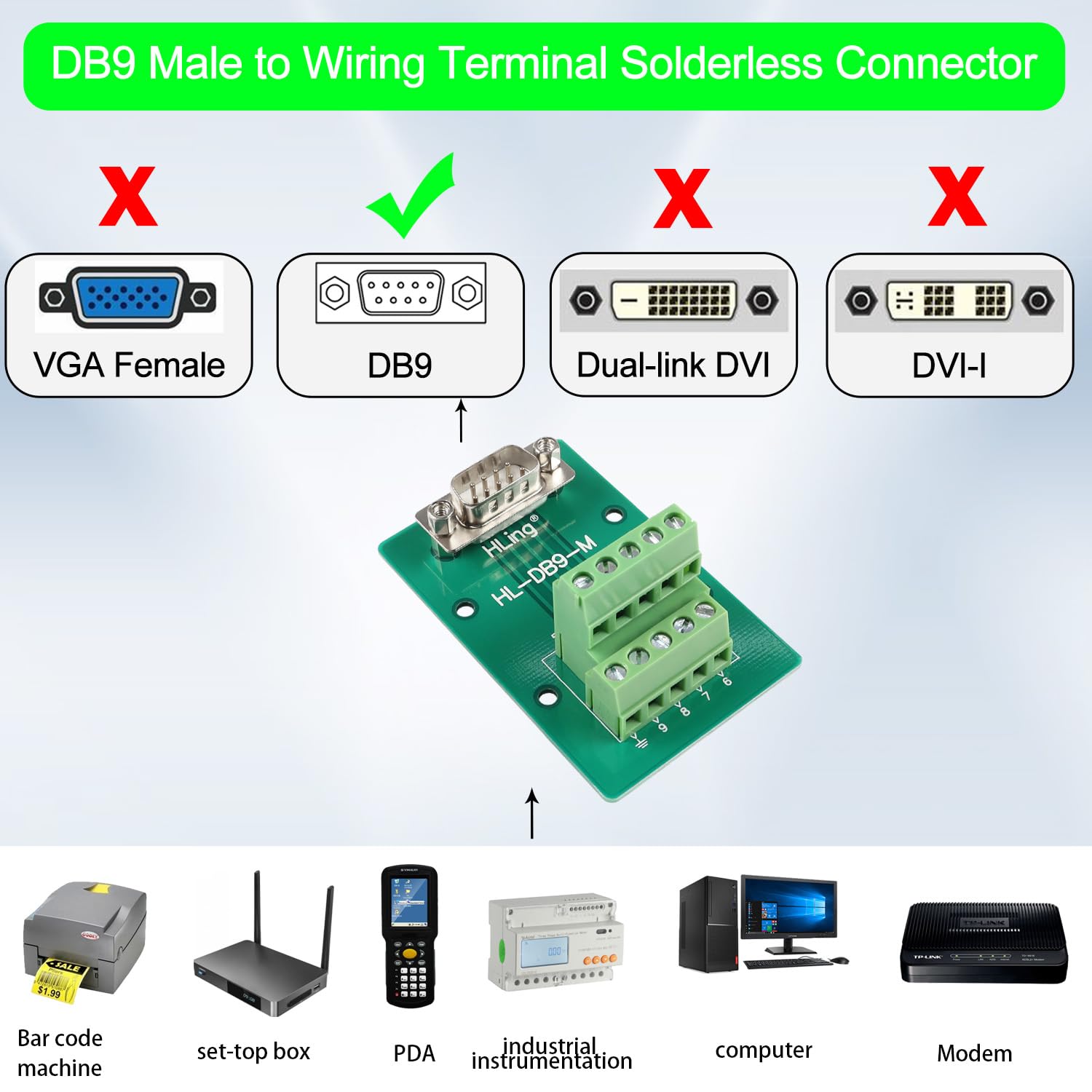

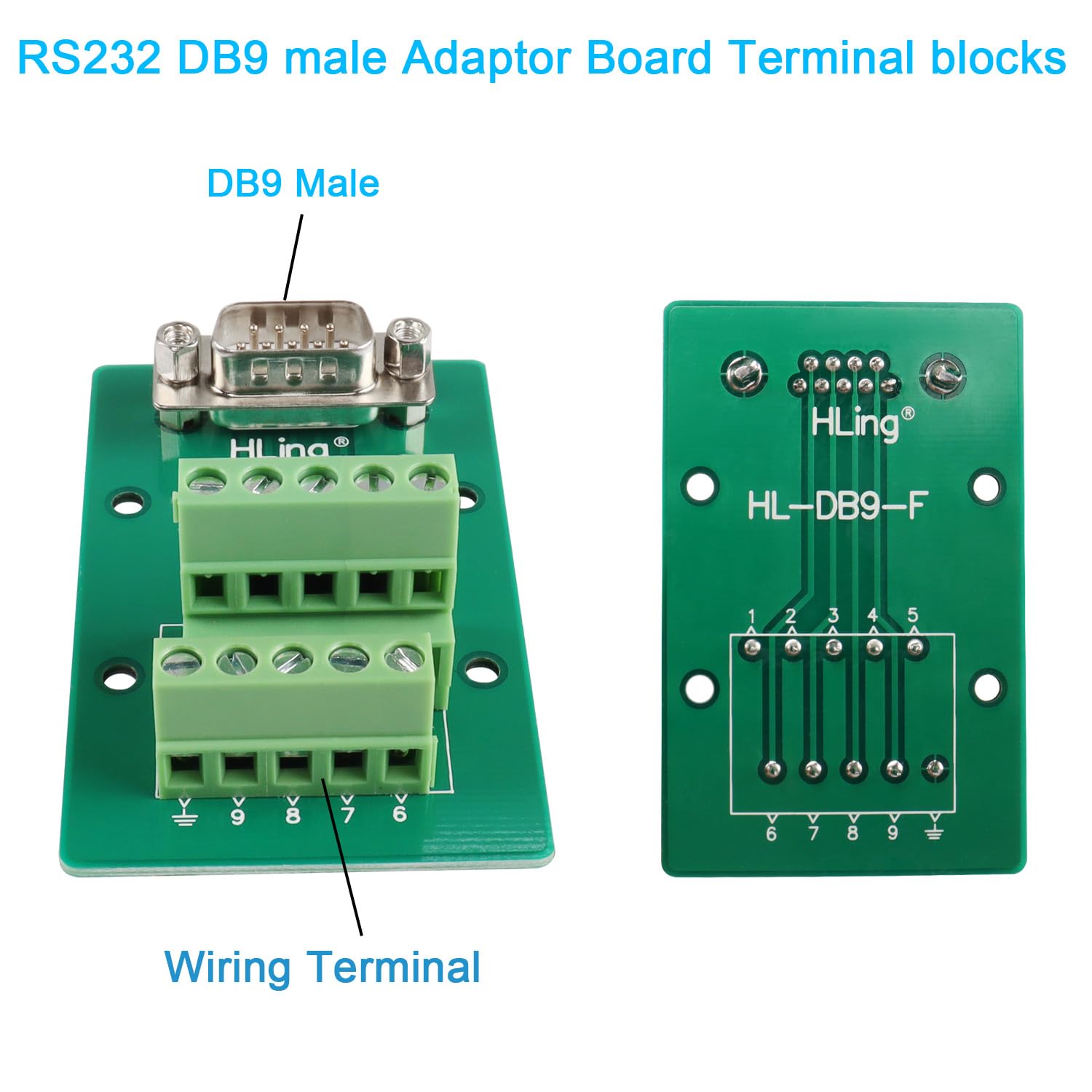

• 【Application】RS232 DB9 male Adaptor Board Terminal blocks.You can use it to connect I/O serial lines to DB9 connectors. Used for RS23 serial interface prototyping, troubleshooting or testing, also can be applied to PLC control, servo motor, CNC controller wiring.

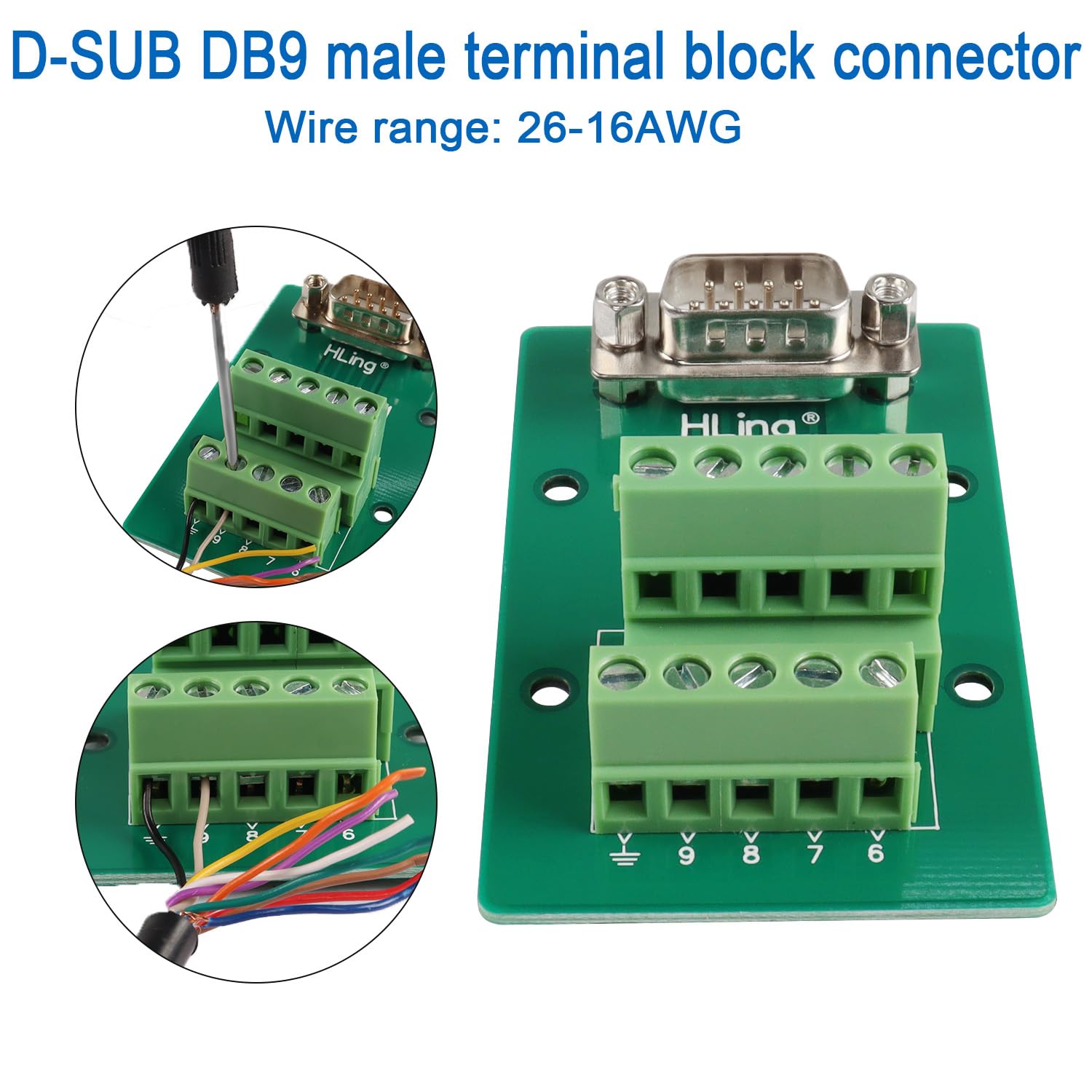

• 【Solderless】D-SUB DB9 male terminal block connector. Quick wiring via screw crimp terminals, allowing you to save yourself from the hassle of soldering. Wire range: 26-16AWG.
• 【High Quality PCB】RS232 DB9 male connector breakout board. Made of high quality FR-4 glass fibre PCB with double copper layer printed circuitry.

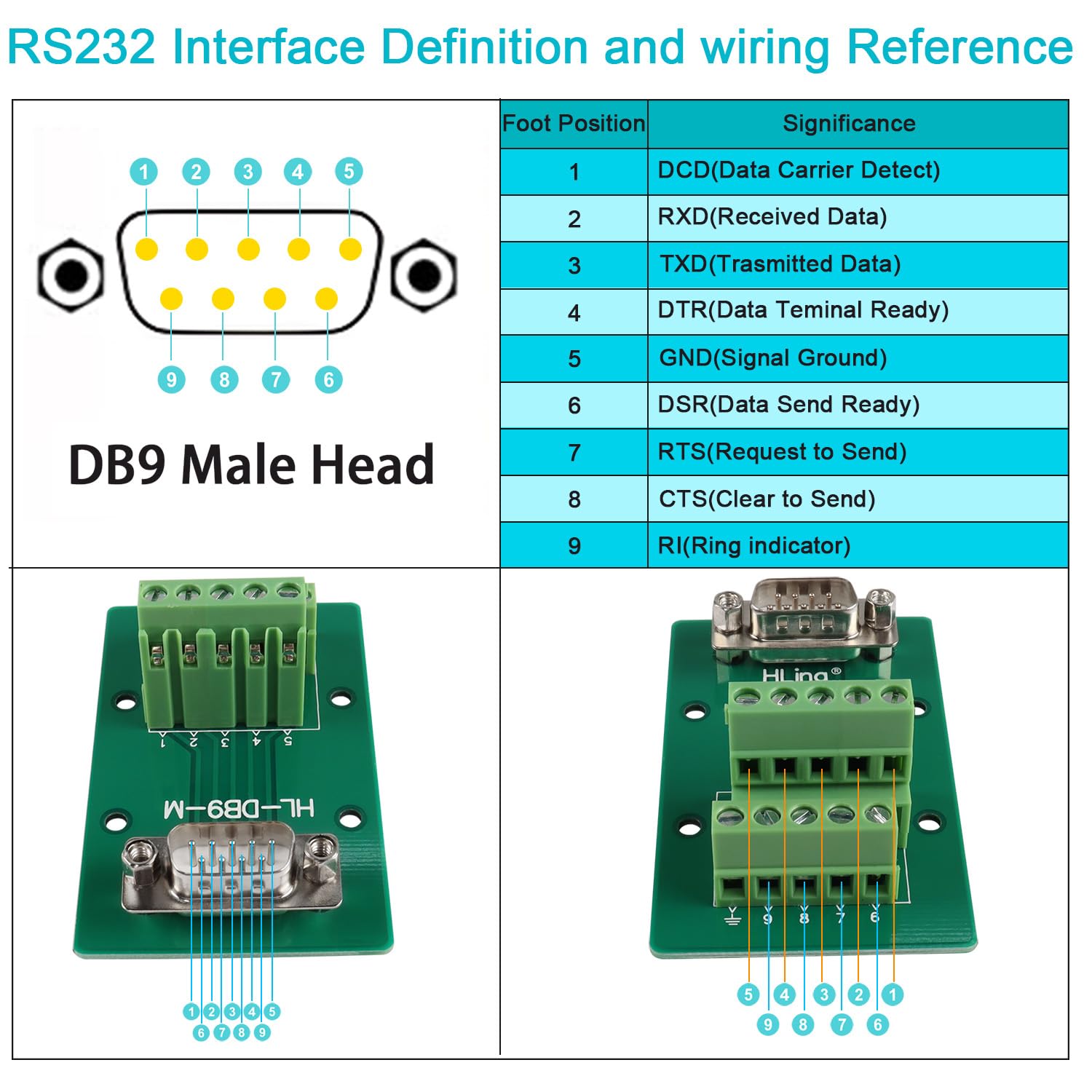

• 【Clearly marked】RS232 DB9 male connector Solderless crimp Connector, All DB9 signal pins and terminals correspond to each other and are clearly marked on the PCB.

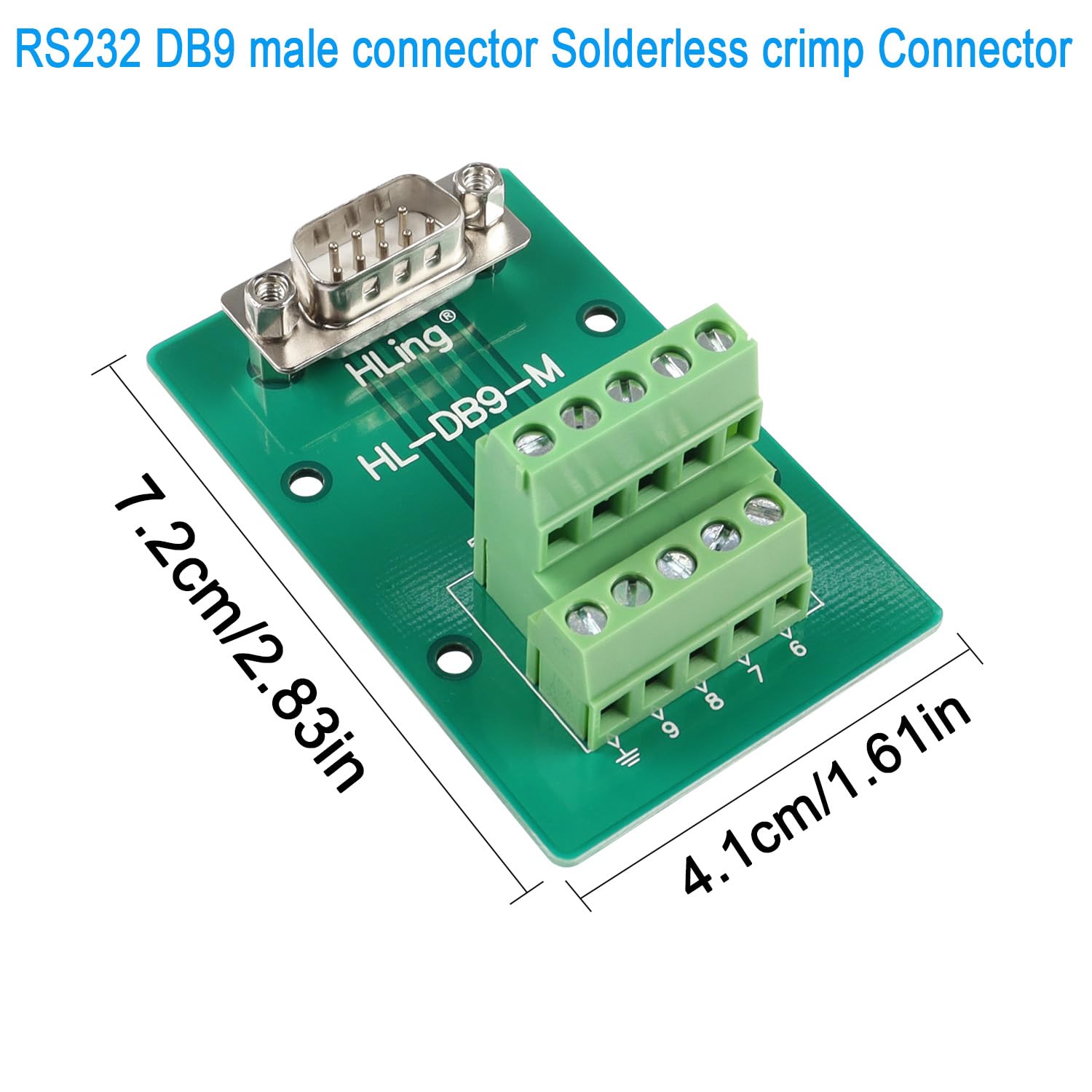

RS232 DB9 male to terminal block Connector breakout boards. for custom development of input/output configurations for DB9 serial communication systems. You can use it to connect I/O serial lines to the DB9 connector. For prototyping, troubleshooting or testing of RS23 serial interfaces, also for applications in PLC control, servo motor, CNC controller wiring. Quick wiring via screw crimp terminals to save you from the hassle of soldering. Port type: RS232 DB9 male Wiring method: Screw crimp terminal Crimp screw; M2 Wire range: 26-16AWG Rated voltage: 60V Rated current: 1A per pin Operating temperature: -20ºC to 50ºC PCB board: FR-4 glass fibre, double copper layer Package: 1*RS232 DB9 male connector Test Breakout board Adapter
