QIANRENON RJ45 Female Quick Connect Solderless Mount Adapter CAT6A - 8P8C Female to 8Pin Terminal Network Connector Extender, for CAT5/6/6A Ethernet Audio Analog GPIO

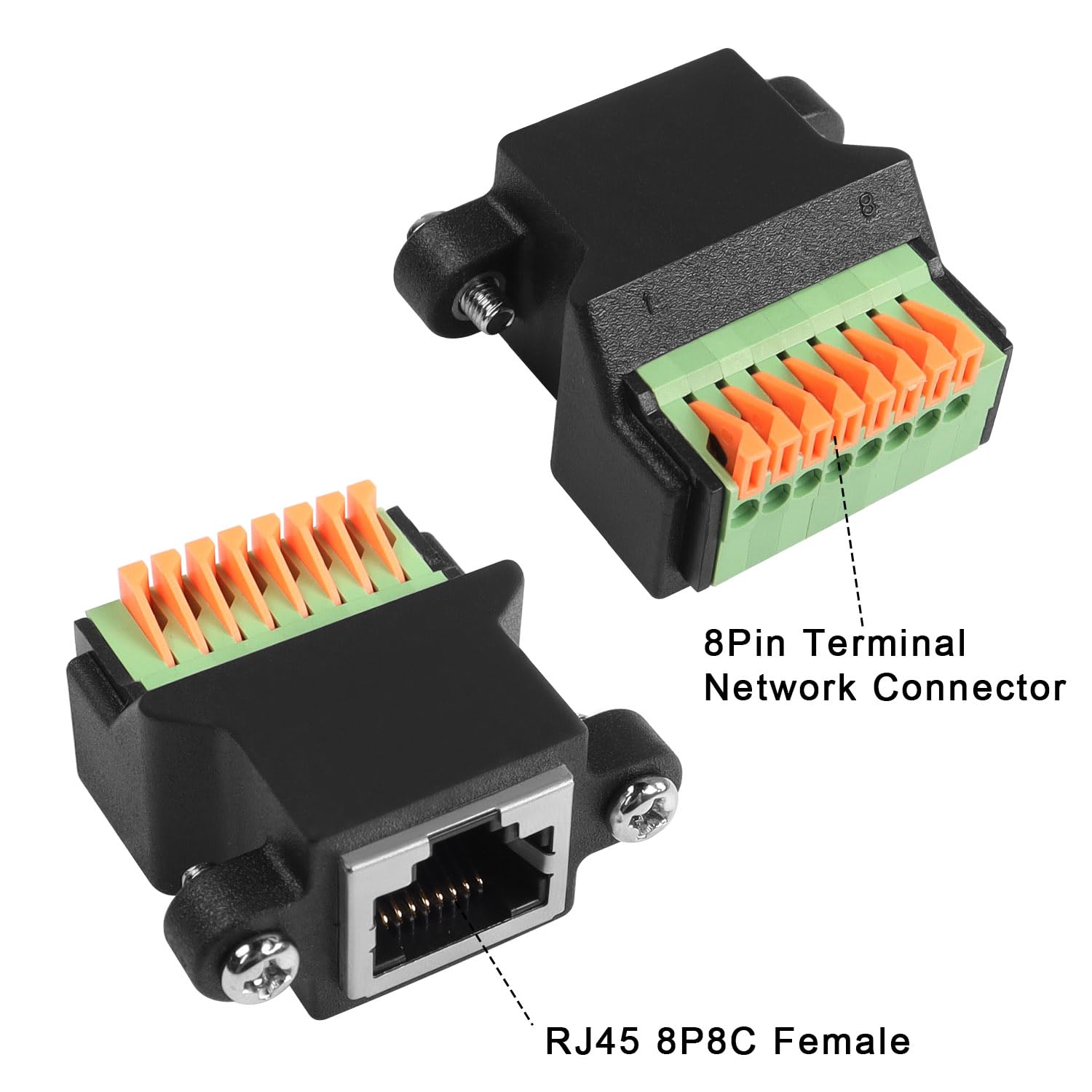

• 【Crimp/Solderless】 RJ45 8P8C Female to 8 Pin Quick Connect Terminal mounting adapter. With 8-pin spring crimp terminals for quick wiring, no soldering, no special tools required.Applicable wire diameter 26-16AWG. Stripped wire length≥10mm (0.39in).
• 【Fixed Installation】RJ45 female Solderless Quick Connect Adapter Mount socket. With 2 threaded holes for easy installation in equipment cabinet, equipment board, wall, desktop, floor plug.

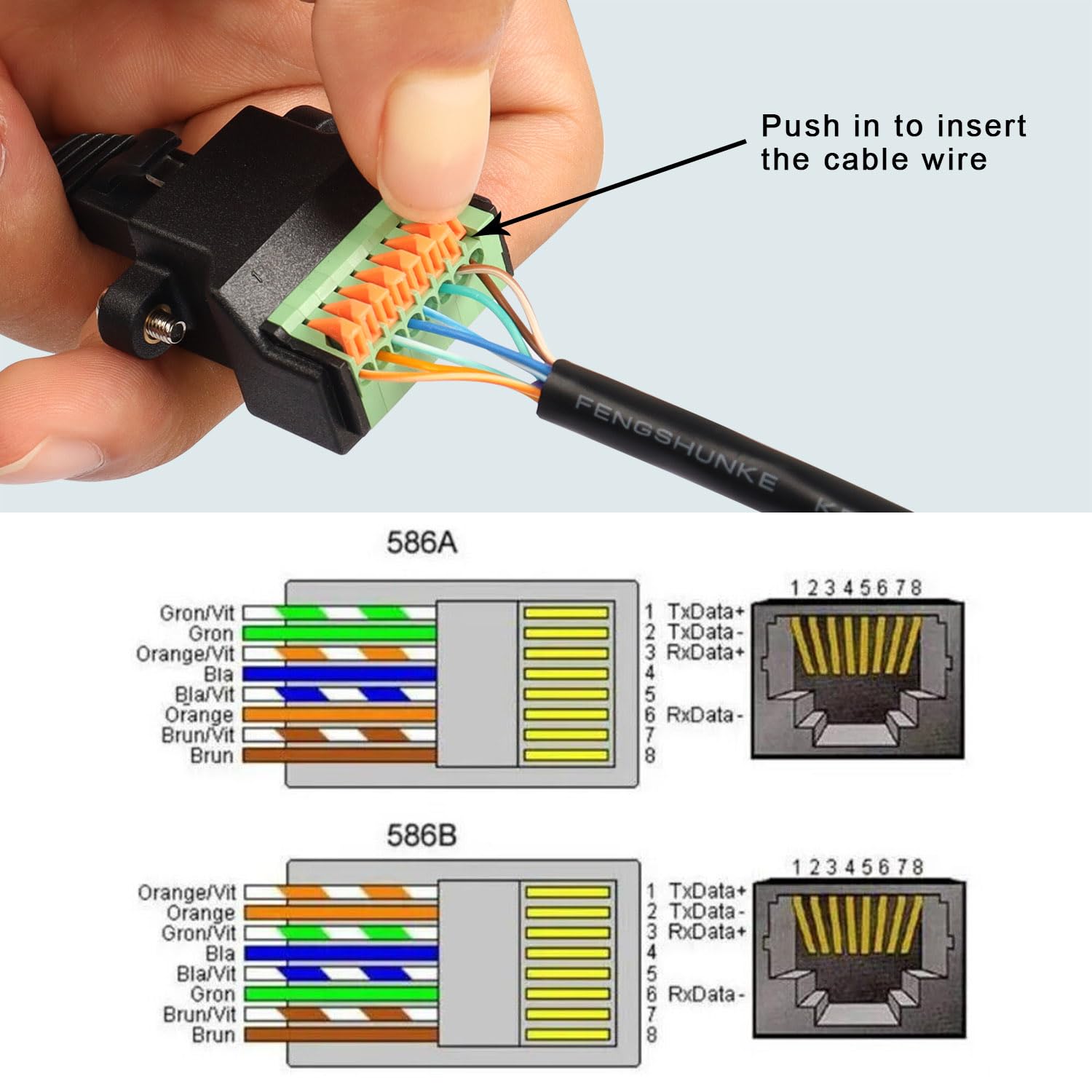

• 【Customise】RJ45 to 8Pin Network Extension Solderless Mount connector. Open wiring port, you can freely define the pin function. No matter EIA/TIA or T568A/B.

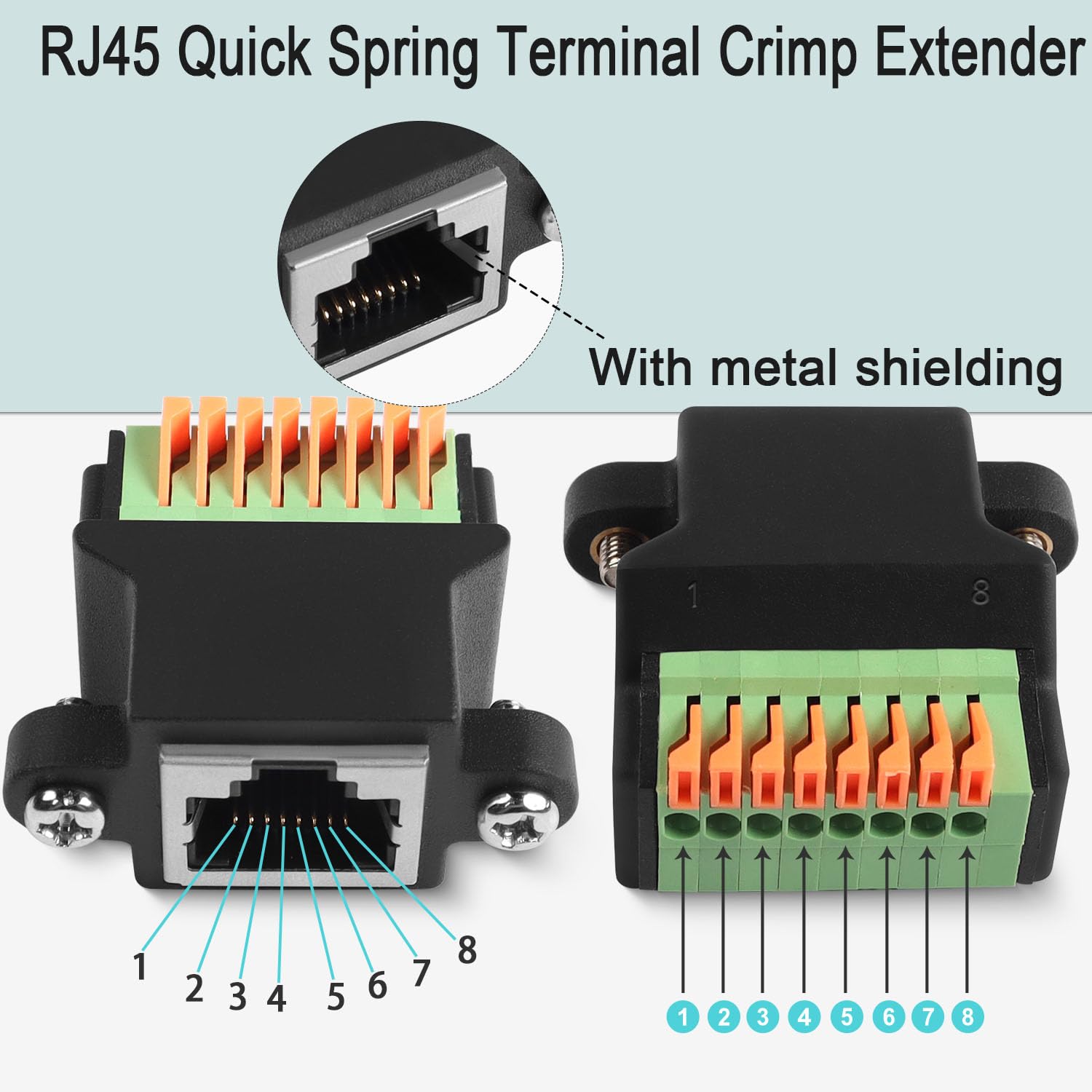

• 【With Shield】CAT6a RJ45 Female to 8Pin Quick Connect Terminal Mount adapter. With metal shielding, effectively avoid the influence of external signal interference. Provide a safe and stable network signal transmission environment.

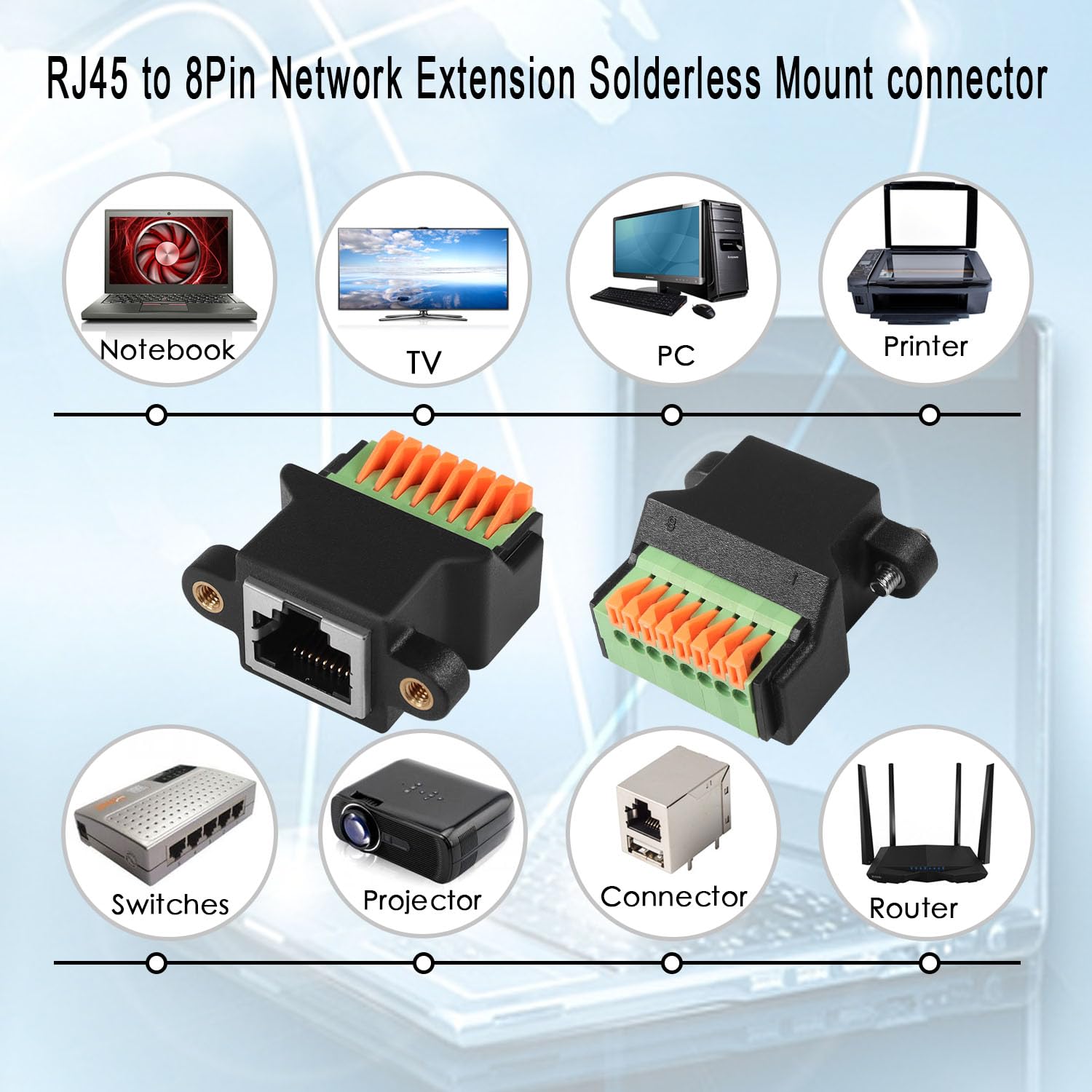

• 【Application】RJ45 8P8C Female to 8Pin Solderless Crimp mount connector. Used to extend CAT5/6/6A Ethernet, router, computer, local area of the network terminal port. Can also be used for UTP cables, CCTV cameras, audio and video analogue, GPIO interfaces and other uses.

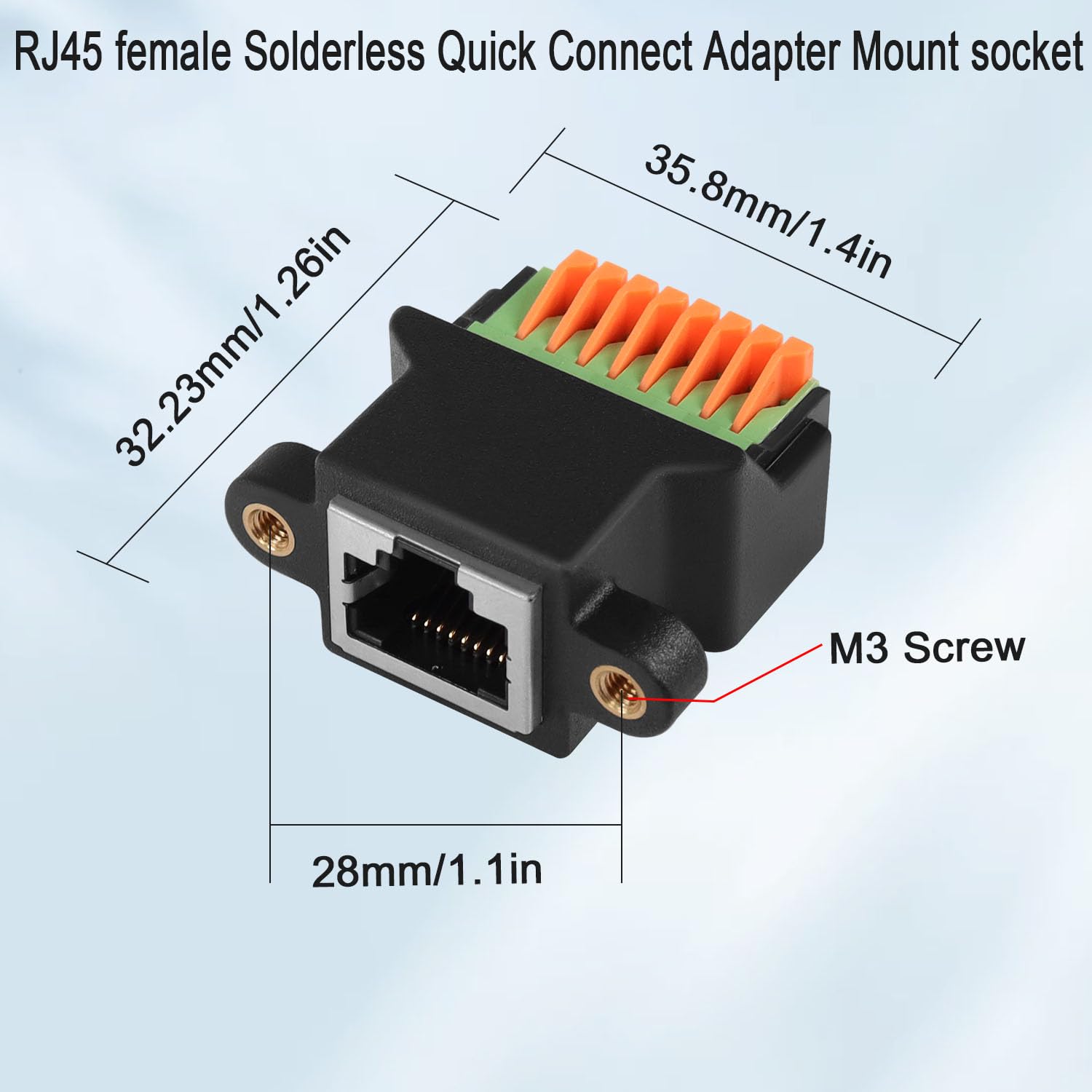

CTA6A RJ45/8P8C Female to 8Pin Quick Connect Terminal Adapter mount socket.With 8pin spring crimp terminals for quick wiring, no soldering, no special tools required. With 2 threaded holes, it can be fixedly mounted in equipment cabinets, equipment boards, walls, desktops, and floor plugs. With its open wiring port, you can freely set the pin function. No matter EIA/TIA or T568A/B, it is shielded with metal to effectively avoid the interference of external signals. Provides a safe and stable network signal transmission environment. Used to extend CAT5/6/6A Ethernet, router, computer, local area network terminal port. Can also be used for UTP cables, CCTV cameras, audio/video analogue, GPIO interfaces and other uses. Port: RJ45 8P8C female connector Wiring: 8Pin terminal Spring crimp Applicable wire diameter: 26-16AWG Stripped wire length: ≥10mm (0.39in) Mounting threaded holes: 2-M3 Hole pitch: 28mm (1.1in) Package: 1*RJ45 8P8C Female to 8 Pin Terminal Mount Connect Adapter. 2*M3 screw
