QIANRENON HDMI 2.0 Panel Threaded Fixed Mount Coupler Adapter HDMI Female to Female Recessed Panel Mount Connector 4K@60HZ, Anti-loosening Gasket Dust-proof Cover, for Dashboard or Device panel

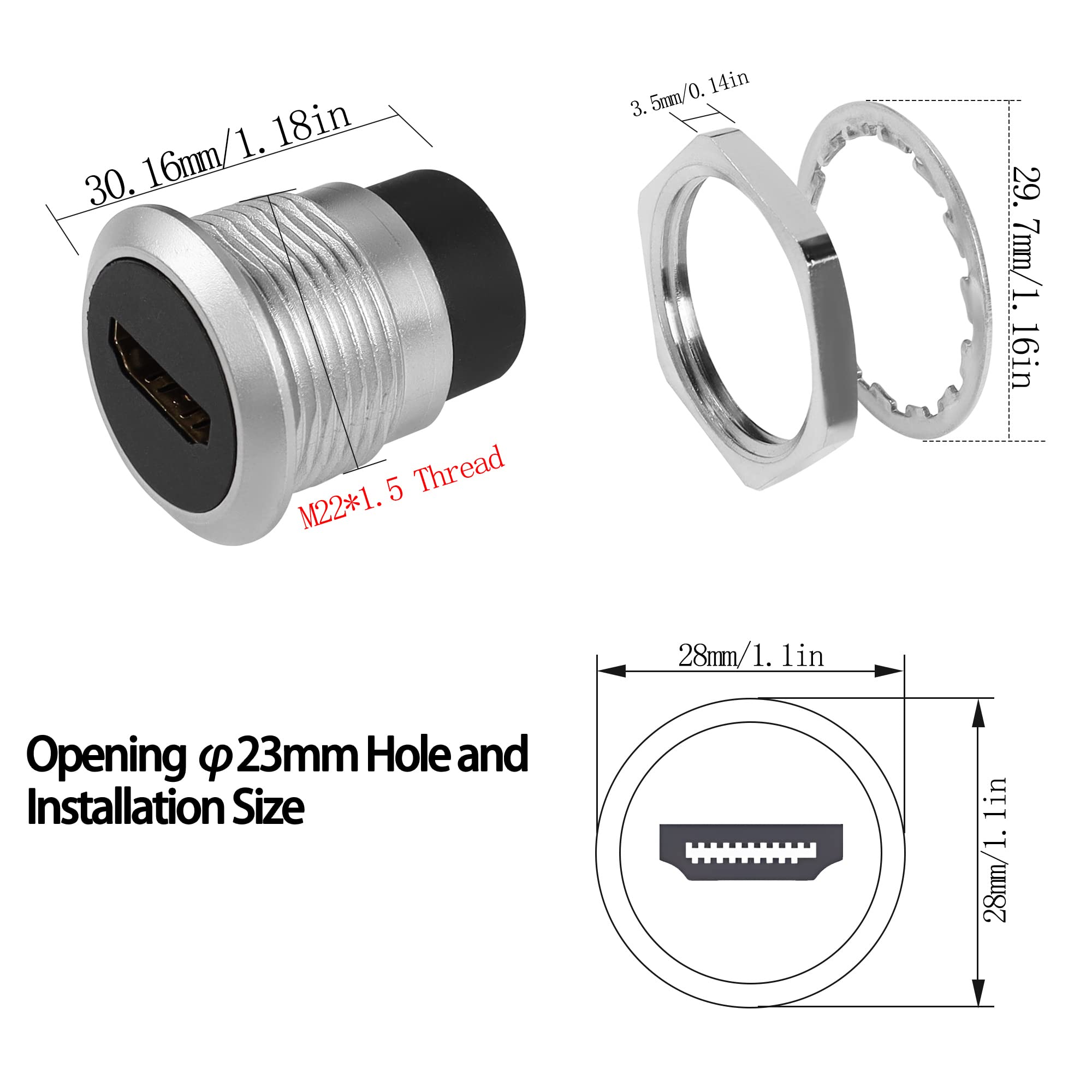

• 【Screw fixing】 HDMI plate thread fixing installation adapter, comes with M22×1.5 nut, just need to cut a φ23mm hole on the dashboard or equipment plate, fixing installation through the nut to achieve extended extension of HDMI display port.

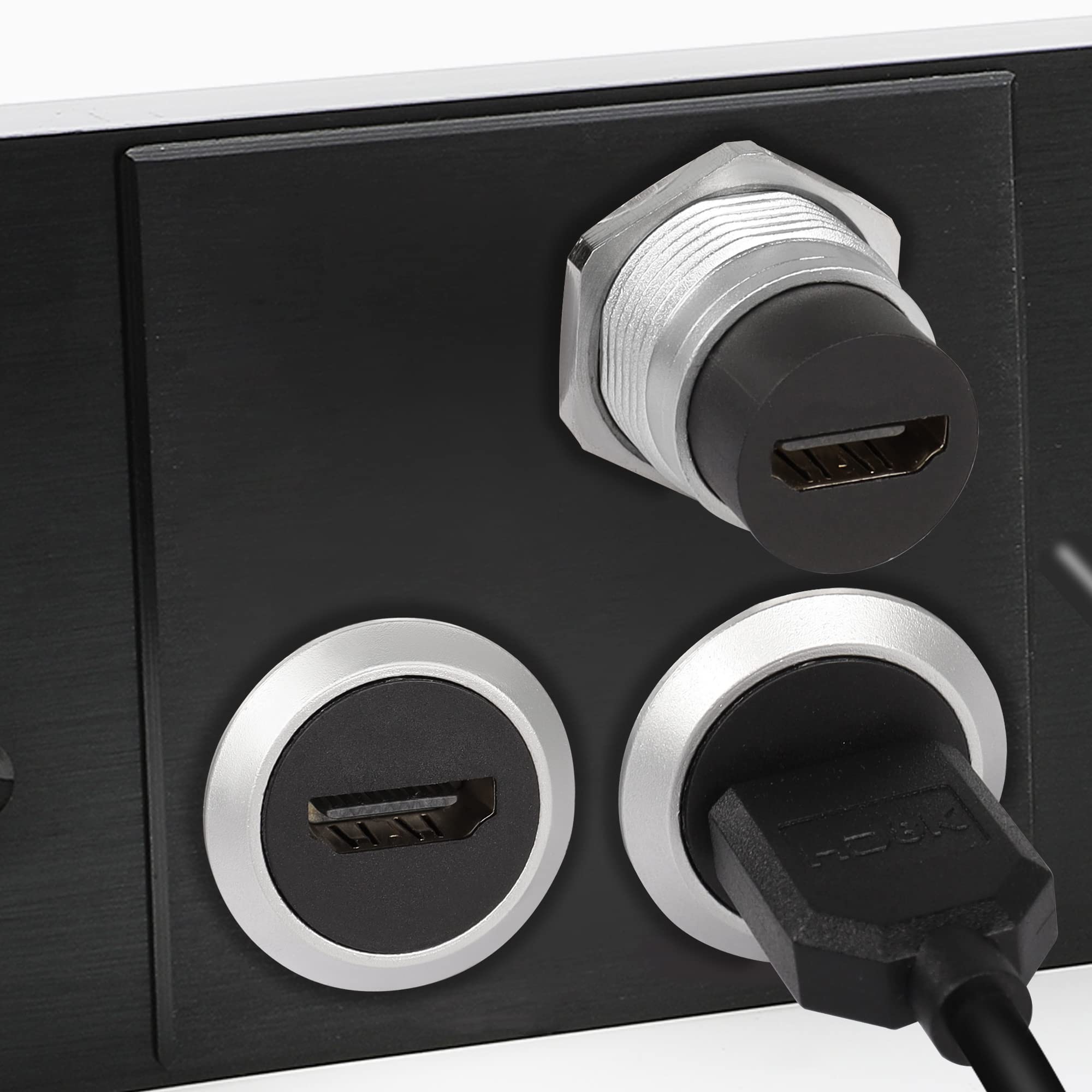

• 【Easy Installation】HDMI female to female recessed panel mount socket is a reinforced and easy to install connection system suitable for mounting on a desktop, dashboard, or equipment panel.

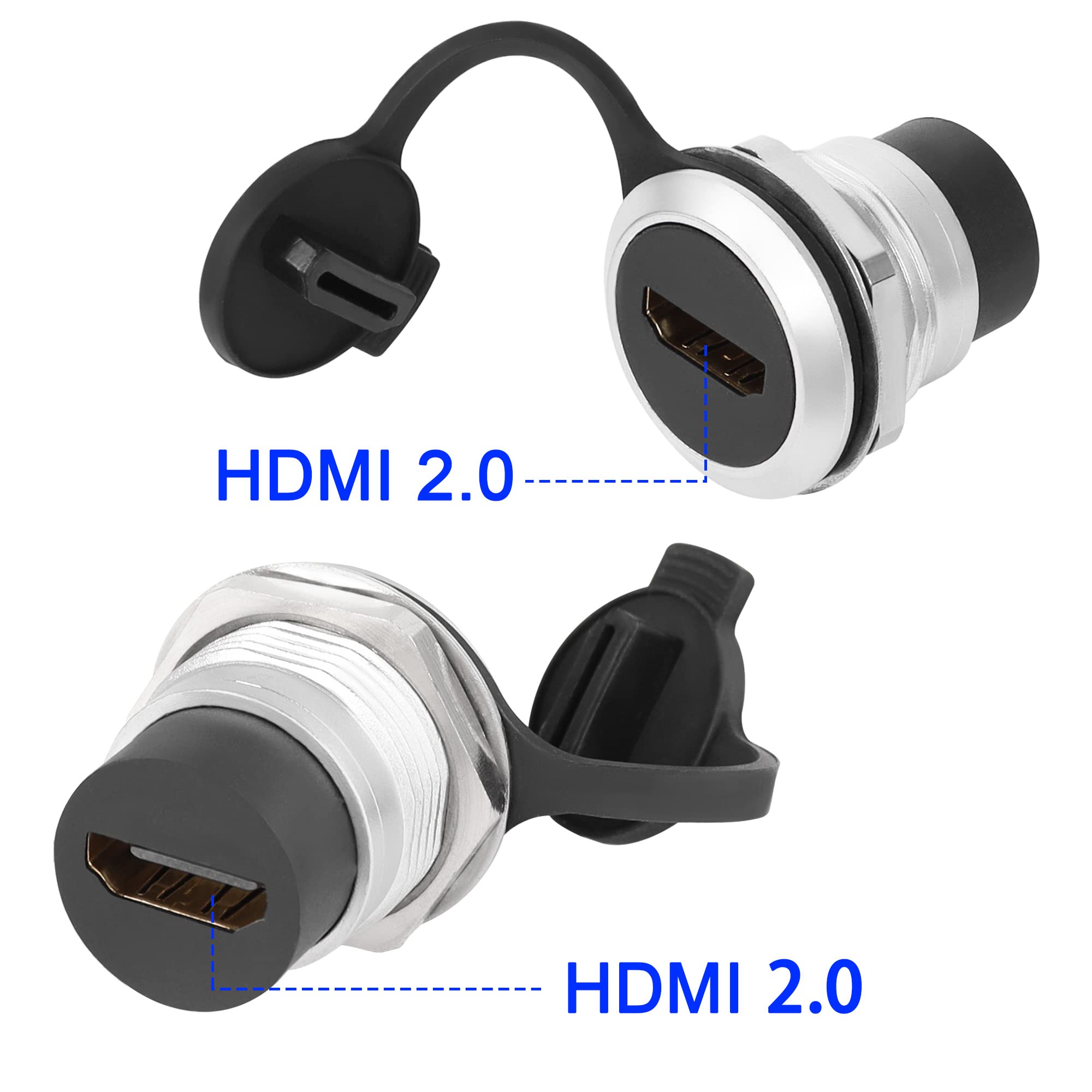

• 【Loose and Dustproof】HDMI 2.0 female to female panel mount connector with anti-loose washers to effectively avoid loosening due to device vibration. It also comes with a dust cap to prevent dust and debris from entering and keep the inside of the port clean.
• 【Support 3D & 4K】 HDMI embedded panel connector, using HDMI version 2.0, extends the bandwidth to 18Gbps based on HDMI 1.4, can support 4K@60 picture quality, Audio Return Channel (ARC), HDMI Ethernet Channel (HEC).

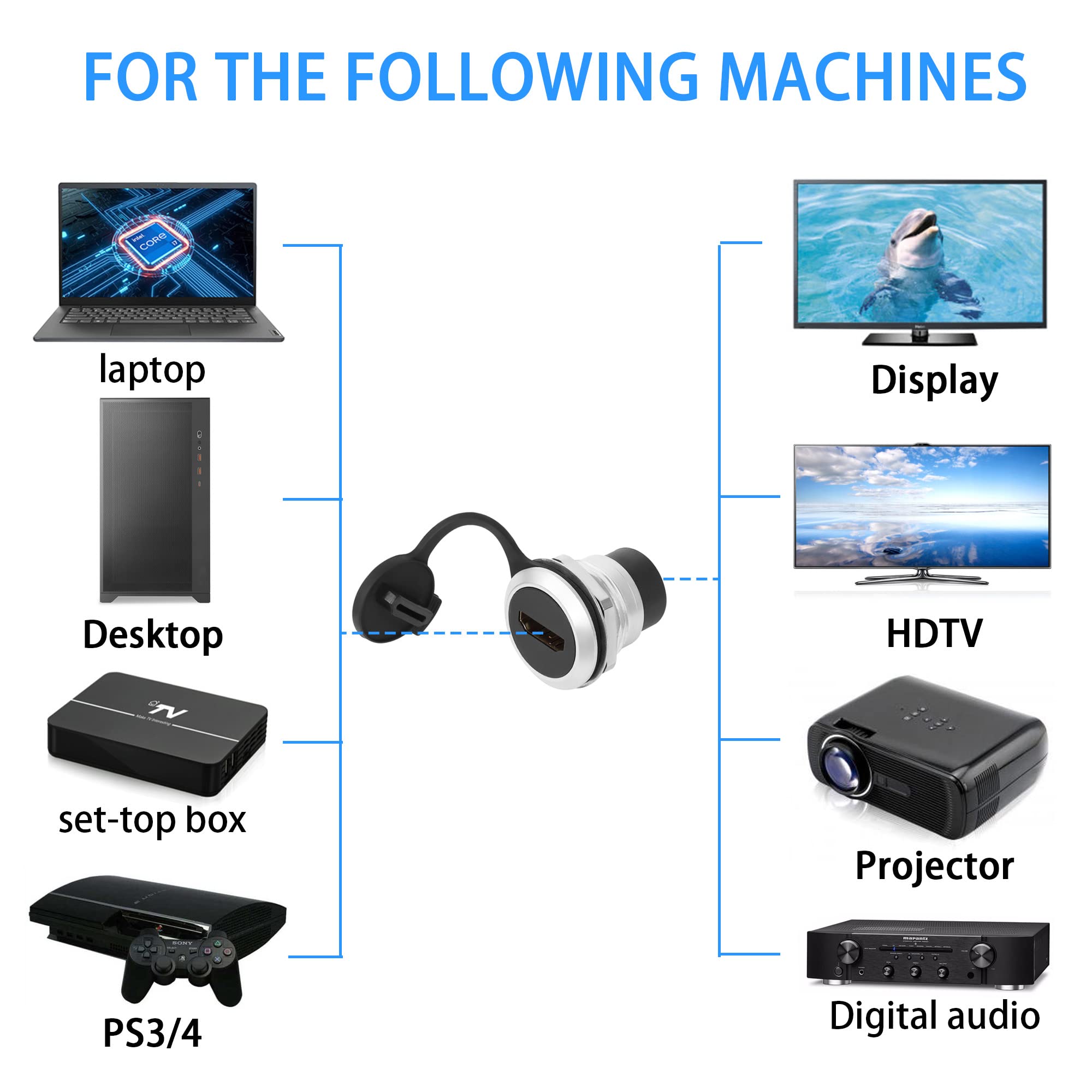

• 【Suitable for harsh working conditions】 HDMI 2.0 extension embedded connector, zinc alloy shell, rugged, to meet the special needs of certain harsh industrial environmental conditions. Widely used for audio-visual entertainment, office, medical, smart home and other equipment connection display.

HDMI 2.0 recessed panel mount coupler is a ruggedised and easy to install connection system suitable for mounting on a desktop, dashboard or equipment panel. Meets the special needs of certain harsh industrial environmental conditions. Widely used for the connection of audio-visual entertainment, office, medical, smart home and other equipment displays. Only a φ23mm hole needs to be cut in the dashboard or equipment board surface and installed by nut fixing. Equipped with anti-loosening washers, which can effectively avoid loosening due to equipment vibration. A dust cap is also provided to prevent dust and debris from entering and to keep the inside of the port clean. HDMI panel mount connector using HDMI version 2.0, which extends the bandwidth to 18Gbps from HDMI 1.4, and can support 4K@60 picture quality, Audio Return Channel (ARC), HDMI Ethernet Channel (HEC). Interface 1: HDMI 2.0 Female Interface 2: HDMI 2.0 Female Support: 4K@60 3D ARC HEC Fixing thread: M22*1.5 Package: 1*HDMI2.0 thread fixing panel mount adapter, 1*M22 hexagonal nut, 1*loose washer, 1*dust cap
