QIANRENON Fixable XT90 Female Soldering Adapter Gold Plated XT90E-F Panel Fixed Mount Weld Connector XT90 Lithium Battery Solder Socket 30A, Dust Cover, for Large Model Airplane Drone, Black, 2Pcs

• 【XT90E-F Socket】XT90 Female Panel Fixed Installation Lithium Battery Connector soldering socket. XT90E-F is fixable female connector, compatible with all Amass XT90 male connectors, used for daily DIY or repair lithium battery charging interface.

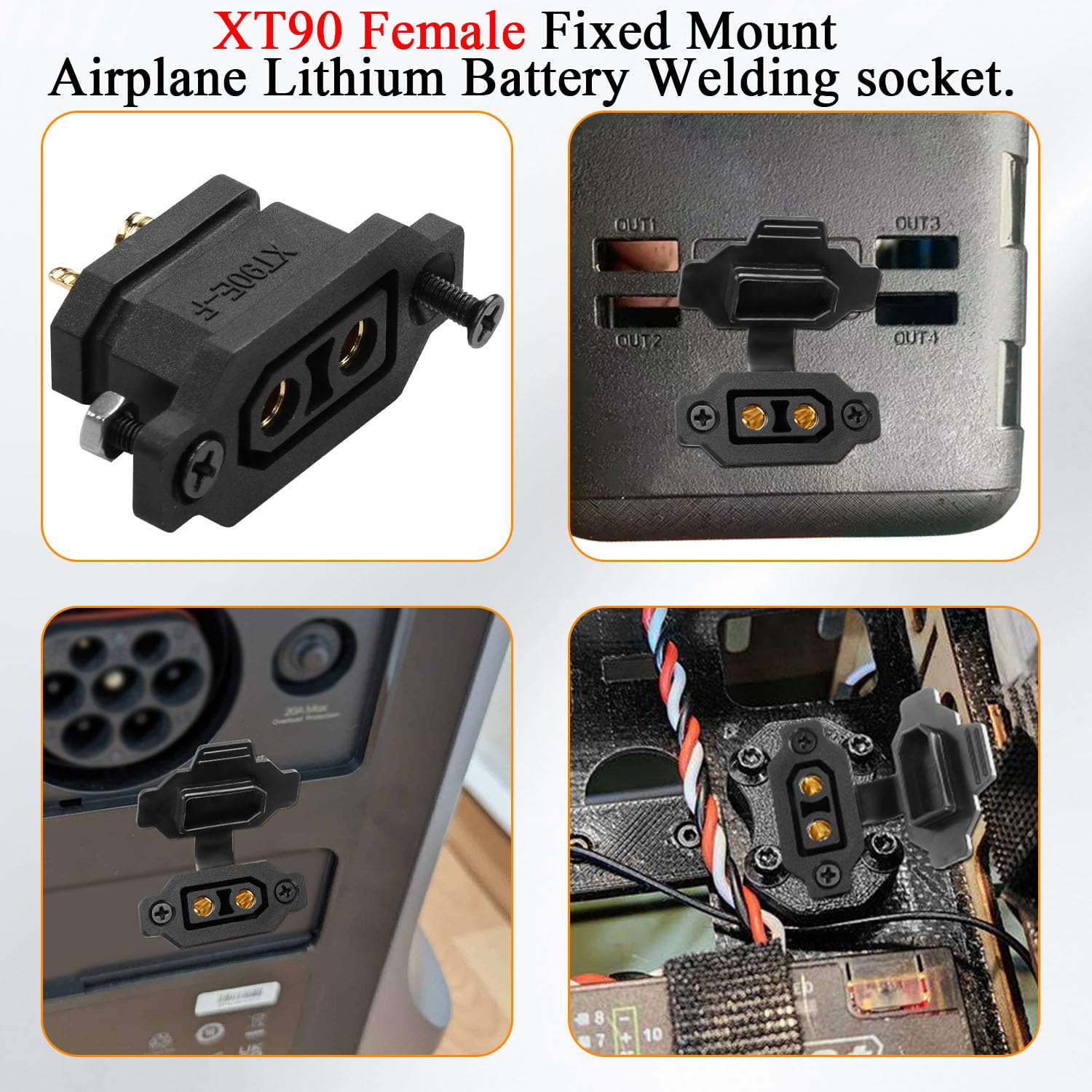

• 【Fixable + IP40 Protection】XT90E-F Panel Mount Air Model High Current Welding connector. Equipped with 2*M3 screw nuts, designed for panel fixing needs. With dust cover, providing IP40 protection to avoid dust and debris contamination of the port.
• 【30A High Current】XT90 Female Fixed Mount Airplane Lithium Battery Welding socket. Conductor surface gold-plated, designed for high-current modelling needs, easily withstand a constant 30A peak 60A current.
• 【Easy Welding】XT90 Female Panel Mount Modelling Power Connector soldering adapter. Semi-circular 180-degree flat welding opening at the end, easier to fix the wires for soldering.
• 【Application】30A XT90 female Fixed Mount Weld socket. Mostly used for XT90 high current connection of large aeromodelling lithium batteries, drones, quadcopters, electric cars, electric scooters, RC toys, RC cars, RC boats and so on.

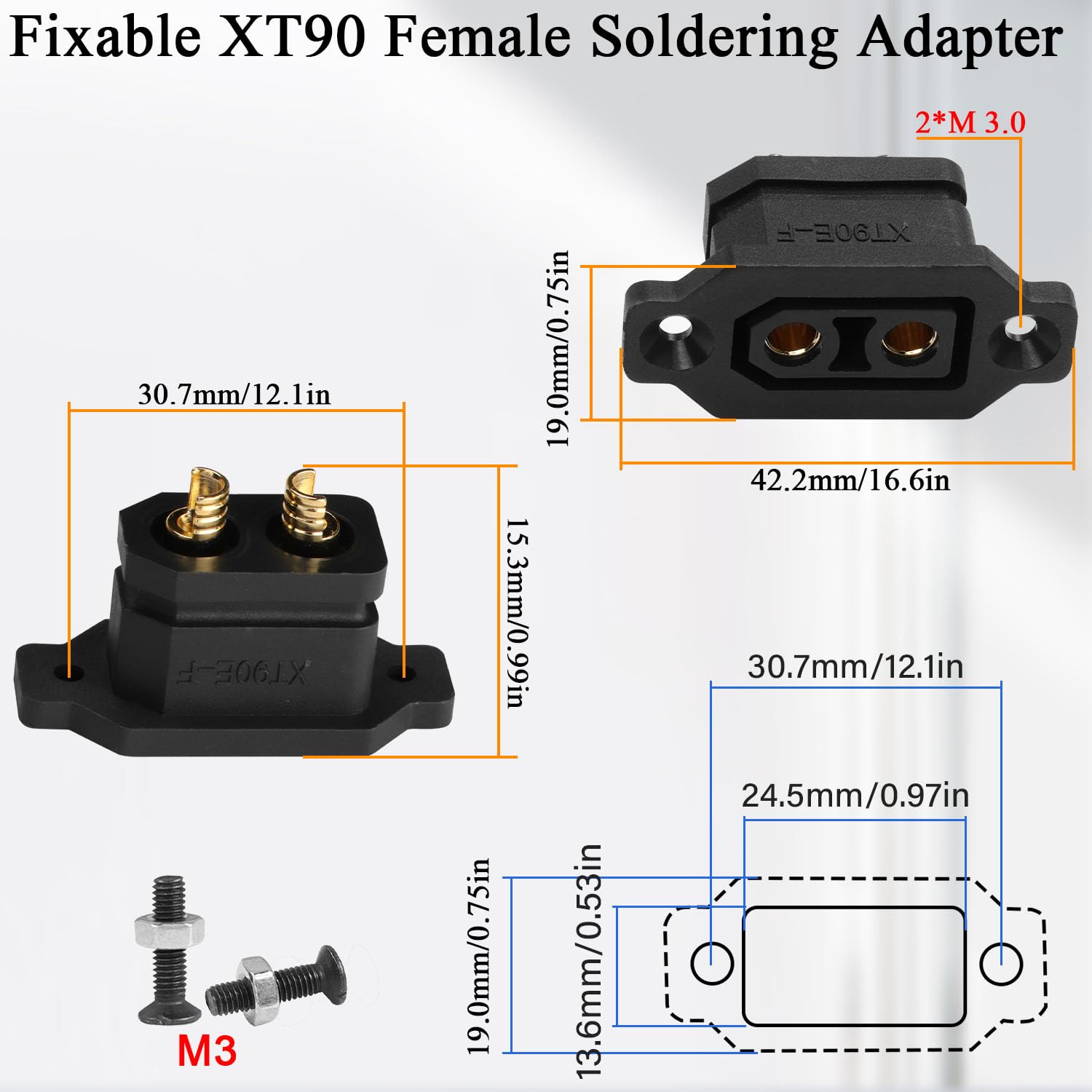

Product description 30A XT90 Female Panel Fixed Mount Lithium Battery soldering connector. XT90E-F is fixable XT90 female connector, compatible with all Amass XT90 male connectors, used for daily DIY or fixing LiPo battery charging interface. Equipped with 2*M3 screw nuts, designed for panel fixing needs. With dust cap, providing IP40 protection to avoid dust and debris contamination of the port. Gold-plated core surface, designed for high current modelling needs. Semi-circular 180 degree flat welding opening at the end, easier to fix the wire welding. Mostly used for XT90 connection of large scale lithium batteries for aeromodelling, drones, quadcopters, electric cars, electric scooters, RC toys, RC cars, RC boats and so on. Interface: XT90 female Type: XT90E-F Wiring Form: Soldering Recommended wire diameter: 8AWG-12AWG Mounting Thread: 2*M3 Mounting hole distance: 32.4mm/1.27in Rated current: 30A Dust protection: IP40 Operating Temperature: -20℃ to +120℃ Flame retardant rating: UL94 V-0 Conductor surface: gold plated Housing: PA insulated Colour: black Package: 2*XT90 female Panel Mount Solder socket adapter. 2*Dust Cover. 2*M3 Screw, 2*M3 Nut Safety Warning no
