QIANRENON BNC Threaded Fixing Circular Adapter BNC Female to Female Panel Mount Connector BNC Surveillance Module Socket, 75 Ohm, for Surveillance Video Security Camera CATV System.

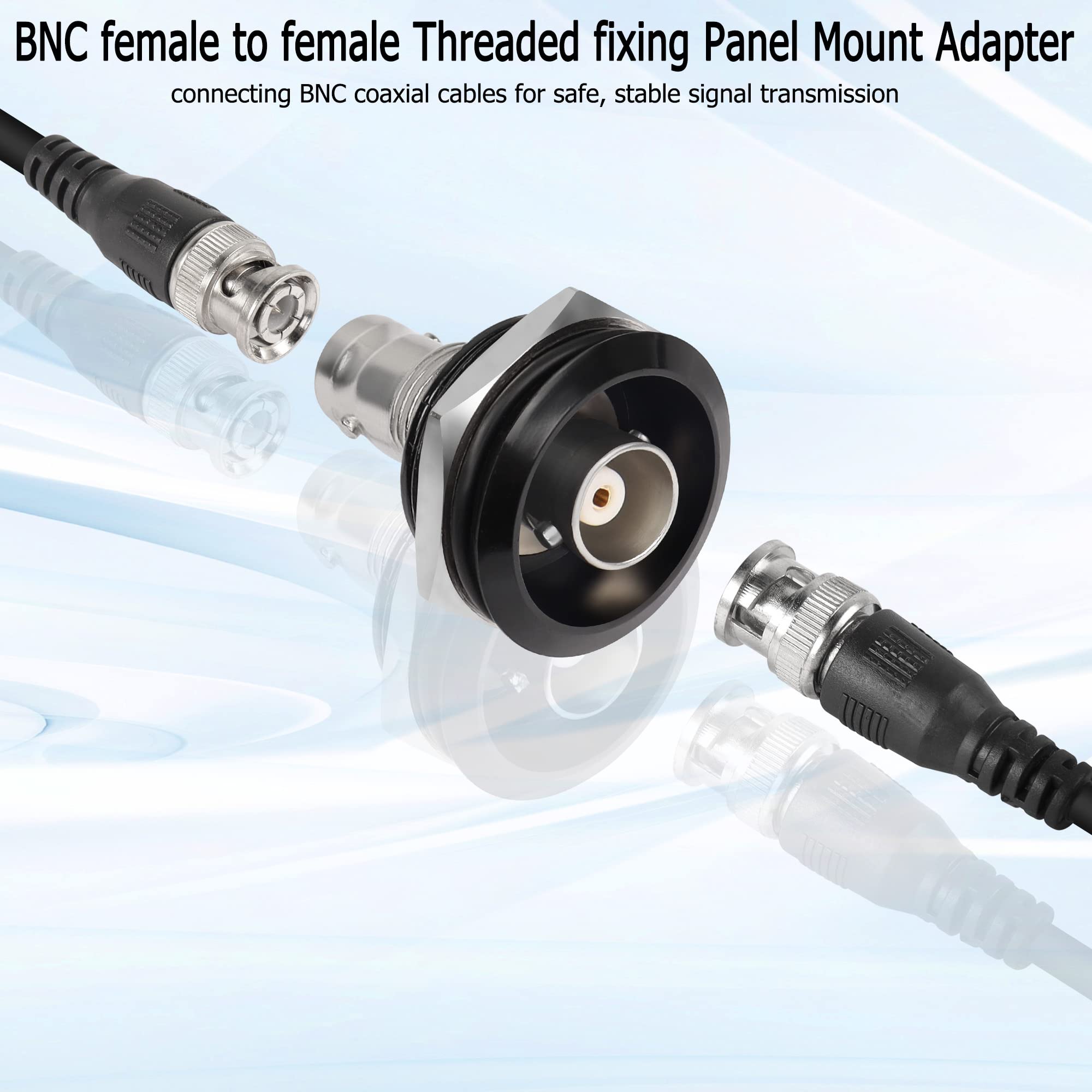

• 【Custom】BNC Panel Mount Round socket, ideal for developing custom communication systems, input/output configurations for surveillance camera systems, connecting BNC coaxial cables for safe, stable signal transmission.

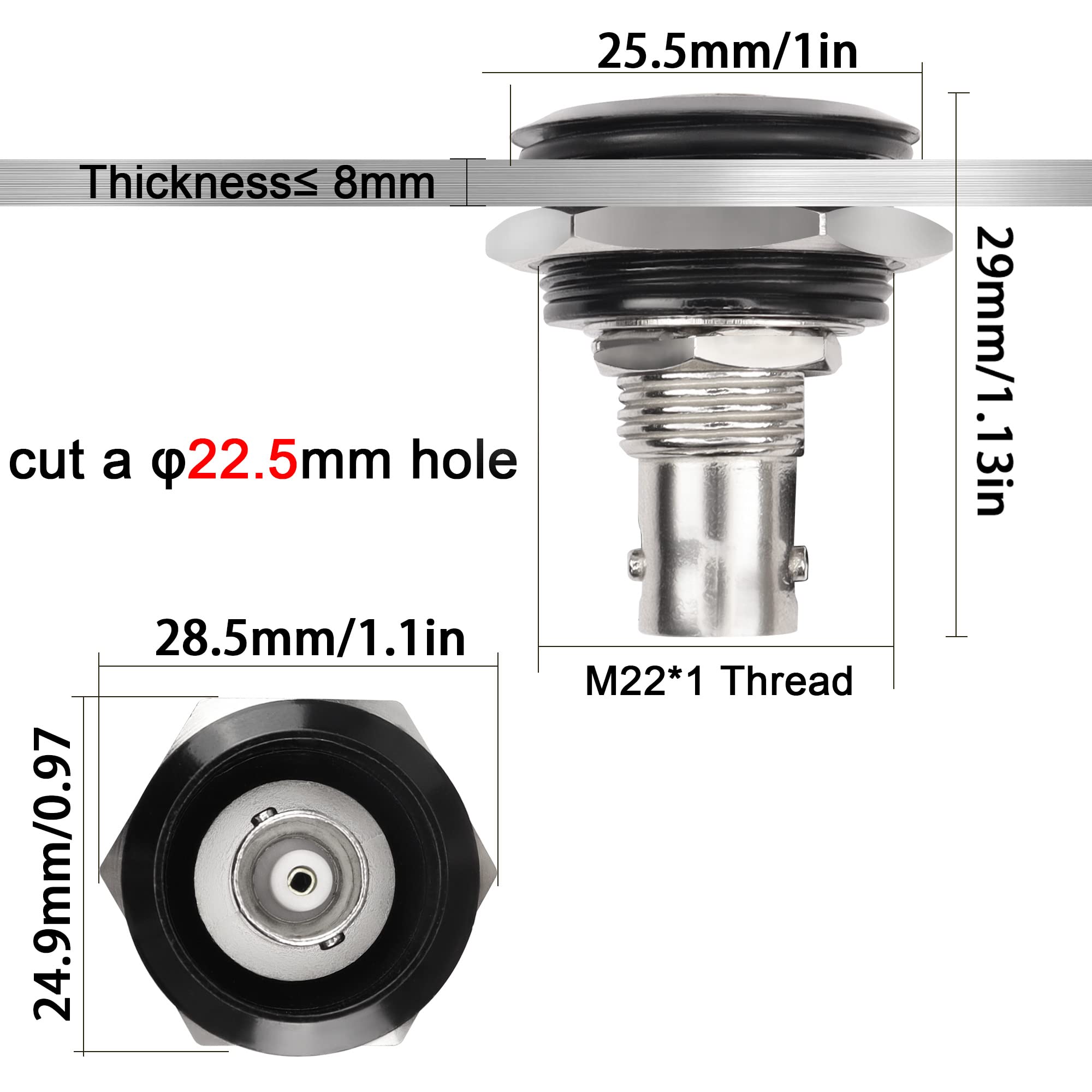

• 【Easy Installation】BNC female to female Threaded fixing Panel Mount Adapter, Come with M22 x 1 nut, simply cut a φ22.5mm hole in the panel surface and fix the installation through the nut to achieve extended extension of the BNC video connection port. Note: The thickness of the mounting plate surface is ≤8mm.

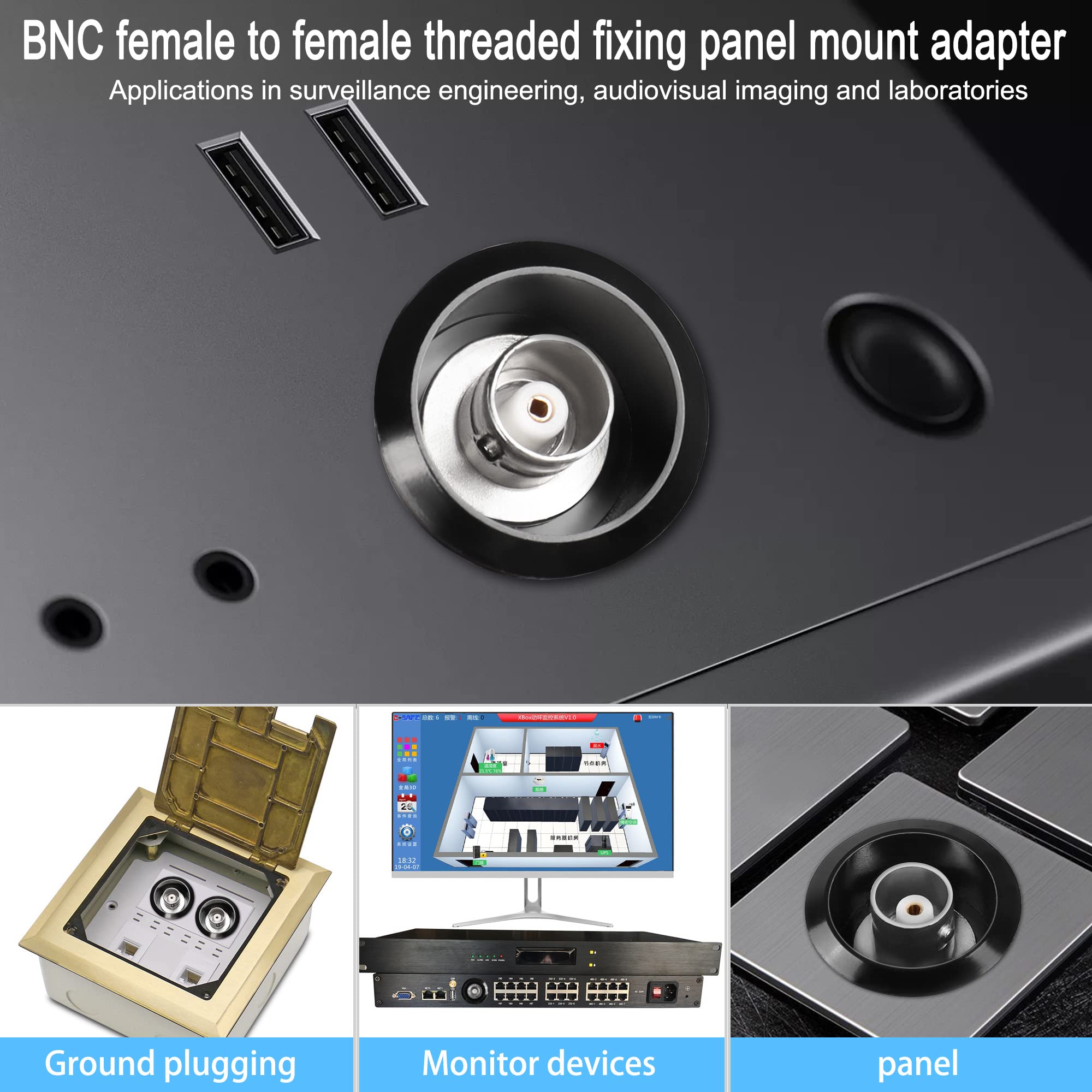

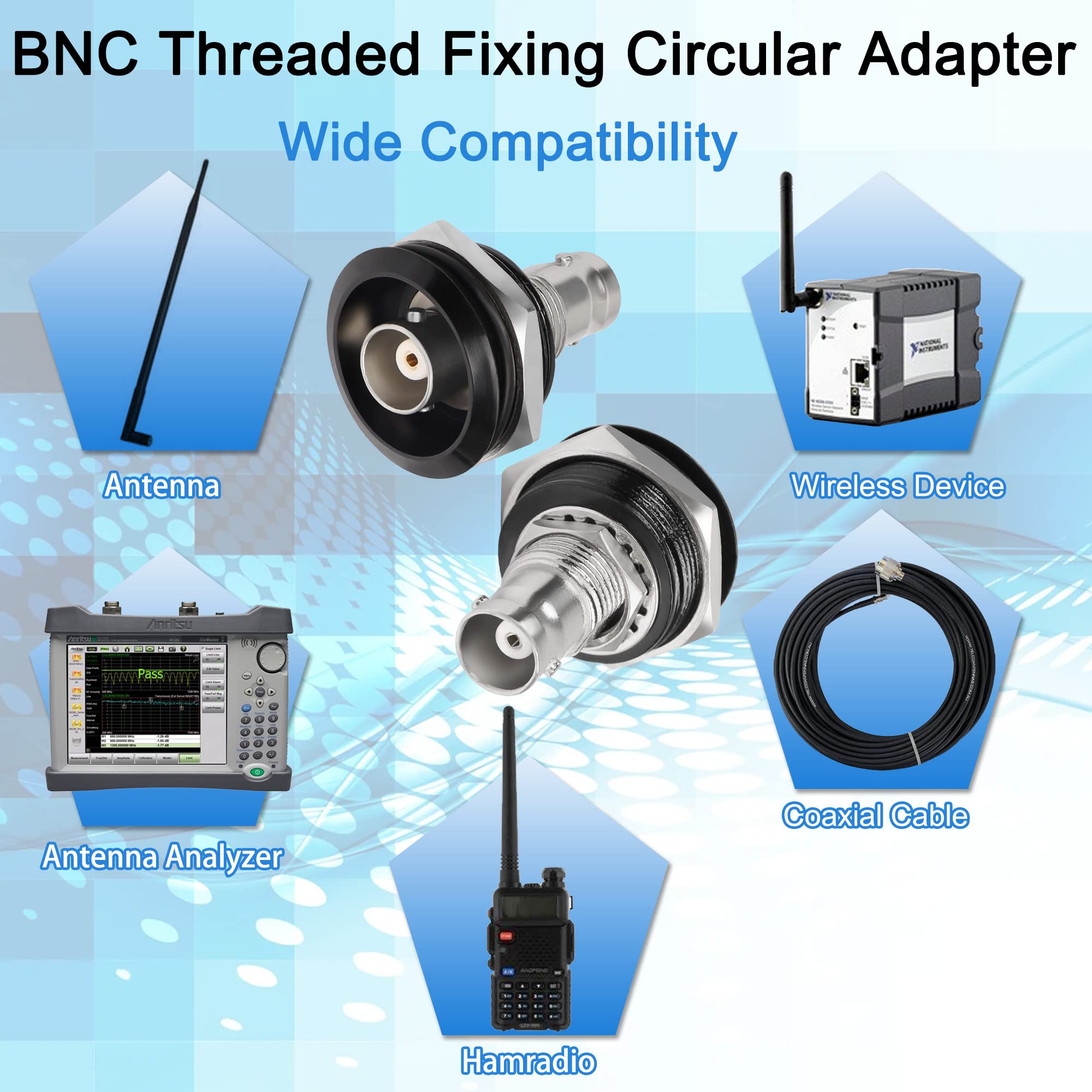

• 【Application】BNC socket to socket adapter, Applications in surveillance engineering, audiovisual imaging and laboratories, connecting wireless communication systems, TVs, test equipment, LMR, wireless LAN, other RF electronic equipment.

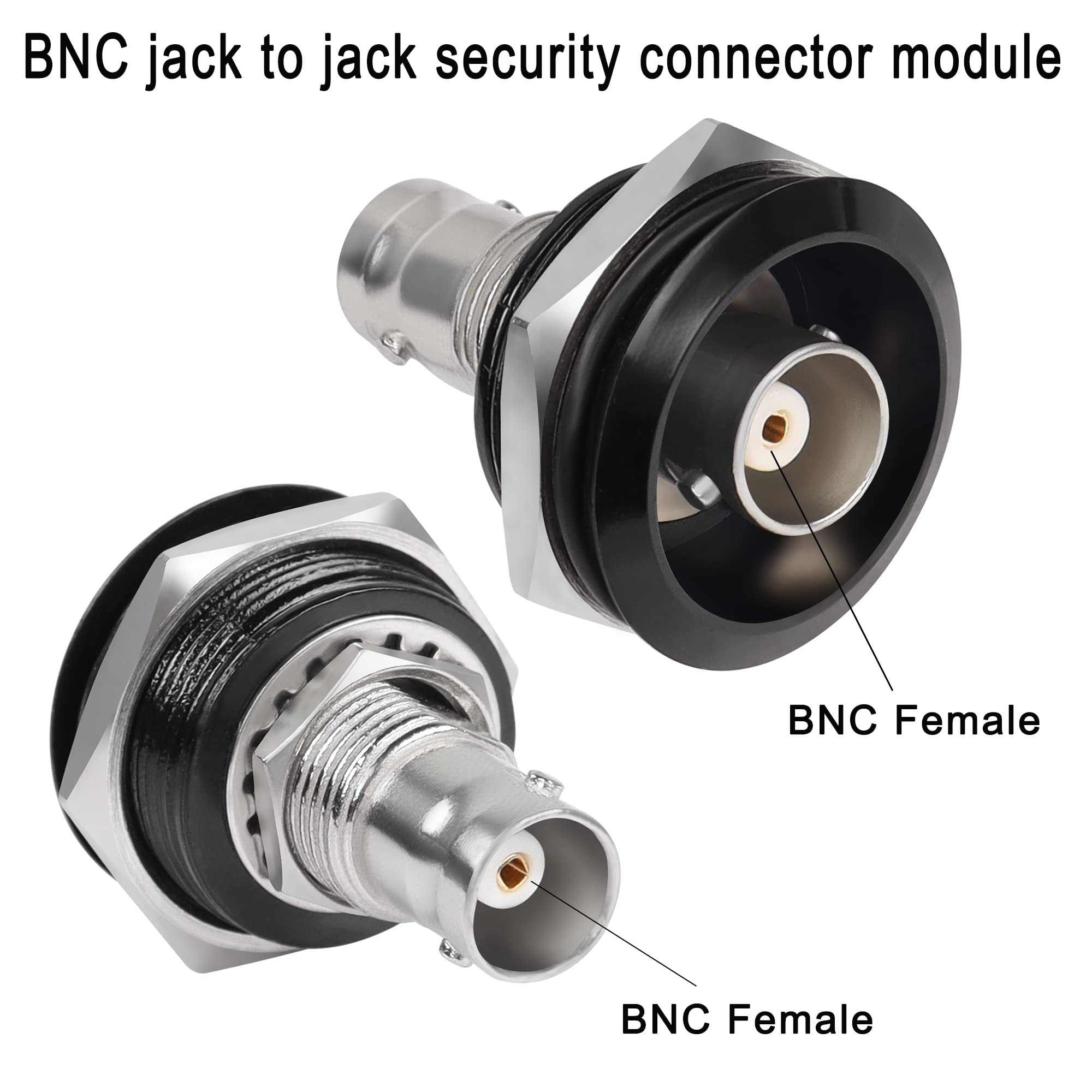

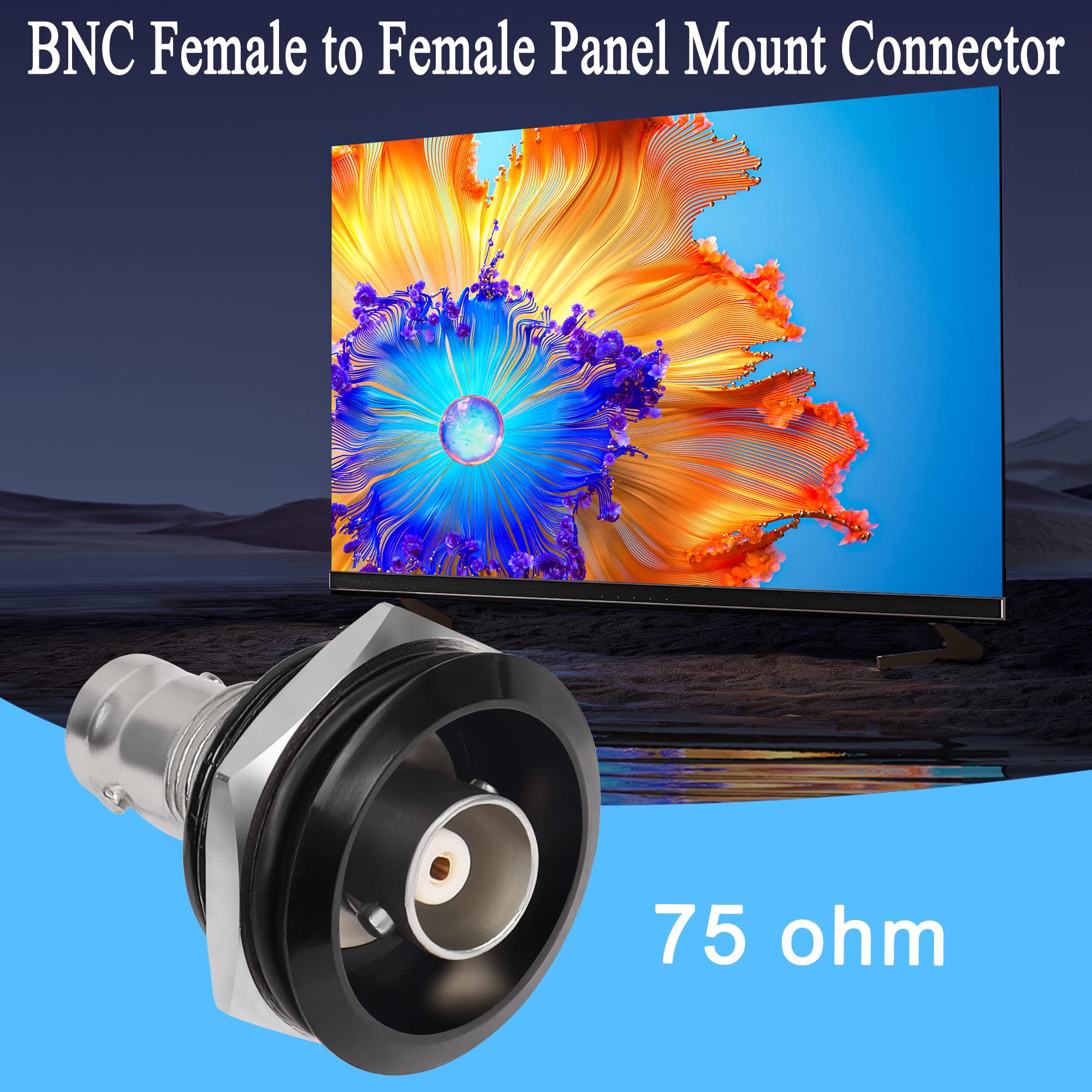

• 【75Ω】BNC jack to jack Security Connector Module. Impedance: 75 ohm.
• 【Rugged】BNC female to female Panel Mount Adapter, with die-cast zinc alloy housing, providing rugged chassis protection to ensure durability and to meet the specific needs of certain harsh conditions.

BNC Female to Female Panel Mount Monitor Module Adapter, Ideal for developing custom communication systems, input/output configurations for surveillance camera systems, connecting BNC coaxial cables for safe, stable signal transmission. It comes with M22 x 1 nut, only a φ22.5mm hole needs to be cut in the panel surface, and the nut is used to fix the installation to achieve an extended extension of the BNC video connection port. Applications in surveillance engineering, audio-visual imaging and laboratories, connection of wireless communication systems, TV, test equipment, coaxial cables, LMR, wireless LAN equipment, other RF electronic equipment. Interface type: female RF coaxial BNC Impedance: 75 Ohm (Ω) Contact resistance: <3mΩ Dielectric strength: 1.5 kVdc Frequency range: 1 MHz - 100 MHz Rated current per contact: 1.5A Rated voltage: 50V Temperature range: -30 °C to +80 °C Contacts: brass Design: round Nut fixing Thread: M22*1 Housing: Zinc alloy Package: 1*BNC female to female threaded fixed surveillance video connector
