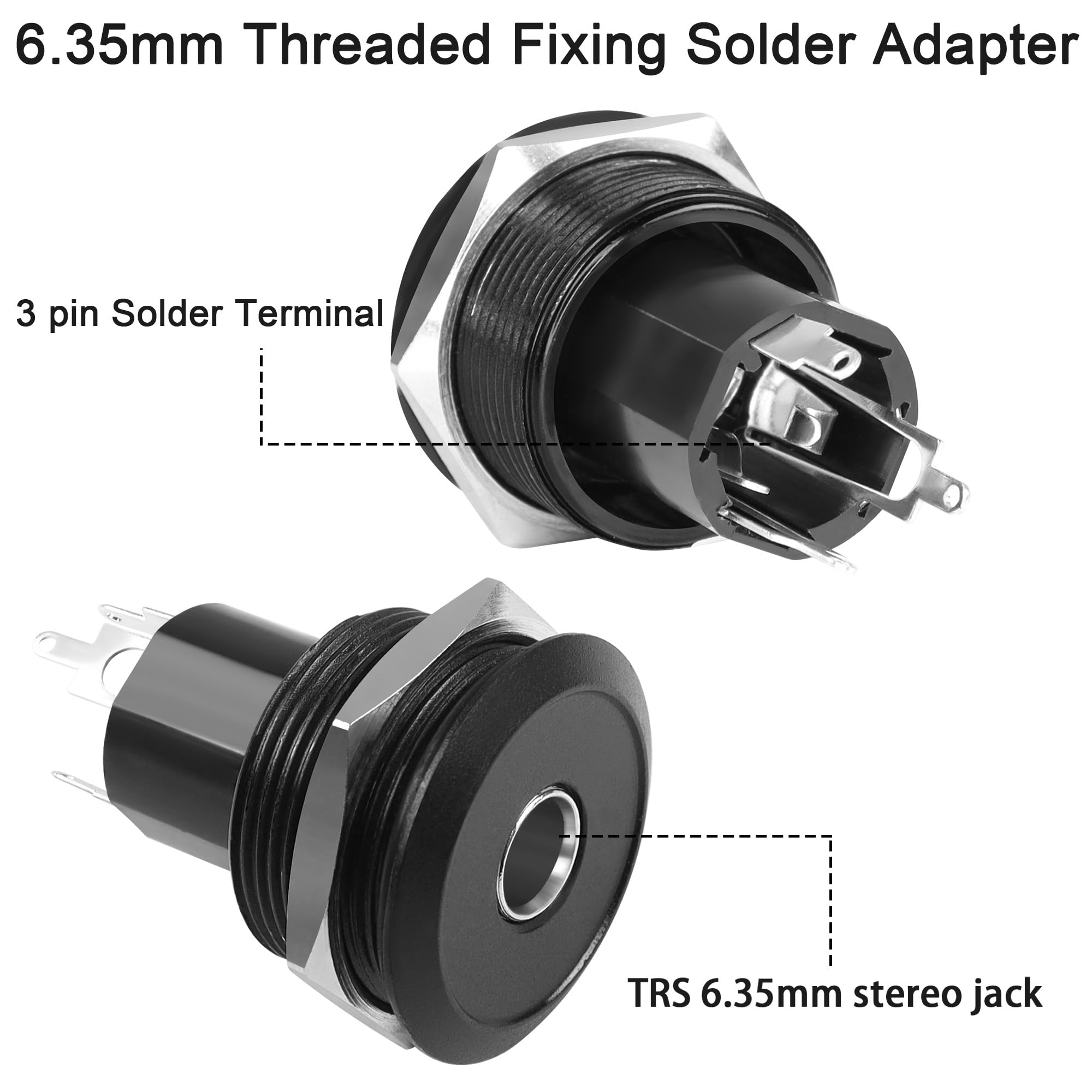

QIANRENON 6.35mm Threaded Fixing Solder Adapter TRS 1/4 Female to Solder Terminal Stereo Round Connector TRS 6.35mm Panel Mount Microphone Socket, for Microphone Speaker Amplifier Mixer

• 【Free Definition】TRS 6.35mm stereo jack Panel Mount Solder Adapter. Customise the input and output configuration of your 6.35mm audio system to provide a stable audio signal transmission environment.

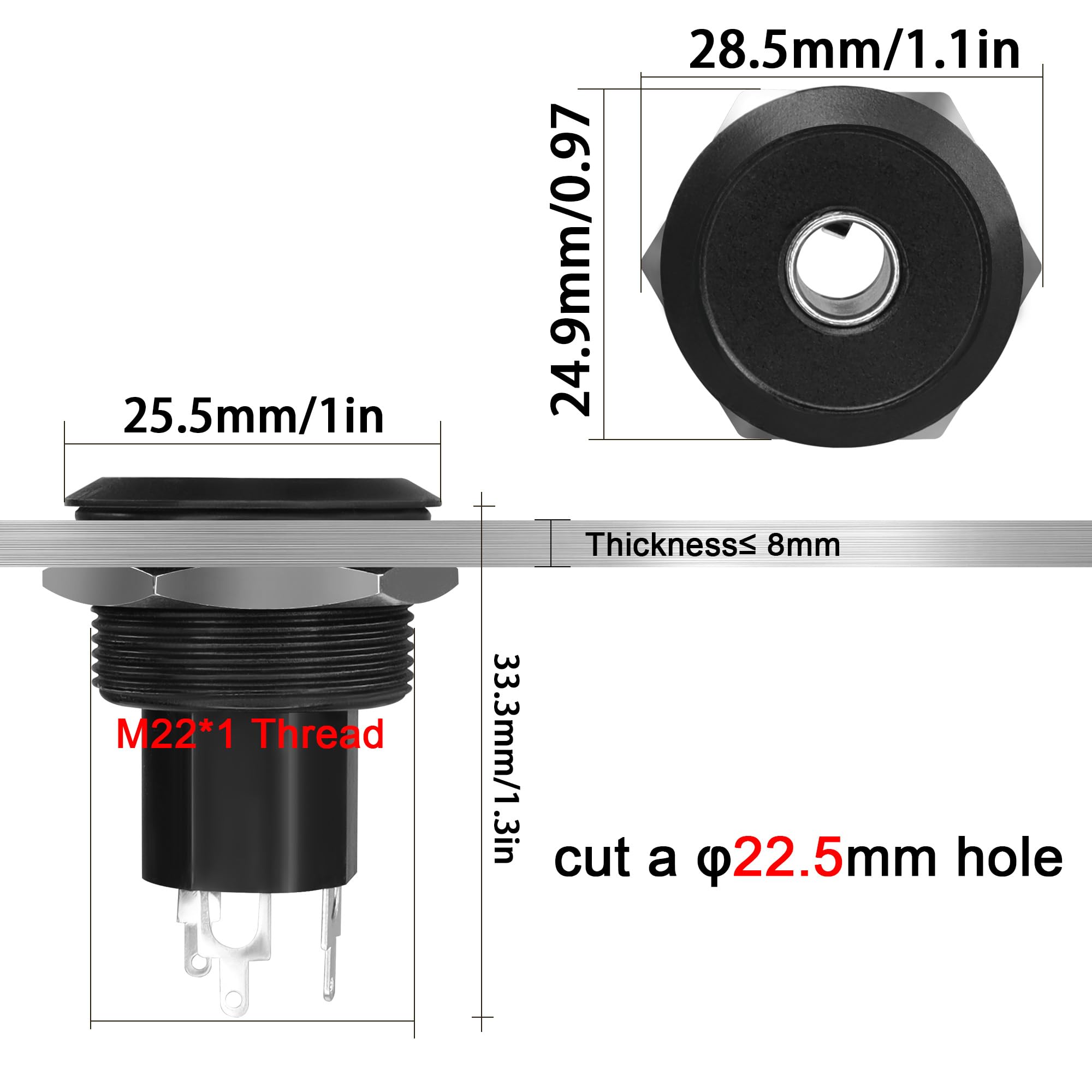

• 【Nuts Fixing】Solder type TRS 1/4 stereo jack thread fixing Round Connector. Comes with M22*1 nut, just cut a φ22.5mm hole on the board surface and fix it by the nut to realize the extension of 6.35mm audio port. Note:Mounting plate thickness ≤8mm.

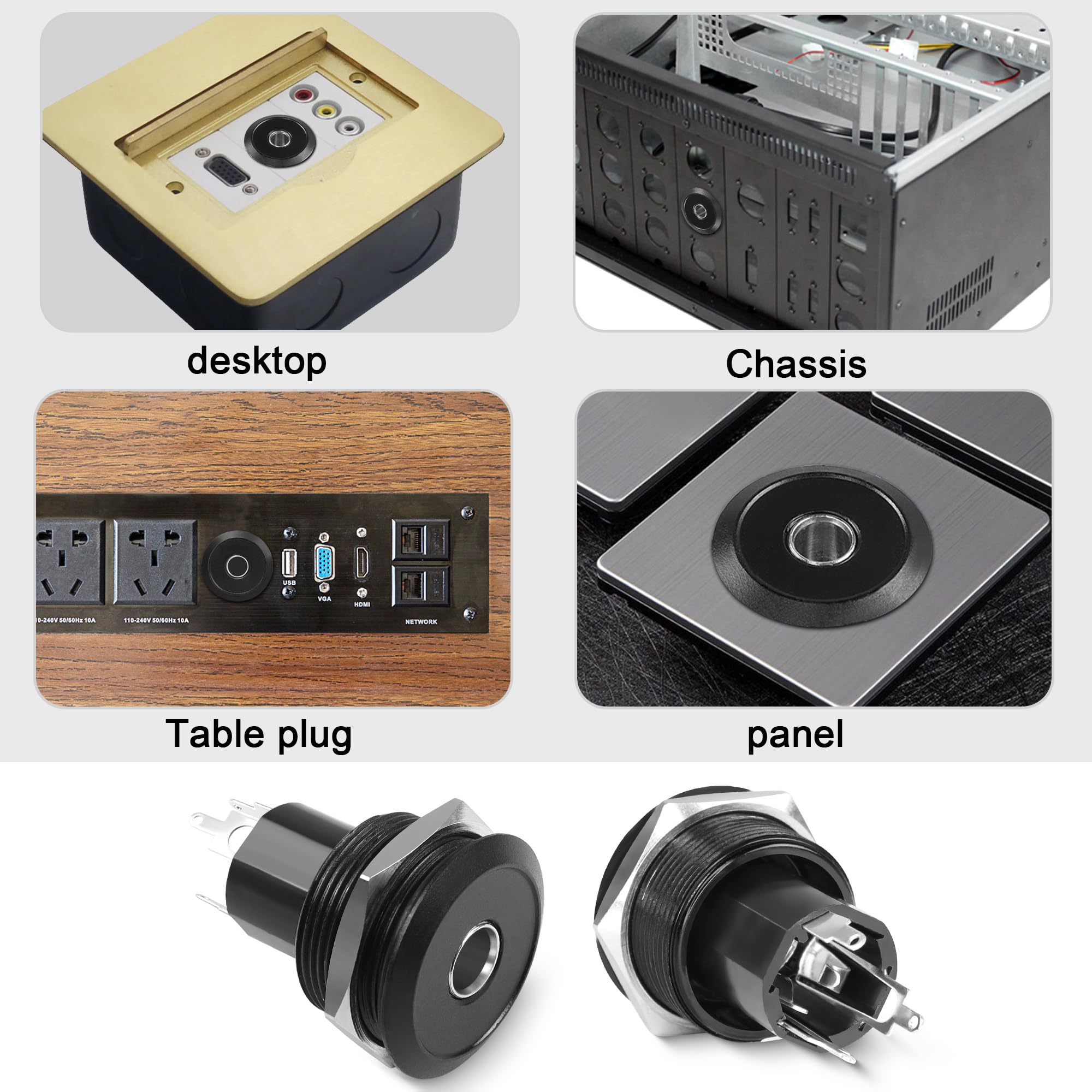

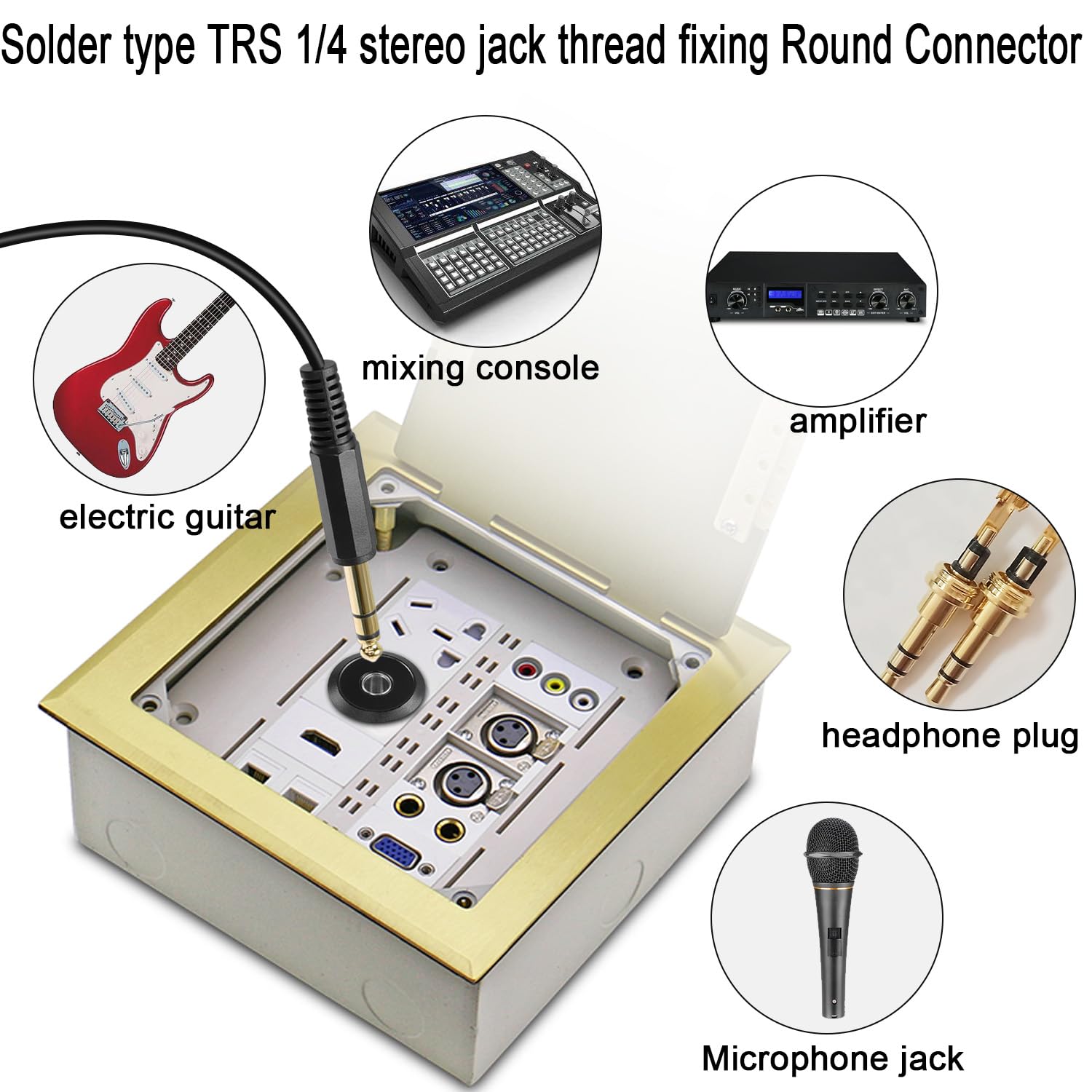

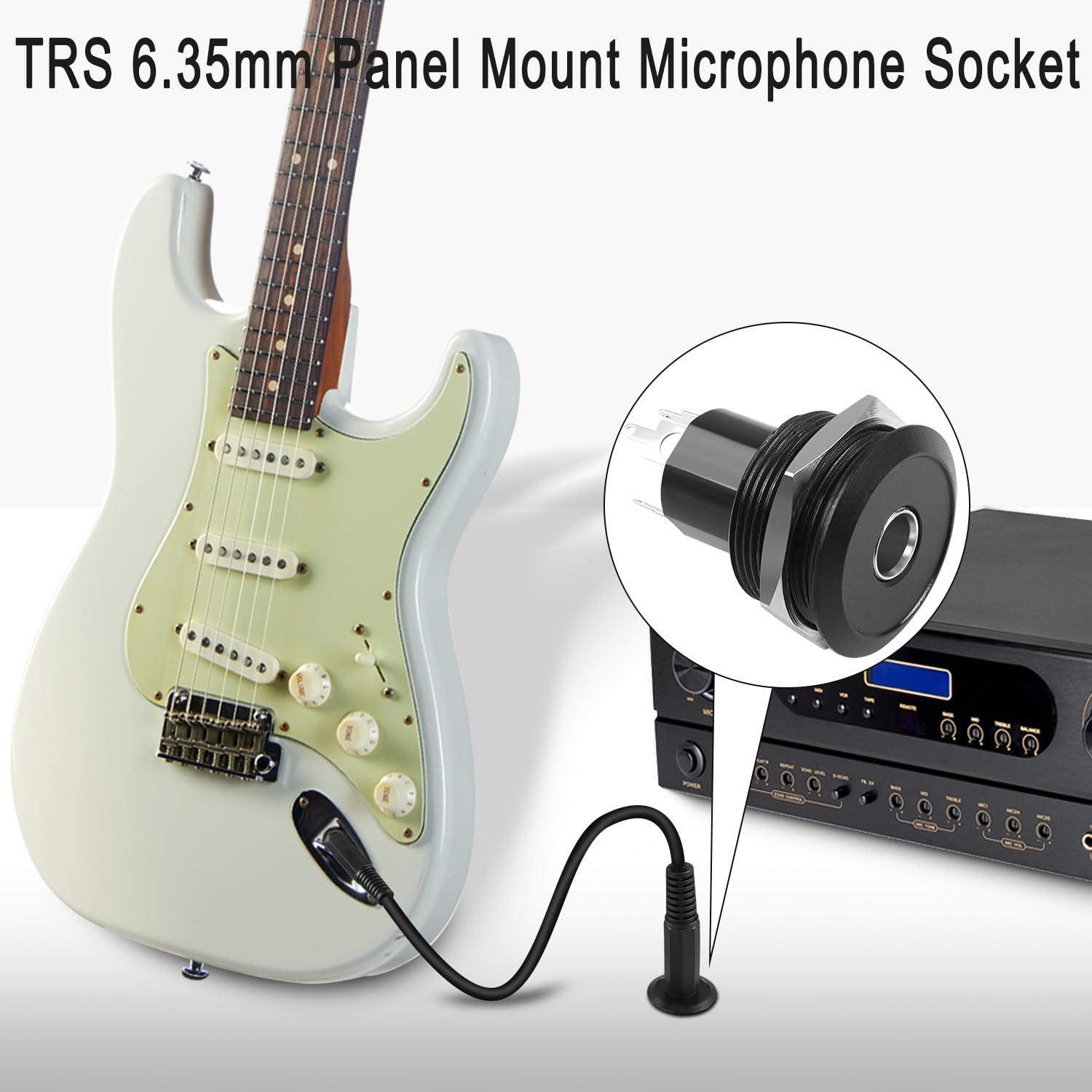

• 【Application】1/4 TRS Audio jack solder connector. Suitable for demanding live and studio recording applications, microphone jacks, headphone plugs, audio video AV PCs, amplifiers, mixing consoles.
• 【Easy to weld】TRS 6.35mm Solderable stereo socket. No professional solderer required. Simply insert the cable into the hole, twist and lock it into place, then solder.

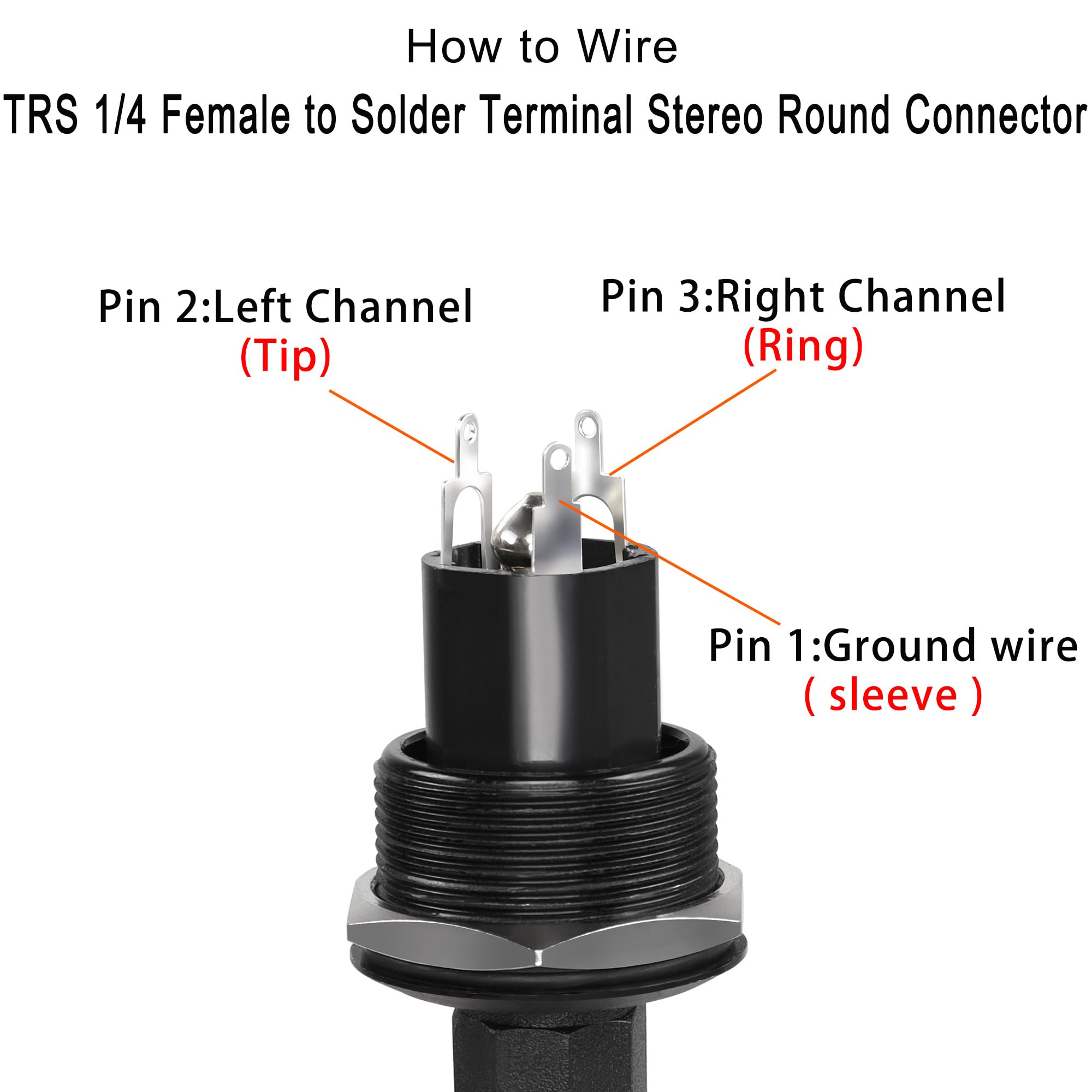

• 【Pinout】6.35mm TRS female to Solder terminal Panel Mount Round Sockets. 3 solder pin holes for input left channel (Tip), right channel (Ring) and ground (Sleeve).

TRS 6.35mm stereo socket Threaded fixing Solder adapter. Customize the input and output configuration of 6.35mm audio system to provide a stable audio signal transmission environment. Comes with its own M22*1 nut, simply cut a φ22.5mm hole in the face of the board and fix it with the nut for 6.35mm audio port extension. Suitable for demanding live and studio recording applications, microphone jacks, headphone plugs, audio video AV PCs, amplifiers, mixers. No professional solderer required. Simply insert the cable into the hole, twist and lock into place, then tin solder. Port: TRS 1/4 (6.35mm) Female Type: Solder Type Features: Threaded Fixed installation Thread size: M22*1 Mounting plate thickness: ≤8mm (0.3in) Mounting hole diameter: φ22.5mm (φ0.88in) Housing:Zinc alloy Package: 1*TRS 6.35mm threaded fixing Panel mounting Round adapter, 1*O-seal, 1*Hexagonal nut
