QIACHIP 433Mhz RF Remote Control Relay Switch DC 5V 12V 24V 60V 1CH Wireless Relay Momentary Module For garage door opener DIY

• 【Wireless Control】： The maximum range of the wireless controller can reach 262 feet/80 meters in open areas, the 433MHz RF wireless remote control switch has stable performance and can penetrate walls, floors, doors, etc. Control the devices you want to control through wireless signals, bringing more convenience to your life.
• 【Working Mode】 Voltage range 5V-60V, there are four working modes: momentary mode/switch mode/lock mode/delay mode. Multiple modes switch at will

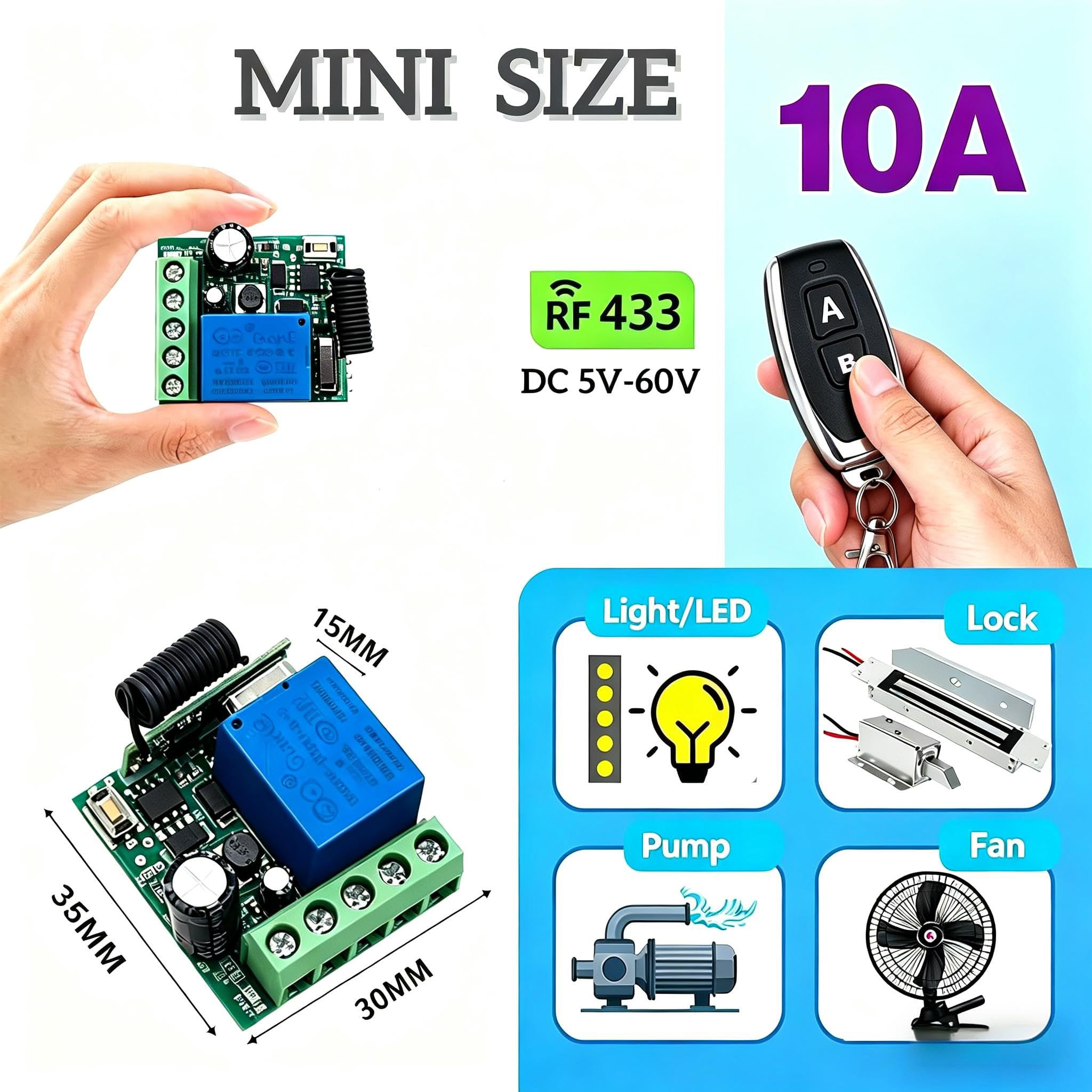

• 【Flexible design 】 Installation is easy, the compact design can be more beautiful without exposure, and up to 15 handheld transmitters can be stored at the same time. One transmitter can also control multiple receivers (the transmitter must be matched with the receiver).

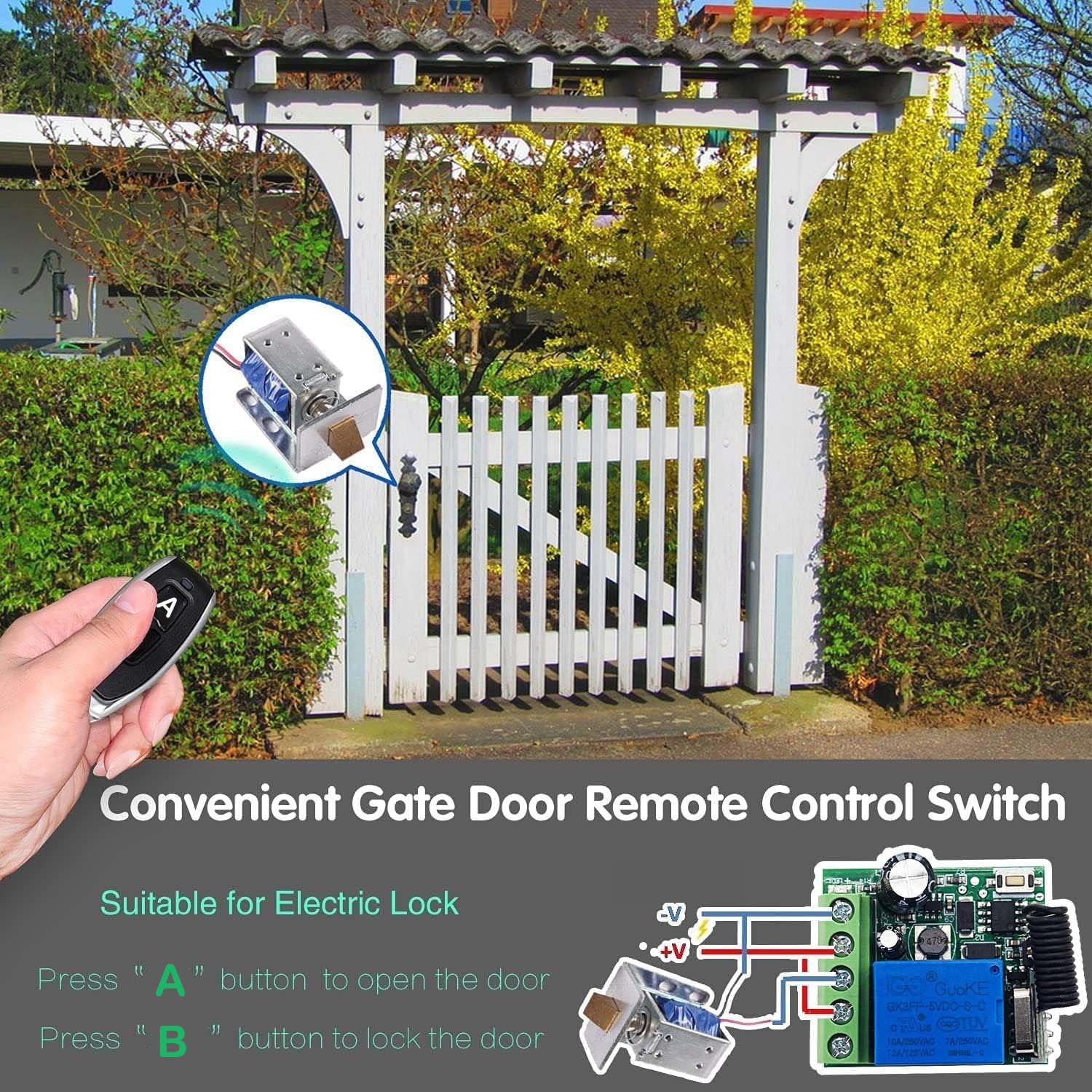

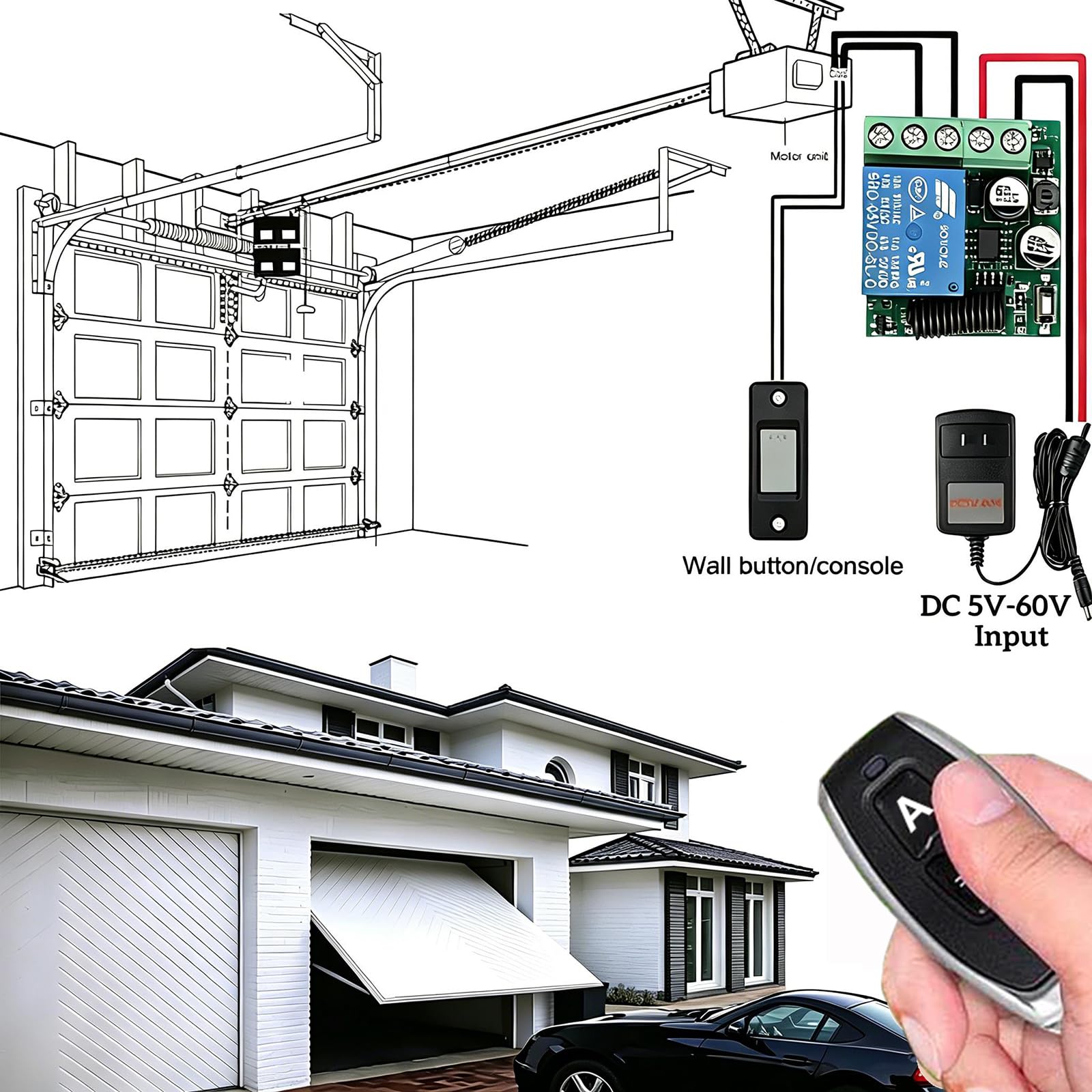

• 【Wide applications】Mainly used to control pump switches, garage doors, curtains, tubular motors and lamps. Used in home, farm, factory, office, laboratory, supermarket and other scenarios.
• 【Quality Assurance】The chip code is EV1527 learning code. This is the most popular technology nowadays, which makes the remote control system more secure.

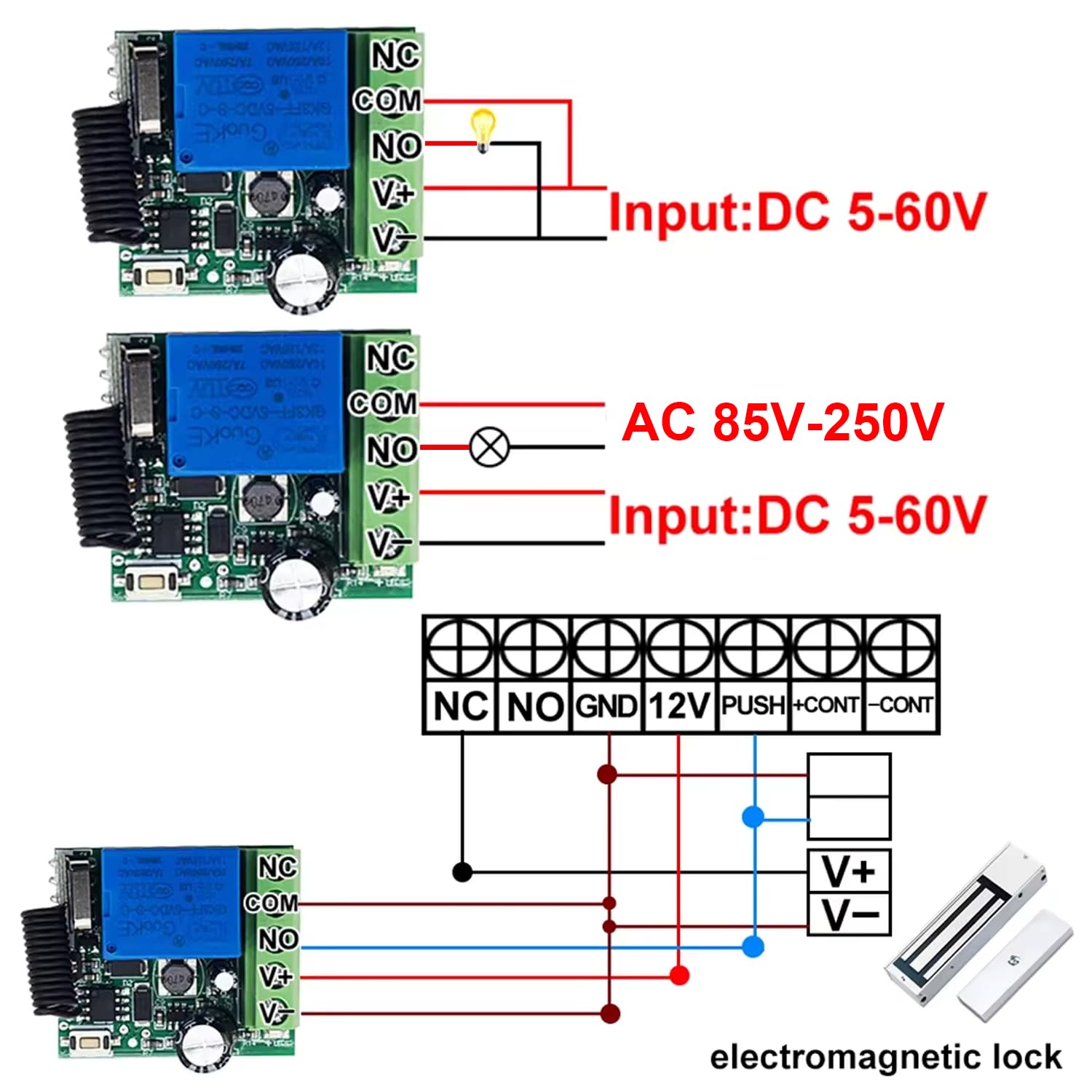

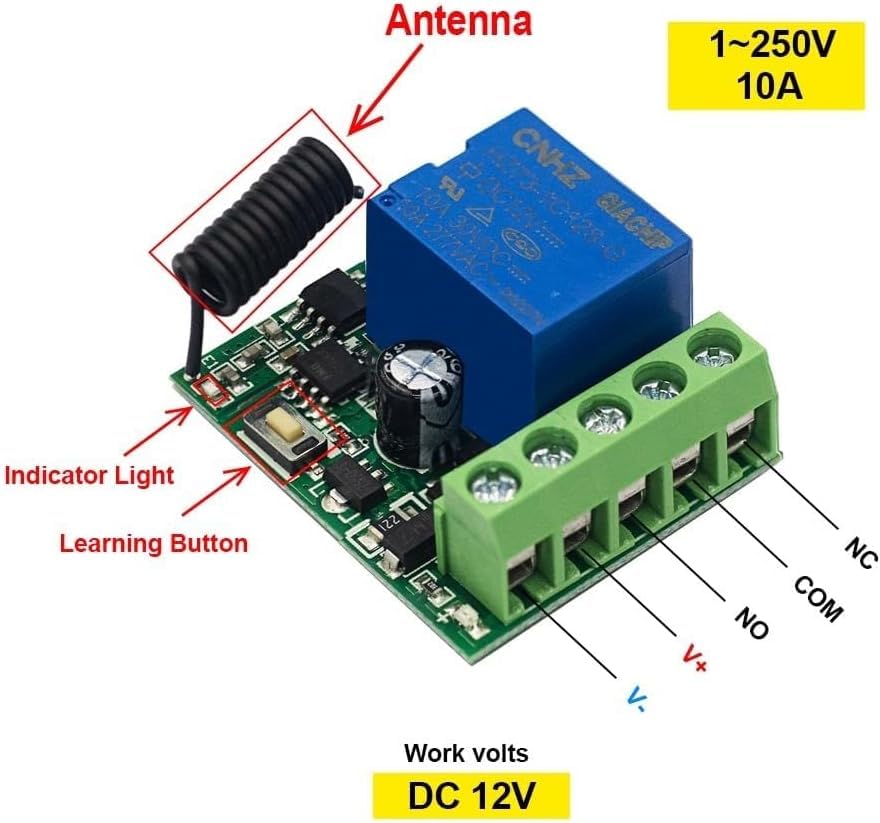

DC5V-60V 1CH Remote Control Swithch Module Specifications Of The Receiver: Model Number : KR3001-4 RF Working Mode: Superheterodyne Reception Modulation Mode: ASK Working Mode: Momentary, Toggle, Latching and Time Delay Mode. Input Voltage: DC 5V~ 60V RF Frequency: 433MHz Quiescent Current: 5mA Receiving Sensitivity: >97dbm Remote Control Range: >100m (Free Space). Wired Connection Way: Fixed Wiring Pillar. Decoding Mode:MCU Software Decoding. Working Mode:Momentary, Toggle, Interlocked Mode Latching Time delay (5s ,10s ,15s ) Specifications Of The Transmitter: Model Number : KT05-4-AB Operating Frequency: 433MHz Power by 3V Coin Cell Button Battery (Battery included ) Material: PVC Button: 2 Buttons Size: 59mm x 28mm x 8mm Operating Voltage: 3V Operating Current: 12mA Transmitting Power: 10mw Modulation Mode: ASK (AM) Encoding Type: Learning Transfers Distance: 20-50 m Operation Introduction: About Working Mode: Momentary: Press the remote button, the relay connects, release the remote button, the relay disconnects. Toggle: Press once the remote button, the relay connects, press the remote button twice, the relay disconnects. Latching: Press the remote button A, the relay connects, press the remote button B, the relay disconnect. Time Delay Mode: Press the remote control button, the relay connects; Start timing when release the remote button, the relay disconnect automatically after 5s or 10s or 15s.
