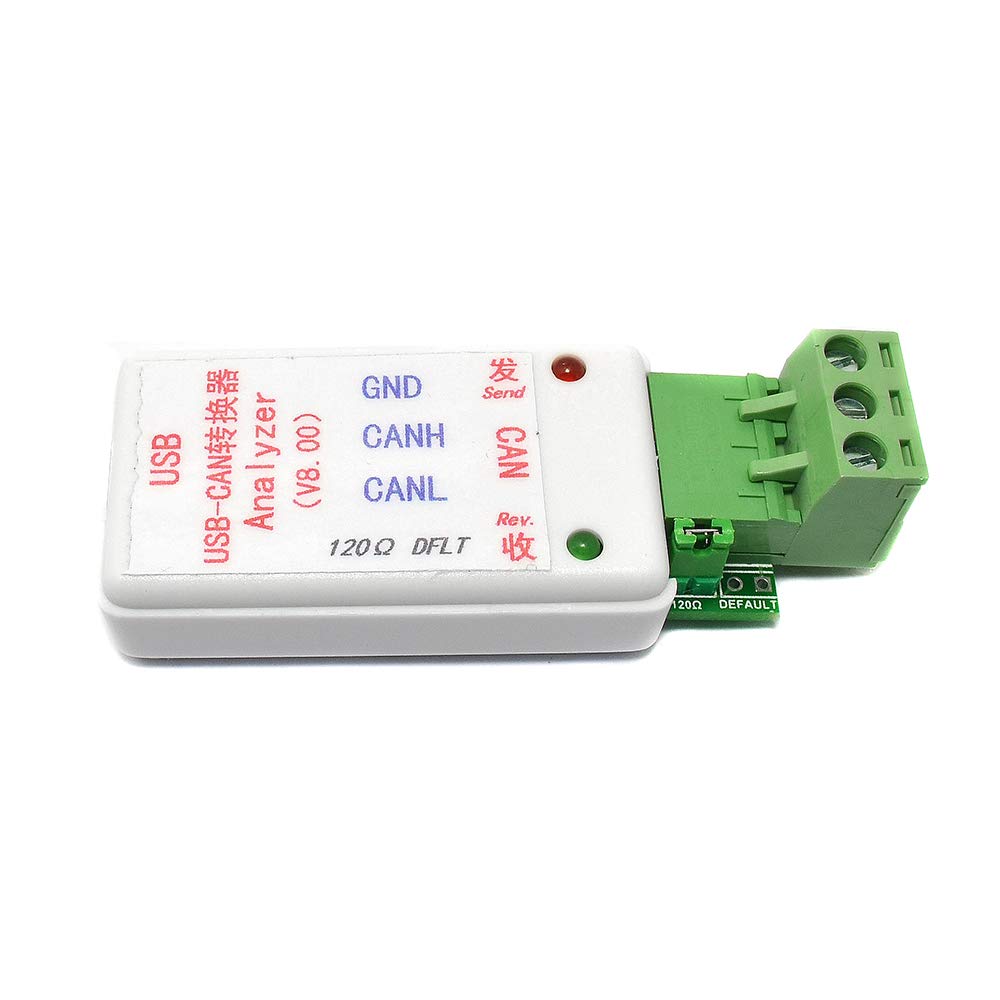

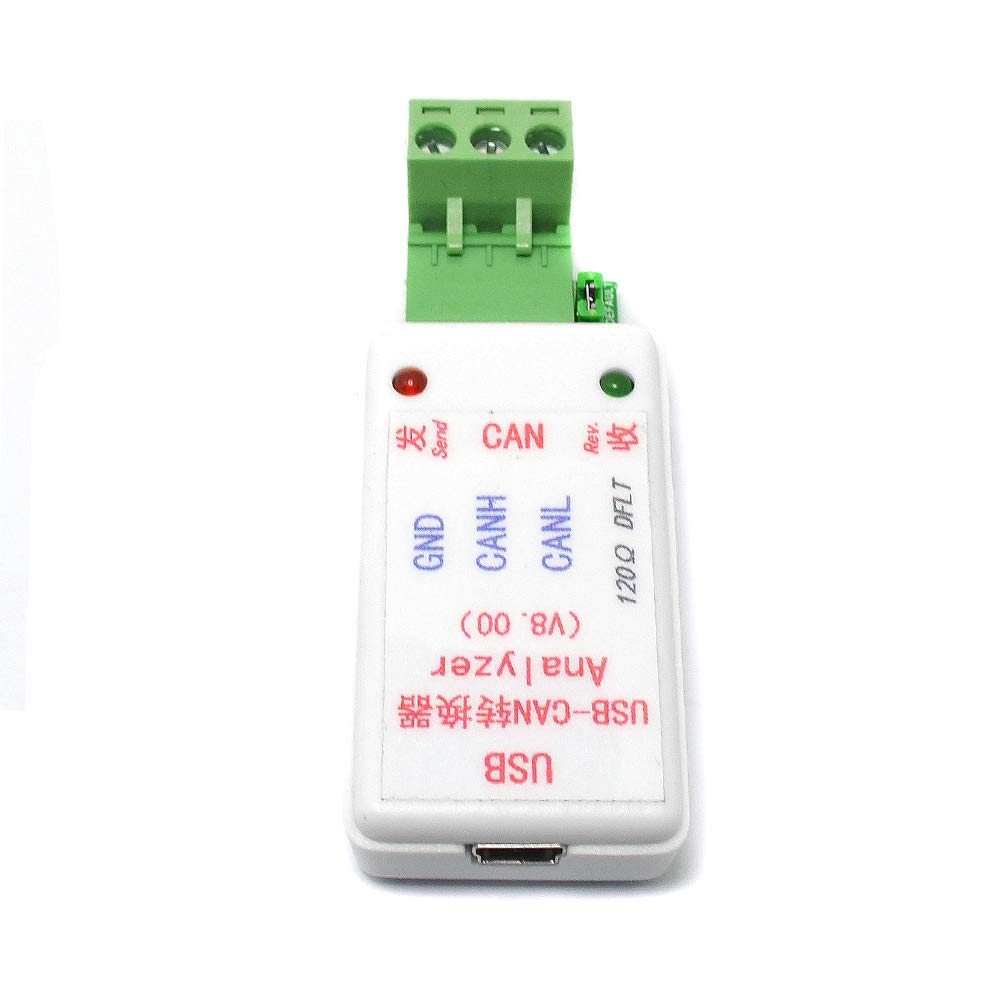

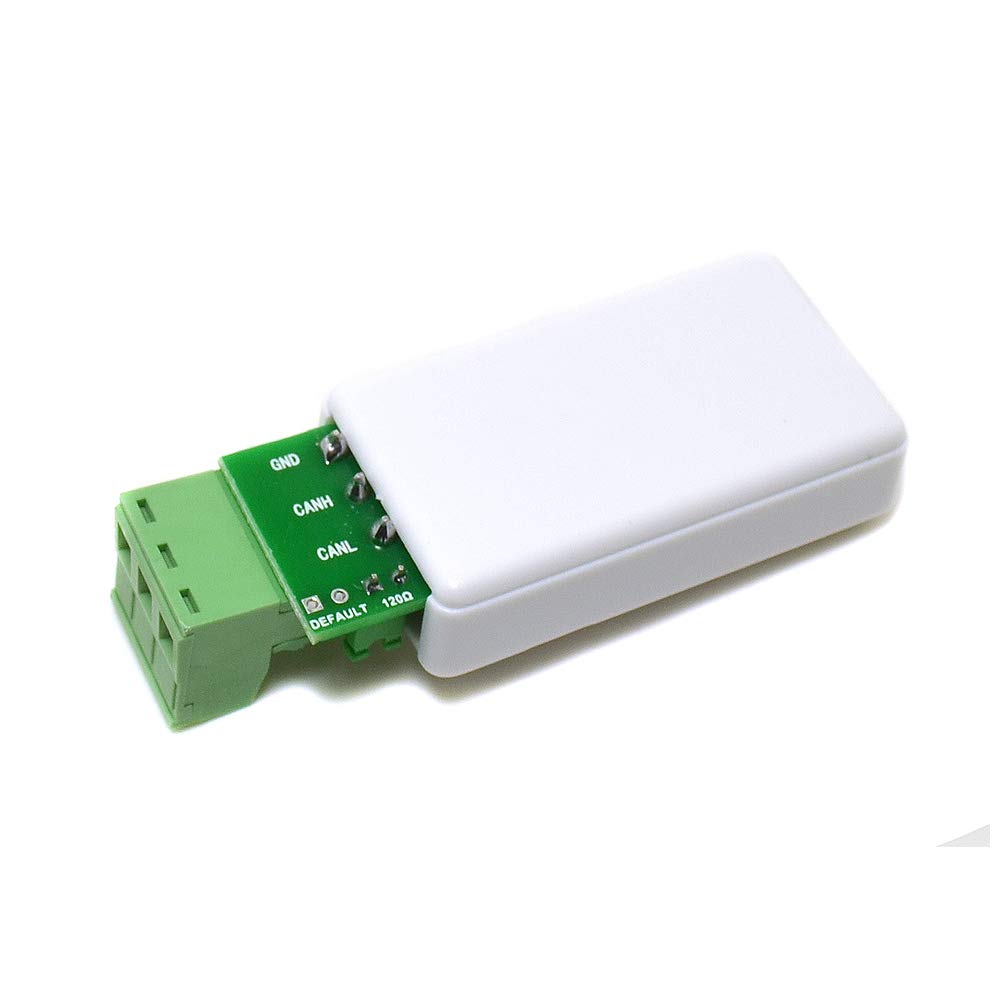

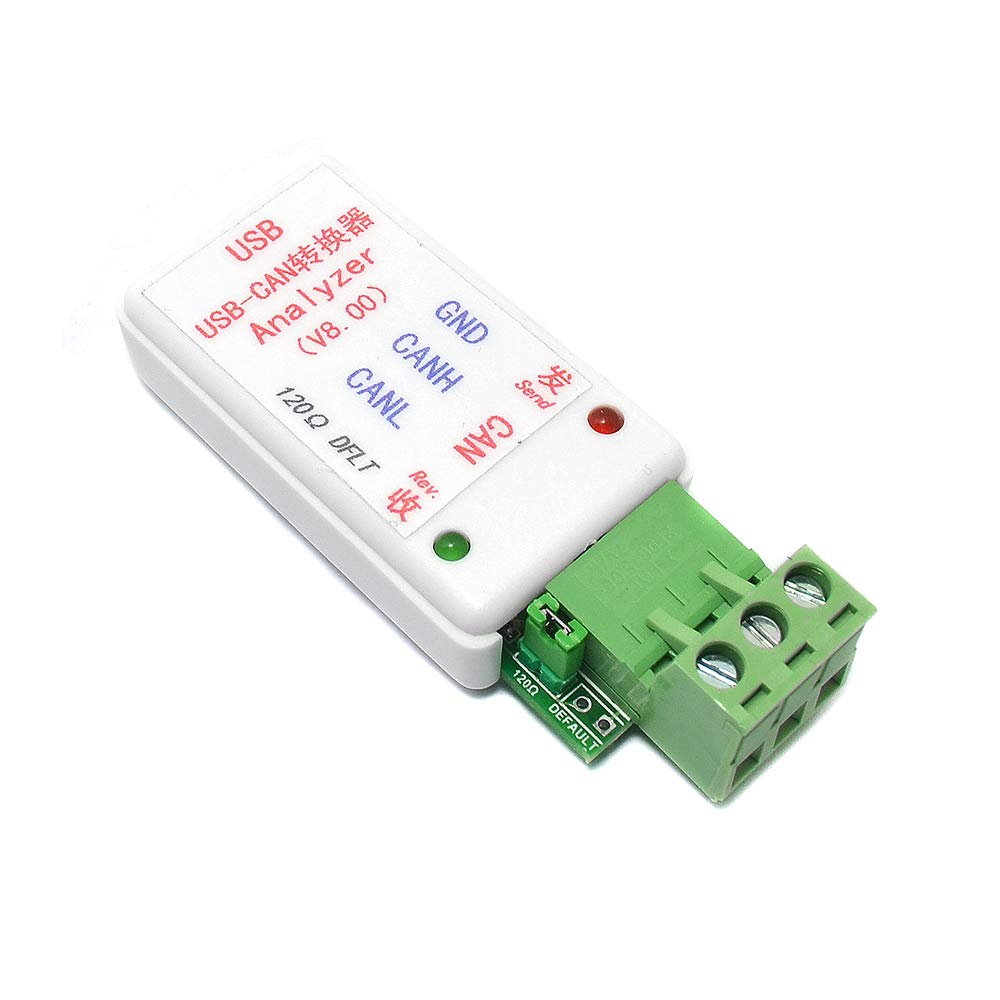

Q-BAIHE USB to CAN Analyzer Transparent Transmission USB to CAN Bus Converter Adapter Support Work Offline

• USB to CAN Analyzer Bus Converter Adapter
• TVS surge protection
• Transmitted and received data can be saved in TXT format or Excel format
• Offline function, you can send data in multiple frames offline (up to 330 messages can be sent), or you can reply data offline (no more than 100 responses)
• Software and user manual could be supplied, please download directly

Features: Hardware 1. TVS surge protection 2. With 120ohm matching resistor Software 1. Communication supports CAN2.0A (standard frame) and CAN2.0B (extended frame) 2. CAN communication baud rate range (5K~1M), can customize CAN baud rate 3. CAN transceiver data display with time stamp, the received data can be displayed in sequence, or refresh display 4. The transmission data can be sent in a single frame or in multiple frames, or manually, or periodically, or cyclically, debugging is more convenient 5. Automatically answer when accepting data. 6. Can manually check the CAN bus status 7. You can directly set the ID you want to accept. It is not by setting the filter ID or mask ID. You can directly configure the ID you want to accept. 8. There are four working modes to choose from (normal mode; loopback mode; silent mode; loopback silent mode) 9. Send and receive data can be saved as TXT format or Excel format 10. The baud rate of the virtual COM port can be modified. The default communication baud rate is over 1M. 11. All the configuration is automatically saved, you can use it directly next time. 12. The second development is very simple, you only need to process one sending and receiving command. 13. transparent transmission 14. The software interface can be switched to English. 15. Offline function, you can send data in multiple frames offline (up to 330 messages can be sent), or you can reply data offline (no more than 100 responses) 16. Driver download: www.lillyelectronicsllc.com/download/USB-CAN software and drive(v8.00).zip Package: 1pc USB to CAN Analyzer with USB cables.
