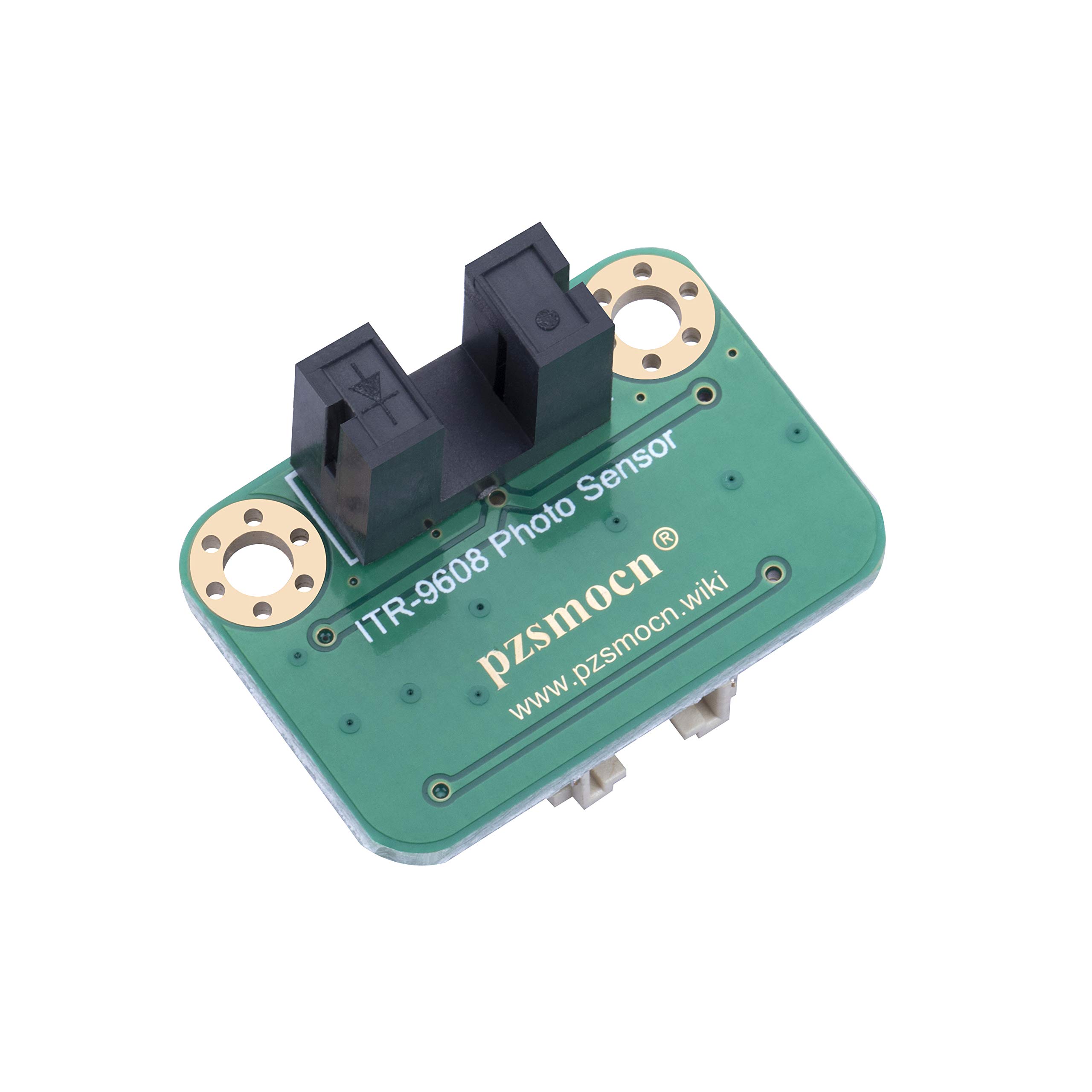

Pzsmocn: ITR9608 Photo Sensor Compatible with Raspberry Pi/Arduino Board. for Copier, Printer, Facsimile, Ticket Vending Machine, Opto-electronic Switch, Motor Speed Detection, Pulse Counter.

• High-quality sensor, using infrared light detection, almost free from stray light interference.
• Schmitt trigger is used to ensure good waveform and stable signal.
• Easy to understand signal output instructions. (When blocking: output low level, signal indicator light is on)

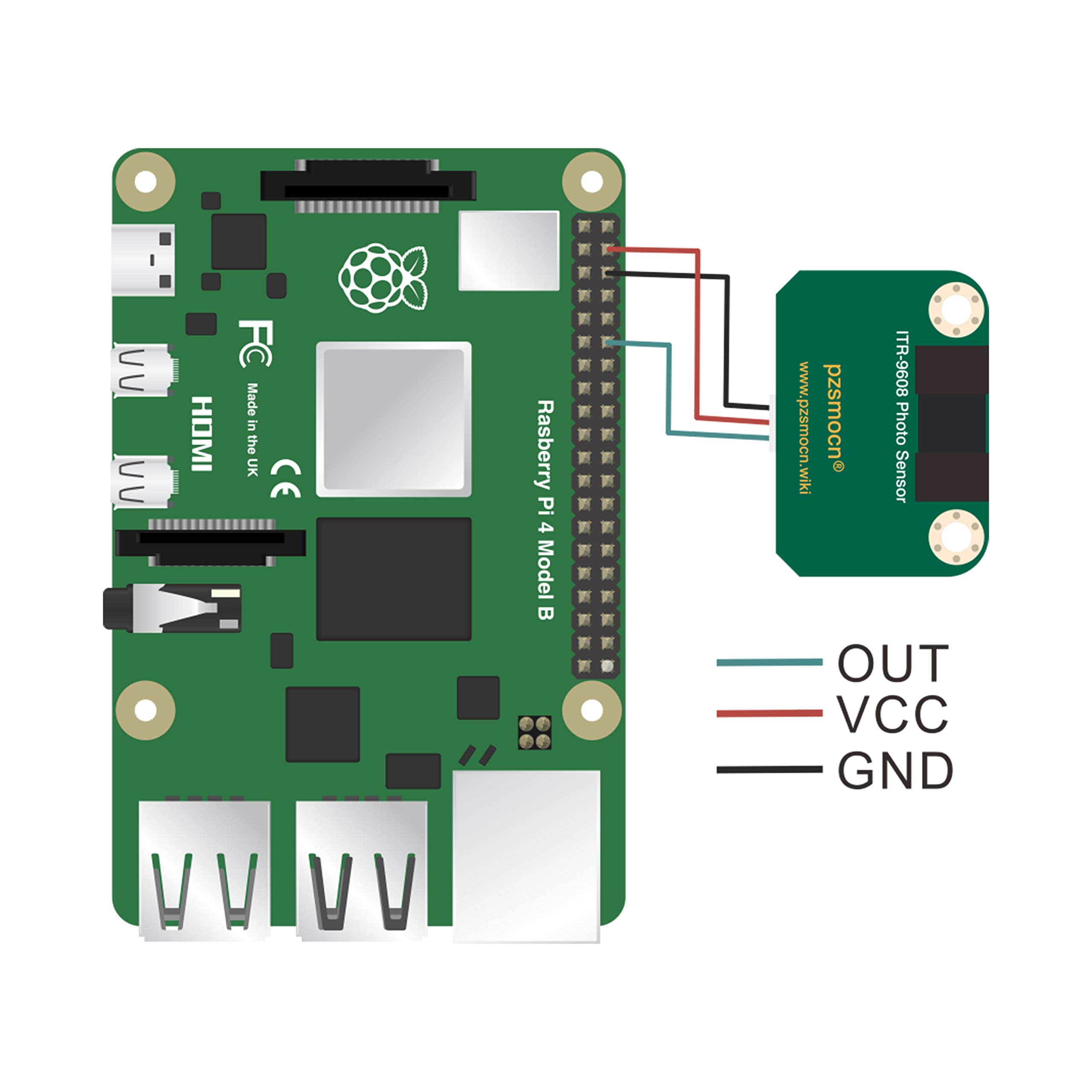

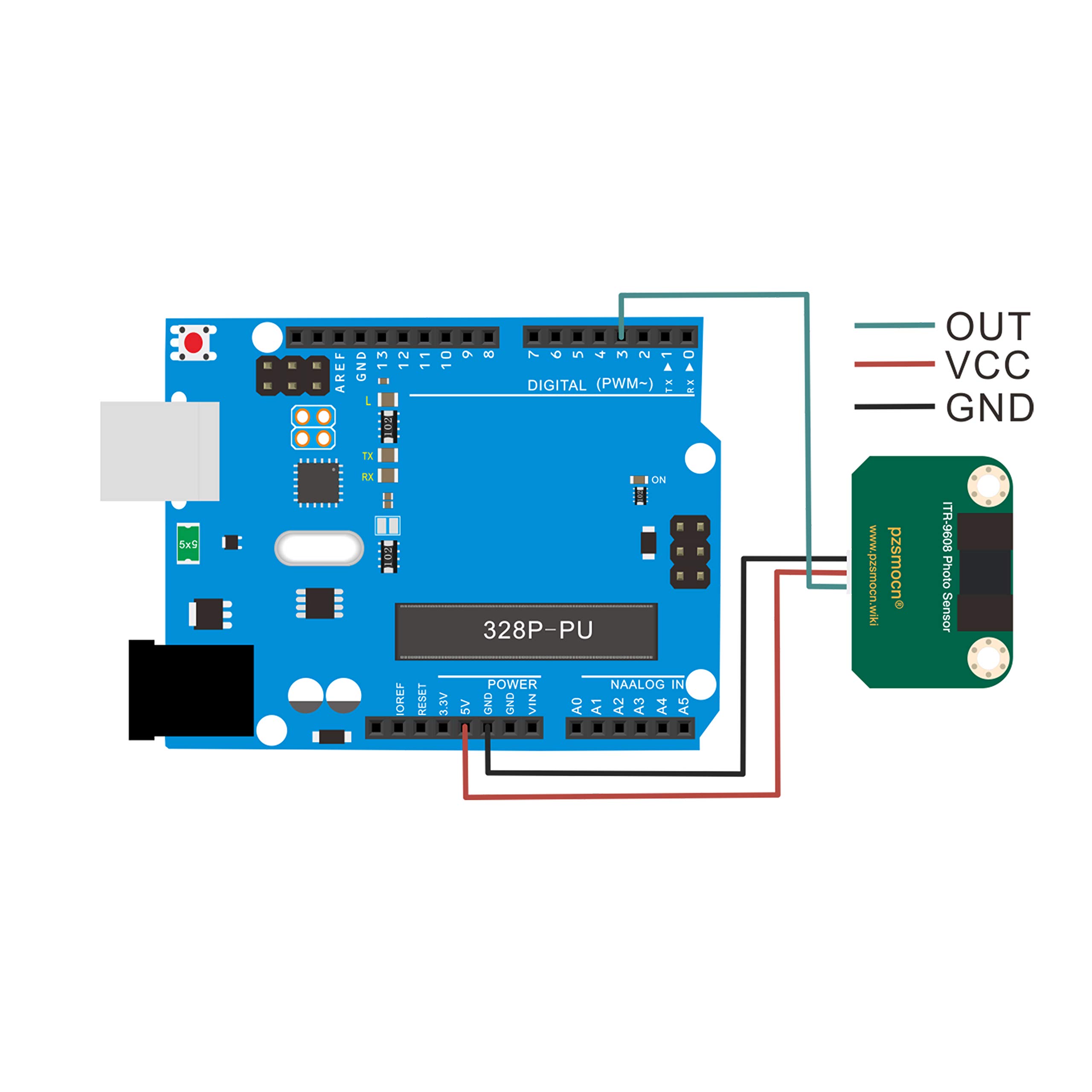

• Application Fields: This product is compatible with Raspberry Pi/Arduino board, widely used in copiers, printers, fax machines, ticket vending machines, photoelectric switches, motor speed detection, pulse counters.
• Wiki: http://www.pzsmocn.wiki/index.php/ITR9608-Photo_Sensor

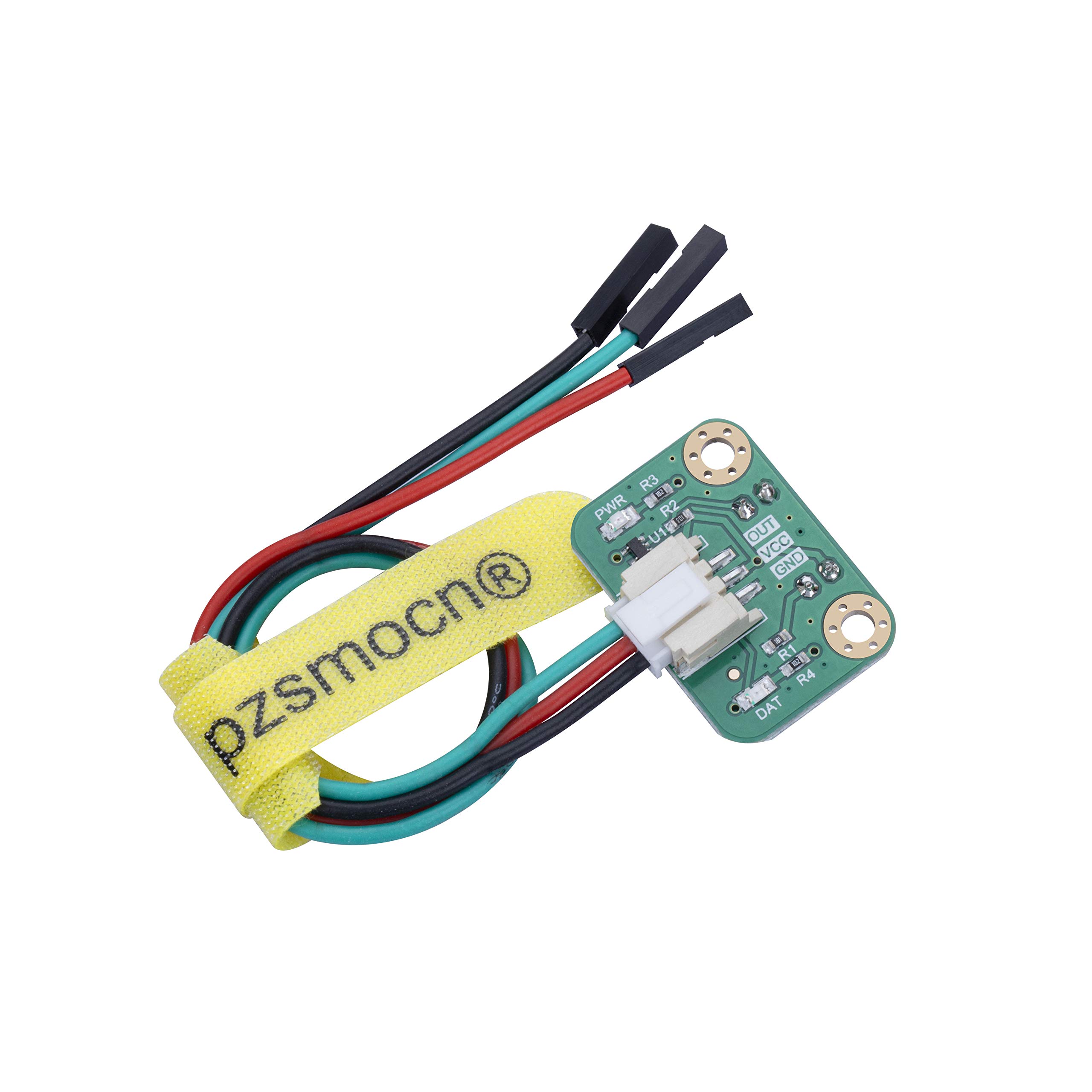

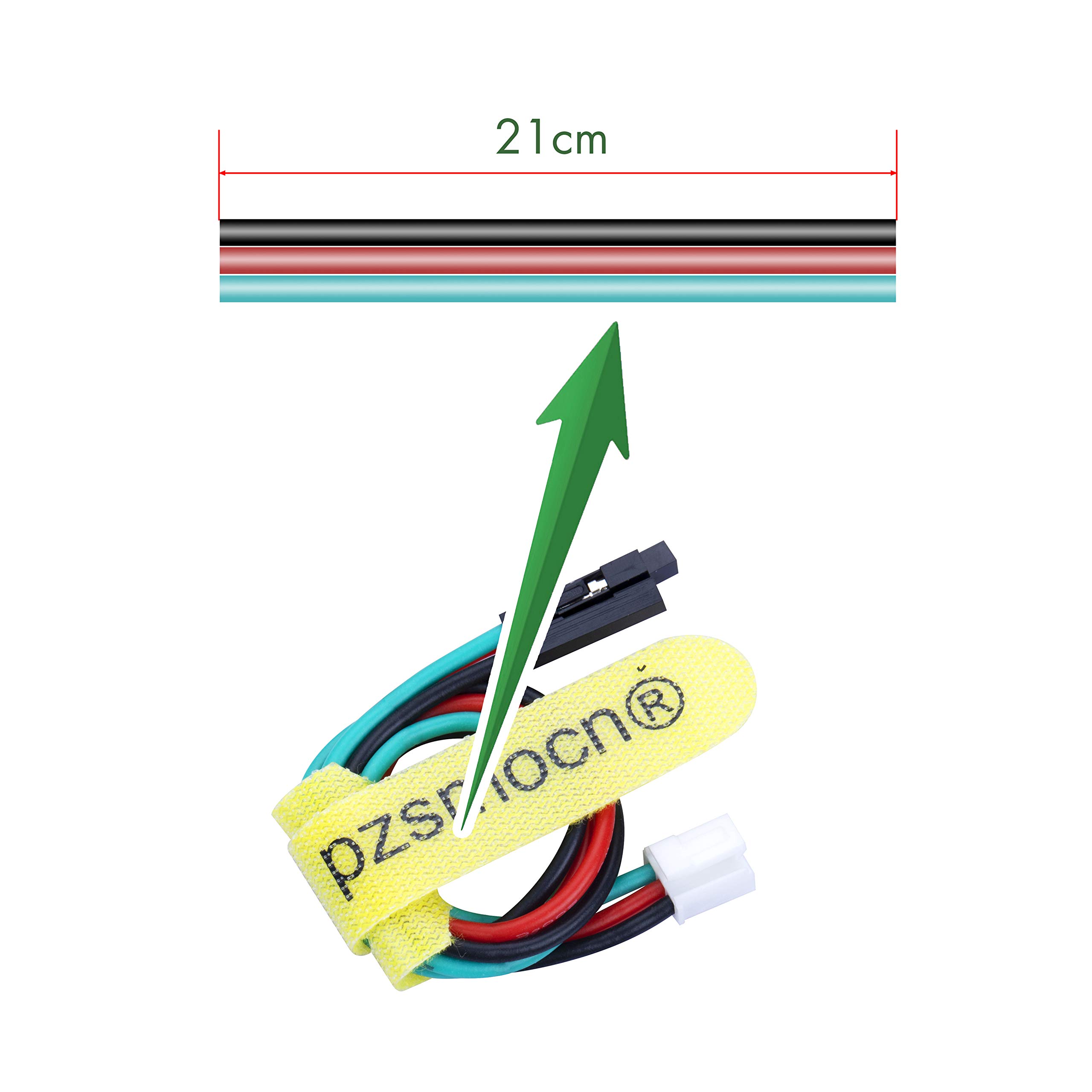

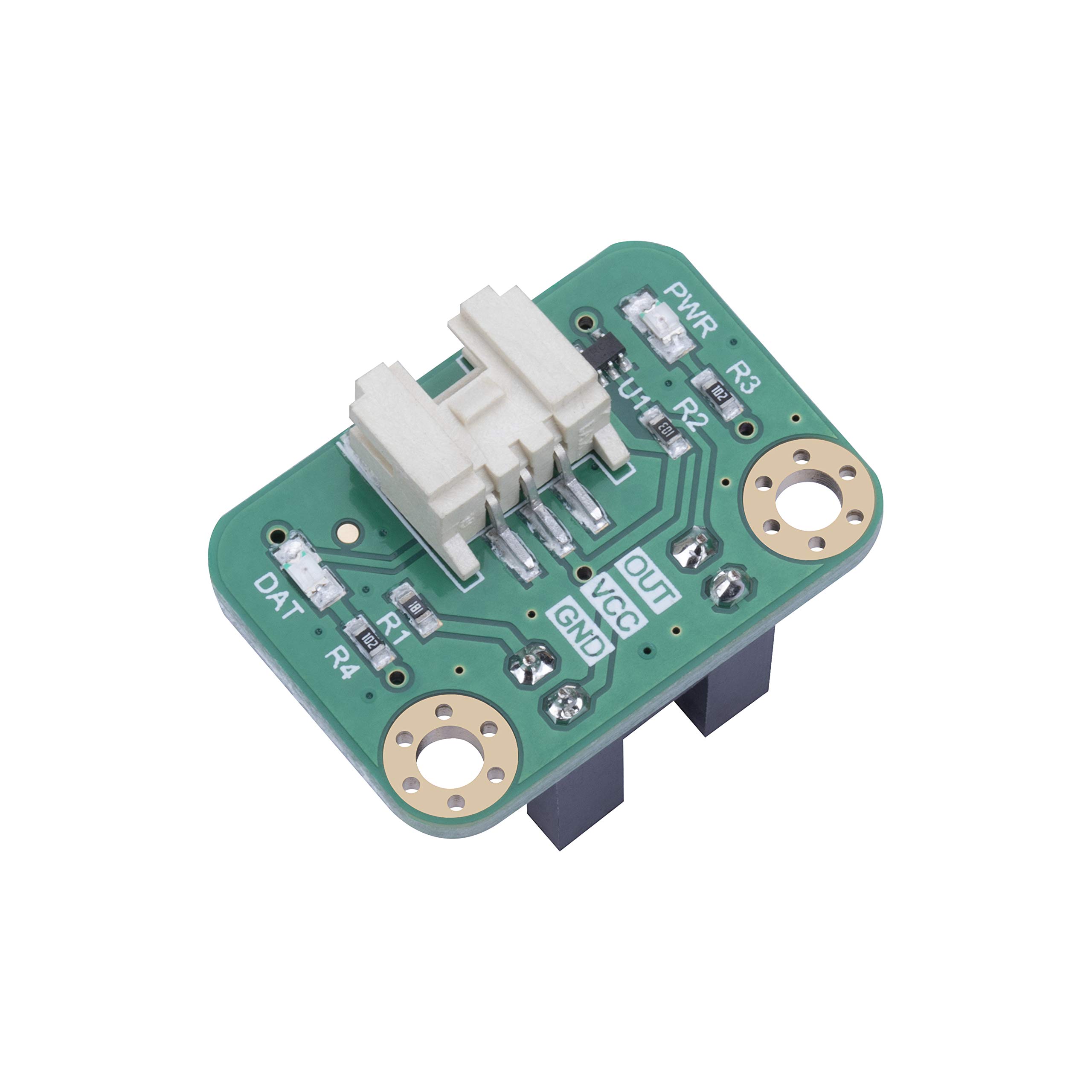

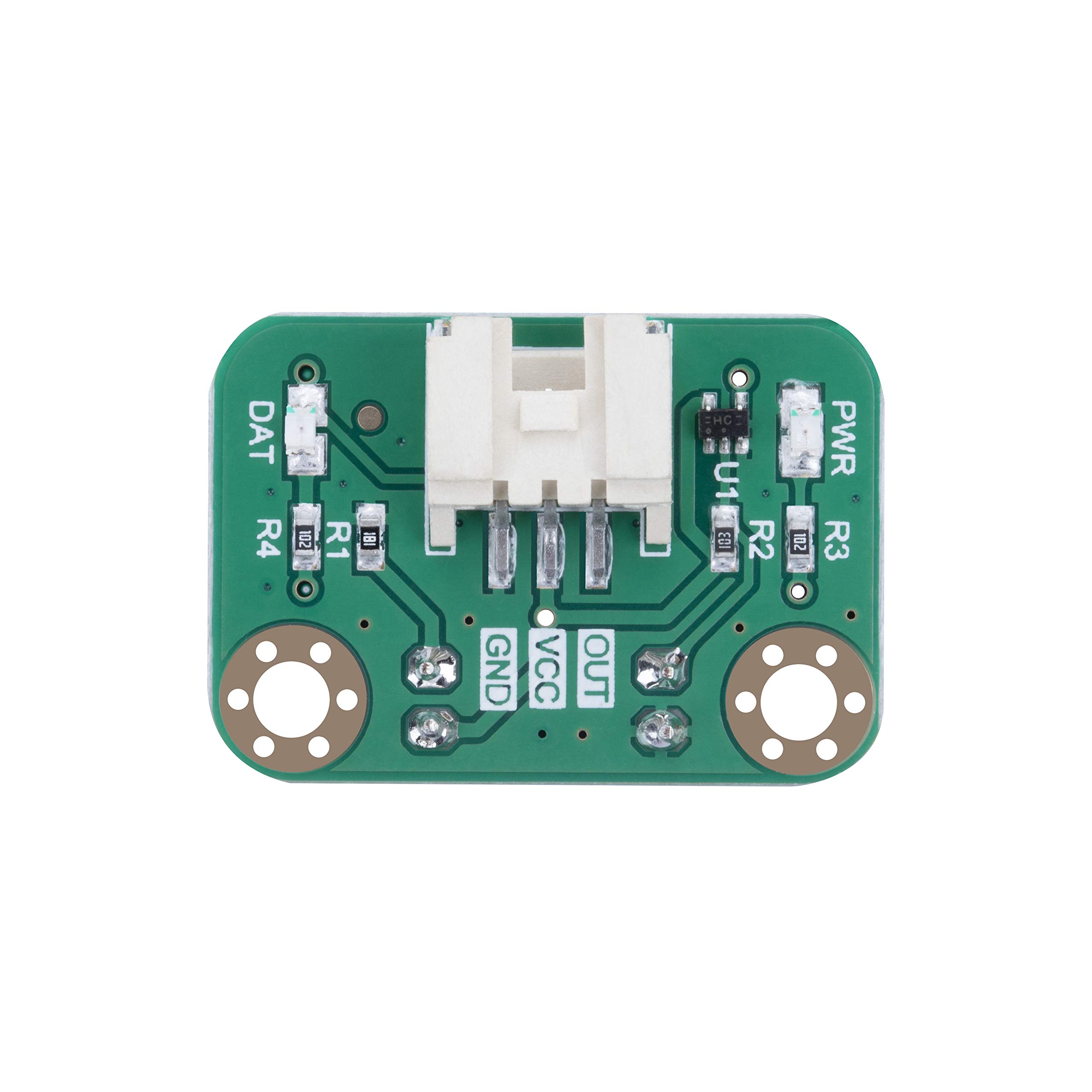

Thank you for choosing our ITR9608 Photoelectric Sensor. The ITR9608 (Slot Optical Switch) consists of a gallium arsenide infrared light-emitting diode and an NPN silicon phototransistor. They are wrapped side by side in a black thermoplastic housing on the convergent optical axis. The phototransistor only receives infrared radiation, and the packaging system is responsible for optimizing mechanical resolution, coupling efficiency and isolating ambient light. The slot in housing a provides a way to interrupt the signal of printers, scanners, copiers, or other opaque materials, and switch the output from the ON state to the OFF state. ITR9809 also has the characteristics of fast response time, high resolution, high sensitivity, and lead-free environmental protection. Widely used in coin-operated machines, induction sanitary ware, small household appliances, copiers, stage speakers, scanners, fax machines, automatic sensors and other products. The sensor comes with a JST PA SMT 3-pin horizontal sticker and a buckle socket. In addition, we also provide a JST PA 3-pin to DuPont female single-head wire for easy wiring. Model and Standard Sensor Specifications ■ Operating Voltage:DC 3.3V to 5V ■ Dimensions: 28MM * 35MM * 8.4MM Wire Specifications ■ Fixing Hole Size: 3MM ■ Withstand Voltage: less than 50V ■ Withstand Current: less than 1000MA ■ Length: 21CM，buckle attached ■ Wire Sequence: Black(Negative power supply), Red(Positive power supply), Green(Digital signal output) Delivery List ITR9608 Photo Sensor * 1 20-slots Encoder Disk * 1 JST PA 3-Pin Wire * 1
