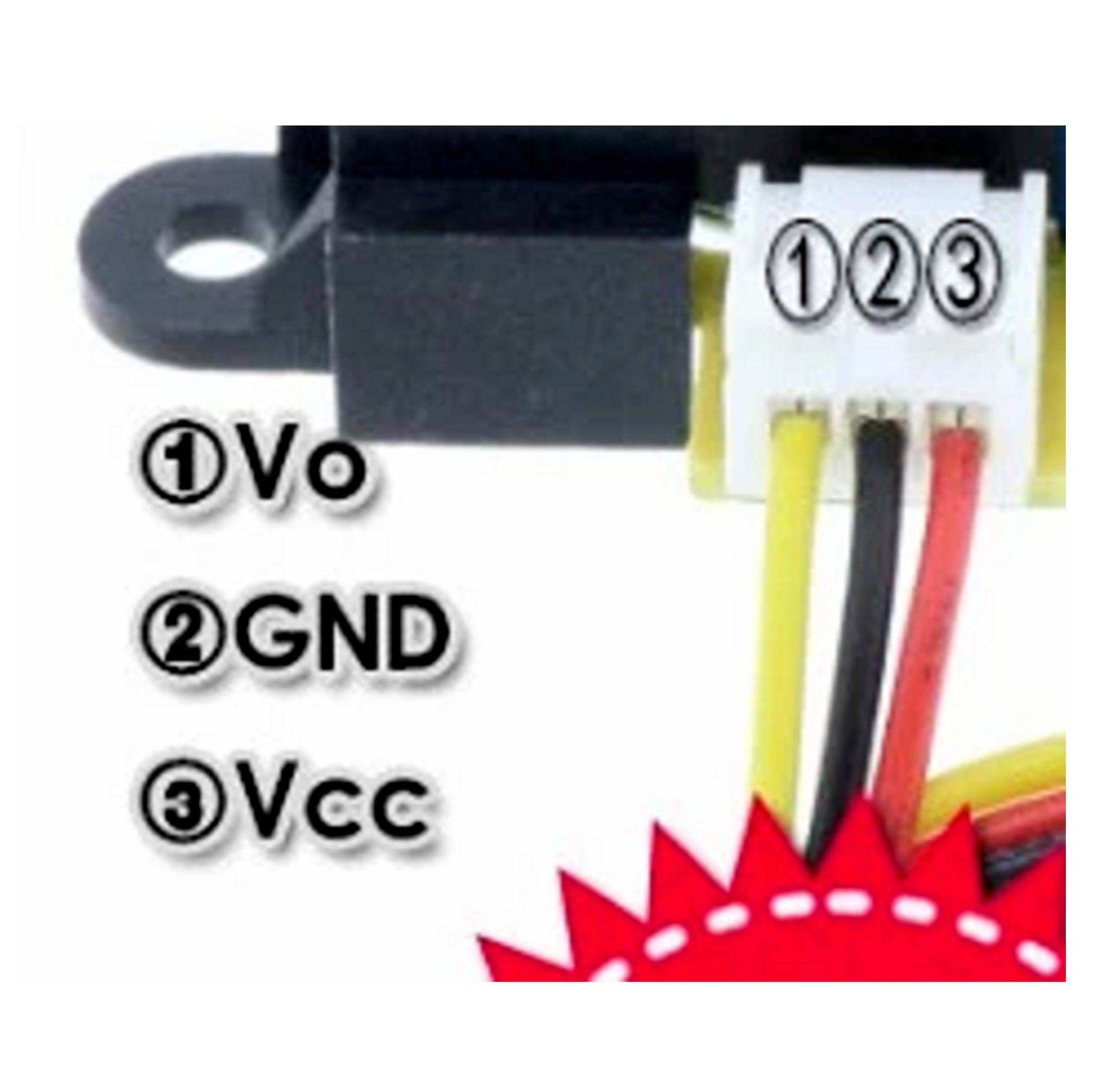

pzsmocn IR Distance Sensor For Arduino 4" - 32"(10-80cm)/Sharp Distance Sensors,3-pin JST Connector,for robots ranging,Obstacle Avoidance and Advanced Path Planning.

• operating voltage: 4.5 V to 5.5 V. average current consumption: 30 mA (typical).
• Distance measuring range: 10 cm to 80 cm (4 to 32 ). output type: analog voltage. output voltage differential over distance range: 1.9 V (typical).
• response time: 38 Plus/minus 10 ms. package size: 29.5*13.0*13.5 MM .

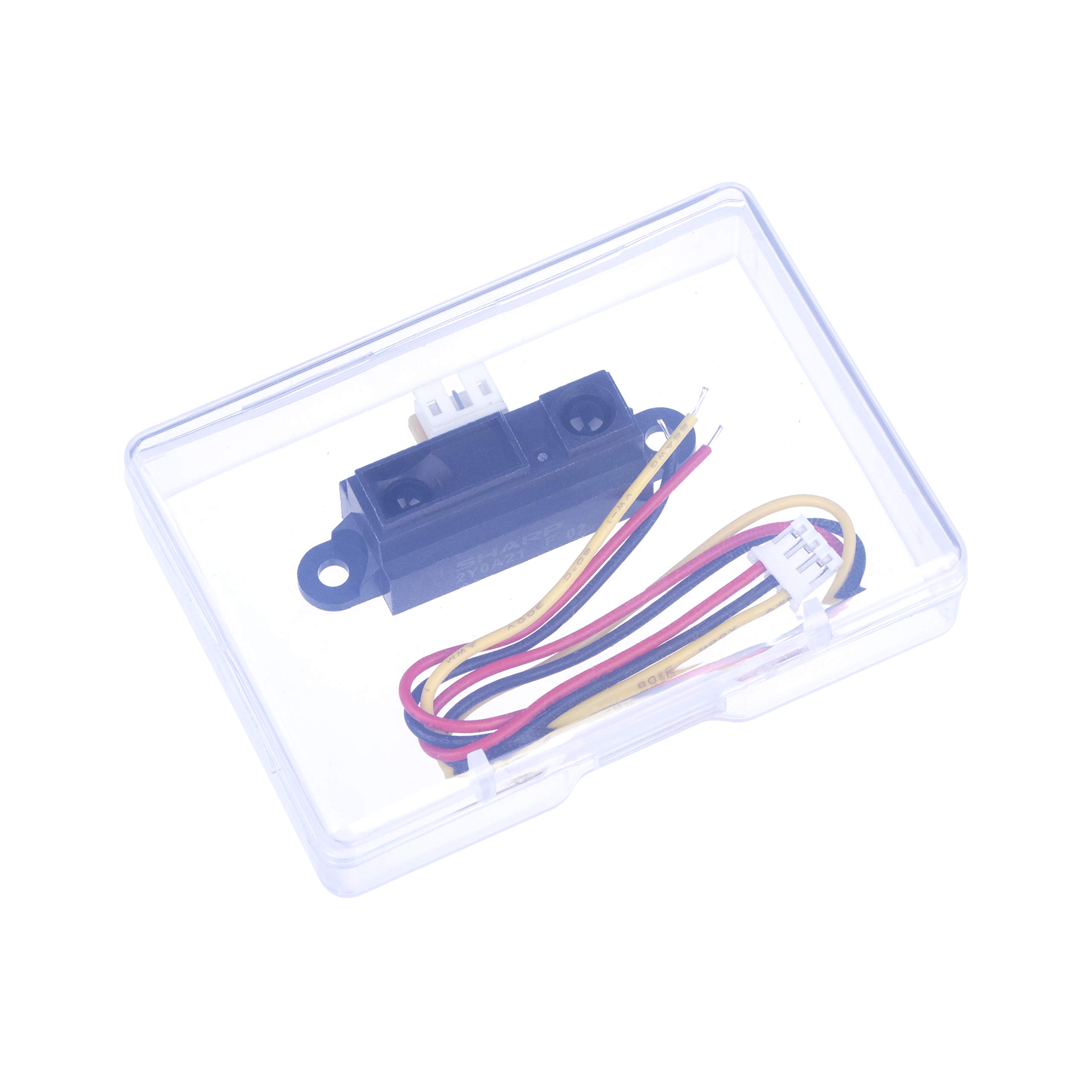

Overview This is the best chioce for many projects that require accurate distance measurements, such as DIY robot, This sensor can be used for robot ranging, obstacle avoidance and advanced path planning. The detection range of this version is approximately 10 cm to 80 cm (4£to 32£); a plot of distance versus output voltage is shown below. Specification - Operating voltage: 4.5 V to 5.5 V - Average current consumption: 30 mA (typical) - Distance measuring range: 10 cm to 80 cm (4 to 32 inches) - Output type: analog voltage - Output voltage differential over distance range: 1.9 V (typical) - Response time: 38 plus or minus 10 ms - Package size: 29.5*13.0*13.5 mm (1.16*0.5*0.53 inches) - Weight: 3.5 g (0.12 oz) Shipping List infrared distance sensor *1 Analog sensor cable *1
