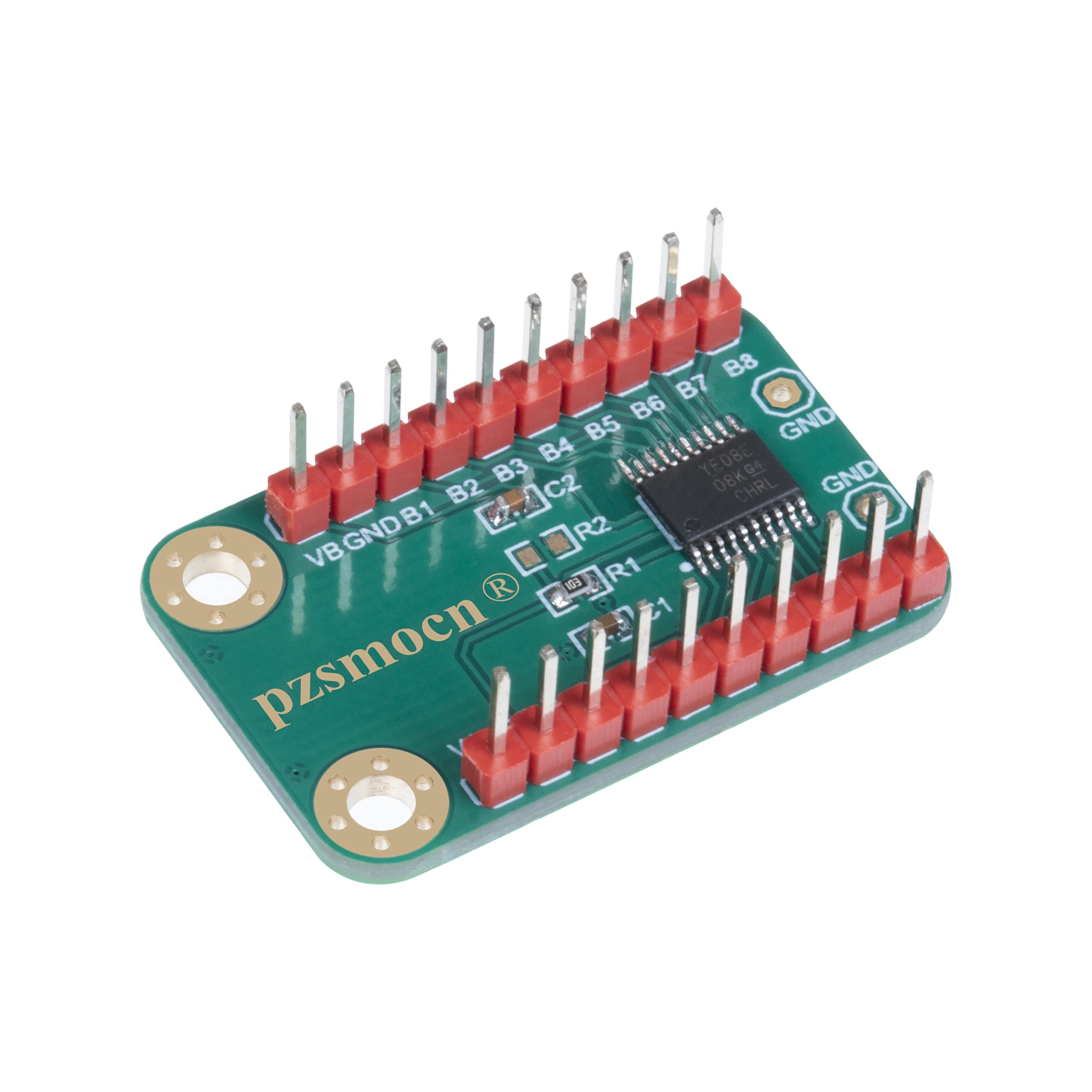

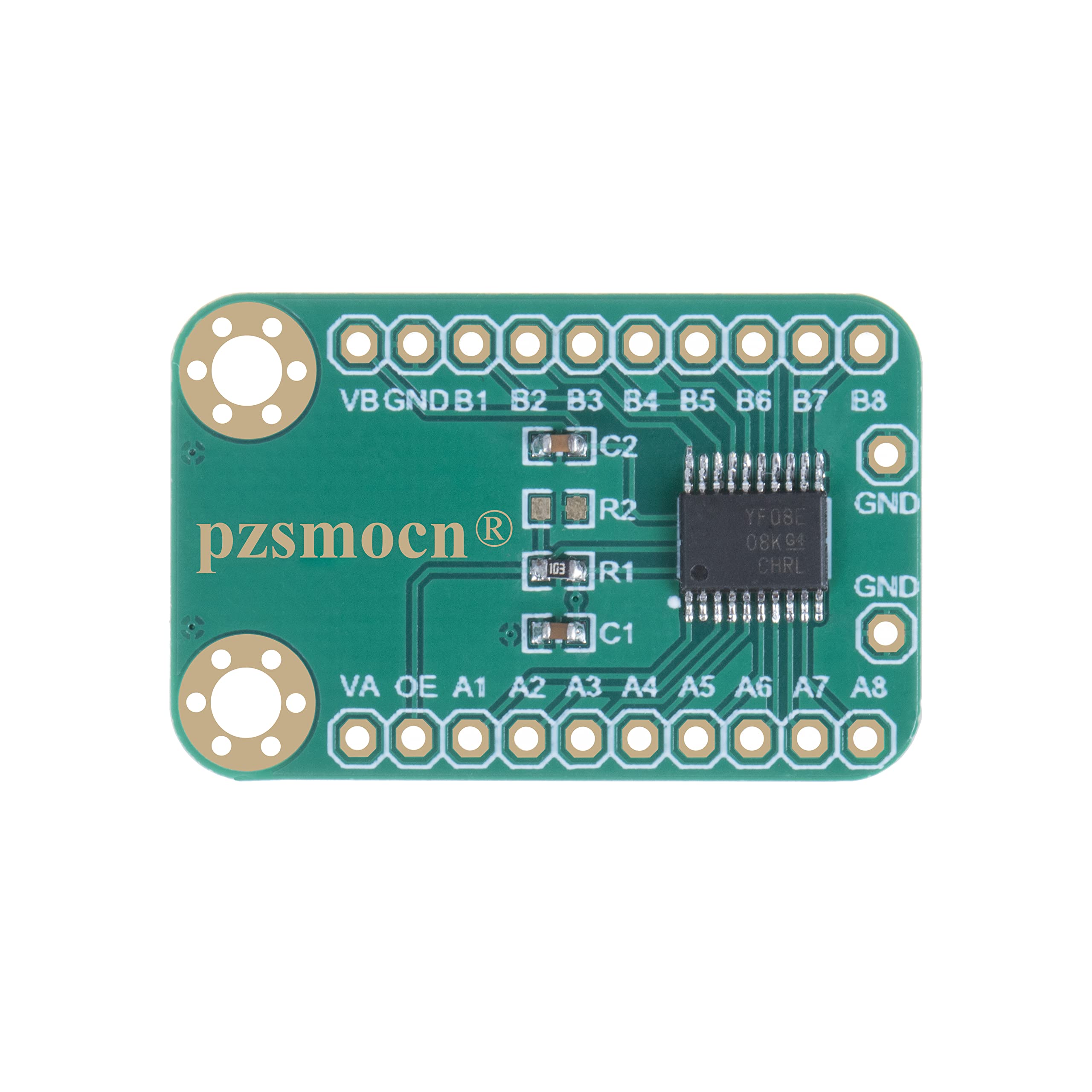

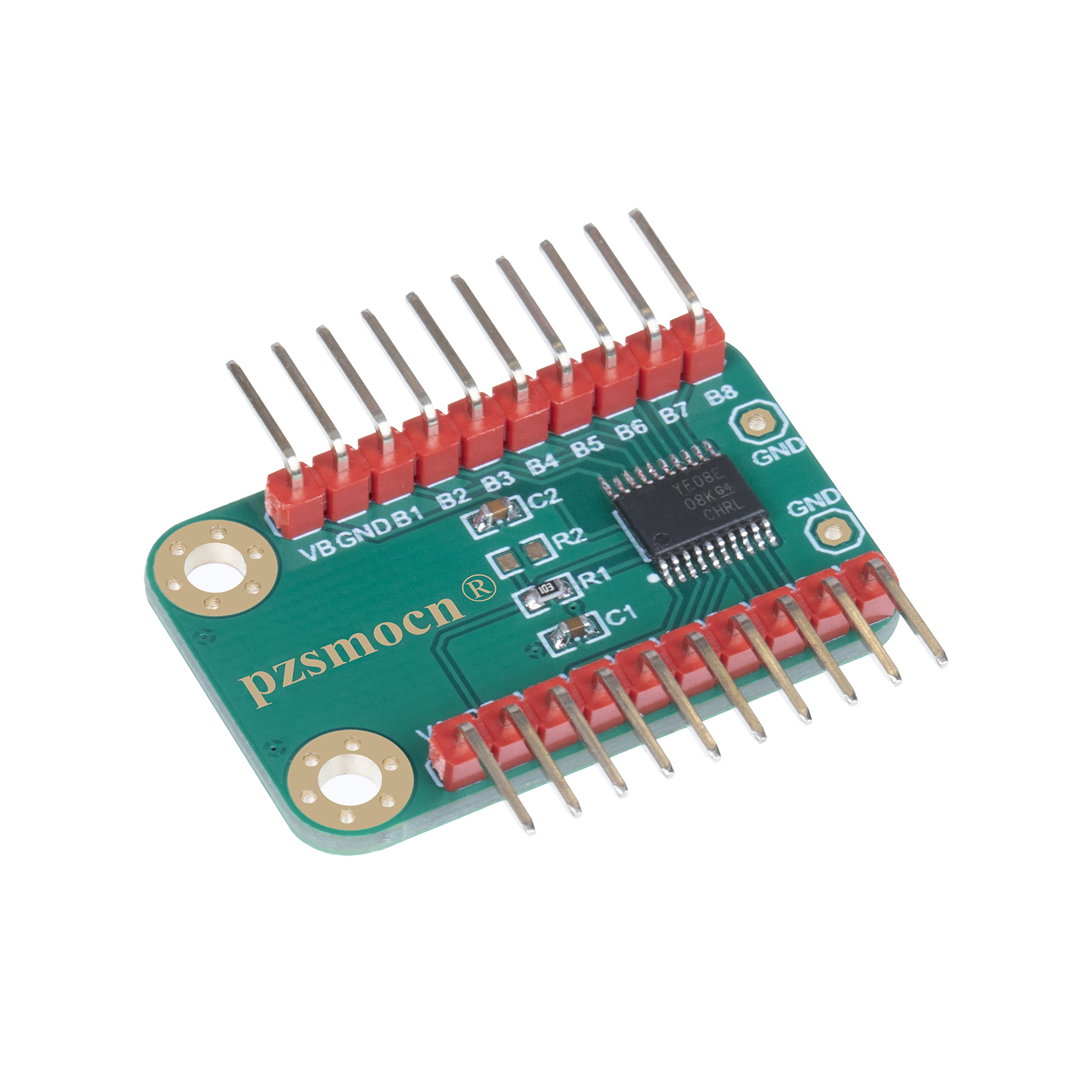

Pzsmocn 8-Bit Level Shift Board Compatible with Arduino and Raspberry Pi. 1.2V/1.8V/2.5V/3.3V/5V Bidirectional Conversion, Push-pull 60Mbps Open-drain 1Mbps(MAX), for I2C, UART, SPI, OneWire, etc.

• The 8-bit level non-inverting converter uses two independent configurable power rails. It can automatically track the power supply voltage, two-way automatic conversion, without direction control.

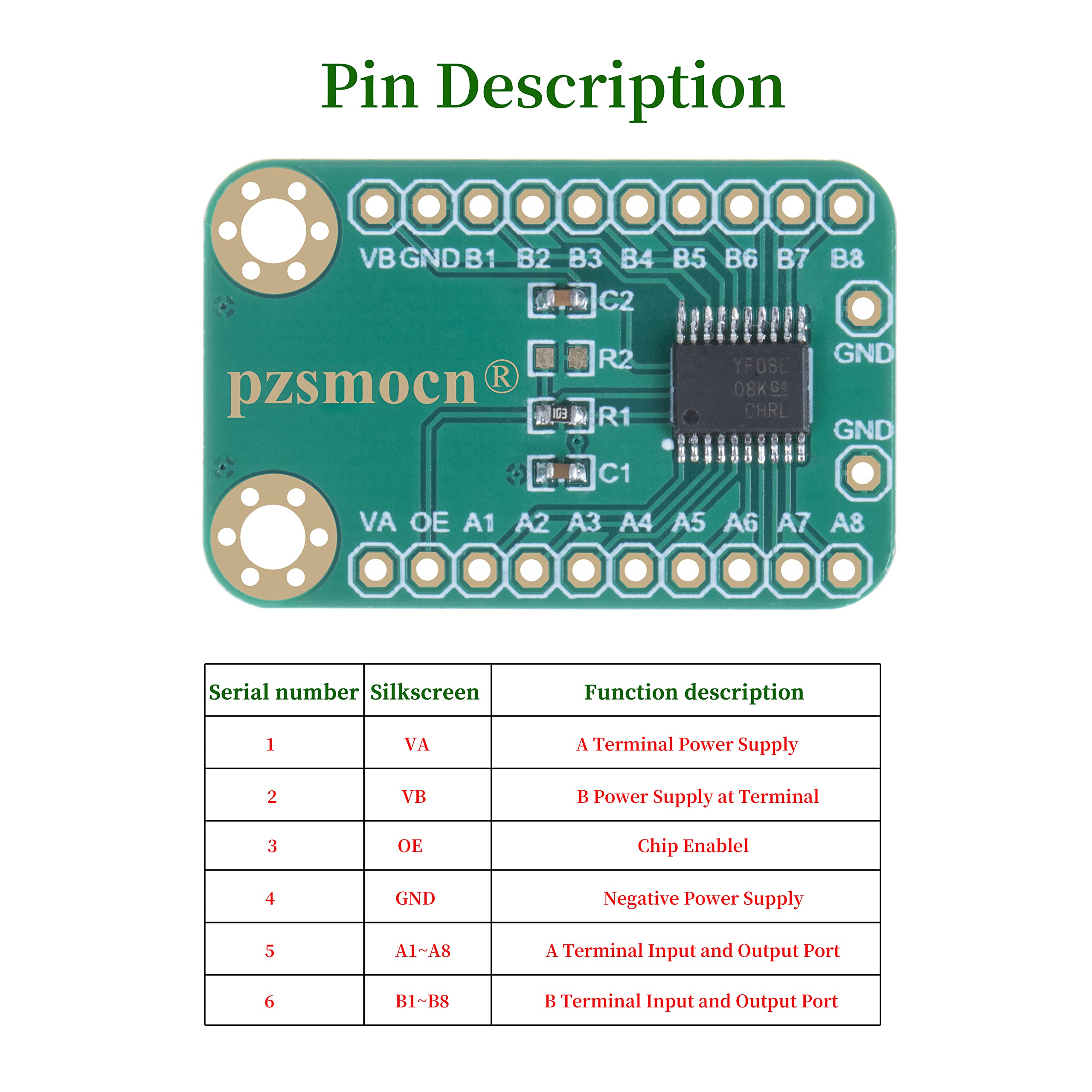

• The power supply voltage of the A port VA pin. The VA pin can accept a voltage in the range of 1.4V to 3.6V. The B port tracks the supply voltage of the VB pin. The VB pin can accept a voltage in the range of 1.65V to 5.5V. VA must be lower than or equal to VB.
• These two input power pins can realize any low-voltage bidirectional conversion between 1.2V, 1.8V, 2.5V, 3.3V and 5V voltage nodes.
• The conversion speed is high, up to 60Mbps for push-pull applications, and up to 1Mbps for open-drain applications.
• This module can be used for level conversion of I2C, UART, SPI, OneWire and other communication protocols.

In daily electronic projects, we may often encounter that the sensor cannot work normally, the project lags behind, and causes certain economic losses. This is caused by the incompatibility of the sensor level with the controller. In order to solve this problem, we have introduced a level conversion module with strong level compatibility and fast signal conversion speed. This 8-channel level conversion module, the power supply voltage of the A port VA pin. The VA pin can accept a voltage in the range of 1.4V to 3.6V. The B port tracks the supply voltage of the VB pin. The VB pin can accept a voltage in the range of 1.65V to 5.5V. VA must be lower than or equal to VB. These two input power pins can realize any low-voltage bidirectional conversion between 1.2V, 1.8V, 2.5V, 3.3V and 5V voltage nodes. The power supply voltage can be tracked automatically. Its conversion speed can reach up to 60Mbps in push-pull applications, and can be used for level conversion of communication protocols such as I2C, UART, SPI, and OneWire. Note: If you need more help, please refer to Pzsmocn Wiki for more help, SKU: PZSDYZH001. Standard - VA Voltage Range: 1.4V to 3.6V - VB Voltage Range: 1.65V to 5.5V - Conditions of use: VB More Than VA - Working Current: 30uA - Support Port: Push-pull, Open drain - Conversion Speed: Push-pull 60Mbps (MAX) \ Open Drain 1Mbps (MAX) - Working Temperature Range: -30 Degree Celsius to +75 Degree Celsius - Product Size: 22mm * 34mm - Installation Hole Spacing: 15mm - Fixing Hole Size: 3mm Delivery List 8-Bit Level Translator * 1 2.54mm Red Single Row Straight Needle * 2 2.54mm Red Single Row Curved Needle * 2
