pzsmocn 200 Pieces / 50 Sets JST CH 3.96 mm Pitch 2 Pin Female Housing and Male Adapter Connector Plug Socket Terminal Wires Cables 24-18 AWG Assembly, Header Crimp Pins Kit

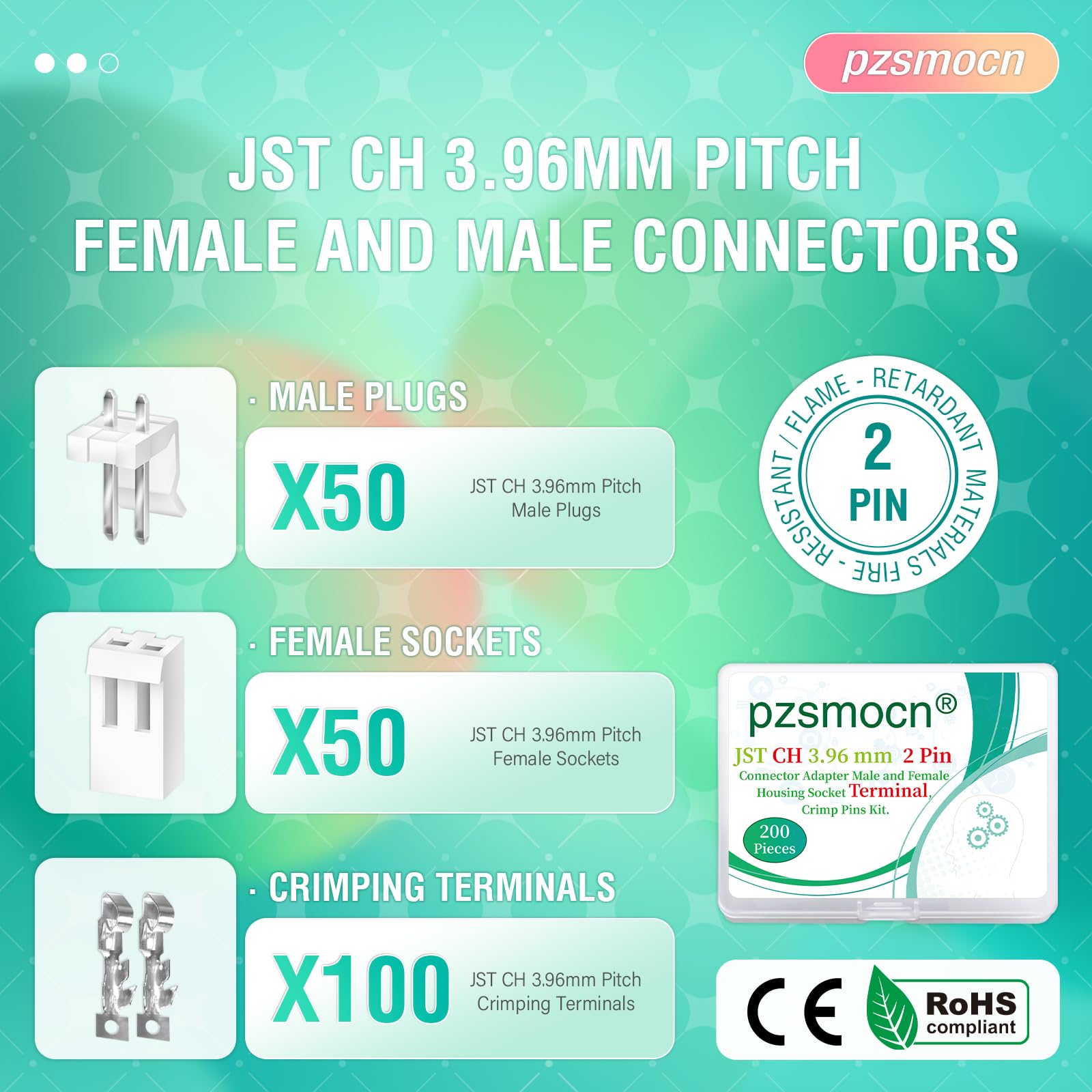

• 200 Pieces / 50 Set, JST 3.96 mm / Pitch CH 2 Pin JST connector kit.
• 100 Pieces JST 3.96 mm / Pitch CH 2 Pin JST connector crimp pins.

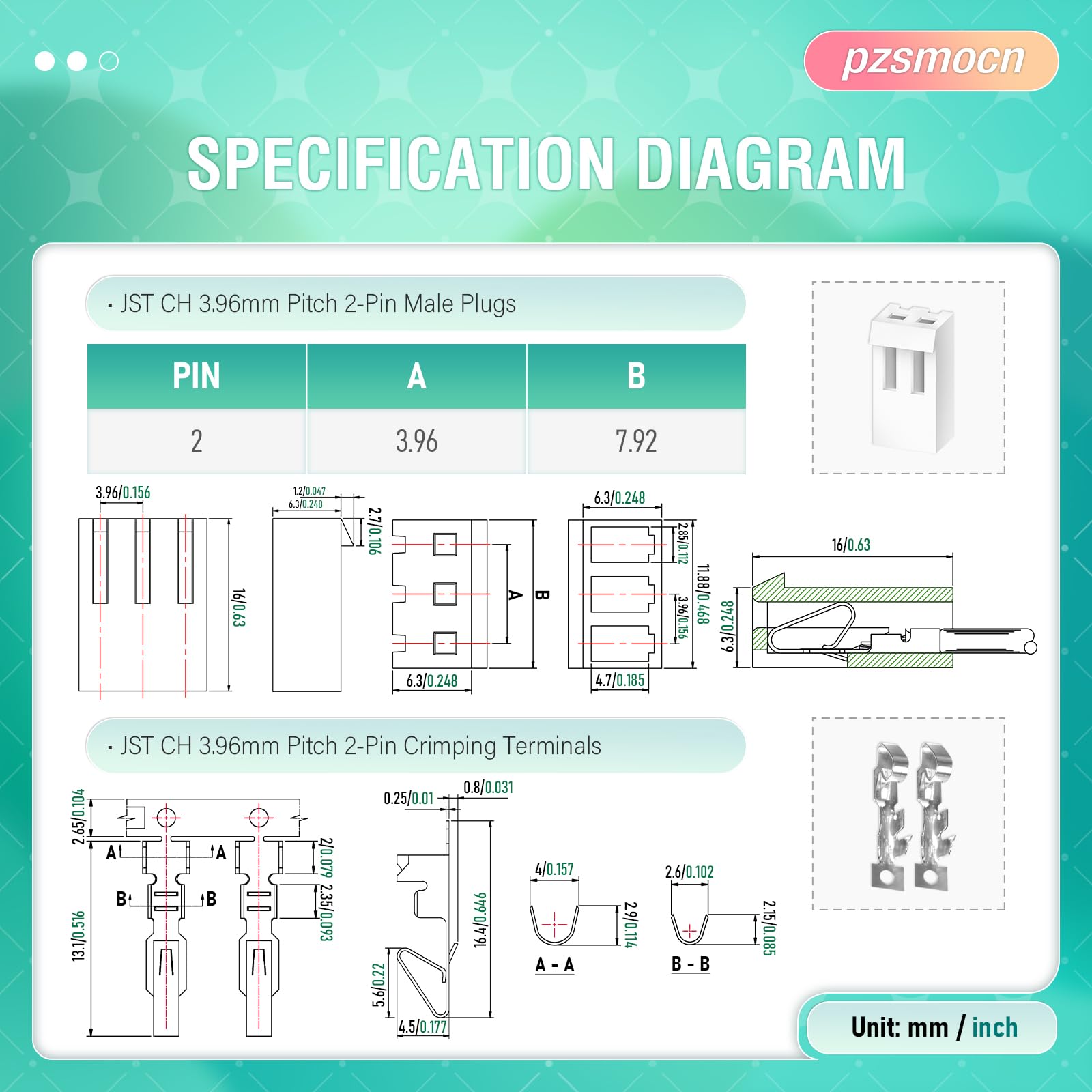

• 50 Pieces JST 3.96 mm / Pitch CH 2 Pin housing female.

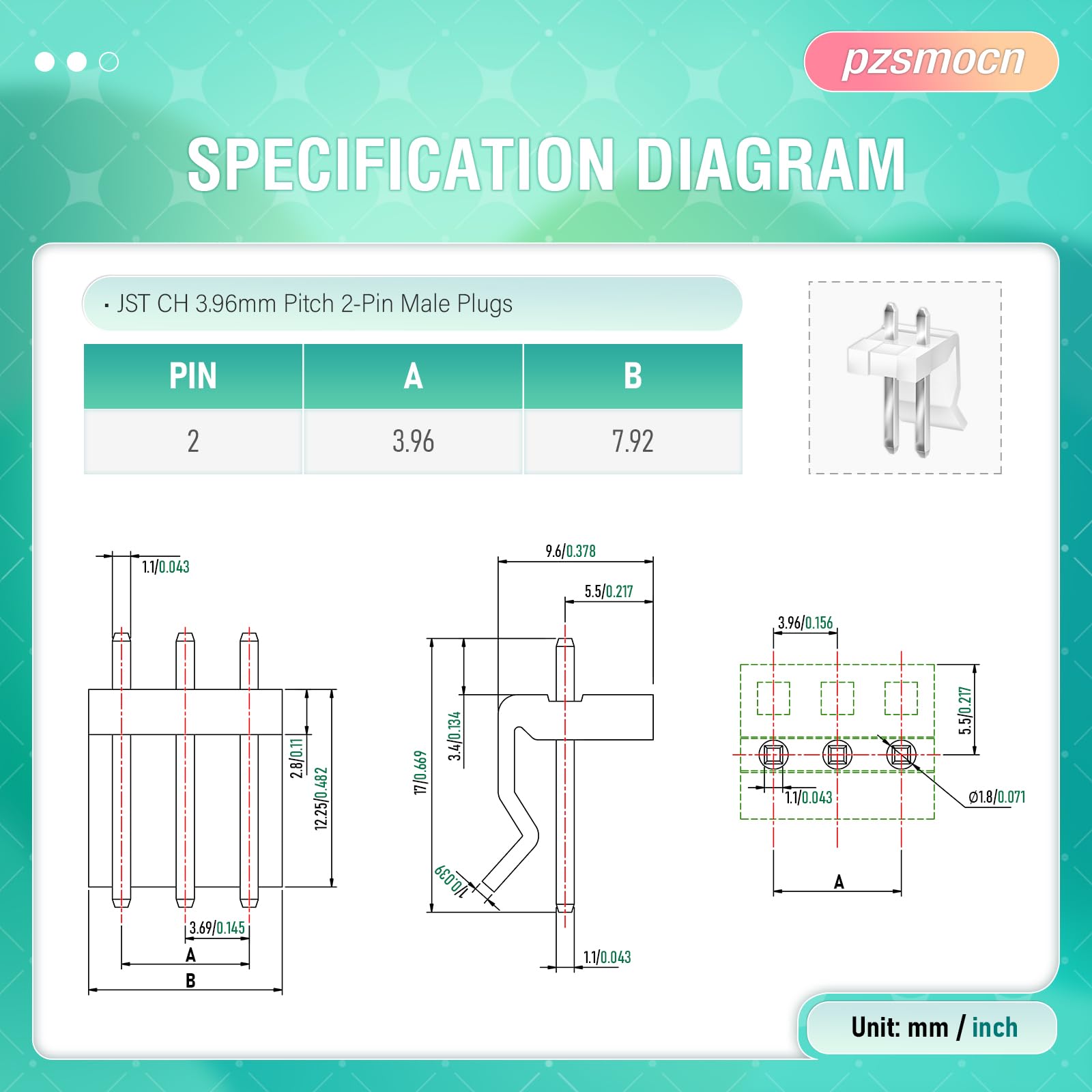

• 50 Pieces JST 3.96 mm / Pitch CH 2 Pin housing male.
• PP material storage box package, which can not only help you quickly organize these terminals and pin housings, but also carry these small accessories with you.

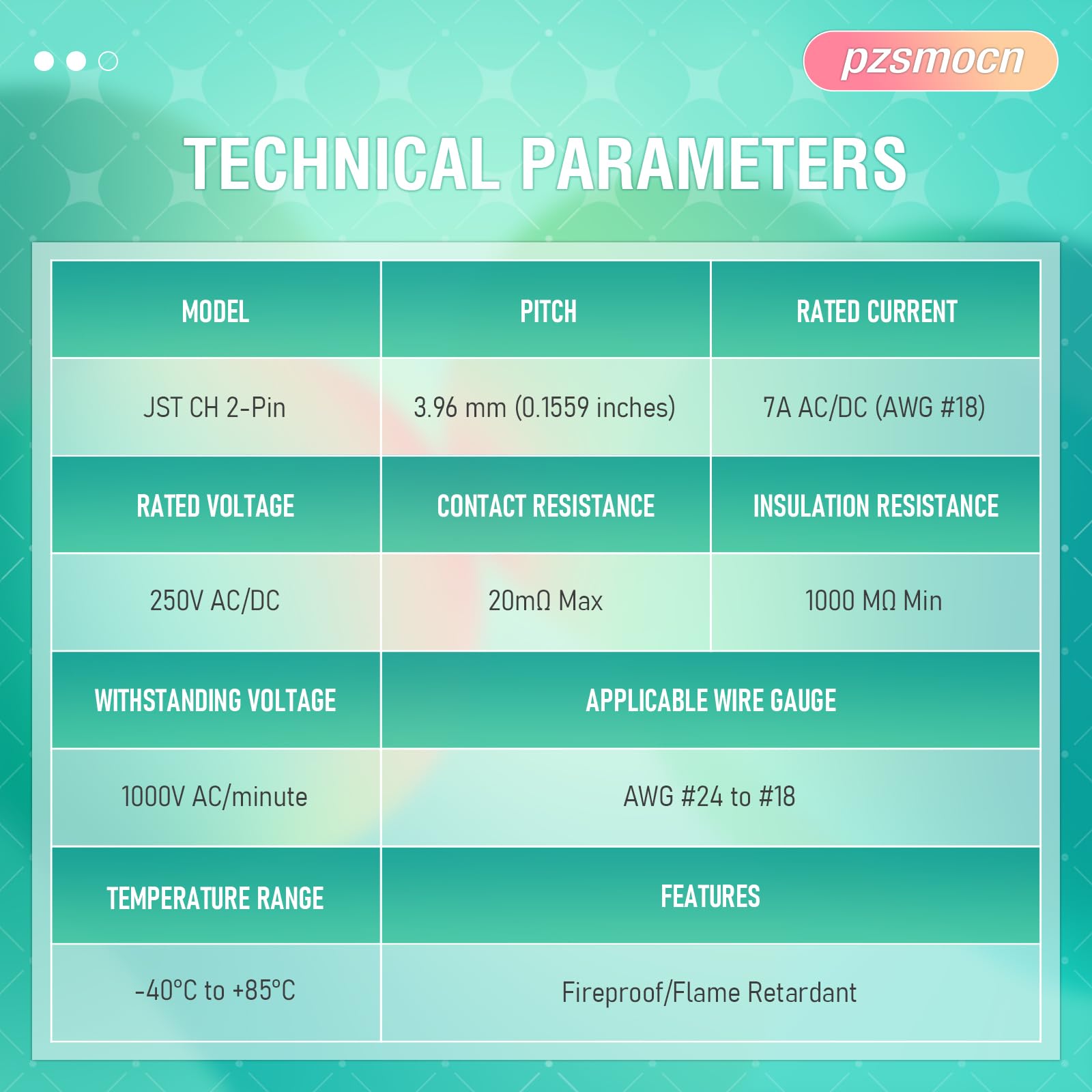

The terminal connector is an accessory product used to realize electrical connection, It builds a bridge of communication between blocked or isolated circuits in the circuit, so that the current can flow and the circuit can realize the predetermined function. Terminal connectors are an indispensable part of electronic equipment. Observing along the path of current flow, you will always find one or more connectors. Specifications Model: JST CH 2-Pin Pitch: 3.96 mm ((0.1559 inch)) Current rating: 7A AC,DC (AWG #18) Voltage rating: 250V AC,DC Contact Resistance:20M max Insulation resistance: 1000 M Ohm min. Withstanding Voltage: 1000V AC/minute Applicable Wire: AWG#24 to #18 Temperature Range: -40 Degree Celsius to + 85 Degree Features: Fire/Flame Retardant Package Content 50 Sets / 200 Pcs - JST 3.96mm/Pitch CH 2-Pin Connector Female Housing Socket Terminal and Crimp Pins Kit.
