PV Isolator Switch 30A DC/AC IP65 Waterproof Disconnect Circuit Breaker for Solar Panels, Photovoltaic Systems, RV, Electric Vehicle and UPS Battery Protection, IEC60898 Standard 2 Pole(16A)

• [COMPREHENSIVE PROTECTION] for safeguarding outdoor photovoltaic panels, RVs, electric vehicles, and UPS batteries from electrical faults.
• [ENHANCED SAFETY MEASURES] Comes with thermal overload protection and short circuit protection to for ENSURE safe operation under various conditions.
• [IP65 WATERPROOF RATING] Designed to withstand harsh weather elements while maintaining functionality and safety outdoors.
• [EFFICIENT BREAKING CAPACITY] With a rated current of 30A and breaking capacity up to 4 for KA, it is suitable for rigorous applications.
• [SIZING REMINDER] Always verify your specifications against the product dimensions before purchase.

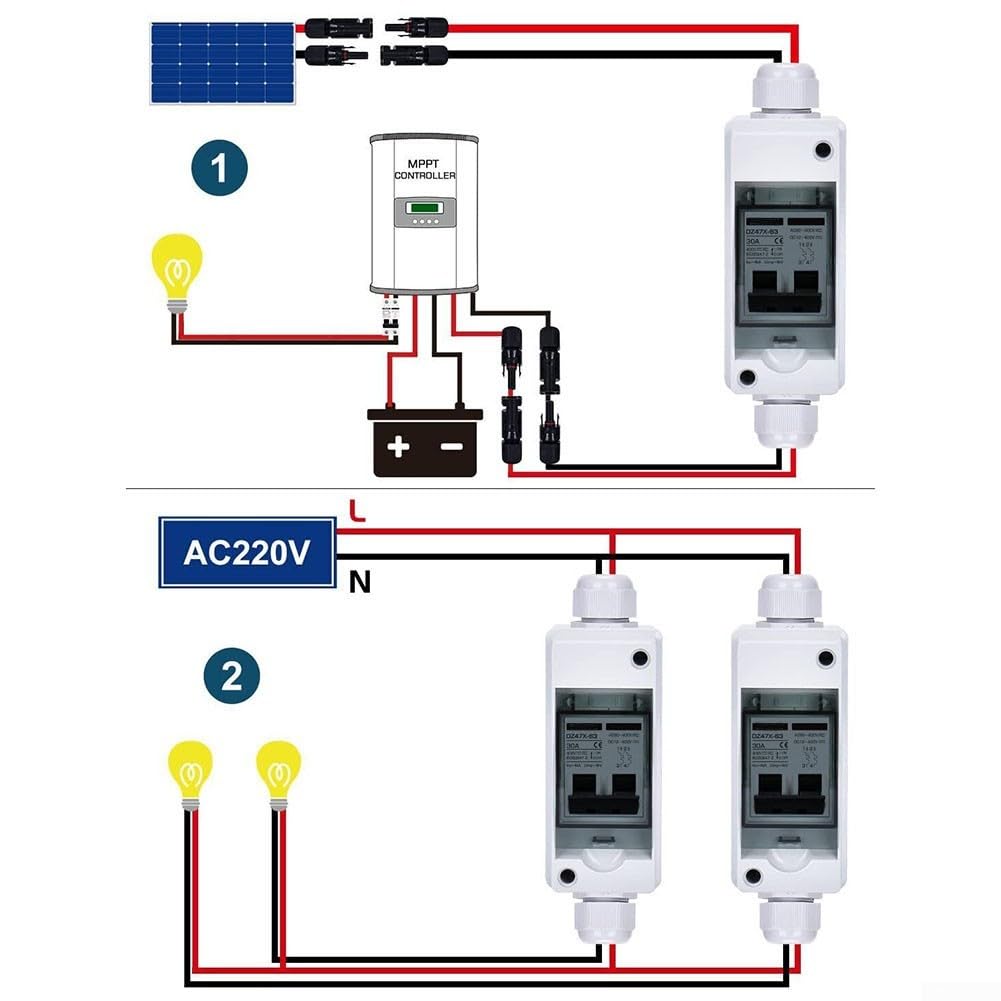

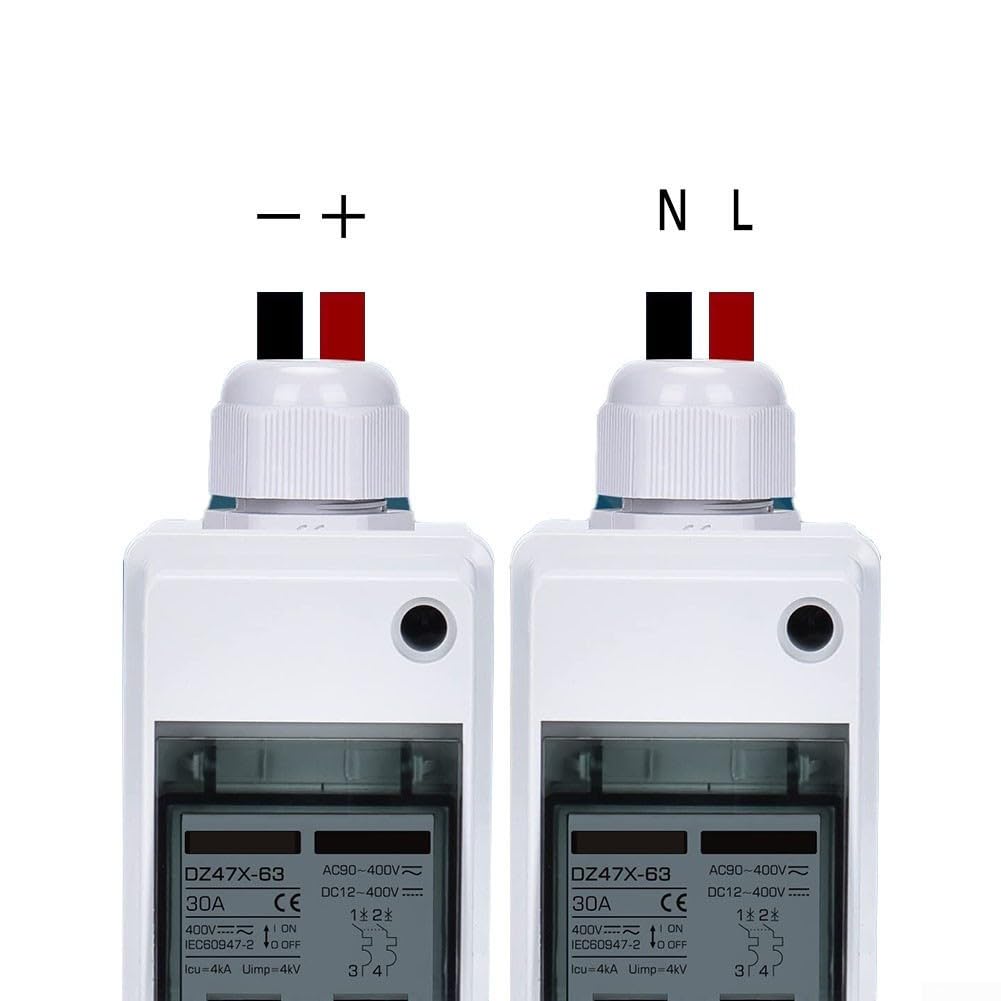

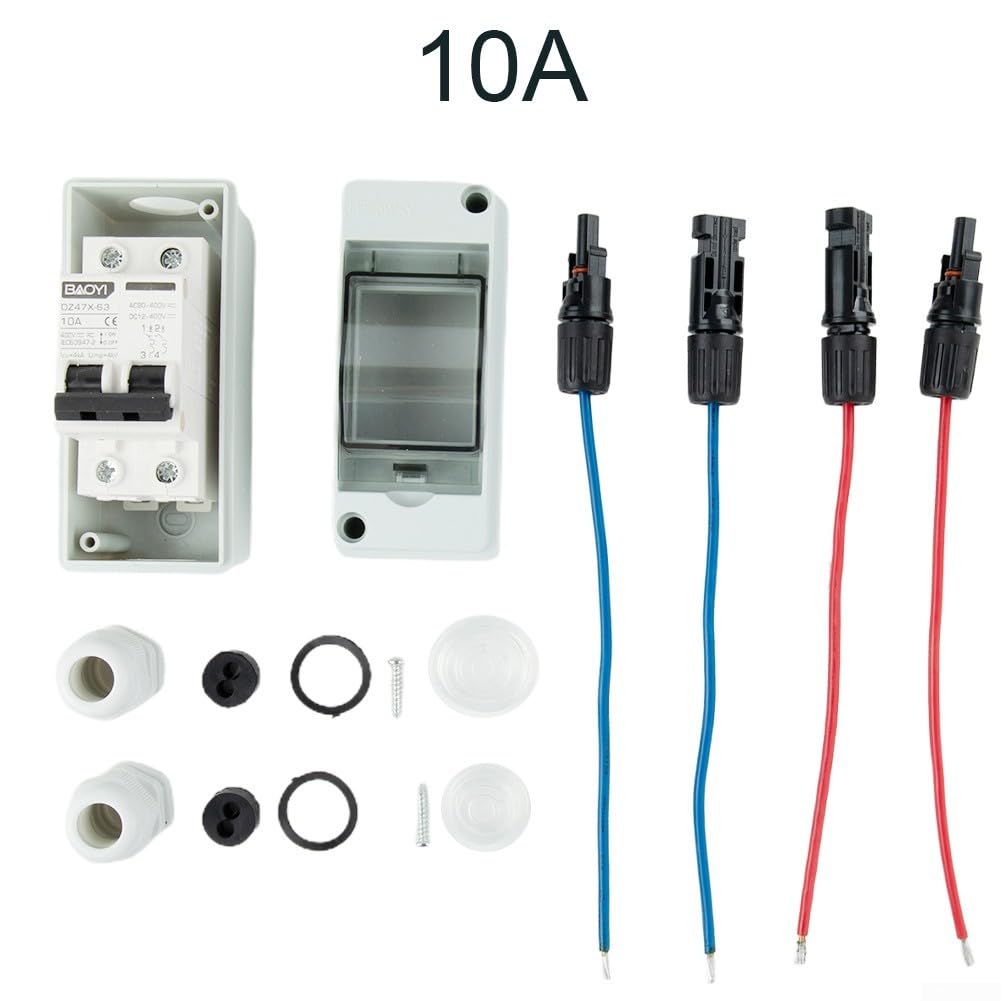

features: The DC Quick Wiring Miniature Circuit Breaker Junction Box is mainly used for output for protection of outdoor Photovoltaic PV Panels, RVs, Electric Vehicles, And UPS Batteries,Inverter. It has fast on-off circuit, Thermal overload for protection, short-circuit for protection, and also it can be used for output for protection of AC circuit. Specifications: *Part Name:breaker *Material:PVC *Size:As shown *Color:As shown Input String: 1 Output String: 1 Model: DZ47X 30A IP65 Rated Operating Voltage : DC 12V-400V Rated Current:：6A10A16A20A25A32A40A50A63A Poles: 2P And Grade : IP65 Rated Current: 30A breaking capacity: 4 for kA Ics=Icu Trip Curve: B (3-5 I/In) Electrical Life: 4,000 times Mechanical Life: 10,000 times Standard: IEC60898 / GB10936 Operating Temperature: -30°C to +70°C Package Content: 1 * Solar circuit breaker
