PUSOKEI HDMI to BNC Converter, HDMI Video Signal Conversion Box, HDMI to Composite Video Converter, Support NTSC and PAL TV mechanism output, for TV/BD/DVD Recorder

• 1. No need to drive, the adapter is plug and play, light and flexible to operate. Adopted of high quality electronic components, and accuracy process, ensure for the durability.
• 2. Use high‑quality scaling technology to process the input resolution, and the converted BNC effect is full of brightness.

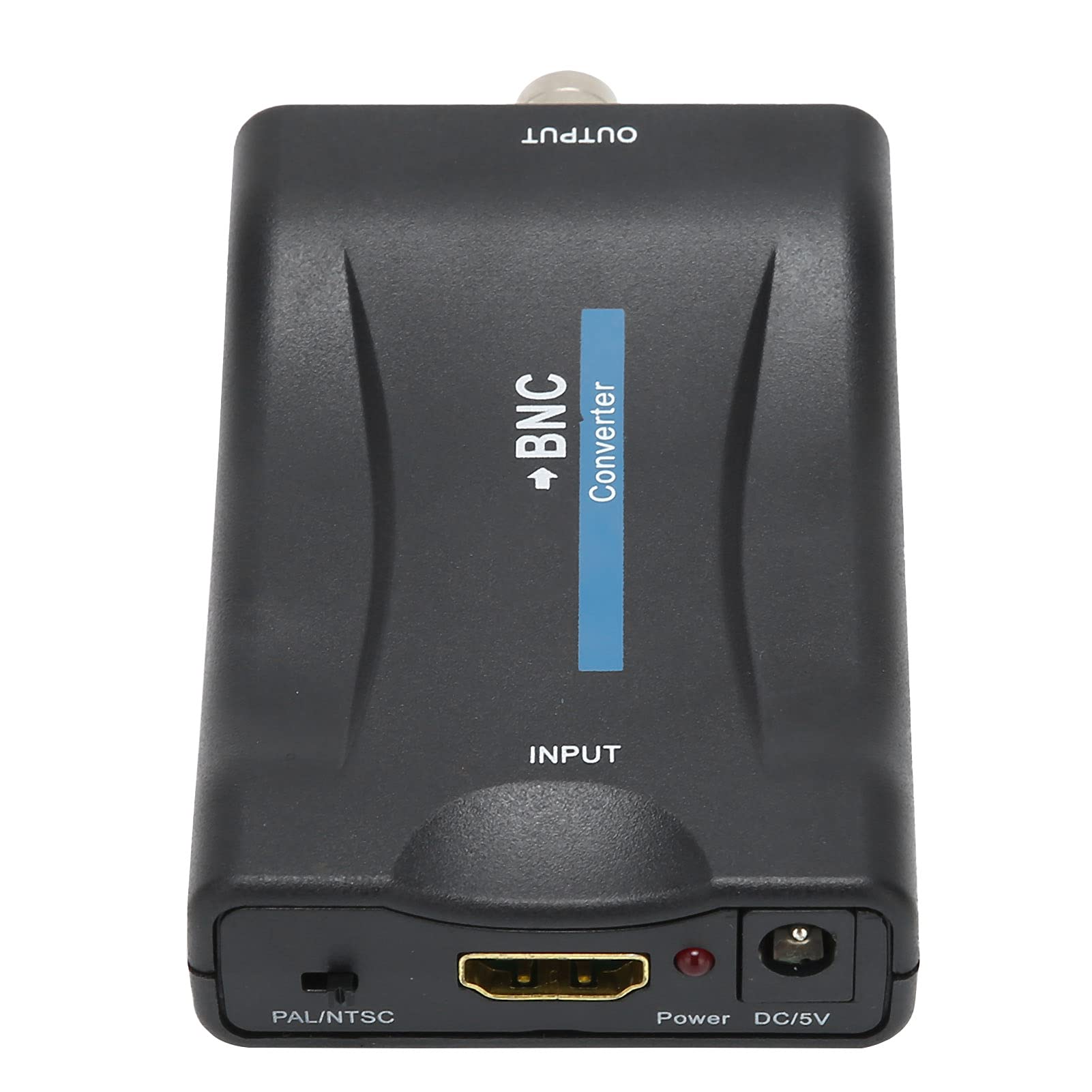

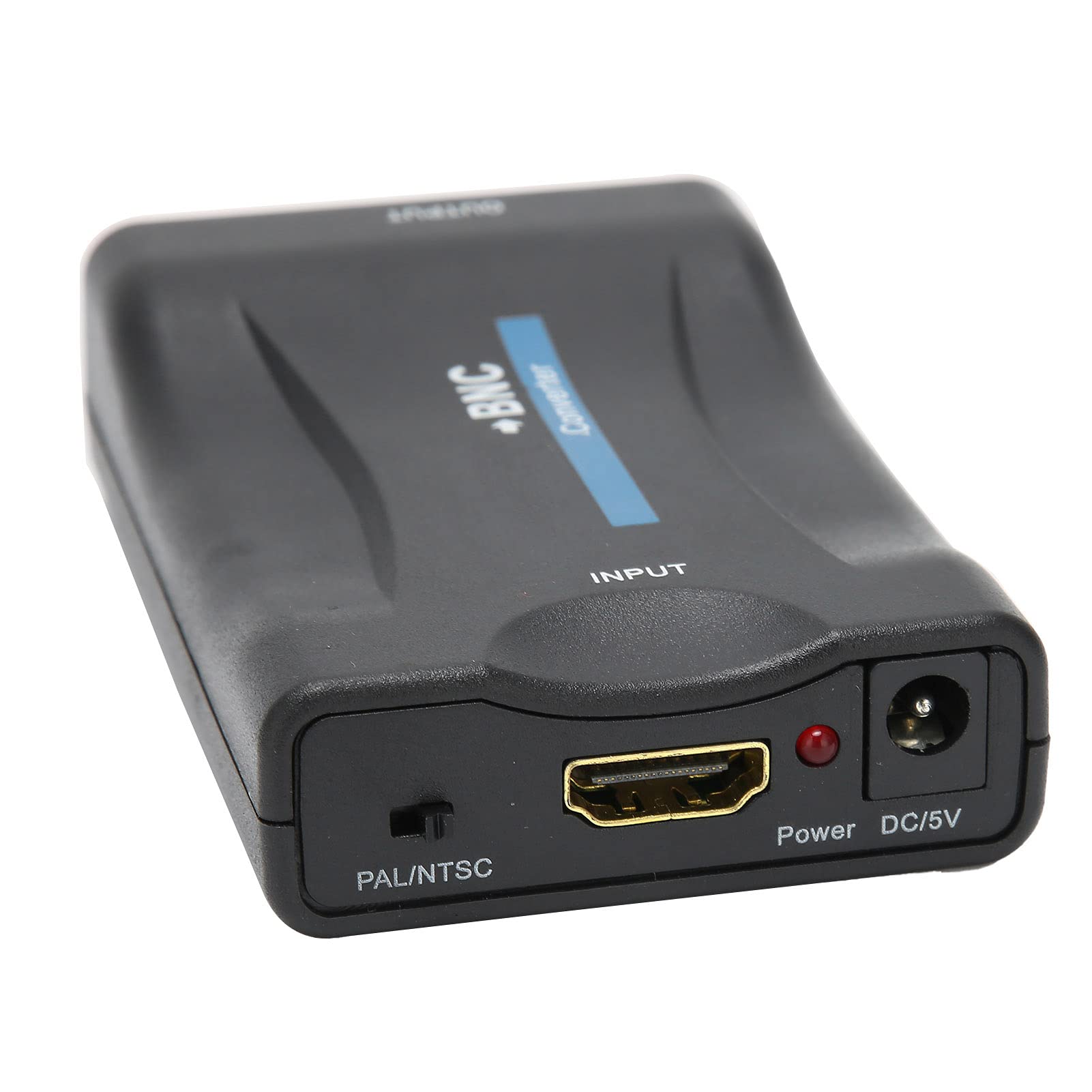

• 3. Support NTSC and PAL two standard TV mechanism output, and can be freely switched through the switch.
• 4. Support high-definition multimedia interface 1.3 and backward compatible, compatible with multiple high-definition multimedia interface input formats and compatible with DVI mode.
• 5. Professional manufacturing, which makes it have stable characteristic and high reliability. It is our ultimate goal to keep you satisfied. Please contact us if you have any problems or questions about our products. We will get back to you within 12 hours.

Specification: Item Type: High-Definition Multimedia Interface to BNC Converter Material: ABS Colour: Black Input Interface: 1 x High-Definition Multimedia Interface, 1 x USB power Output Interface: 1 x BNC, 1 x Audio High-Definition Multimedia Interface Supports Video Color Format: 24-bit/dark 30-bit/36-bit High-Definition Multimedia Interface Maximum Transmission Bandwidth: 300MHz High-Definition Multimedia Interface Maximum Transmission Speed: 1.2Gbps Frequency Response: 20Hz~20KHz Maximum Working Current: 600ma Power Adapter Specifications: AC100V~-240 50/60Hz, DC 5V1A Working Temperature: -10~+55 Storage Temperature: -20~+60 Working Humidity: 10~90%RH (non-condensing) Storage Humidity: 5~95%RH (non-condensing) How to Use: This product is very simple to use, plug and play. Connect the DVD/BD high-definition multimedia interface high-definition output terminal to the input terminal of the product through the high-definition multimedia interface cable, and connect the output terminal of the converter to the BNC socket of the TV/monitor through the BNC. This product consists of two to switch between two modes, you need to display the PAL mode to turn the switch to the left, and you need to display the NTSC mode to turn the switch to the right, and finally plug in the power adapter, and you can use it normally after you plug in the power.  Package List: 1 x High-Definition Multimedia Interface to BNC Converter 1 x USB Power Charging Cable 1 x User Manual
