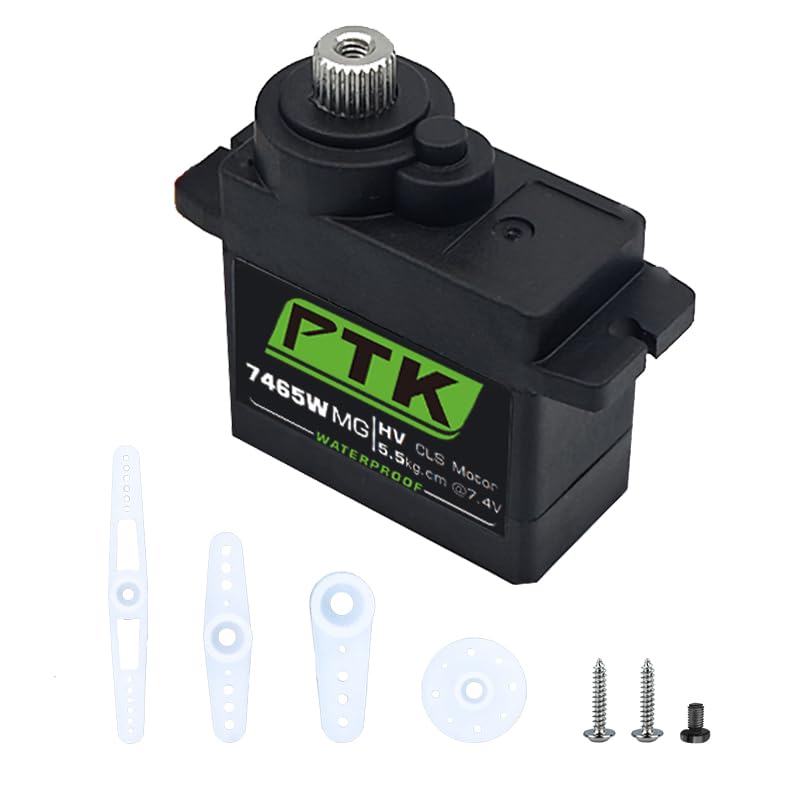

PTK 7465W MG 9g Miniature Digital Servo, Waterproof with 5kg Torque, for Robots, Fixed Wings, 180 Degrees (1pcs)

• Micro High-Torque Power Core (Coreless Motor)：PTK 7465W with Coreless motor. 5.0V stall 3.8kg.cm (0.111s/60°); 6.0V 4.5kg.cm (0.092s/60°); 7.4V 5.5kg.cm (0.075s/60°); 8.4V up to 5.8kg.cm (0.070s/60°). Rated 1.8kg.cm@7.4V. 3μs dead band, 1520μs/333hz frequency, ±45° travel, precise low-noise, fits medium-high load power needs of micro devices.
• Plastic Shell + IP65 Waterproof + Metal Gears：Wear-resistant Metal Gears, suitable for high-frequency use in micro scenarios; 13g plastic shell balances lightweight and protection; IP65 resists rain/dust, anti-light vibration, stable in outdoor non-extreme watery scenarios, fits micro aircraft, mini robots.
• Single-Bearing Stable Output：Precision assembly with 1 ball bearing reduces wear, smooth transmission without jamming; 4.8V-8.4V wide-voltage circuit, stable under fluctuation, provides continuous strong power for micro scenarios, avoiding control delay under medium-high load.
• Programmer Function + Long Harness：Supports programmer (sold separately) for torque/speed adjustment. 250mm JR connector harness, compatible with most micro models, flexible wiring without distance limits, easy for beginners to debug device parameters.
• Micro Medium-High Load Scene Adaptation：23.7×12×26.6mm, 13g, suitable for micro aircraft control surfaces, outdoor mini RC toy drive parts, small robot joints, easy installation, matches "waterproof + high-torque programmable + lightweight" core needs.

Gears : Metal Motor: Coreless Ball Bearing : 1 Weight : 13g Dimensions : 23.7*12*26.6 mm Working frequency： 1520μs/333hz Default Travel Angle: ±45°@1000us-2000us Speed/Stall Torque@ 5.0V : 0,111 sec/60° 3.8kg.cm Speed/Stall Torque@ 6,0V : 0,092 sec/60° 4.5kg.cm Speed/Stall Torque@ 7,4V : 0,075 sec/60° 5.5kg.cm Speed/Stall Torque@ 8,4V : 0,070 sec/60° 5.8kg.cm Rated working Torque : 1.8kg.cm@7.4V Input Voltage : 4.8V - 8.4V Harness length : 250mm JR Dead band : 3μs
