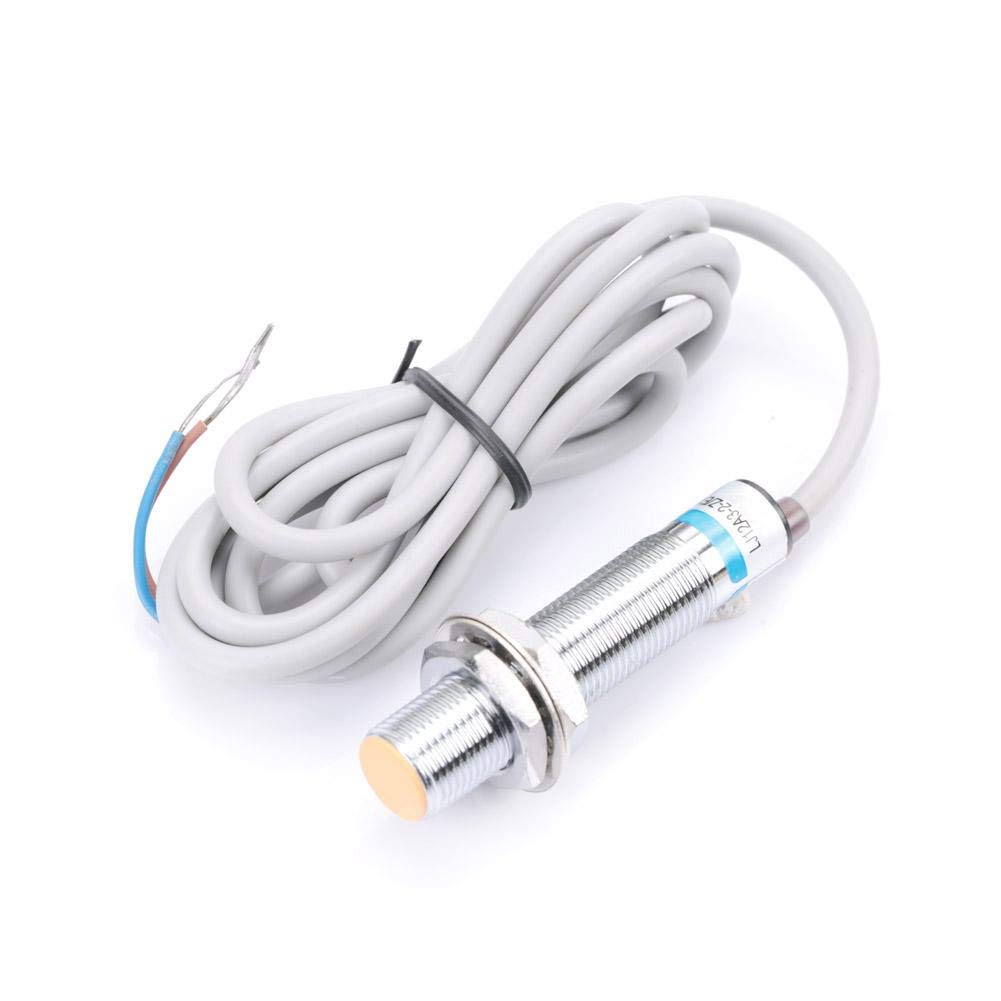

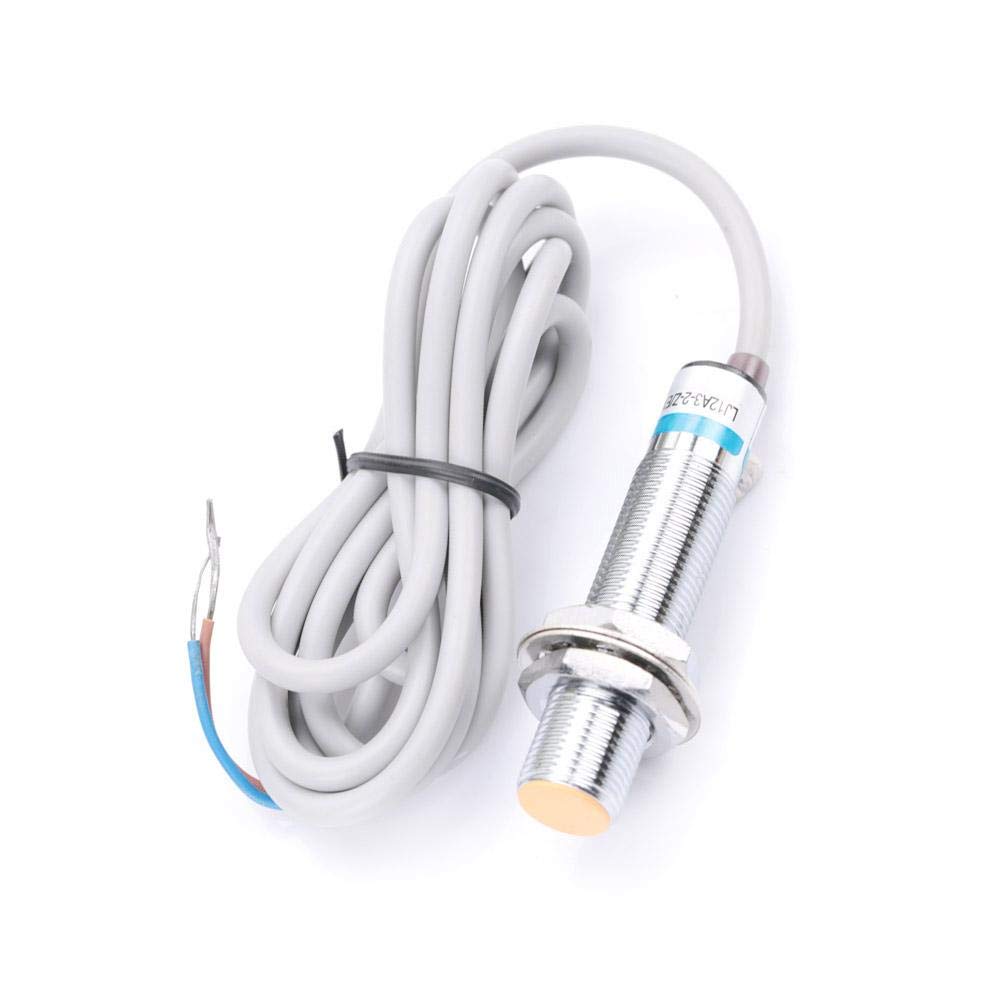

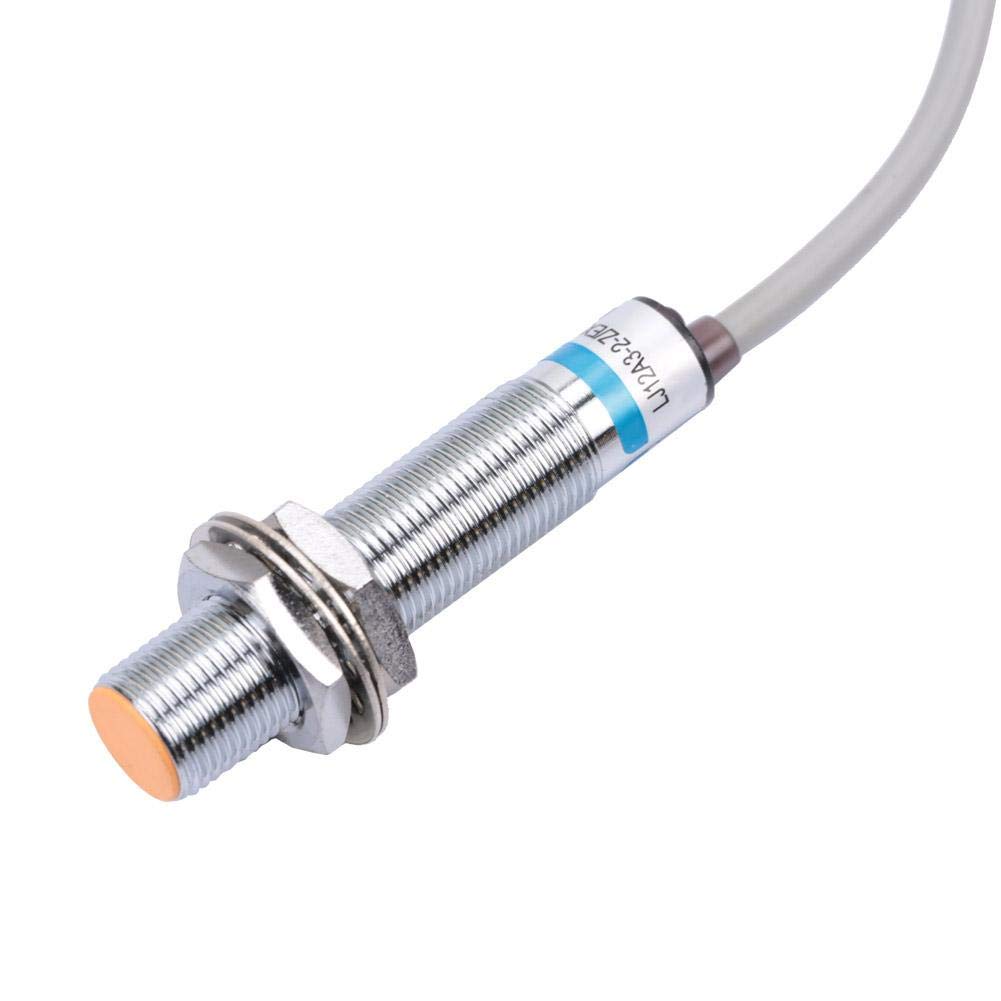

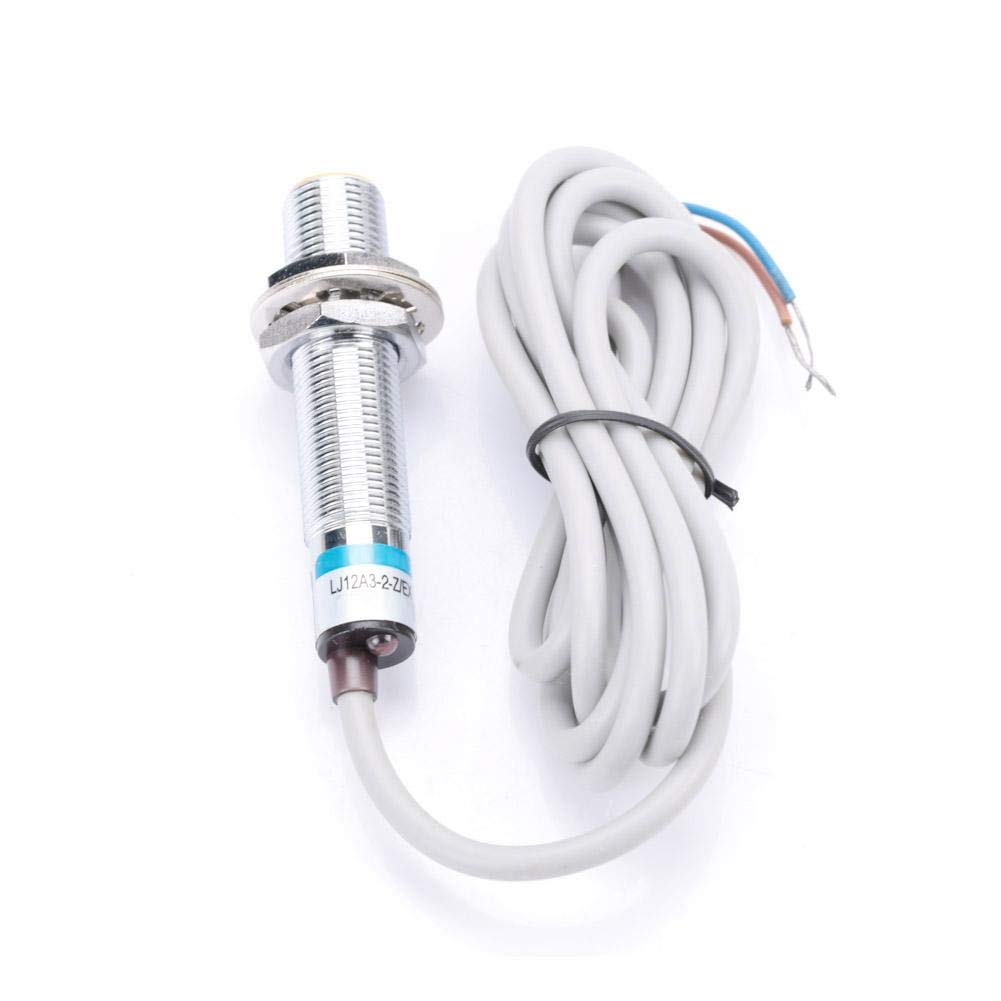

Proximity Switch LJ12A3-2-Z/EX Inductive Proximity Sensor Switch DC 2-Wire Normally Close

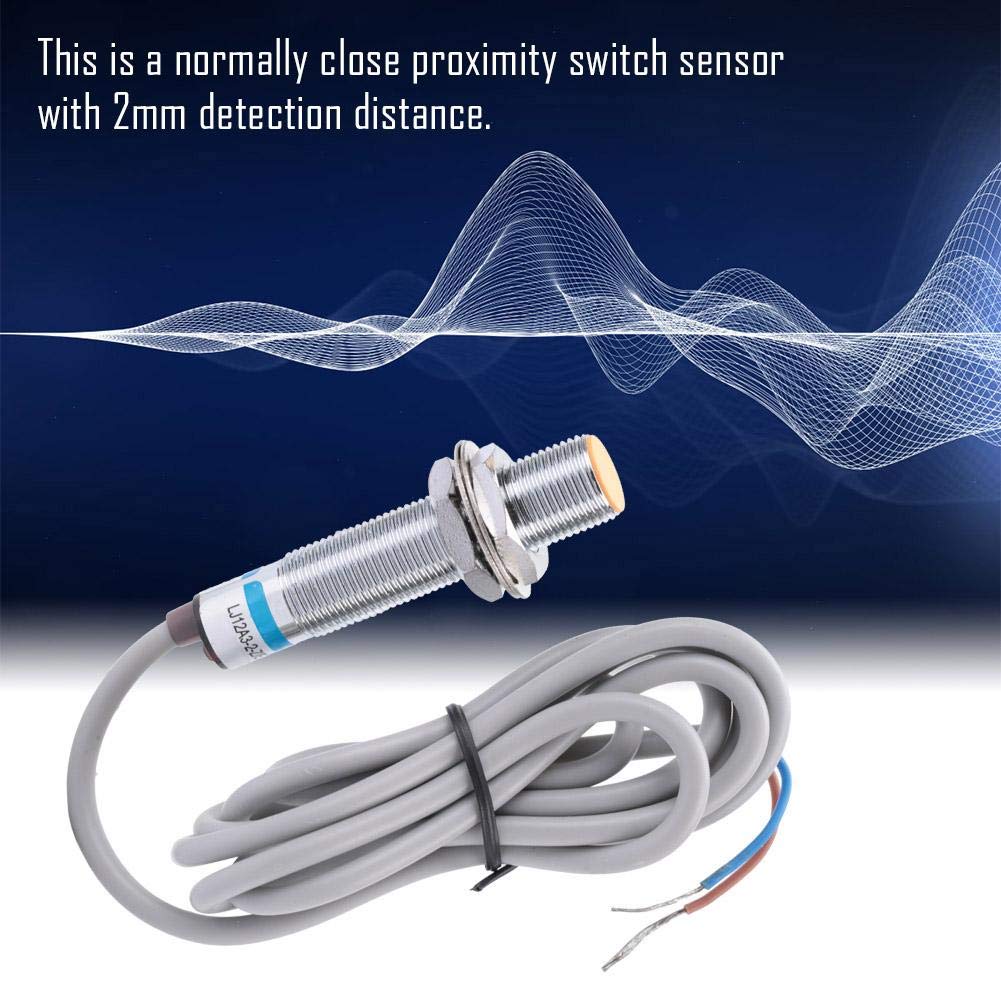

• · Proximity Switch is a normally closed proximity switch sensor with a detection distance of 2 mm.
• · When approaching a target object, the proximity switch sends out a control signal.
• · A proximity sensor switch made of alloy and plastic. Working temperature: - 25 C to + 55 C (non-freezing state), high sensitivity, fast response, stable performance.
• · Detection distance: 2mm (+/-10%); response frequency: 0.5KHz. Non-contact detection avoids the damage of sensors and target objects

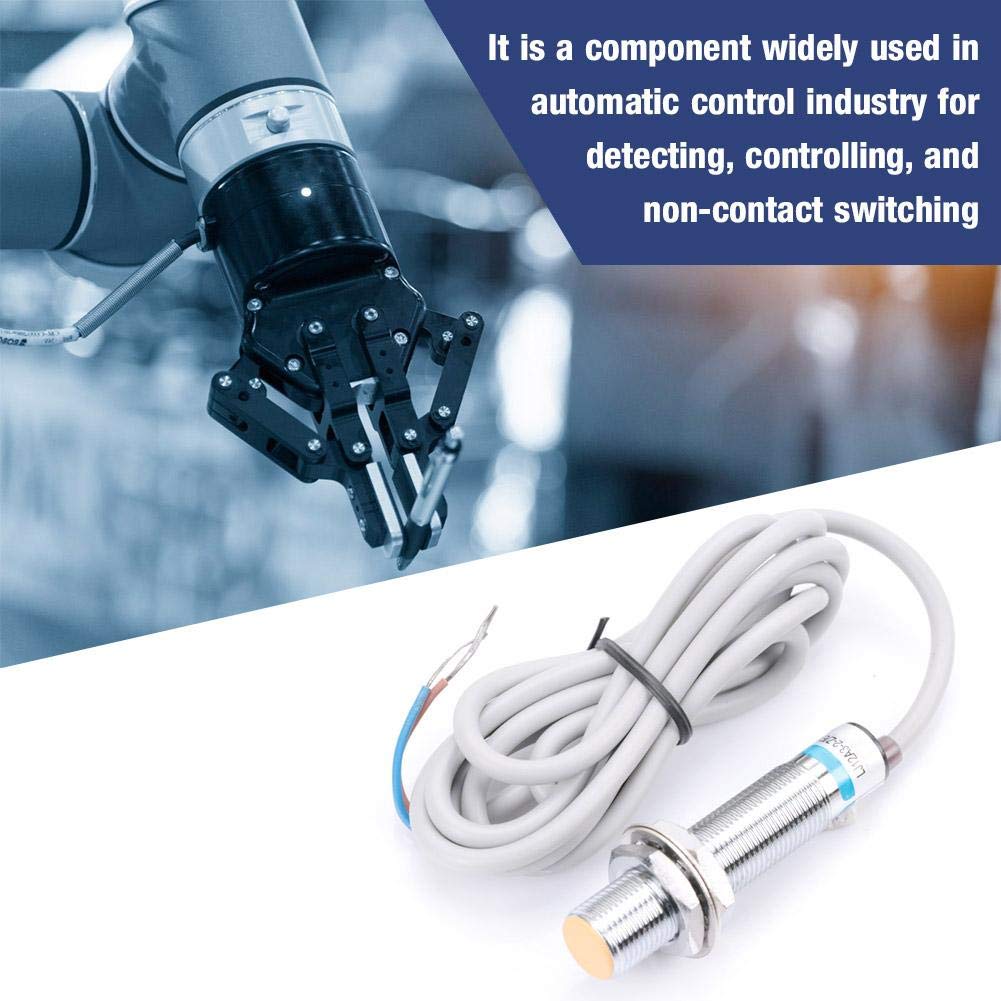

• · Proximity Switch is widely used in automatic control industry for detection, control and non-contact switch components

Proximity Switch LJ12A3-2-Z/EX Inductive Proximity Sensor Switch DC 2-Wire Normally Close Features: This is a normally close proximity switch sensor with 2mm detection distance. When proximity switch is close to some target object, it will send out control signal. It is a component widely used in automatic control industry for detecting, controlling, and non-contact switching. High sensitivity, quick response, stable performance. Non-contact detection avoids the sensor and the target object from damages.  Specification: Model: LJ12A3-4-Z/DX Detection distance: 2mm±10% Setting distance: 0-1.6mm Delay distance: <10% of detection distance Detection object: Magnetic metal(The detection distance decreases when it is non-magnetic metal) Standard detection object: Iron 12*12*1mm Response frequency: DC 0.5kHz AC 25Hz Supply voltage: DC type: DC12-24V (6-36V) pulsation (P-P) below 10%, AC type: AC110-220V (36-250V) 50/60Hz Withstand voltage:  AC1000V 50/60Hz Effect of voltage: Within ±15% of rated power supply voltage range, ±10% detection distance within rated power supply voltage value Current consumption: N.P type: <13mA, D type: <0.8mA, A type: <1.7mA Control output: N.P type: <300mA, D type: <200mA, A type: <400mA Loop protection: N.P.D type: reverse connection protection, surge absorption, load short circuit protection, type A: surge absorption Ambient temperature and humidity: -30~65℃, 35-95%RH Temperature influence: Temperature range -30~65℃, at 23℃, ±15% detection distance; Temperature range -25~60℃, at 23℃, ±10% 0detection distance Insulation impedance: >50MΩ Housing material: Nickel plated brass Detection surface: ABS Weight: Approx. 42g/1.5oz Package list: 1 * Inductive Proximity Switch
