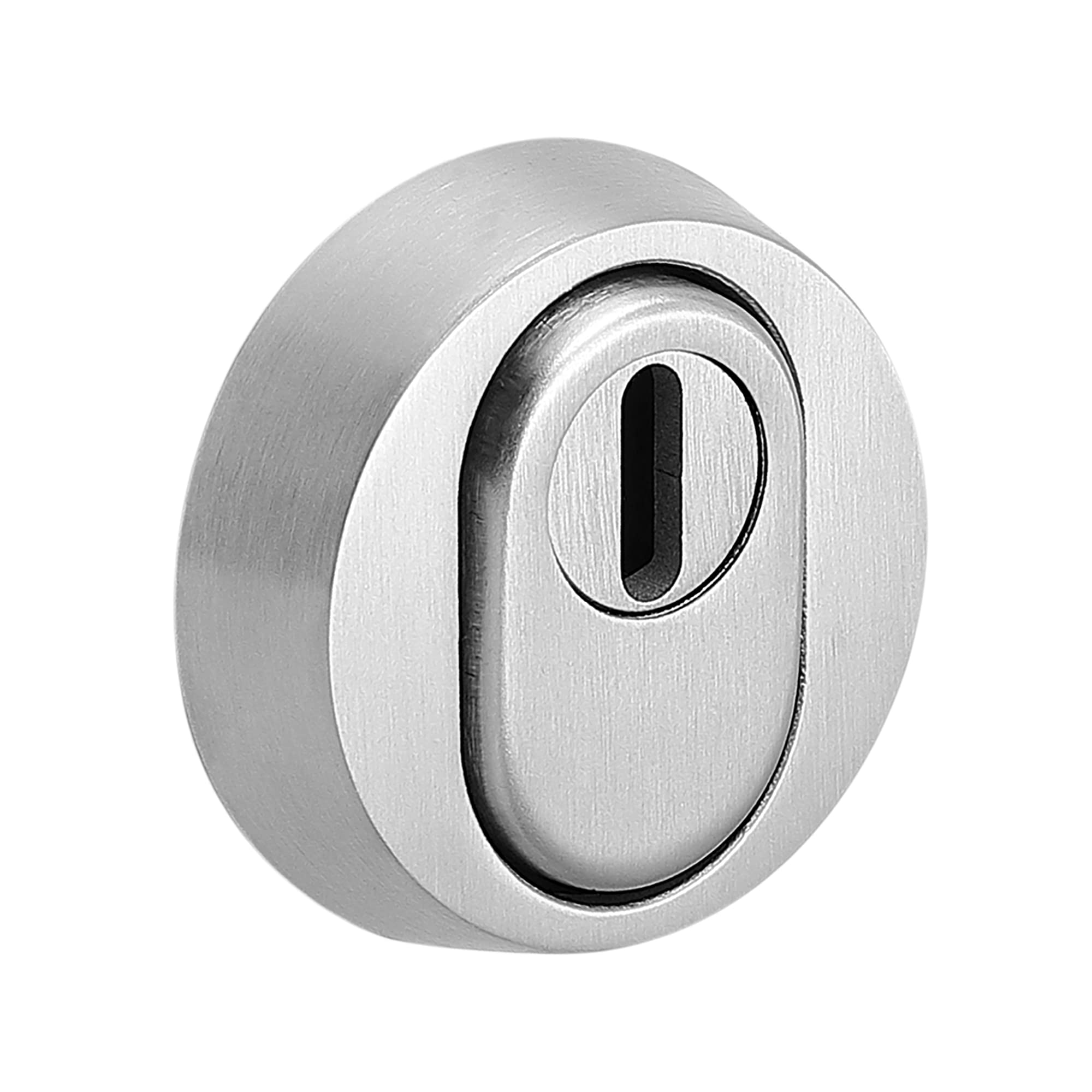

Protective Door Lock Rosette | ES1 (WK2) with fire protection Certified Stainless Steel V2a Matt | Core Cylinder Protection

• ES1 + FS certified in accordance with DIN 18257 and DIN 18273 so approved for WK2 + FS doors.
• Material: V2A stainless steel Matt; for cylinder overhang from 8 to 15 mm

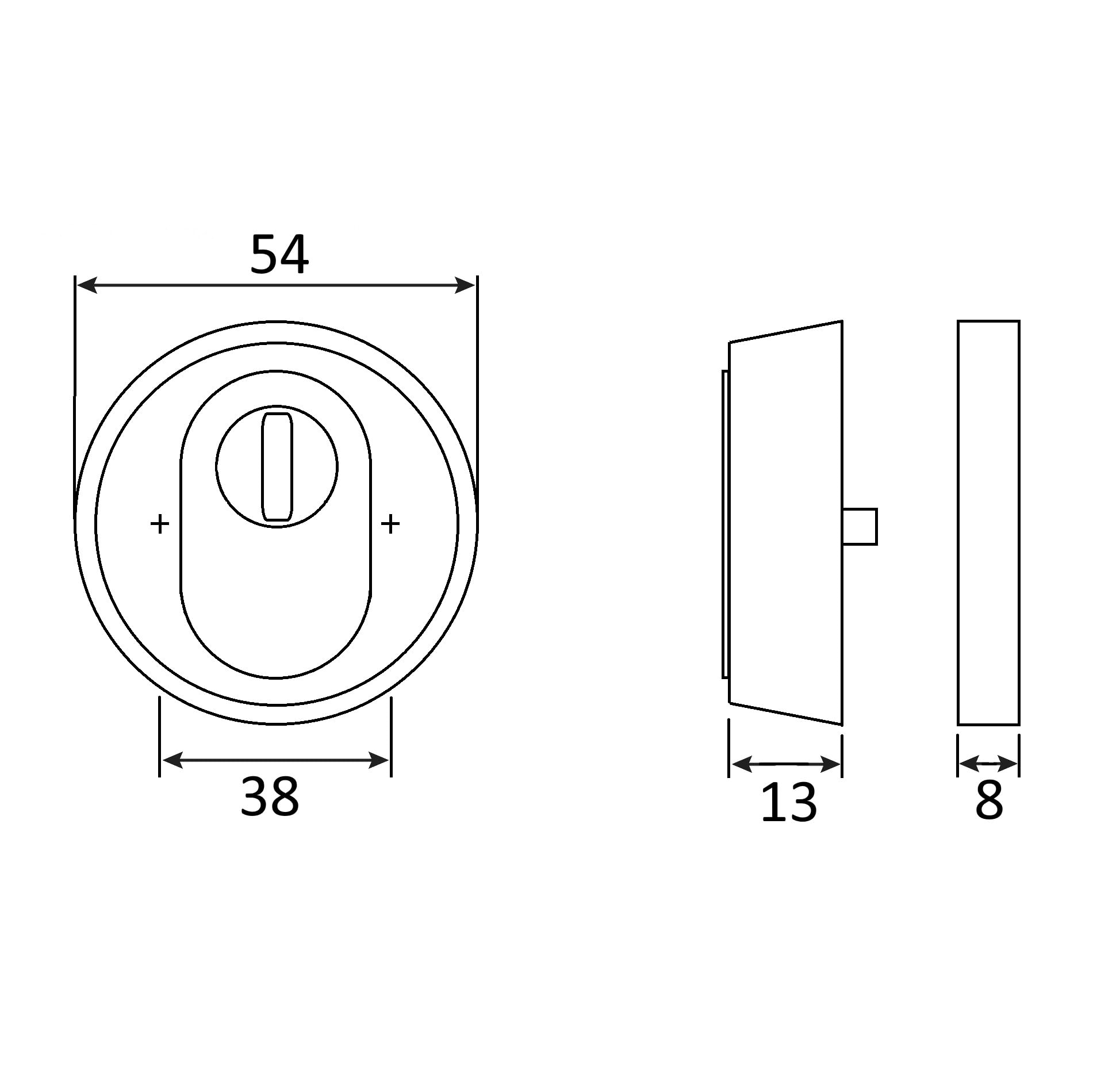

• Height External rosette: 13.5 mm, Height: Inner 7 mm.
• Screw Hole Spacing: 38 mm, Diameter Rosettes: 53 mm
• Fits all door thicknesses, with two thread screws M5 x 50 mm and M5 x 70 mm

Features: - For Cylinders which protrude by 8 to 15 mm; Metal Inner Rosette - Diameter 53 mm, can be used for all door thicknesses but with only two set screws M5 x 50 mm, – M5 X 70 MM - Cut-out with hole approx. 15.9 mm
